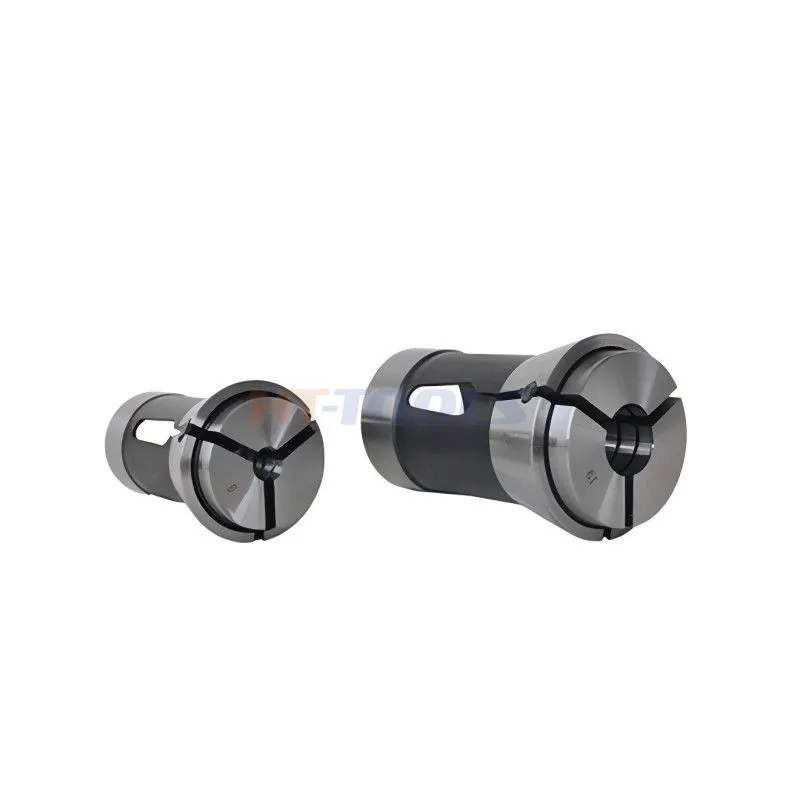

DIN 6343 Clamping Collet: Complete Guide for Precision Machining Applications

In precision machining, stable clamping, repeatable accuracy, and high concentricity are non-negotiable. The DIN 6343 clamping collet is a widely adopted standard solution designed specifically for these requirements. It is commonly used in CNC lathes, turning centers, and high-precision tooling systems across multiple industries.

This guide provides a comprehensive overview of DIN 6343 collets, covering structure, working principles, advantages, applications, material options, and key selection considerations—helping buyers, engineers, and procurement teams make informed decisions.

What Is a DIN 6343 Clamping Collet?

A DIN 6343 clamping collet is a standardized collet system defined by the German DIN 6343 specification. It is primarily designed for external clamping of cylindrical workpieces and is widely used in turning operations.

Unlike ER collets that focus on tool holding, DIN 6343 collets are optimized for workpiece clamping, offering:

High radial gripping force

Excellent concentricity

Secure holding under heavy cutting loads

These collets are usually installed in collet chucks or drawbar systems on CNC lathes.

DIN 6343 Standard Overview

The DIN 6343 standard defines critical parameters such as:

Outer diameter and length

Taper geometry

Clamping range

Slot design for uniform force distribution

By following this standard, DIN 6343 collets ensure interchangeability and compatibility across different machine tool brands and collet chuck manufacturers.

This standardization makes DIN 6343 collets especially attractive for global buyers and OEMs seeking consistent quality and supply stability.

Key Features of DIN 6343 Clamping Collets

High Clamping Accuracy

DIN 6343 collets deliver excellent concentricity, typically within a few microns, which is essential for precision turning and secondary operations.

Strong and Uniform Gripping Force

The slotted design allows even pressure distribution around the workpiece, reducing deformation and slippage during machining.

Repeatable Performance

Once set up, these collets provide consistent clamping results across batch production, improving dimensional repeatability.

Robust Structure for Heavy Cutting

Designed to withstand high torque and cutting forces, DIN 6343 collets are suitable for roughing and finishing operations alike.

Common Applications of DIN 6343 Collets

DIN 6343 clamping collets are widely used in industries that demand precision and productivity, including:

CNC turning and lathe machining

Automotive component manufacturing

Aerospace precision parts

Hydraulic and pneumatic fittings

Shaft, pin, and sleeve production

High-volume serial machining

They are especially effective for round workpieces where fast loading and reliable centering are required.

DIN 6343 Collet Sizes and Clamping Ranges

DIN 6343 collets are available in a wide range of sizes to accommodate different workpiece diameters. Each collet typically offers a limited clamping range, ensuring optimal gripping force and accuracy.

For best results, it is recommended to select a collet whose nominal diameter closely matches the workpiece size, rather than relying on maximum expansion or compression.

Materials and Surface Treatments

Common Materials

High-quality DIN 6343 collets are usually manufactured from:

High-grade alloy steel

Hardened spring steel

These materials provide a balance of elasticity, wear resistance, and long service life.

Heat Treatment

Precision heat treatment improves:

Hardness and fatigue resistance

Elastic recovery

Dimensional stability

Surface Finishing

Optional surface treatments such as black oxide, polishing, or coating help improve corrosion resistance and reduce friction during clamping.

DIN 6343 vs Other Collet Types

Compared to ER collets or 5C collets, DIN 6343 collets offer:

Better suitability for workpiece clamping

Higher gripping force for turning operations

Improved stability under axial loads

While ER collets excel in tool holding, DIN 6343 collets are often the preferred choice for lathe-based production environments.

How to Choose the Right DIN 6343 Clamping Collet

When selecting a DIN 6343 collet, consider the following factors:

Workpiece diameter and tolerance

Required concentricity

Cutting forces and spindle speed

Machine compatibility and chuck system

Production volume and changeover frequency

Choosing the correct size and material specification will significantly improve machining accuracy and tool life.

Maintenance and Service Life Tips

Proper maintenance helps extend the lifespan of DIN 6343 collets:

Clean collets regularly to remove chips and coolant residue

Avoid over-tightening beyond recommended limits

Inspect slots and clamping surfaces for wear

Replace collets showing loss of elasticity or accuracy

Well-maintained collets contribute directly to consistent machining quality and reduced downtime.

Custom DIN 6343 Collet Solutions

For specialized applications, many manufacturers offer custom DIN 6343 collets, including:

Non-standard diameters

Special slot configurations

Custom hardness or coatings

Application-specific tolerances

Custom solutions are ideal for OEMs and high-volume production lines with unique clamping requirements.

Why DIN 6343 Clamping Collets Matter in Modern Machining

As CNC machining continues to evolve toward higher precision and efficiency, reliable clamping solutions play a critical role. DIN 6343 clamping collets remain a trusted choice due to their standardization, performance consistency, and adaptability across industries.

For manufacturers seeking stable quality and scalable production, DIN 6343 collets offer a proven and cost-effective solution.
