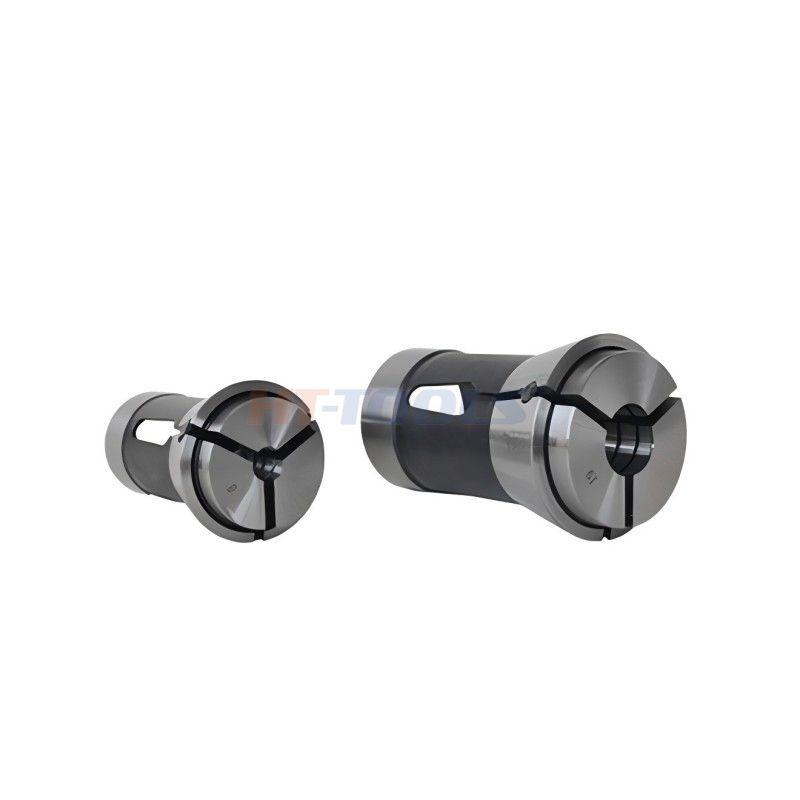

DIN6343 Clamping Collet

The DIN6343 Clamping Collet is a standardized, high-precision workholding component designed according to DIN 6343 German Industrial Standards, ensuring reliable performance, interchangeability, and accuracy in CNC machining, turning, and grinding operations. Known for its robust construction and exceptional concentricity, this collet provides stable clamping force, excellent repeatability, and extended tool life — making it an essential component in modern metalworking and manufacturing industries.

What is a DIN6343 Clamping Collet?

A DIN6343 collet is a precision-engineered clamping device used to securely hold round, hexagonal, or square workpieces during machining. It is typically used with collet chucks, spindles, or clamping sleeves in CNC lathes, milling machines, and grinding centers. Each collet is designed to meet the strict dimensional and performance standards defined by DIN 6343, ensuring compatibility and interchangeability with global machine tool systems.

Key Features and Benefits

High Precision and Concentricity – Manufactured with fine-tolerance machining, the DIN6343 collet guarantees a high level of concentricity, typically within 0.01 mm, ensuring accurate part alignment during machining.

Durable Construction – Made from hardened spring steel or alloy steel, it delivers superior wear resistance, elasticity, and fatigue strength, even under high-speed clamping conditions.

Excellent Clamping Force – Provides uniform radial force distribution to securely grip workpieces, minimizing vibration and slippage during operation.

Standardized Design (DIN 6343) – Ensures universal compatibility across collet chucks and clamping systems that follow DIN specifications, reducing setup time and enhancing production flexibility.

Wide Clamping Range – Suitable for round, hex, or square bars in various sizes, ideal for both automated and manual clamping applications.

Maintenance-Free Operation – Simple structure, corrosion-resistant surface treatment, and low friction design ensure long service life and minimal maintenance.

Applications

The DIN6343 Clamping Collet is extensively used in:

CNC turning centers – For accurate and stable clamping of shafts, rods, and cylindrical workpieces.

Milling and drilling machines – To hold components securely during high-speed or precision machining.

Grinding applications – For fine finishing and surface polishing where precise concentricity is essential.

Automatic lathes and bar feeders – Ideal for mass production and continuous machining operations.

Measurement and testing setups – Used in metrology and quality control systems for component holding.

Technical Advantages

High repeatability – Maintain consistent workpiece positioning during repeated clamping cycles.

Reduced tool wear – Stable holding minimizes vibration and improves tool cutting efficiency.

Quick changeover – Enables fast replacement and adjustment, improving overall machining productivity.

Energy efficiency – Optimized clamping force reduces spindle load and machine wear.

Available Types of DIN6343 Collets

Round collet (DIN6343-R) – Designed for cylindrical workpieces.

Hexagonal collet (DIN6343-H) – Ideal for hex bar stock machining.

Square collet (DIN6343-S) – For square-shaped workpieces or special applications.

Custom types – Optional designs for non-standard shapes or materials upon request.

Material and Surface Treatment

High-grade spring steel (C45 or 65Mn) ensures durability, elasticity, and precision. Many DIN6343 collets are heat-treated, precision-ground, and finished with black oxide or nickel plating for corrosion resistance and long-term stability.

Why Choose a DIN6343 Clamping Collet?

Fully compliant with DIN 6343 standard

Compatible with top CNC and turning equipment brands

Offers long service life, minimal runout, and high gripping power

Available in multiple sizes and styles for diverse machining requirements

Customization and OEM Service

Many manufacturers offer customized DIN6343 collets based on material type, clamping diameter, or machine brand. OEM and ODM services are also available for specific industrial applications such as precision automotive parts, aerospace components, or high-speed spindle systems.

Conclusion

The DIN6343 Clamping Collet represents a perfect combination of German precision, reliability, and adaptability. Its standardized design, exceptional accuracy, and durable construction make it indispensable for any CNC or turning workshop. Whether for small batch production or high-volume automation, the DIN6343 collet ensures consistent clamping performance, higher productivity, and superior machining results.
