Difference Between ER Collets and 5C Collets: A Complete Machining Guide

When it comes to precision machining and workholding, collets play a critical role in accuracy, efficiency, and surface quality. Among the most widely used collet systems, ER collets and 5C collets dominate CNC machining centers, lathes, and milling setups worldwide.

Although both serve the same fundamental purpose—securely holding tools or workpieces—their design, application, accuracy, flexibility, and cost differ significantly. Understanding these differences is essential for machinists, manufacturers, and procurement professionals choosing the right collet system for their production needs.

This guide provides a deep, practical comparison of ER collets vs 5C collets, helping you make an informed decision for your workshop or factory.

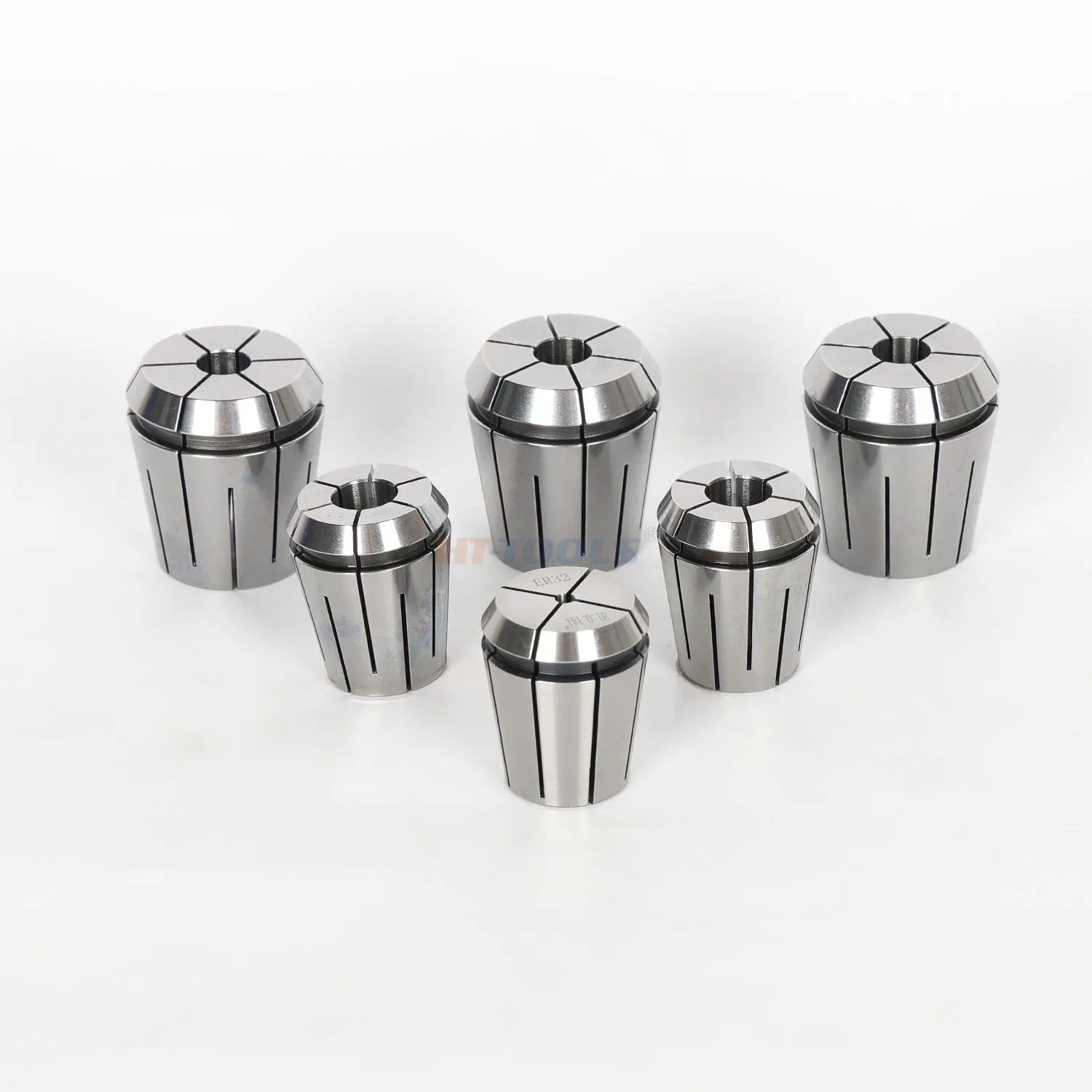

What Is an ER Collet?

ER collets are a versatile tool-holding system commonly used in CNC milling machines, drilling machines, and machining centers. Developed in Europe, the ER system has become an international standard due to its flexibility and wide clamping range.

Key Characteristics of ER Collets

ER collets are designed with multiple slits around the body, allowing them to compress evenly. Each ER collet can hold tools within a specific size range, typically offering a 1 mm (or 1/16 inch) clamping range.

Common ER series include:

ER16

ER20

ER25

ER32

ER40

Each size corresponds to the collet’s outer diameter and maximum tool capacity.

Typical ER Collet Applications

CNC milling machines

Drilling and tapping operations

Tool holding for end mills, drills, reamers

High-speed machining applications

ER collets are especially popular where tool changes are frequent and flexibility is required.

What Is a 5C Collet?

5C collets are a traditional workholding solution primarily used on lathes, grinders, and indexing fixtures. Unlike ER collets, which mainly hold tools, 5C collets are designed to hold workpieces.

Key Characteristics of 5C Collets

5C collets have a rigid cylindrical body with fewer slots and are pulled into a tapered collet nose by a drawbar. Each 5C collet is made for one specific size, offering extremely high concentricity and repeatability.

Standard 5C collets typically hold:

Round stock

Hex stock

Square stock

Specialty 5C collets are also available for step collets, expanding collets, and custom profiles.

Typical 5C Collet Applications

CNC and manual lathes

Precision grinding

Indexing heads and rotary tables

High-volume turning operations

5C collets excel in repeat production and high-precision workholding.

ER Collets vs 5C Collets: Core Differences Explained

1. Purpose: Tool Holding vs Work Holding

The most fundamental difference lies in what they hold.

ER collets are optimized for tool holding, making them ideal for milling, drilling, and tapping.
5C collets are optimized for workpiece holding, especially in turning and grinding operations.

This distinction alone often determines which system is appropriate.

2. Clamping Range and Flexibility

ER collets offer a wide clamping range, meaning one collet can hold multiple tool diameters. This significantly reduces tooling inventory and changeover time.

5C collets have little to no clamping range. Each collet fits one precise size, which improves rigidity and accuracy but reduces flexibility.

For workshops handling many tool sizes, ER collets provide better adaptability.
For dedicated production runs, 5C collets deliver superior consistency.

3. Accuracy and Concentricity

5C collets are known for exceptional concentricity and repeatability, often achieving runout within microns when properly maintained. This makes them ideal for precision turning and grinding.

ER collets offer excellent accuracy as well, but their flexibility can introduce slightly more runout compared to high-quality 5C systems, especially at maximum clamping range.

In short:

Choose 5C collets for maximum precision in workholding

Choose ER collets for reliable precision in tool holding

4. Machine Compatibility

ER collets are commonly used with:

CNC machining centers

Milling spindles

Tool holders such as ER chucks

5C collets are typically used with:

Lathes

Collet closers and drawbars

Indexers and grinders

Most machining centers are designed around ER systems, while lathes often favor 5C configurations.

5. Setup and Changeover Efficiency

ER collets allow fast tool changes, especially when paired with preset tool holders. This is a major advantage in job shops and CNC environments where downtime impacts productivity.

5C collets, while not slow, require drawbar engagement and are more commonly used in repeat production where setups remain unchanged for long periods.

6. Cost and Inventory Considerations

From a procurement perspective:

ER collets reduce overall inventory because fewer collets cover a wide range of tool sizes.
5C collets require a larger inventory if many sizes are used, but each collet is relatively simple and durable.

For buyers focused on cost efficiency and flexibility, ER collets often provide better value.
For buyers focused on precision and consistency, 5C collets justify the investment.

When to Choose ER Collets

ER collets are the better choice if:

You run CNC milling or drilling operations

Tool sizes change frequently

You want lower tooling inventory

You need compatibility across multiple machines

They are ideal for job shops, contract manufacturers, and multi-product production lines.

When to Choose 5C Collets

5C collets are the better choice if:

You perform turning or grinding operations

You need ultra-high concentricity

You run long production batches

You work with bar stock and repeat parts

They are widely used in automotive, aerospace, and precision component manufacturing.

ER Collets and 5C Collets in Modern Manufacturing

In many professional workshops, ER and 5C collets are not competitors but complements. ER collets handle tool holding in milling centers, while 5C collets manage workholding on lathes and grinders.

Understanding their differences allows manufacturers to:

Improve machining accuracy

Reduce setup time

Optimize tooling costs

Increase overall production efficiency

Final Thoughts

The difference between ER collets and 5C collets goes far beyond shape or size. It affects machining accuracy, workflow efficiency, cost control, and production scalability.

Choosing the right collet system depends on:

Machine type

Operation requirements

Precision expectations

Production volume

By matching the collet system to your actual machining needs, you can achieve better performance, longer tool life, and more consistent results.
