DIN6499B ER collets
Product Name:ER Spring Collet
Material : 65Mn
Usage:Milling Drilling
Accuracy:0.005mm 0.008mm 0.015mm
Standard :DIN6499B ER Collets Chuck
Clamping range :1-34mm
Type :ER8 ER11 ER16 ER20 ER25 ER32 ER40
Color :Silver Grey
Service :OEM
Inspection:100% Inspection

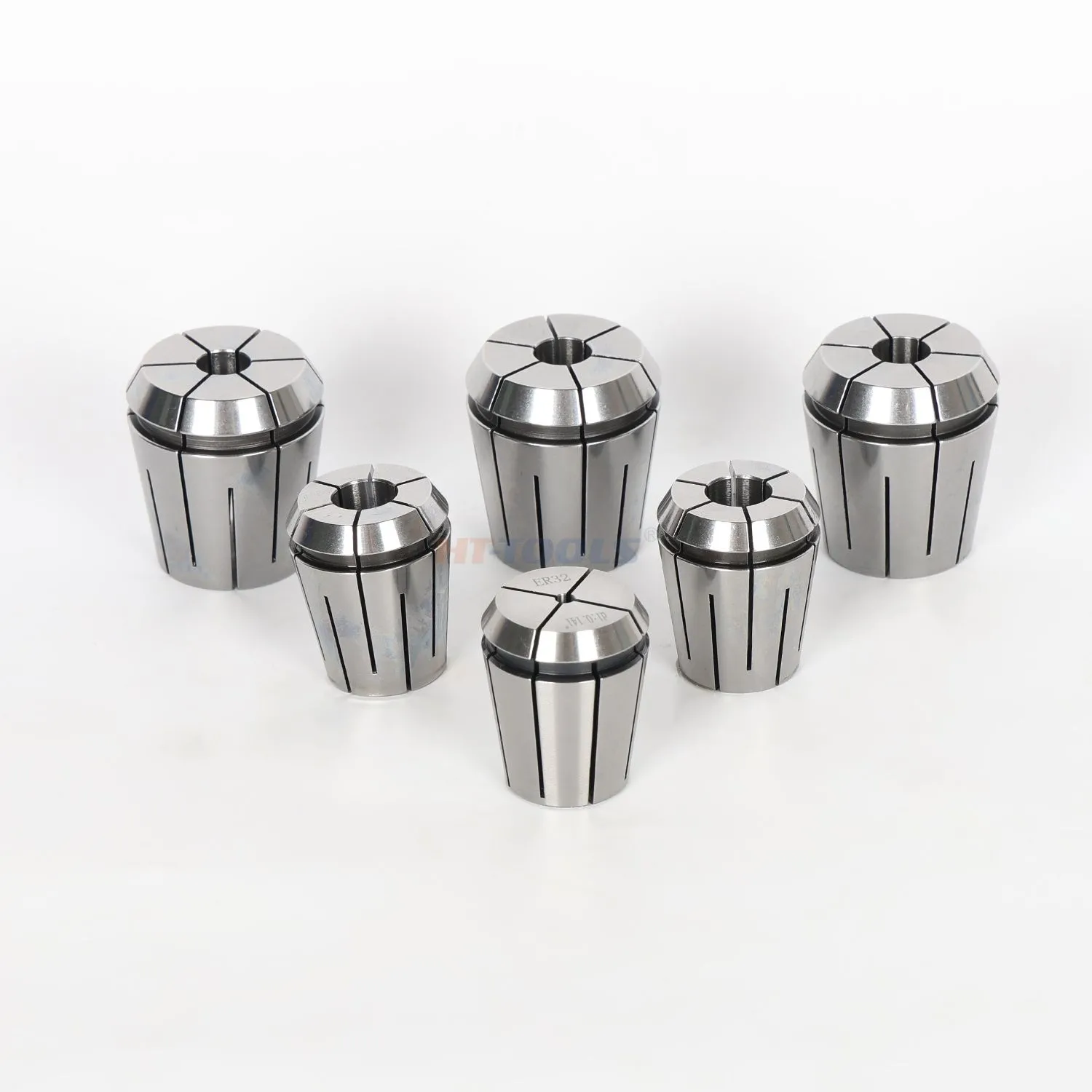

ER Collet
1. Made of special elastic steel material
2. Power clamping ability, precise accuracy
3. Used for boring, milling, drilling, tapping, grinding and engraving operationetc.

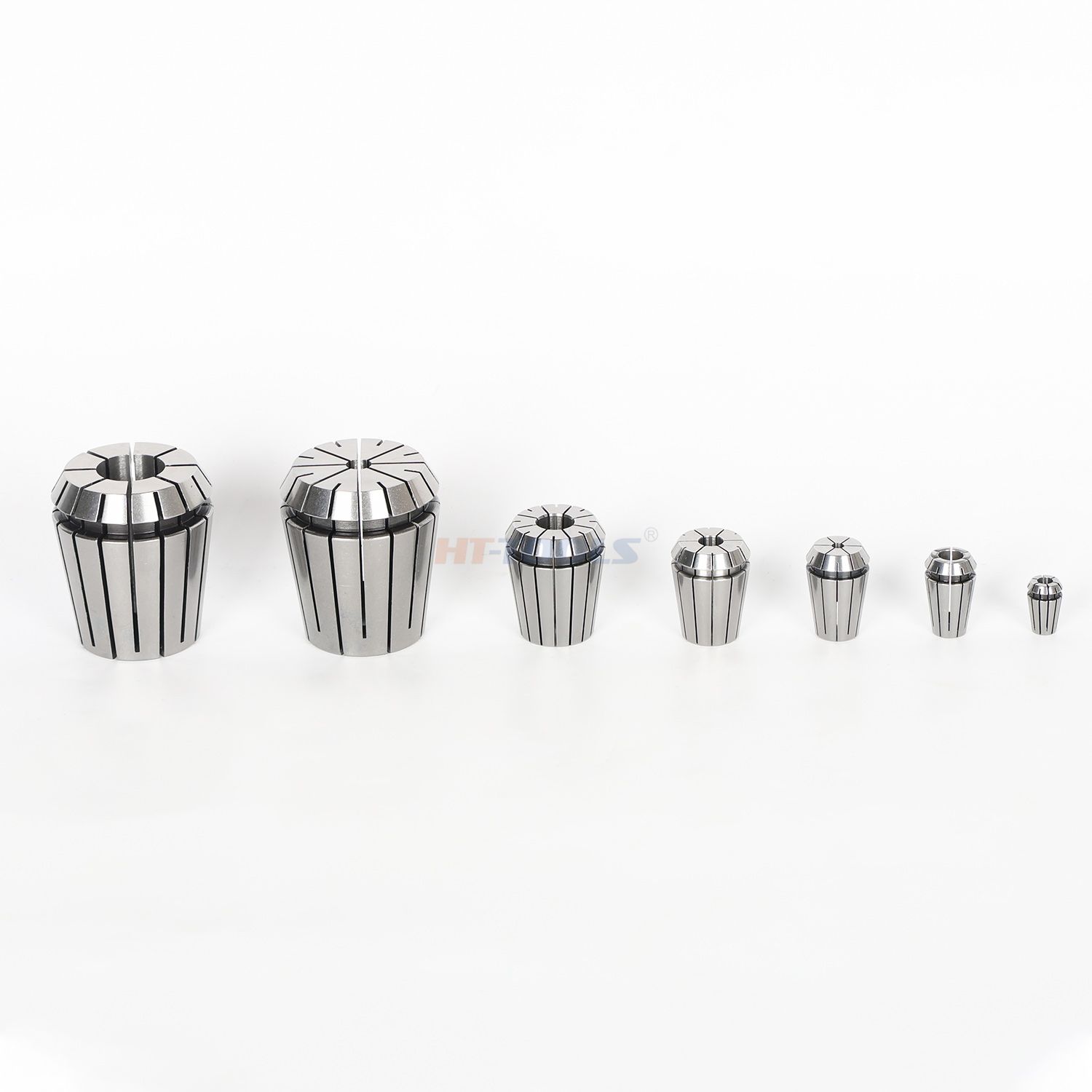

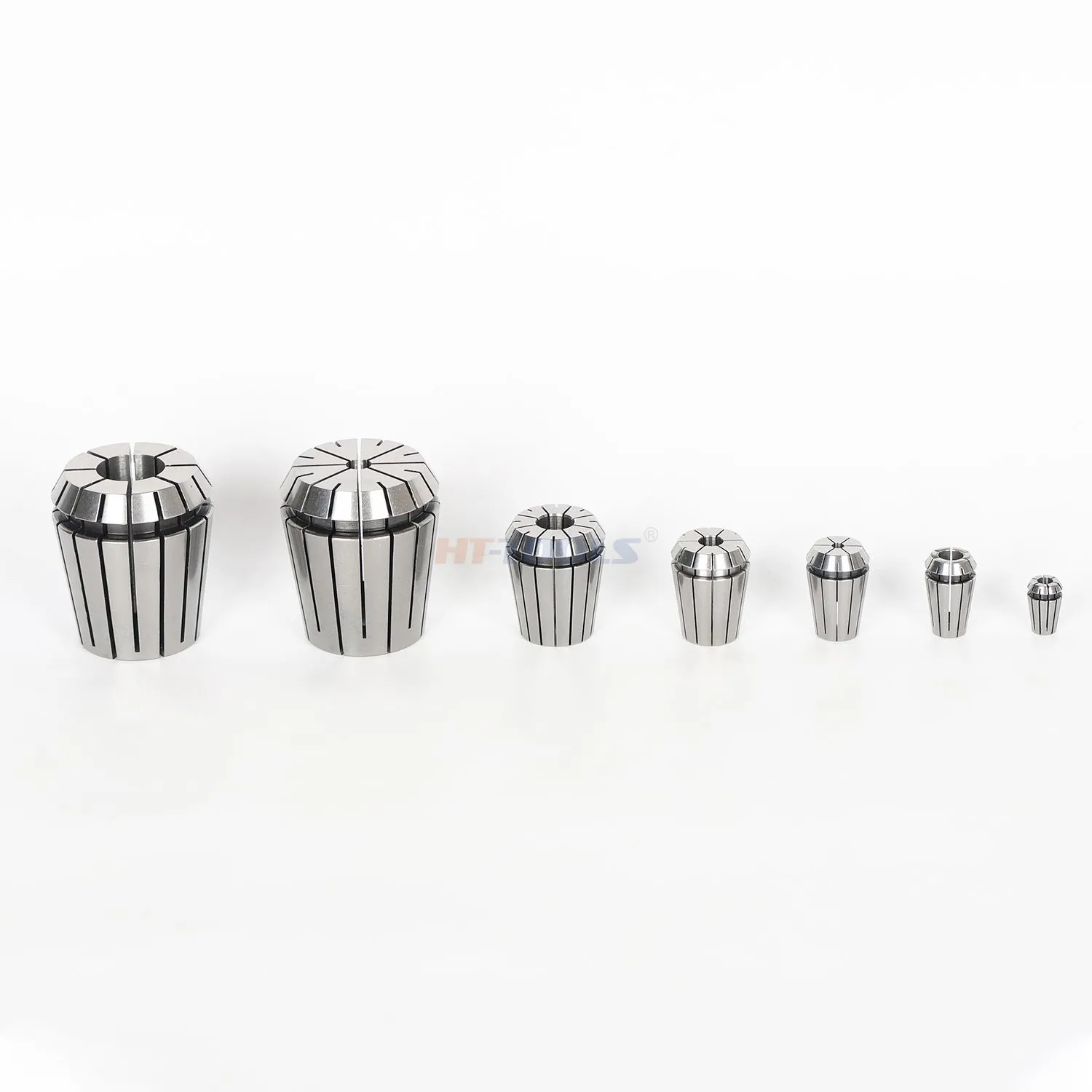

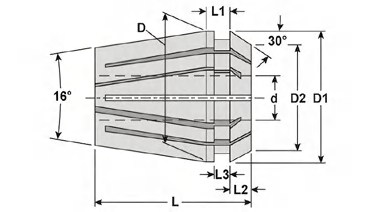

| HT-0001 | ER SERIES COLLETS WITH STANDARD DIN6499B | ||||||||
| Model | d H7 | D | D1 | D2 | L | L1 | L2 | L3 | Collapsible capacity |
| ER8 | ≥1.0-5.0 | 8 | 8.45 | 6.5 | 13.5 | 2.98 | 1.5 | 1.2 | 0.5 |
| ER11 | ≥1.0-7.0 | 11 | 11.5 | 9.5 | 18.0 | 3.8 | 2.5 | 2.0 | 0.5 |
| ER16 | ≥1.0-2.5 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 0.5 |
| >2.5-10.0 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 1.0 | |
| ER20 | ≥1.0-2.5 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 0.5 |
| >2.5-13.0 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 1.0 | |
| ER25 | ≥1.0-2.5 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 0.5 |
| >2.5-16.0 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 1.0 | |
| ER32 | ≥2.0-2.5 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 0.5 |
| >2.5-20.0 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 1.0 | |
| ER40 | ≥3.0-26.0 | 40 | 41 | 36.2 | 46.0 | 7.66 | 7.0 | 4.1 | 1.0 |
| ER50 | ≥6.0-10.0 | 50 | 52 | 46.0 | 60.0 | 12.6 | 8.5 | 5.5 | 1.0 |
| >10.0-34.0 | 50 | 52 | 46.0 | 60.0 | 12.6 | 8.5 | 5.5 | 2.0 | |
Other Products

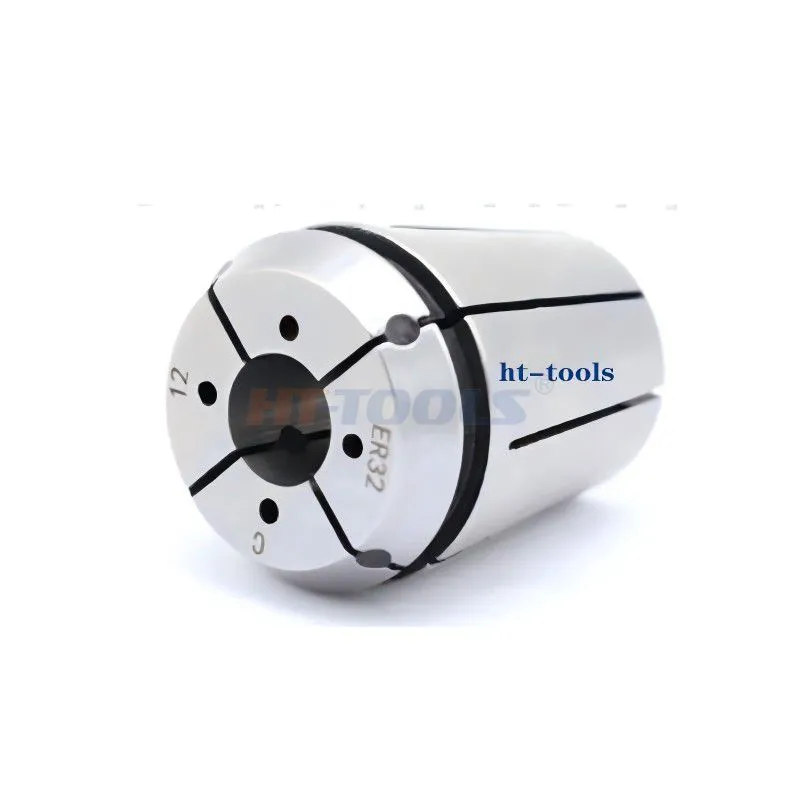

The collet does not have an elastic shrinkage range, emphasizing the clamping force
This unit is used for boring,milling,drilling,tapping,grinding and engraving operation etc.
Type: EOC16B EOC20B EOC25B EOC32B EOC40B EOC50B This unit is used for boring,milling,drilling,tapping,grinding and engraving operation etc.
5c Collet Square Hex 5C Collet Chuck For Lathe
This unit is applicable to all sorts of lathes, which spindle taper hole is 5C, such as automatic lathes, CNC lathes etc.
