Choosing CNC Machine Collets for CNC Lathes: A Complete Guide

For modern machining, CNC lathes are only as effective as the components that hold your tools and workpieces in place. Among these, CNC machine collets play a critical role in ensuring precision, stability, and efficiency. Choosing the right collet can significantly improve machining accuracy, reduce tool wear, and boost production output.

What Are CNC Machine Collets?

A CNC machine collet is a cylindrical sleeve that grips a cutting tool or workpiece tightly when inserted into a CNC lathe spindle. It functions as the interface between the spindle and the tool, ensuring high concentricity and minimal runout.

Key characteristics of CNC collets include:

High Precision – Maintains alignment with spindle axis for accurate machining.

Durable Construction – Usually made of high-strength steel or alloy to withstand repetitive stress.

Versatility – Supports different shank diameters with various collet types.

Quick Tool Changes – Designed for easy insertion and removal to improve operational efficiency.

Types of CNC Collets

Selecting the correct collet type is crucial for achieving precision and stability. Common collets used in CNC lathes include:

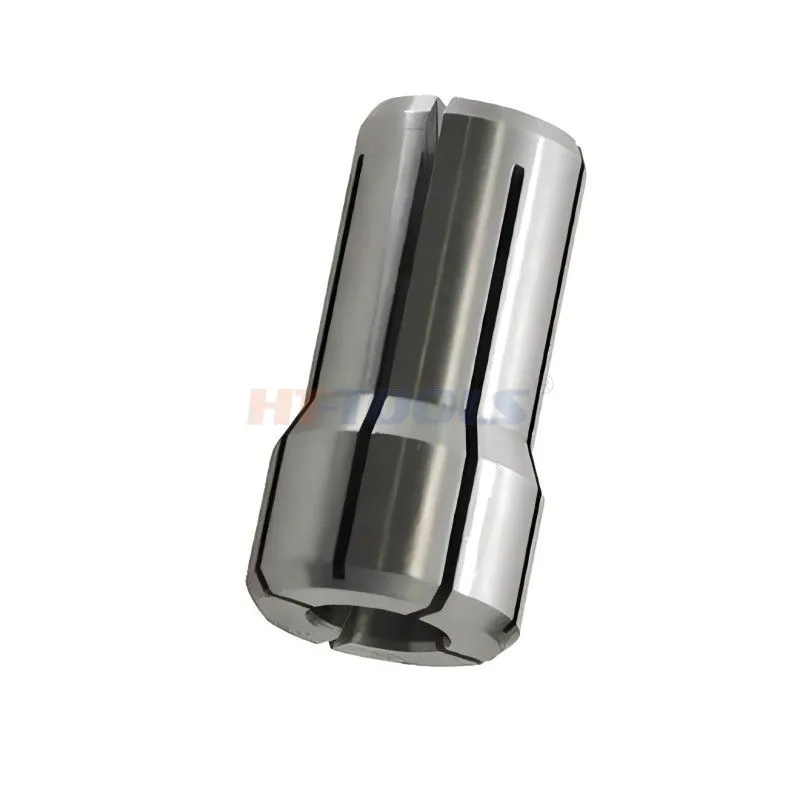

DA Collets

Ideal for milling and turning applications.

High gripping force and concentricity.

Compatible with various shank sizes.

ER Collets

Most widely used for CNC lathes and milling machines.

Flexible clamping range (usually 1 mm difference from nominal size).

Excellent for high-speed machining.

R8 Collets

Common in smaller CNC milling machines.

Good for light-duty workpieces and finishing operations.

DA/DB/BT Collets

Used for heavier-duty CNC lathes.

High torque capacity and robust design for long production runs.

How to Choose the Right CNC Collet

1. Match the Collet to Tool Shank

The first step is ensuring the collet matches the tool shank diameter. Using a mismatched collet can lead to poor grip, runout, and tool damage. Always check the manufacturer’s specifications for both collet and tool compatibility.

2. Consider Precision Requirements

High-precision parts require collets with minimal runout, typically below 0.01 mm. For applications like cylindrical facing, boring, or high-speed drilling, high-precision collets ensure smooth finishes and tight tolerances.

3. Evaluate Material and Hardness

Collets are subjected to high torque and repeated cycles. Hardened steel or alloy steel collets offer long service life, better wear resistance, and less deformation under stress.

4. Factor in Speed and Torque

High-speed operations require collets that maintain concentricity at high RPM. Heavy-duty turning may require collets designed to handle higher torque without slipping.

5. Quick Change Capability

If your workshop involves frequent tool changes, a collet system that allows fast installation and removal will reduce downtime and improve productivity.

Benefits of Using the Right CNC Collets

Improved Machining Accuracy – Proper collets reduce runout, ensuring precise cuts and consistent surface finish.

Extended Tool Life – Secure gripping prevents vibrations that wear out cutting tools prematurely.

Increased Production Efficiency – Quick-change collets reduce setup times in high-volume operations.

Versatility – A reliable collet system allows use with multiple tool types and diameters.

Common Mistakes to Avoid

Using Worn or Low-Quality Collets – Leads to tool slippage and poor finishes.

Incorrect Shank-Collet Pairing – Causes excessive runout and spindle damage.

Ignoring Maintenance – Collets should be cleaned and lubricated regularly to maintain performance.

Conclusion

Selecting the right CNC machine collet for your lathe is not just about holding a tool in place—it directly affects machining accuracy, productivity, and tool life. By understanding collet types, matching them to your tools, and considering precision, material, and speed, you can optimize your CNC operations and achieve consistently high-quality results.

Investing in high-quality CNC collets is a small step that yields massive benefits in efficiency and machining performance.
