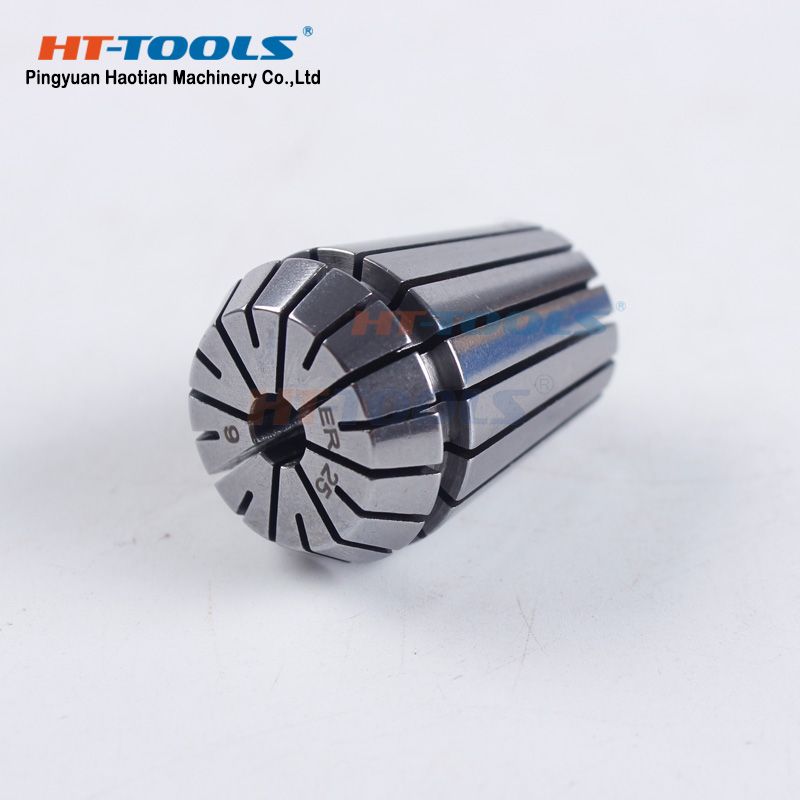

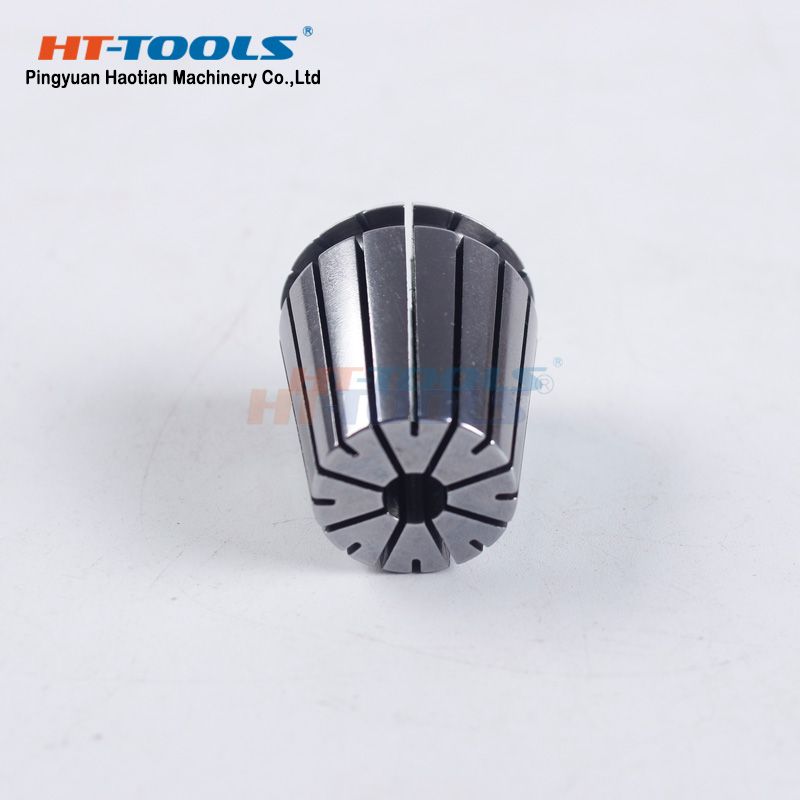

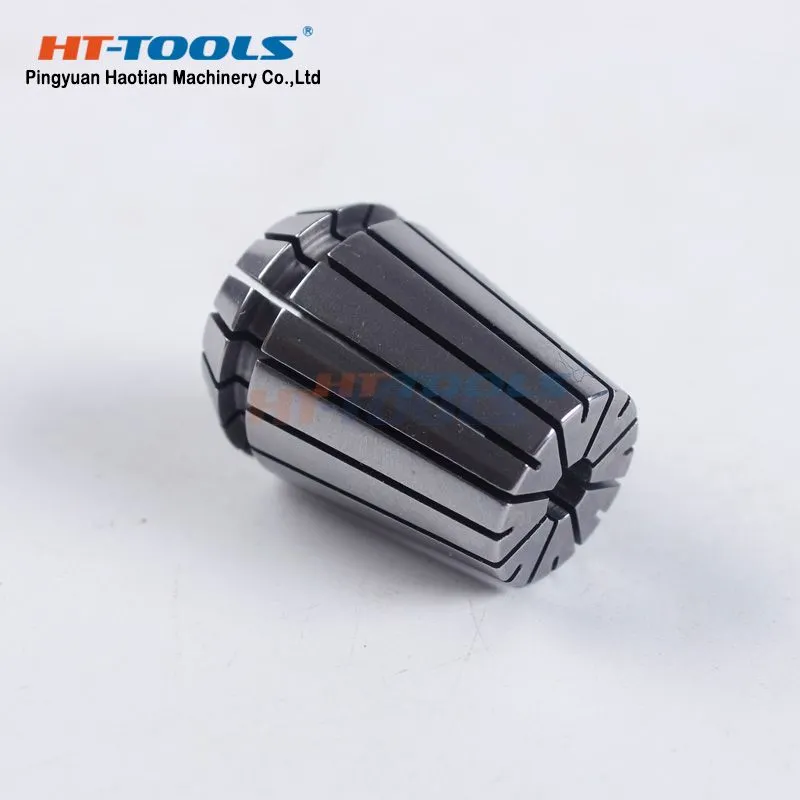

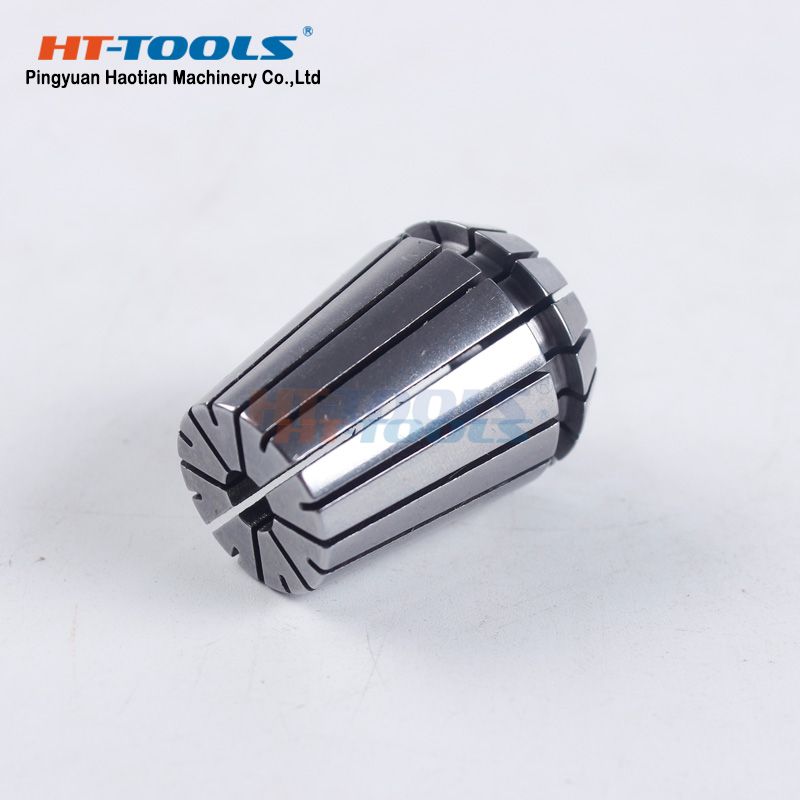

DIN6499B ER Collets

Product Name: ER Spring Collet

Material: 65Mn

Usage: Milling Drilling

Accuracy: 0.005mm 0.008mm 0.015mm

Standard: DIN6499B ER Collets Chuck

Clamping range: 1-34mm

Type: ER8 ER11 ER16 ER20 ER25 ER32 ER40

Color: Silver Grey

Service: OEM

Inspection: 100% Inspection


1. Made of special elastic steel material

2. Power clamping ability, precise accuracy

3. Used for boring, milling, drilling, tapping, grinding and engraving operation etc.


Mounting instruction for ER collets and nuts

1. Put the collet into the nut, turn the collet sighly, pust it into the nut at the offered direction evenly, When the offset flange into the undercut of the collet.

2. Fix the nut and the collet on the spindle rotate the nut until the collet is in pressing. Wipe the straight shank of cutter, and insert it into the pilot hole, Tighten the unt with a wrench till the cutter is clamped heavily (Caution: never tighten the nut without cutter in it for it will break).

3. When changing the tool, Loosen the nut and it shall bring out the collet and the cutter together, and then draw the cutter out push out slightly the collet in the offered direction, it shall be ready for any change of the cutter.

Product Details


DIN6499B ER Collets

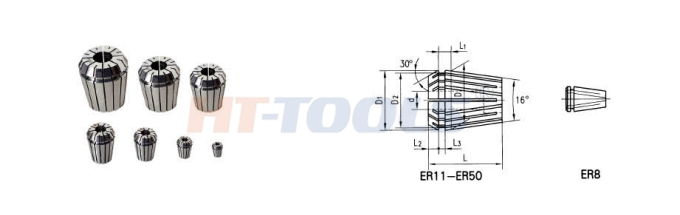

HT-0001ER SERIES COLLETS WITH STANDARD DIN6499B
Modeld H7DD1D2LL1L2L3Collapsible capacity
ER8≥1.0-5.088.456.513.52.981.5 1.2 0.5
ER11≥1.0-7.01111.59.518.0 3.82.5 2.0 0.5
ER16≥1.0-2.5161713.827.56.264.0 2.7 0.5
>2.5-10.0161713.827.56.264.0 2.7 1.0
ER20≥1.0-2.5202117.431.56.364.8 2.8 0.5
>2.5-13.0202117.431.56.364.8 2.8 1.0
ER25≥1.0-2.5252622.0 34.0 6.665.0 3.1 0.5
>2.5-16.0252622.0 34.0 6.665.0 3.1 1.0
ER32≥2.0-2.5323329.240.0 7.165.5 3.6 0.5
>2.5-20.0323329.240.0 7.165.5 3.6 1.0
ER40≥3.0-26.0404136.246.0 7.667.0 4.1 1.0
ER50≥6.0-10.0505246.0 60.0 12.68.5 5.5 1.0
>10.0-34.0505246.0 60.0 12.68.5 5.5 2.0


Inspection of Accuracy
DLRun out toierance
ⅠⅡ
1.0-1.66.00 0.01 0.02
>1.6-3.010.00
>3.0-6.016.00
>6.0-10.025.00
>10.0-18.040.00 0.02 0.02
>18.0-26.050.00
>26.0-30.060.00

>30.0-34.080.00 0.02 0.03



DIN6499B ER Collets for Precision CNC Machining

DIN6499B ER Collets are precision spring collets designed to clamp compatible cutting tools in matching ER collet chucks. Manufactured from elastic spring steel, these collets provide a flexible toolholding solution for CNC milling, drilling, boring, tapping, grinding and engraving operations.

Pingyuan Haotian Machinery Co., Ltd. supplies DIN6499B ER Collets made from 65Mn material, with different ER sizes and accuracy options for industrial machining applications. Selecting the correct collet helps establish secure tool clamping and consistent positioning when the collet, holder and cutting tool are properly matched.

When sourcing DIN6499B ER Collets, buyers should consider the cutting tool shank diameter, required accuracy, collet holder compatibility and operating conditions. These factors help determine the appropriate configuration for the intended machining process.


Key Features of DIN6499B ER Collets

DIN6499B Standard Compatibility

DIN6499B ER Collets are designed for compatible ER collet chuck systems following the applicable standard. Buyers should verify the collet dimensions and interface compatibility with the intended holder before ordering, particularly when replacing existing collets or sourcing components from different suppliers.

Elastic Spring Steel Construction

The listed material for these ER collets is 65Mn spring steel. The elastic slotted structure allows the collet to contract when compressed inside a compatible chuck, gripping the cutting tool shank around its circumference. Correct sizing, proper assembly and routine inspection are important for maintaining reliable clamping performance.

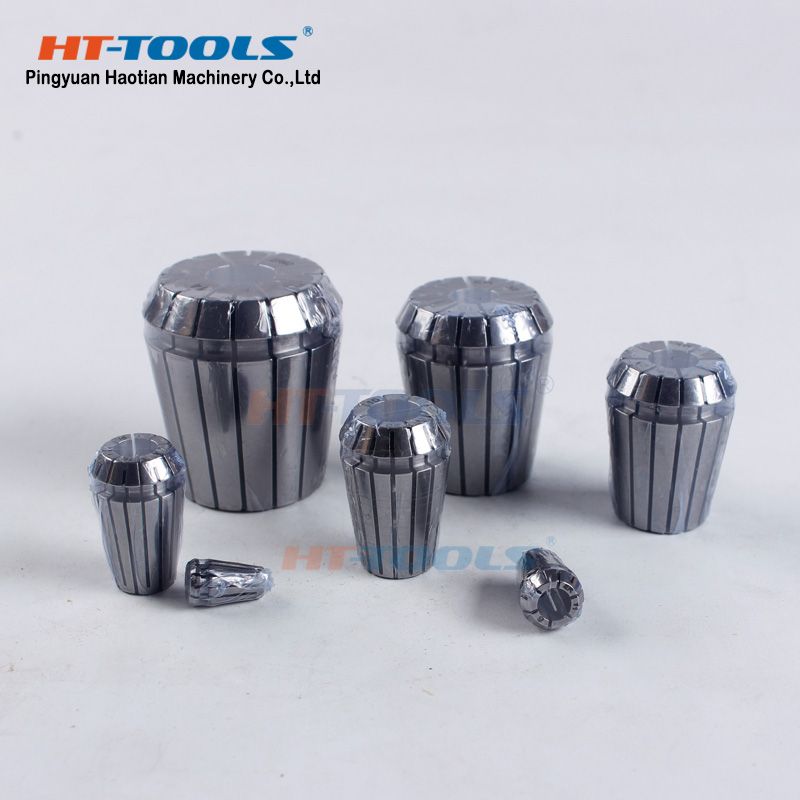

Multiple Clamping Diameters

Different ER collet sizes accommodate different cutting tool shank diameters. This flexibility allows machining workshops to select suitable collets for a range of tools and operations. The required diameter should be confirmed against the dimensional specifications of the selected model rather than estimated from the outside diameter alone.

Multiple Accuracy Options

Accuracy is an important consideration when selecting ER collets for precision machining. The appropriate grade depends on the required machining tolerance, cutting tool and complete toolholding assembly. Buyers should compare the verified runout specifications and measurement conditions for each available option before purchasing.


Applications of DIN6499B ER Collets

CNC Milling

DIN6499B ER Collets can be used in compatible CNC milling toolholders to clamp suitable end mills and other cutting tools. The correct collet size and holder configuration help establish the required tool positioning for contouring, slotting, pocketing and other milling operations.

Drilling and Boring

For drilling and boring operations, collet selection should account for the cutting tool shank diameter, required hole accuracy and machining conditions. Correct clamping and a properly maintained toolholding assembly help support consistent tool positioning during machining.

Tapping and Threading

ER collets can be used in compatible setups for selected tapping applications. Buyers should verify that the toolholder arrangement is appropriate for the tapping process, including any requirements for synchronization or length compensation.

Grinding and Engraving

Compatible ER collet systems can also hold suitable tools for grinding and engraving operations. Tool shank compatibility, runout, tool projection and machine capability are important considerations when machining small features or working to demanding surface-quality requirements.


How to Select the Right DIN6499B ER Collet

1. Match the Collet to the Tool Shank

Start by measuring or confirming the nominal shank diameter of the cutting tool. Select a collet whose specified clamping range accommodates that diameter. Avoid using a collet outside its permitted contraction range, as incorrect sizing can compromise clamping performance and damage the components.

2. Confirm Holder and Nut Compatibility

The collet must be compatible with the ER chuck and clamping nut. Verify the applicable standard, collet size and assembly requirements before installation. A compatible component combination is essential for proper seating and clamping.

3. Evaluate Runout Requirements

Runout can affect cutting-edge engagement, tool wear and machining consistency. Compare the specified accuracy grades against the requirements of the application. Remember that total assembly runout is also influenced by the spindle, holder, cutting tool and assembly condition.

4. Consider the Machining Operation

Milling, drilling, tapping, grinding and engraving place different demands on the toolholding system. Consider the cutting forces, spindle speed, tool projection and workpiece material when selecting a suitable collet and holder combination.

5. Review Quantity and Purchasing Requirements

For production workshops, OEM buyers and industrial distributors, it is useful to confirm the required sizes, order quantities, accuracy specifications and packaging requirements before requesting a quotation. Providing a clear specification helps reduce ordering errors and supports more efficient procurement.


Installation and Maintenance Guidelines

Proper installation and routine maintenance help maintain the performance of DIN6499B ER Collets throughout their service life.

  • Clean the components: Remove chips, dust and other contamination from the collet, holder, nut and cutting tool before assembly.

  • Assemble the collet correctly: Engage the collet with the clamping nut according to the manufacturer's instructions before fitting the assembly to the holder.

  • Insert the cutting tool properly: Follow the recommended tool insertion depth and ensure that the shank is compatible with the collet.

  • Use the recommended tightening procedure: Tighten the assembly according to the holder manufacturer's instructions and specified torque requirements.

  • Inspect components regularly: Check for wear, damage or deformation and replace components when necessary.

Never tighten an ER collet nut without a cutting tool or suitable test shank inserted as required by the manufacturer's instructions. Incorrect assembly can damage the collet and affect subsequent clamping performance.


Why Choose DIN6499B ER Collets from Pingyuan Haotian Machinery Co., Ltd.?

Pingyuan Haotian Machinery Co., Ltd. offers CNC machining accessories, including ER collets and related toolholding products, for industrial customers.

  • Standard-based selection: DIN6499B specifications help buyers identify compatible ER collets for their toolholding systems.

  • Multiple size options: Different ER configurations support a variety of compatible cutting tool diameters.

  • Product inspection: The product listing specifies 100% inspection. Buyers can confirm available inspection records and documentation for their orders.

  • OEM service: OEM requirements can be discussed according to the requested configuration, quantity and order specifications.

For customers comparing different CNC Machine Collet options, the most suitable choice depends on the machine, cutting tool, clamping requirements and machining application.


Industries and Machining Applications

ER collets are used in compatible machining systems across a range of industrial applications. Depending on the cutting tool and machine configuration, they may be suitable for precision component machining, mold and die work, metalworking, engraving and general CNC production.

Explore CNC tooling applications across different industries to understand how machining requirements vary between production environments and why toolholding compatibility matters.


Frequently Asked Questions

What are DIN6499B ER Collets used for?

DIN6499B ER Collets are used in compatible ER toolholding systems for operations such as milling, drilling, boring, tapping, grinding and engraving. The selected collet must match the cutting tool and holder specifications.

What material are these ER collets made from?

The listed material is 65Mn spring steel. Buyers should confirm the material and any additional requirements against the specifications of the product being ordered.

How do I choose the correct ER collet size?

Identify the cutting tool shank diameter and select a collet with a compatible specified clamping range. Also verify the ER size, holder compatibility and required accuracy grade.

What affects ER collet runout?

Runout can be influenced by the collet, chuck, spindle, cutting tool and assembly condition. Clean contact surfaces, compatible components and correct installation help support consistent tool positioning.

Can I request OEM ER collets?

OEM service is listed as available. Provide your required specifications, drawings if applicable, target quantity and any special requirements so that availability and order conditions can be confirmed.
