1. Produced of high quality steel, carburized to surface hardness: HRC58-62.
2. Parallelism 0.005mm/100mm, squareness 0.005mm.

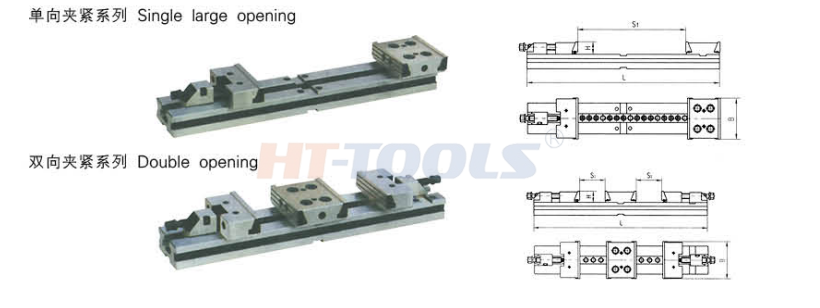

3. It can quickly change from double vise to single vise with very large opening.
4. It is widely used on machining center and precision machine tools.
Product Details

| Order No | S1 | Order No | S2 | B | H | L |
| (mm) | (mm) | (mm) | (mm) | (mm) | ||
| ZQ83100 | 290 | ZQ83100(I) | 2x90 | 100 | 30 | 460 |
| ZQ83125 | 320 | ZQ83125(I) | 2x100 | 125 | 40 | 520 |
| ZQ83150 | 360 | ZQ83150(I) | 2x110 | 150 | 50 | 580 |
| ZQ83150A | 460 | ZQ83150A(I) | 2x160 | 150 | 60 | 680 |
| ZQ83175 | 400 | ZQ83175(I) | 2x120 | 175 | 60 | 666 |
| ZQ83175A | 500 | ZQ83175A(I) | 2x170 | 175 | 60 | 766 |
| ZQ83175B | 600 | ZQ83175B(I) | 2x220 | 175 | 60 | 866 |
| ZQ83175C | 700 | ZQ83175C(I) | 2x270 | 175 | 60 | 966 |
| ZQ83200 | 500 | ZQ83200(I) | 2x150 | 200 | 65 | 805 |
| ZQ83200A | 600 | ZQ83200A(I) | 2x200 | 200 | 65 | 905 |
| ZQ83200B | 700 | ZQ83200B(I) | 2x250 | 200 | 65 | 1005 |
| ZQ83200C | 800 | ZQ83200C(I) | 2x300 | 200 | 65 | 1105 |
| ZQ83200D | 900 | ZQ83200D(I) | 2x350 | 200 | 65 | 1205 |
