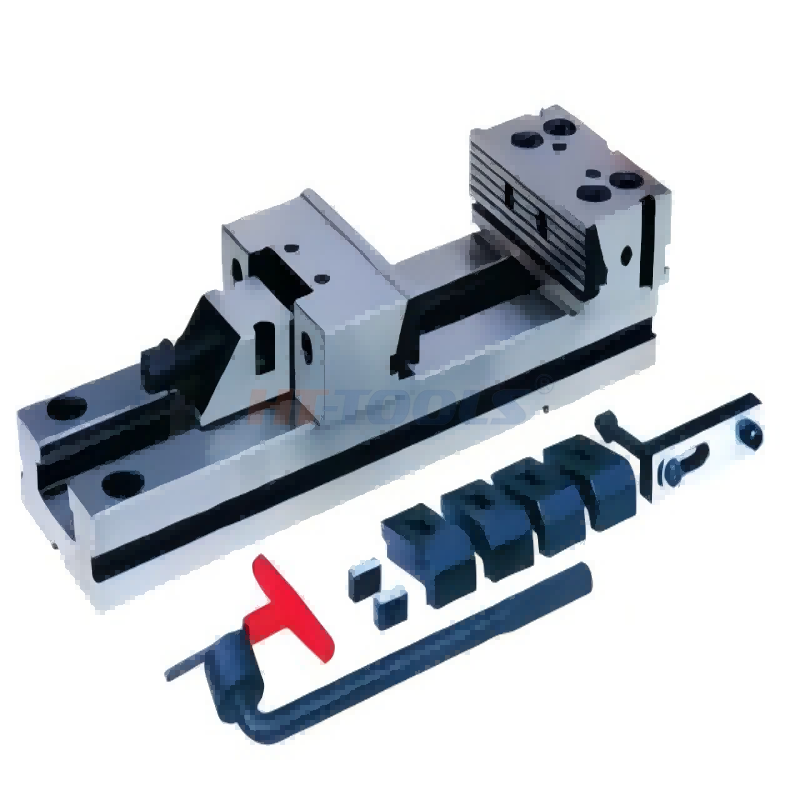

1. Produced of high quality steel, carburized to surface hardness: HRC58~ 62
2. Parallelism 0.005mm/ 100mm, squareness 0.005mm.
3. Can be used in vertical or horizontal, to process anomalous shape workpiece.
4. It is widely used on machining center and other precison machine tools.
Product Details
| Order No | B(mm) | H(mm) | Smax (mm) | L(mm) |
| ZQ80100 | 100 | 30 | 100 | 270 |
| ZQ80125 | 125 | 40 | 150 | 345 |
| ZQ80150 | 150 | 50 | 200 | 420 |
| ZQ80150A | 150 | 50 | 300 | 520 |
| ZQ80175 | 175 | 60 | 200 | 455 |
| ZQ80175A | 175 | 60 | 300 | 555 |
| ZQ80175B | 175 | 60 | 400 | 655 |
| ZQ80175C | 175 | 60 | 500 | 755 |
| ZQ80200 | 200 | 65 | 200 | 495 |
| ZQ80200A | 200 | 65 | 300 | 595 |
| ZQ80200B | 200 | 65 | 400 | 695 |
| ZQ80200C | 200 | 65 | 500 | 795 |
| ZQ80200D | 200 | 65 | 600 | 895 |
