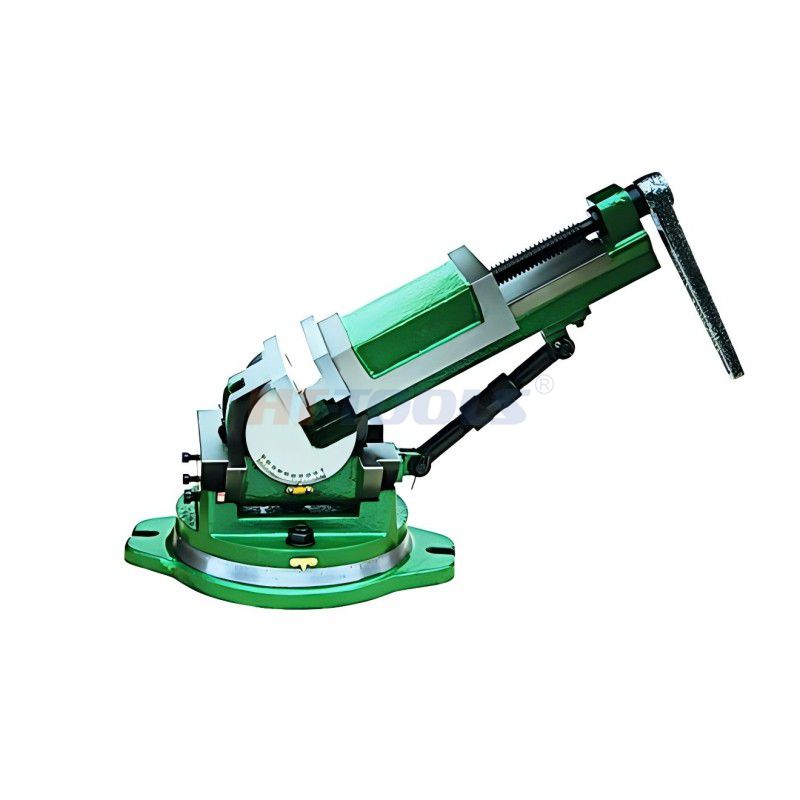

QW Universal Tilting Vises

Performance and Characterist:

1. It is made of high-quality cast iron.

2. Parallelism 0. 025mm/ 100mm, squareness 0. 025mm.

3. Attained ftting with a stop in three way. by using such sircling delinable structure as vice body. two way body and sliding base.

4. It is used on machining and EDM complex parts.

Next Product Inquire Now

Product Details

Order No	Width of Jaw	Height of Jaw	Max.Opening	GW/NW	Paking Shape	LxWxH
QW100	105	40	105	31/26	wooden case	51x34x25
QW125	125	40	125	35/30	wooden case	56x34x26

The main function of a QW Universal Tilting Vise is to securely hold a workpiece while allowing it to be positioned at multiple angles for precision machining.

Main functions

Secure workholding: Firmly clamps the workpiece during machining operations.

Tilting capability: Allows the vise to tilt vertically, enabling machining at different angles without repositioning the workpiece.

Swiveling capability: Many models can rotate on the base, allowing horizontal angle adjustment.

Improved machining accuracy: Makes it easier to produce angled surfaces, bevels, slots, and compound-angle features with precision.

Increased efficiency: Reduces setup time by allowing multiple machining operations in one clamping.

Common applications

Milling angled faces

Drilling holes at specific angles

Grinding precision components

Tool and die making

CNC and conventional milling operations

The QW Universal Tilting Vise is widely used in machine shops because it provides stable clamping, precise angular adjustment, and greater flexibility for machining complex parts.
