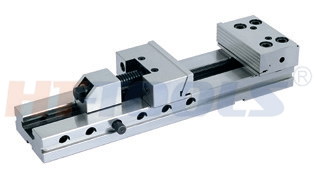

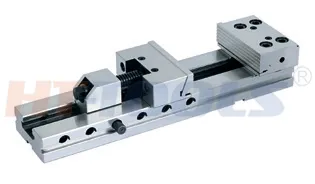

1. Produced of high quality steel, carburized to surfacehardness: HRC58~ 62.
2. Parallelism 0.005mm/ 100mm, squareness 0.005mm.
3. Locate position by pilot pin, adjust pin on body according to opening size, then clamp quickly.
4. It is widely used on machining center and other precision machine tools.
Product Details

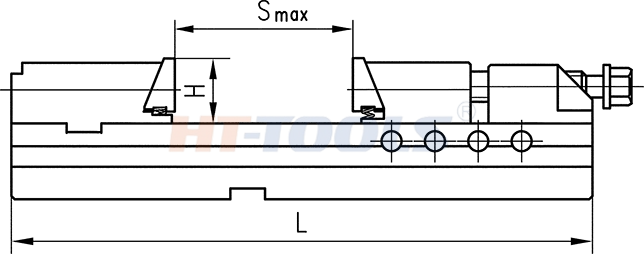

| Order No | B(mm) | H(mm) | Smax(mm) | L(mm) | Clamping force(kg) |
| GT125-Ⅲ | 125 | 40 | 150 | 345 | 3000 |
| GT150A-Ⅲ | 150 | 50 | 200 | 420 | 5000 |
| GT150B-Ⅲ | 150 | 50 | 300 | 520 | 5000 |
| GT175C-Ⅲ | 175 | 60 | 400 | 655 | 6000 |
