Material: 20CrMnTi
Accuracy: Each working surface accuracy ≤ 5μm (0.005mm)
Hardness: HRC58-62
Process: The whole high temperature quenching forging
Ra value: Surface roughness 0.8μm
Fits surface grinders, milling machines, EDM & wire EDM for angled planes, grooves and inclined holes; also for angular workpiece measurement. Sliding block locks during vertical-side machining.
Each working surface tolerance: 0.005mm. All four sides can be secured by pressing plates, surface roughness Ra 0.8μm.
Diagonal screw design delivers strong clamping force, wide adjustable range for various workpieces; multiple units can work together.
Unique structure enables rigid clamping, with perpendicularity & parallelism within ±0.005mm.
Product Details

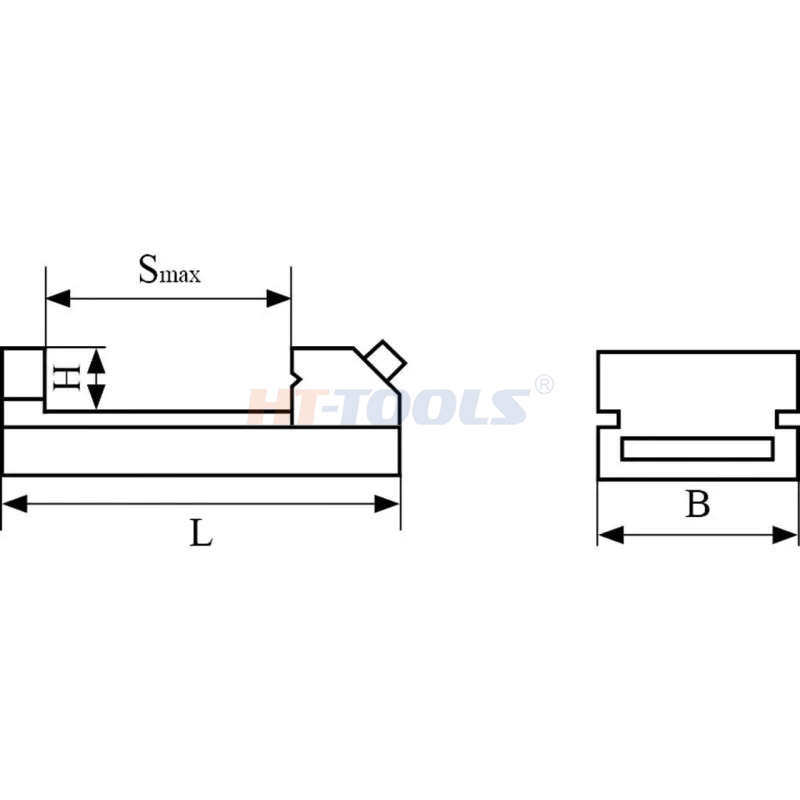

| Model | B(mm) | H(mm) | Smax(mm) | L(mm) | Wt(kg) |
| QKG25 | 25 | 10 | 25 | 65 | 0.5 |
| QKG50 | 50 | 25 | 65 | 140 | 2 |
| QKG63 | 63 | 32 | 85 | 175 | 3 |
| QKG73 | 73 | 35 | 100 | 190 | 4.1 |
| QKG80 | 80 | 40 | 100 | 200 | 5.5 |
| QKG88 | 88 | 40 | 125 | 235 | 7.3 |
| QKG100 | 100 | 45 | 125 | 245 | 10 |
| QKG125 | 125 | 50 | 160 | 285 | 18 |
| QKG150 | 150 | 50 | 200 | 330 | 21.5 |
| QKG150A | 150 | 50 | 250 | 380 | 23 |
| QKG150B | 150 | 50 | 300 | 430 | 24 |
Other Products
Attained ftting with a stop in three way. by using such sircling delinable structure as vice body. two way body and sliding base.
ZQ80 Precision Horizontal Vertical Vises
Produced of high quality steel, carburized to surface hardness: HRC58~ 62
Quick Action Precision Modular Vises
Produced of high quality steel, carburized to surfacehardness: HRC58~ 62.
Produced of high quality steel, carburized to surface hardness: HRC58-62.
It is widely used on milling, planing and drilling machine tools in making some kinds of slots, holes and faces.
