Performance and Characterist:
1. It is made of high-quality cast iron.
2. Parallelism O. 025mm/ 100mm, squareness 0.025mm.

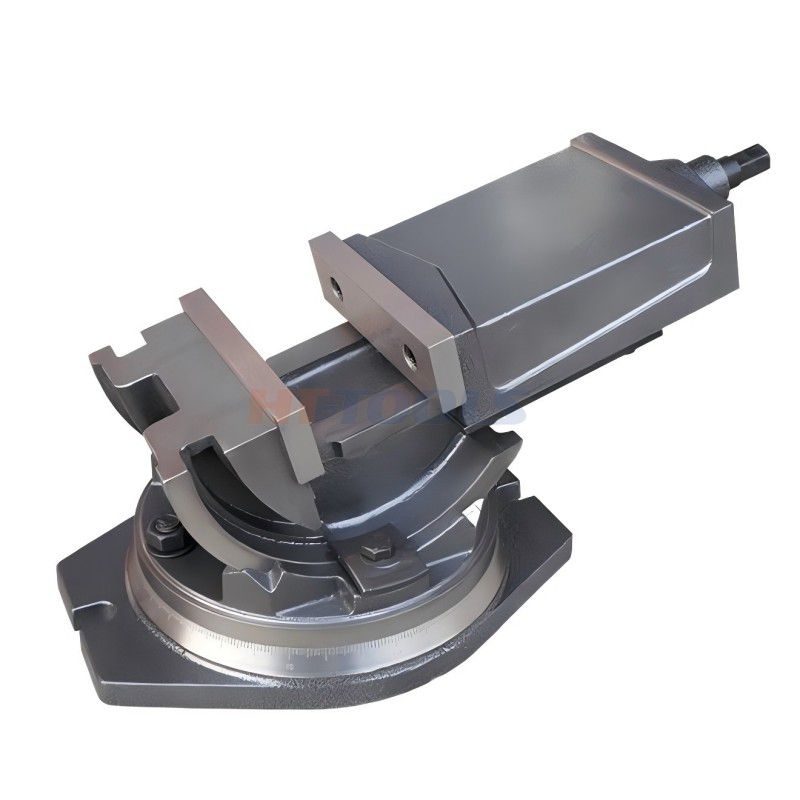

3. The wice body can be indexed through 90 degrees in vertical direction along large arcshaped guideway of swivel disc which can be indexed through 360degrees in horizontal direction on the base.
4. It is widely used on machine tool in making some kinds of slots holes and faces.
QHK precision machine vise clamps workpieces by screw drive. It has high positioning accuracy, excellent clamping rigidity and stable repeat positioning. Widely used in machining centers, milling machines and grinders for clamping small precision workpieces, guaranteeing dimensional precision during milling, drilling and grinding processes.
Product Details
| Order No | Width of Jaw(mm) | Height of Jaw (mm) | Max.Opening (mm) | GW/NW (kg) | Paking Shape | LxWxH (cm) |
| QHK100 | 100 | 41 | 80 | 20/19 | paper case | 36x22x20 |
| QHK125 | 125 | 46 | 100 | 31/29 | 46x26x21.5 | |
| QHK125L | 125 | 46 | 140 | 31/29 | 46x26x21.5 | |
| QHK160 | 160 | 50 | 125 | 45/43 | 46.5x29x24.5 |
Other Products
It is widely used on milling, planing and drilling machine tools in making some kinds of slots, holes and faces.
ZQ80 Precision Horizontal Vertical Vises
Produced of high quality steel, carburized to surface hardness: HRC58~ 62
QM ACCU-Lock Precision Machine Vises
It is main attchments to precision millings grinders CNC machines, it is particularly suitable for the finishing of precision parts.
ZQ83 Single & Double Action Vises
Produced of high quality steel,carburized to surface hardness:HRC58-62.
Made of high-quality alloy steel The hardness of working surface reaches HRC50-02.
Quick Action Precision Modular Vises
Produced of high quality steel, carburized to surfacehardness: HRC58~ 62.
Produced of high quality steel, carburized to surface hardness: HRC58-62.
