Performance and Characterist:
1. It is made of high-quality cast iron.
2. Parallelism 0. 025mm/ 100mm, squareness 0.025mmp.
3. It is widely used on milling, planing and drilling machine tools in making some kinds of slots, holes and faces.

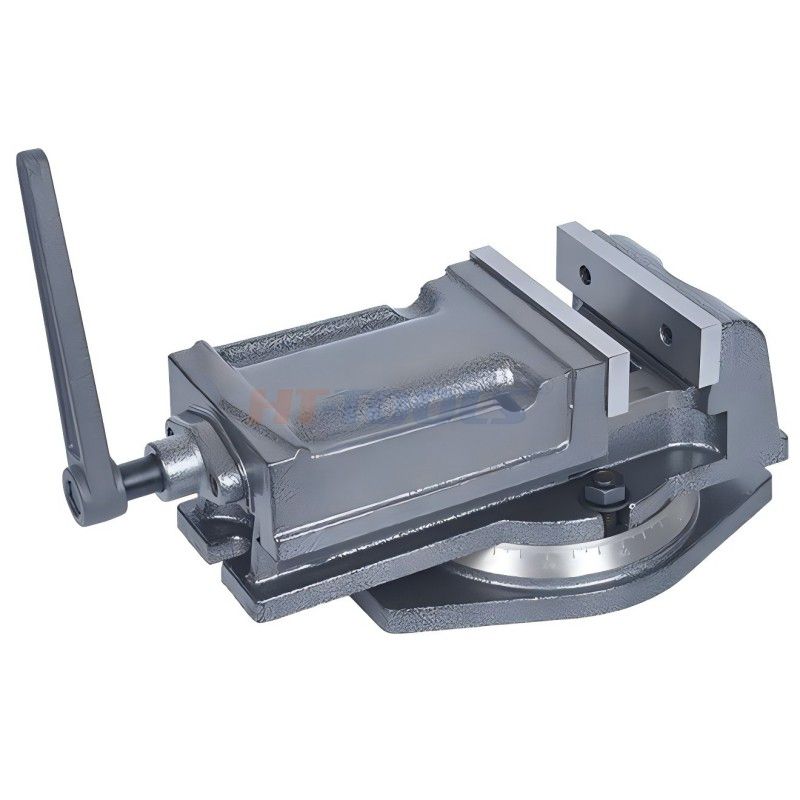

QH machine vise is used to clamp workpieces on machine tools via screw-driven jaws. It features precise positioning, fast clamping and stable rigidity. With wide versatility, it fits milling, drilling and grinding operations, ensuring consistent workpiece dimensions and improving machining efficiency.
Product Details
| Order No | Width of Jaw(mm) | Height of Jaw (mm) | Max.Opening (mm) | GW/NW (kg) | Paking Shape | LxWxH (cm) |
| QH80 | 80 | 30 | 65 | 30/28(4 pcs) | paper case | 48x29x13 |
| QH100 | 100 | 35 | 80 | 42/40(4 pcs) | 56x31x14 | |
| QH125 | 125 | 40 | 100 | 18/17 | 33x19x17 | |
| QH160 | 160 | 52 | 125 | 43/41 | 45x25x13 | |
| QH200 | 200 | 63 | 160 | 58/56 | 49x27x24 |
Other Products
ZQ80 Precision Horizontal Vertical Vises
Produced of high quality steel, carburized to surface hardness: HRC58~ 62
Produced of high quality steel, carburized to surface hardness: HRC58-62.
QM ACCU-Lock Precision Machine Vises
It is main attchments to precision millings grinders CNC machines, it is particularly suitable for the finishing of precision parts.
Attained ftting with a stop in three way. by using such sircling delinable structure as vice body. two way body and sliding base.

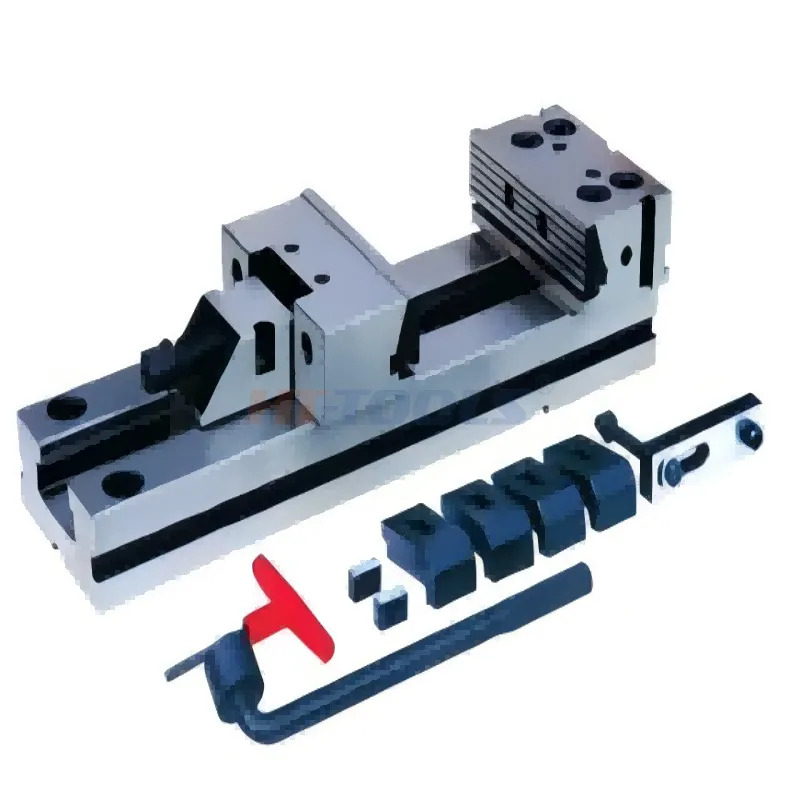

Quick Action Precision Modular Vises
