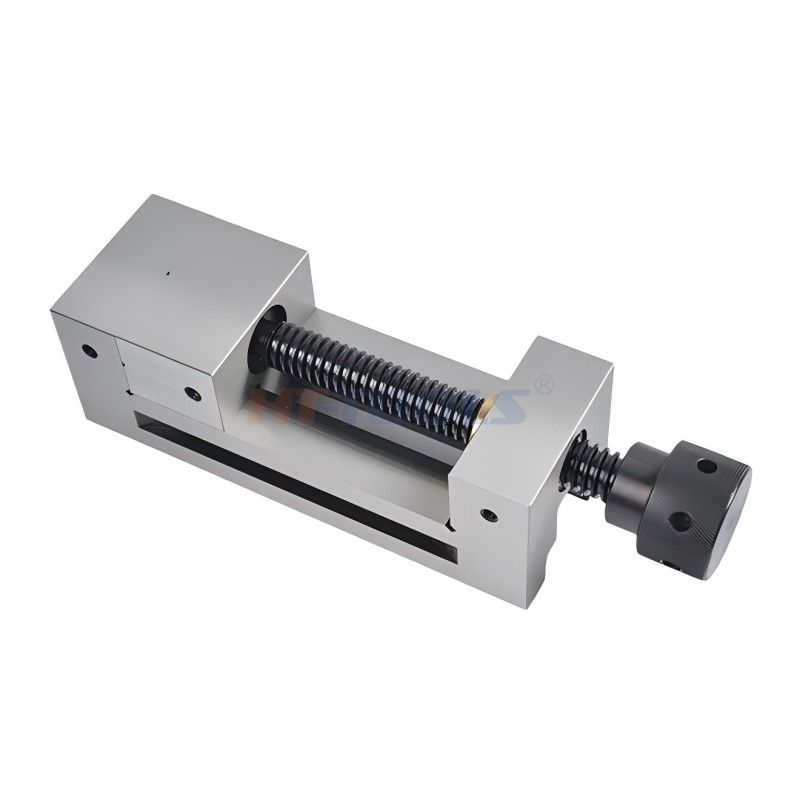

1. Made of high-quality alloy steel The hardness of working surface reaches HRC50-02.
2. Parallelism 0,005mm/100mm squareness 0.005mm.
3. Quiekly to clamp and easy to operate.
4. Used for precision measurement and inspection precision grinding,ED and wire-cutting machine.
6. Guarantee high accuracy in any position.
Product Details
| Order No. | B | H | Smax | Smax | Wt |
| mm | mm | mm | mm | kg | |
| QGG50 | 50 | 25 | 65 | 155 | 3.0 |
| QGG60 | 60 | 25 | 55 | 110 | 2.4 |
| QGG63 | 63 | 32 | 85 | 190 | 3.8 |
| QGG73 | 73 | 35 | 100 | 210 | 5.0 |
| QGG80 | 80 | 40 | 100 | 220 | 6.5 |
| QGG88 | 88 | 40 | 125 | 250 | 11.0 |
| QGG100 | 100 | 45 | 125 | 260 | 13.0 |
| QGG125 | 125 | 50 | 160 | 300 | 19.5 |
| QGG125A | 125 | 50 | 210 | 350 | 23.0 |
| QGG150 | 150 | 50 | 175 | 315 | 23.8 |
Other Products
Produced of high quality steel, carburized to surface hardness: HRC58-62.

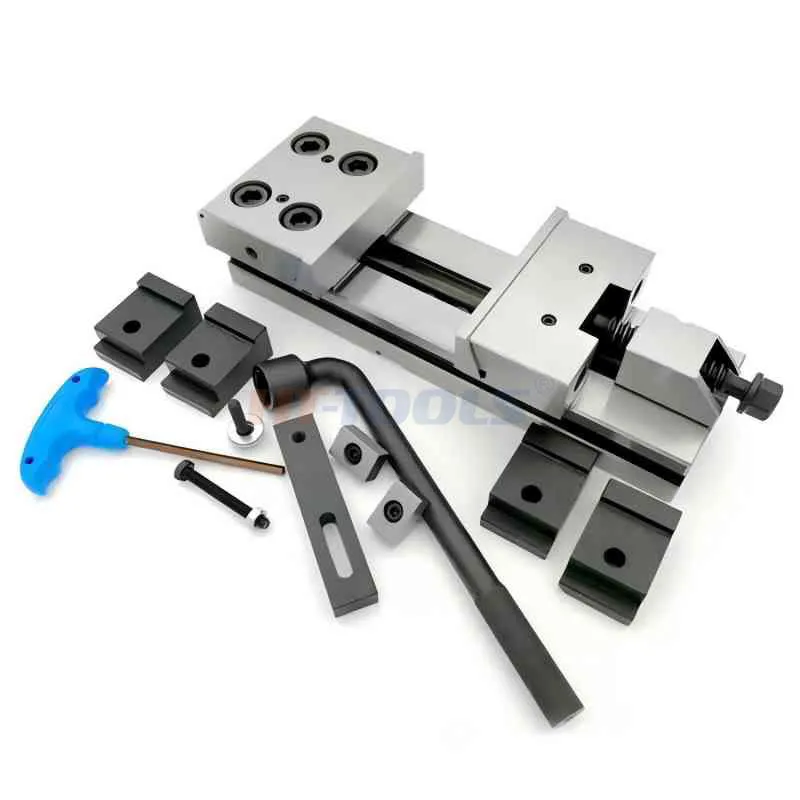

Quick Action Precision Modular Vises
Produced of high quality steel, carburized to surfacehardness: HRC58~ 62.
Attained ftting with a stop in three way. by using such sircling delinable structure as vice body. two way body and sliding base.

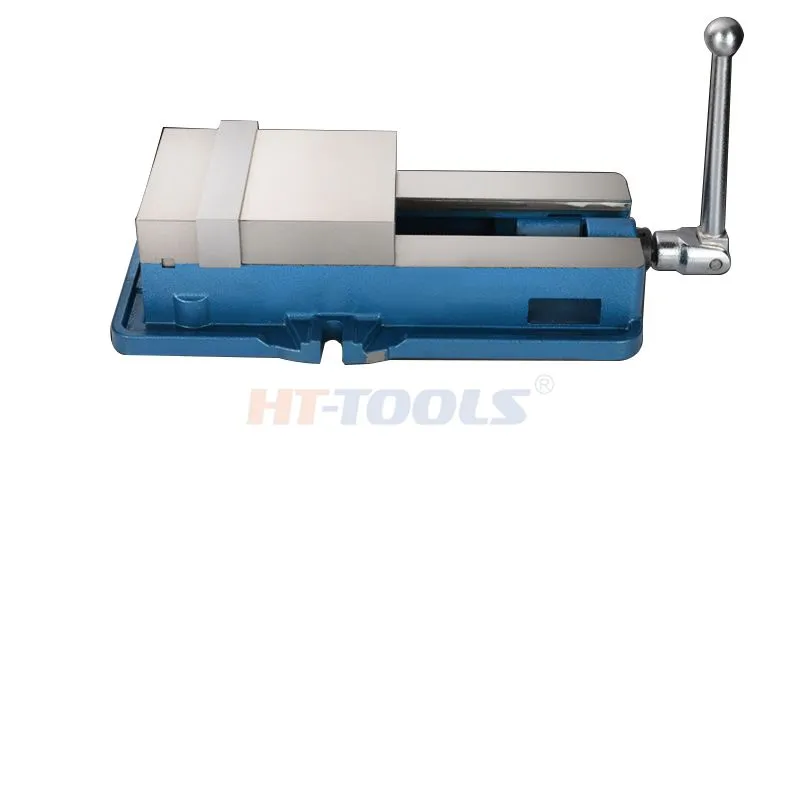

QM ACCU-Lock Precision Machine Vises
It is main attchments to precision millings grinders CNC machines, it is particularly suitable for the finishing of precision parts.

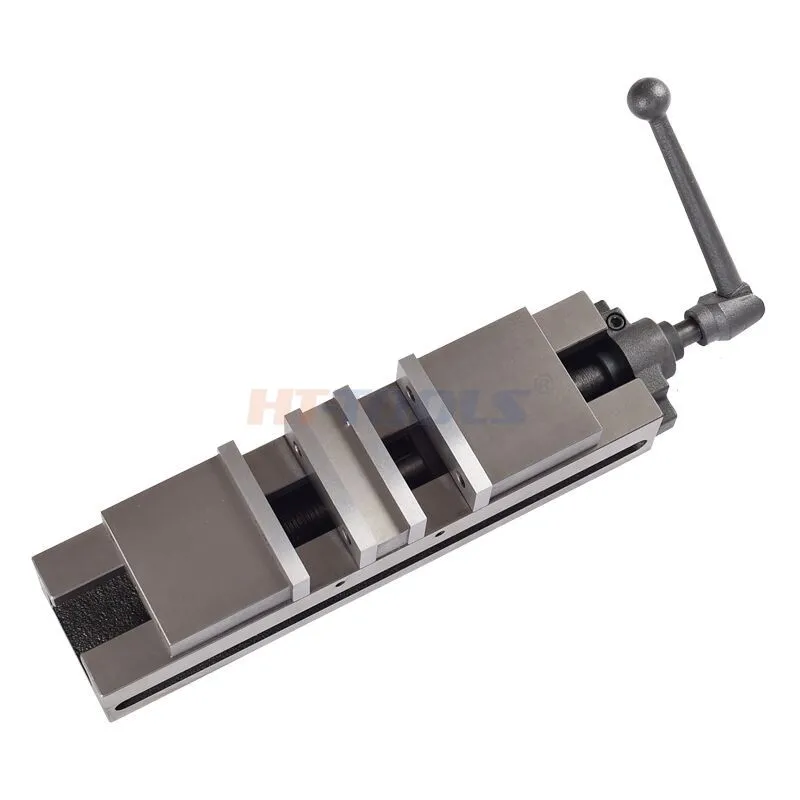

ZQ83 Single & Double Action Vises
Produced of high quality steel,carburized to surface hardness:HRC58-62.
It is widely used on milling, planing and drilling machine tools in making some kinds of slots, holes and faces.
