Performance and character:
The vice with angle locked can prevent workpieces rising during operation
2. It is possessed of two clamping positions. two workpieces of same size or different size can be clamped by it.the vice is also able to clamp two same workpieces which are clamped in different positions and processed in different surfaces
3.The accuracy of vice(parallelism and squareness) is 0.025mm/100mm.
4.The vice can be used with single or setted side by side on the machine worktable.
5.lt is widely used on machining center and other precision machine.

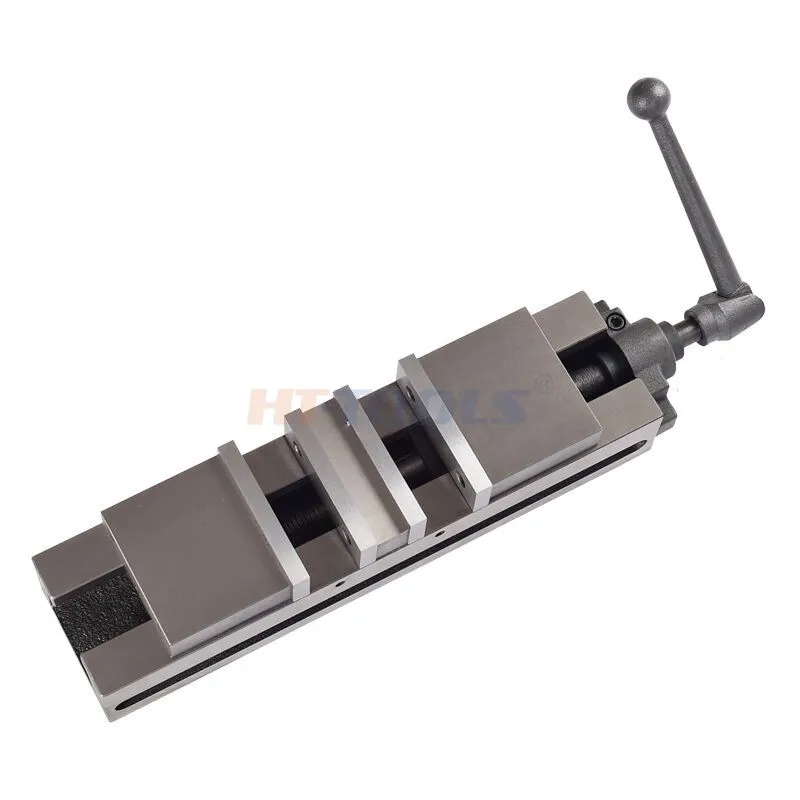

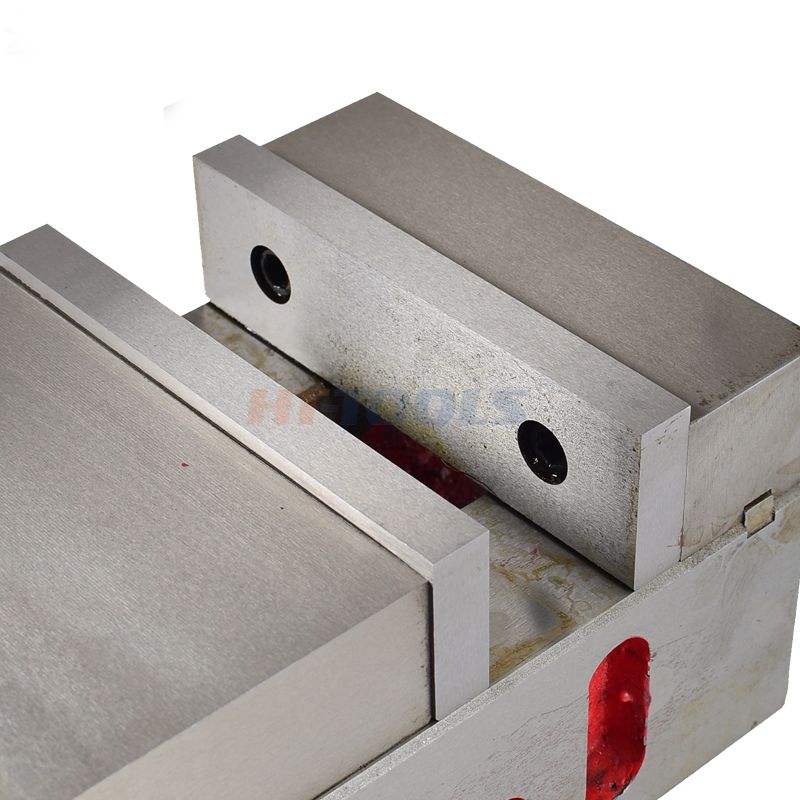

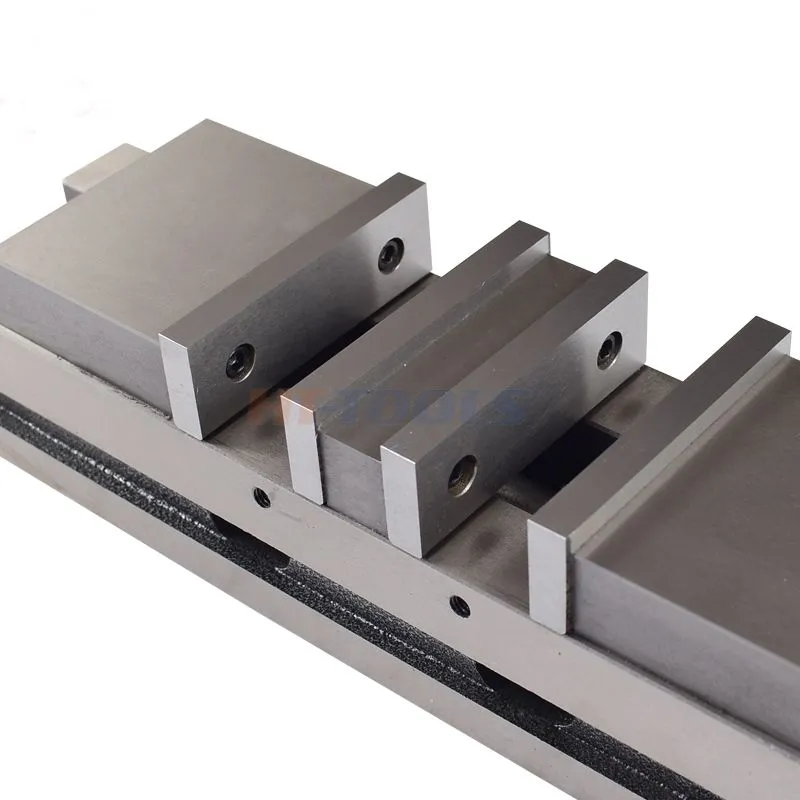

Q93 Double-action Accu-lock mchine vice
Performance and character:
The vice with angle locked can prevent workpieces rising during operation
2. It is possessed of two clamping positions. two workpieces of same size or different size can be clamped by it.the vice is also able to clamp two same workpieces which are clamped in different positions and processed in different surfaces
3.The accuracy of vice(parallelism and squareness) is 0.025mm/100mm.
4.The vice can be used with single or setted side by side on the machine worktable.
5.lt is widely used on machining center and other precision machine.
| Model | Width of vice(mm) | height of jaw(mm) | max. opening(mm） | G.W./N.W. | Packing volume(cm) | Packing |
| Q93100 | 100 | 32 | 75 | 15/14 | 52*11*12 | Carton |
| Q93160 | 160 | 45 | 95 | 36/35 | 64*17*16 | Carton |
A: Q93 tilting swivel machine vise for milling machine. The jaw body can tilt 0~90°, base can rotate 360°. Adjust both horizontal rotation and tilt angle for inclined surface & angle hole machining. Models: Q93100,Q93160.
A: Unlocked tilt/swivel levers, chips on contact surface, dirty workpiece/jaw. Scales are for reference only, use dial gauge for high precision. Solution: Clean surface, lock all clamps after angle setting.
A: Worn screw or jaws, uneven workpiece surface, insufficient clamping force. Solution: Check jaws, clamp workpiece in two steps.
A: Clean machine table and vise base, fix with locating key and clamps. Adjust rotation & tilt angle, lock all levers before clamping workpiece. Tighten screw to hold part. Make sure all locks are tight before cutting.
A: Yes. Hard jaws are removable. Replacement jaws or soft jaws are available separately.
A: Milling machine & CNC machining center. For angled surface, inclined slot and angled hole.
Other Products
Attained ftting with a stop in three way. by using such sircling delinable structure as vice body. two way body and sliding base.
ZQ83 Single & Double Action Vises
Produced of high quality steel,carburized to surface hardness:HRC58-62.
QM ACCU-Lock Precision Machine Vises
It is main attchments to precision millings grinders CNC machines, it is particularly suitable for the finishing of precision parts.
Made of high-quality alloy steel The hardness of working surface reaches HRC50-02.
ZQ80 Precision Horizontal Vertical Vises
Produced of high quality steel, carburized to surface hardness: HRC58~ 62
