Heavy Duty Milling Vise for CNC Machining

Features:

Material:
Made of high-quality cast iron with reinforced structure for excellent strength, wear resistance, and vibration absorption.

Accuracy:
Precision machined guideways and clamping surfaces ensure high parallelism and stable machining accuracy.

Clamping Performance:
Rigid construction provides strong and reliable clamping force, preventing workpiece movement during machining.

Guideway Design:
Precision sliding guide design ensures smooth movement and long service life.

Jaw Design:
Hardened jaws improve wear resistance and provide secure workpiece holding.

Mounting:
Bottom mounting slots allow quick and convenient installation on machine tables.

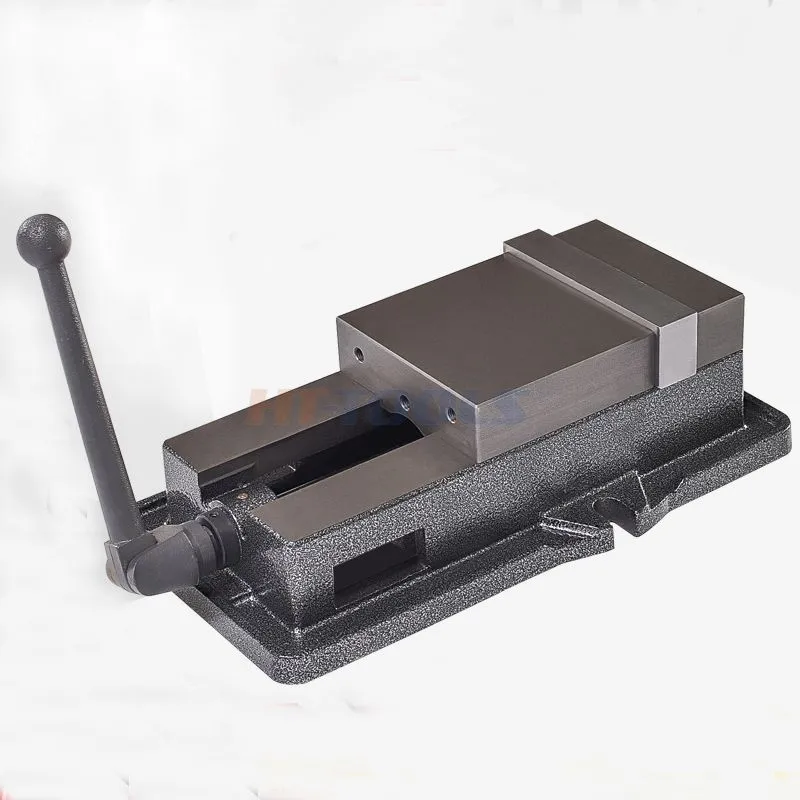

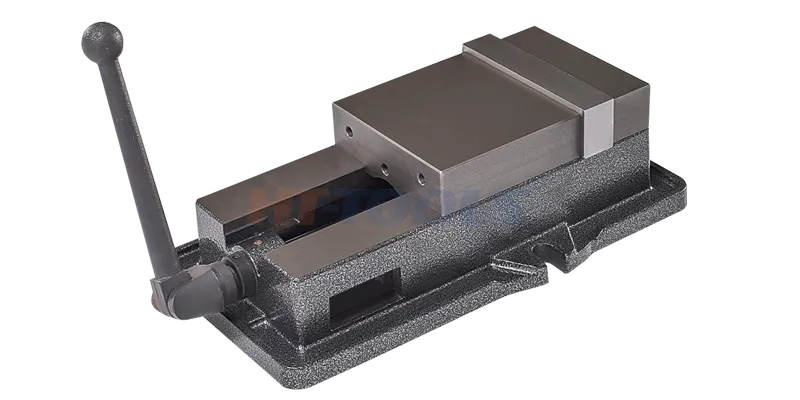

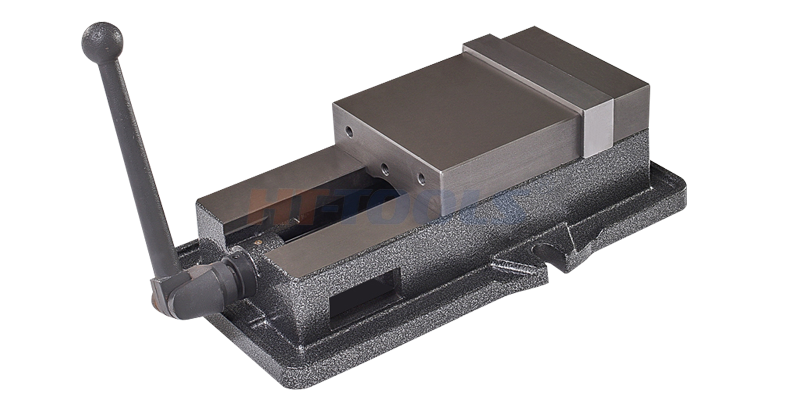

accu-lock Precision Machine vice

Precision Machine Vise Product Introduction

Precision Machine Vise is designed for secure workholding on milling machines, drilling machines, and CNC machining centers. With a rigid cast iron body and precision machined guideways, it provides stable clamping force and accurate positioning during machining operations.


型号
Model
钳口宽度
Width of jaw
(mm)
钳口高度
Height of jaw
(mm)
钳口张开度
Max.opening
(mm)
毛重/净重
G.W./N.W.
(kg)
    包装体积
 Packing volume
   长×宽×高
      (cm)
包装形式
Packing
QM16100100 32 100 14/1336×24×14纸箱carton
QM16125125 40 125 21/2042×27×15纸箱carton
QM16160160 45 170 33/3245×31×18纸箱carton
QM16200200 50 230 46/4556×35×20纸箱carton
QM16160H160 45 160 35/3446×31×19纸箱carton
QM16160L160 45 200 33/3249×31×17纸箱carton




Q97 Cross Slide Vise | Heavy Duty X-Y Adjustable Machine Vise for DrillingQ97 Cross Slide Vise | Heavy Duty X-Y Adjustable Machine Vise for Drilling

Other product:

Q97 Cross Slide Vise | Heavy Duty X-Y Adjustable Machine Vise for Drilling

 Package :

 We can provide various kinds of package, such as plastic box, wooden case etc, and we can also pack

the products according to your requirements if the order is large.

Q97 Cross Slide Vise | Heavy Duty X-Y Adjustable Machine Vise for Drilling


FAQ:

 1 .Are you factory or Trade Company?
 We are industry and trade integration.



2 .Could you supply samples?
Yes, we can.



3. Where do you export?
The whole world.



4 .Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.



5 .What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.



6. What are the shipping ways?
By international express, by air,and by sea are all ok.



7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.



8. What’s your payment way?
T/T, Pay pal, Western Union and so on.



9. What’s your delivery time?
5-20 days after order confirmed



10. What’s your package?
Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.



Other Products

Quick Action Precision Modular Vises

Quick Action Precision Modular Vises

Produced of high quality steel, carburized to surfacehardness: HRC58~ 62.

QKG Precision Tool Vises

QKG Precision Tool Vises

Accuracy: Each working surface accuracy ≤ 5μm (0.005mm)

QHK Declinable Machine Vises

QHK Declinable Machine Vises

Parallelism O. 025mm/ 100mm, squareness 0.025mm.

ZQ80 Precision Horizontal Vertical Vises

ZQ80 Precision Horizontal Vertical Vises

Produced of high quality steel, carburized to surface hardness: HRC58~ 62
