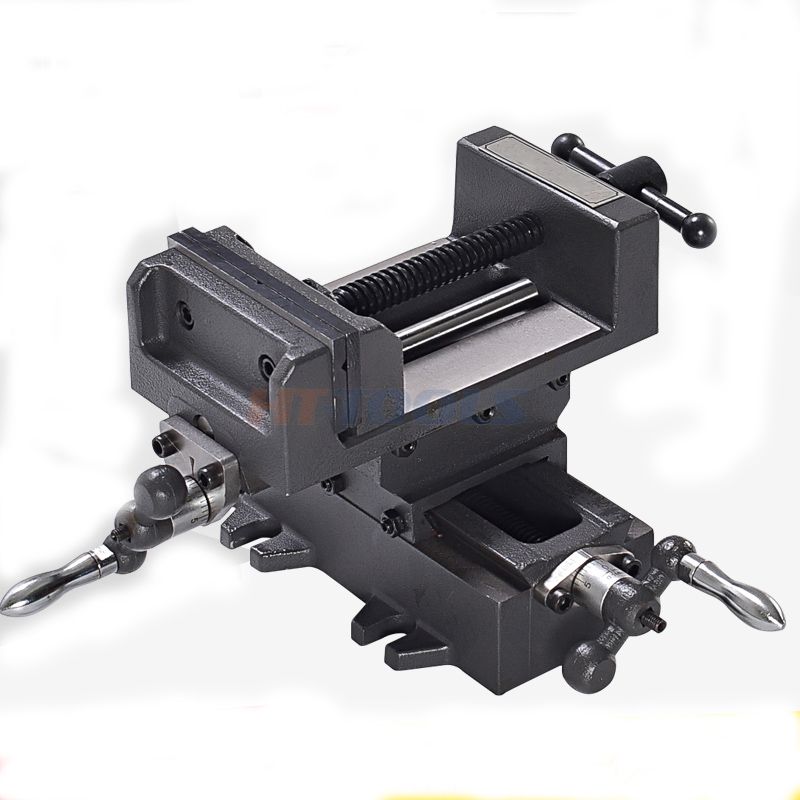

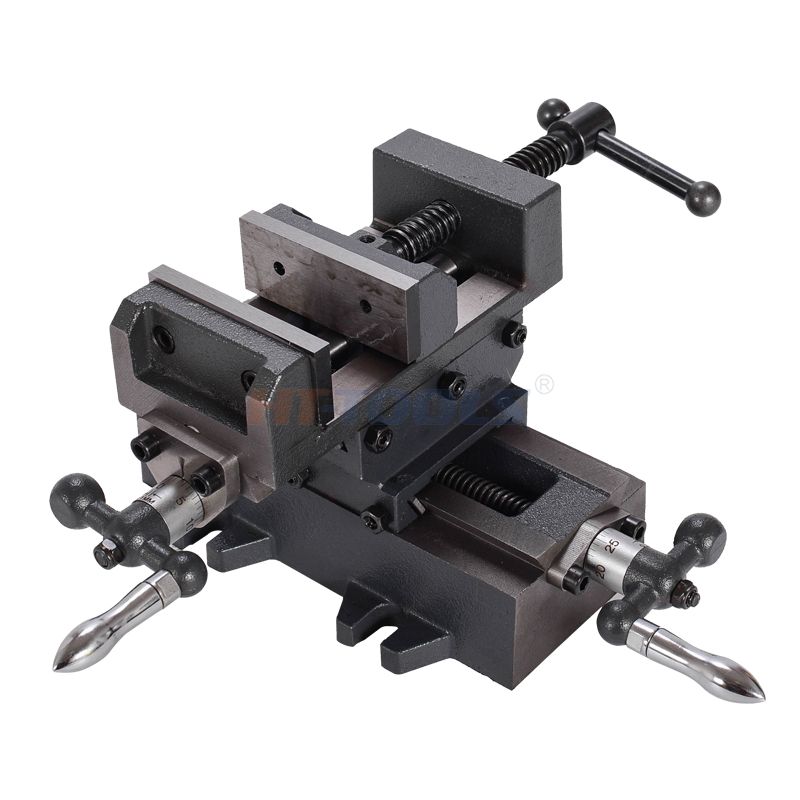

Q97 Cross Slide Vise | Heavy Duty X-Y Adjustable Machine Vise for Drilling & Milling

Performance and character:

1. Cross clamp is used two mutually perpendicular feeding mechanisms, it can bemoved in the direction of X and Y at the same time, and it can be rotated 360°with a swivel base.

2. When it is compatille with berch-type drilling machine, it can drill several holesand mill several stots. on the same face once time by the way of hand-operatedfeeding in two mutually perpendicular directions lt can be used as an attach-ment for milling machine and grinding machine or as a tool used only.




Features:

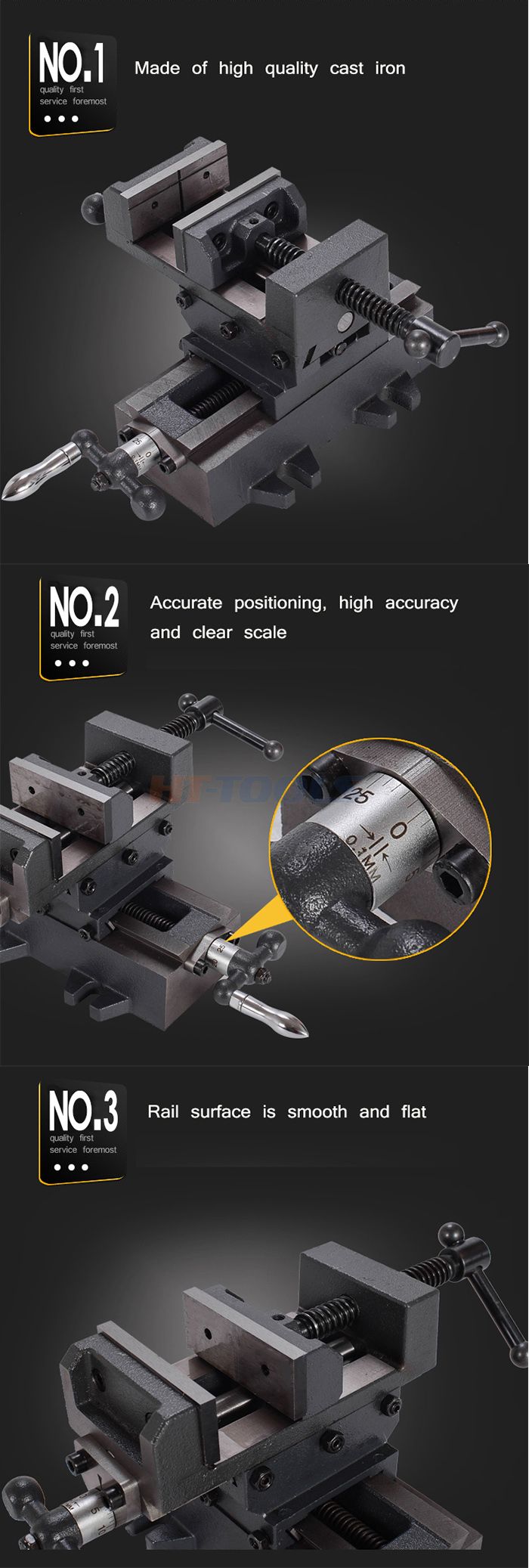

  • Two-way sliding design: Provides X-axis and Y-axis movement for flexible workpiece positioning.


  • Strong clamping stability: Heavy-duty cast iron body and durable jaws ensure secure holding during machining.

  • Precise adjustment: Smooth screw mechanism enables accurate positioning and easy operation.

  • Wide applications: Suitable for drilling machines, milling machines, workbenches, and machine tools.

  • Durable construction: Rigid cast iron structure provides high strength and vibration resistance.

  • Easy installation: Mounting slots allow quick and secure installation on machine tables.


型号
Model
钳口宽度
Width of jaw
   (mm)
钳口高度
Height of jaw
(mm)
钳口张开度
Max.opening
(mm)
毛重/净重
G.W./N.W.
(kg)
包装体积
Packing volume
长×宽×高
(cm)
包装形式
Packing
Q977575 35 76 8/723×23×16纸箱carton
Q97100100 46 102 10/926×26×17纸箱carton
Q97125125 50 125 19/1830×30×20纸箱carton
Q97150160 53 152 28/2737×37×22纸箱carton
Q97200200 53 203 37/3545×37×21纸箱carton


Q97 Cross Slide Vise | Heavy Duty X-Y Adjustable Machine Vise for DrillingQ97 Cross Slide Vise | Heavy Duty X-Y Adjustable Machine Vise for Drilling

Other product:

Q97 Cross Slide Vise | Heavy Duty X-Y Adjustable Machine Vise for Drilling

 Package :

 We can provide various kinds of package, such as plastic box, wooden case etc, and we can also pack

the products according to your requirements if the order is large.

Q97 Cross Slide Vise | Heavy Duty X-Y Adjustable Machine Vise for Drilling


FAQ:

 1 .Are you factory or Trade Company?
 We are industry and trade integration.



2 .Could you supply samples?
Yes, we can.



3. Where do you export?
The whole world.



4 .Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.



5 .What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.



6. What are the shipping ways?
By international express, by air,and by sea are all ok.



7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.



8. What’s your payment way?
T/T, Pay pal, Western Union and so on.



9. What’s your delivery time?
5-20 days after order confirmed



10. What’s your package?
Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.
