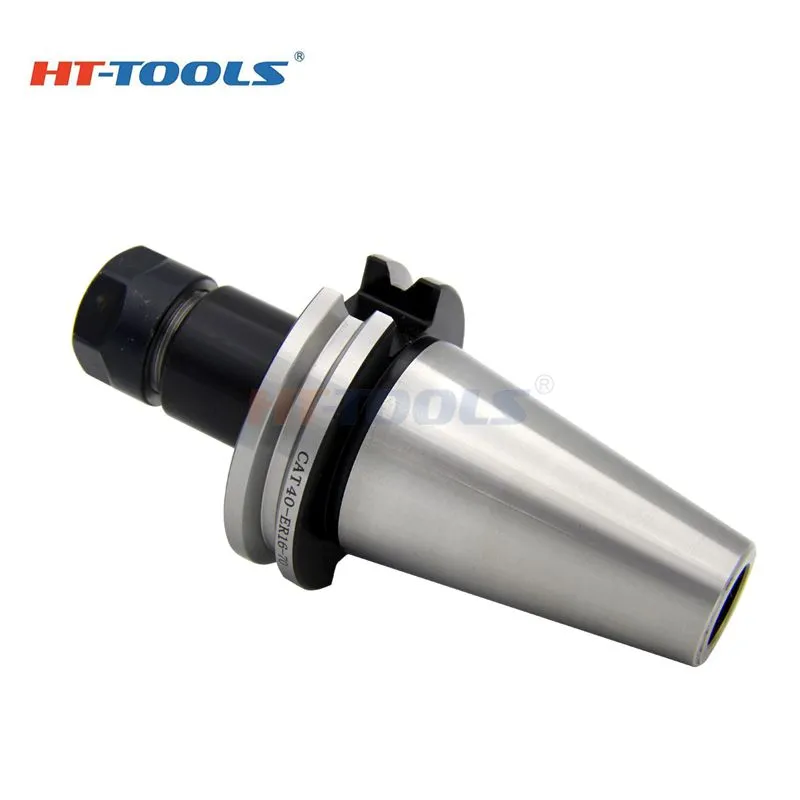

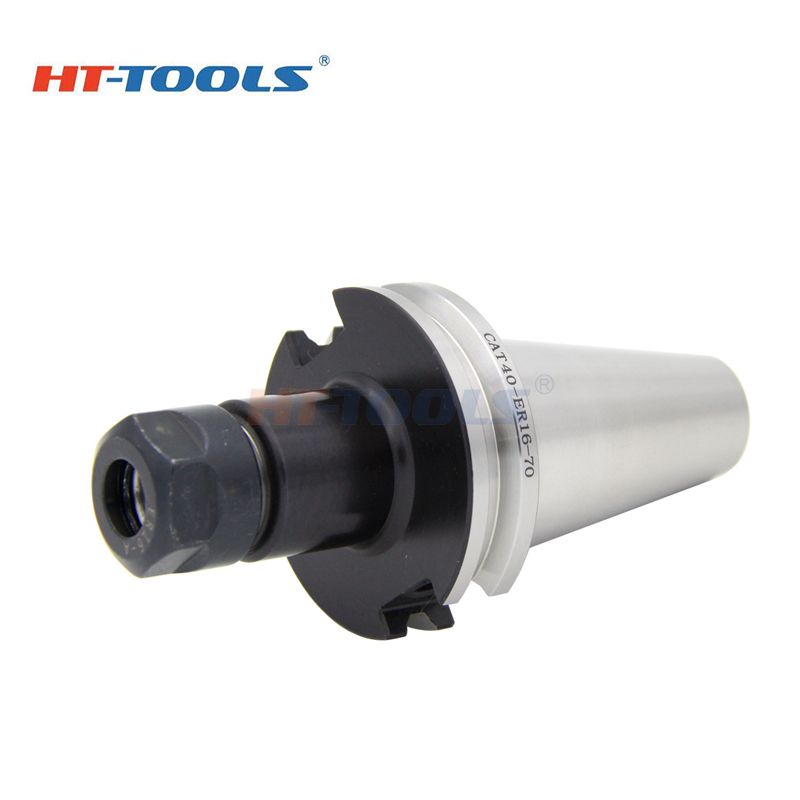

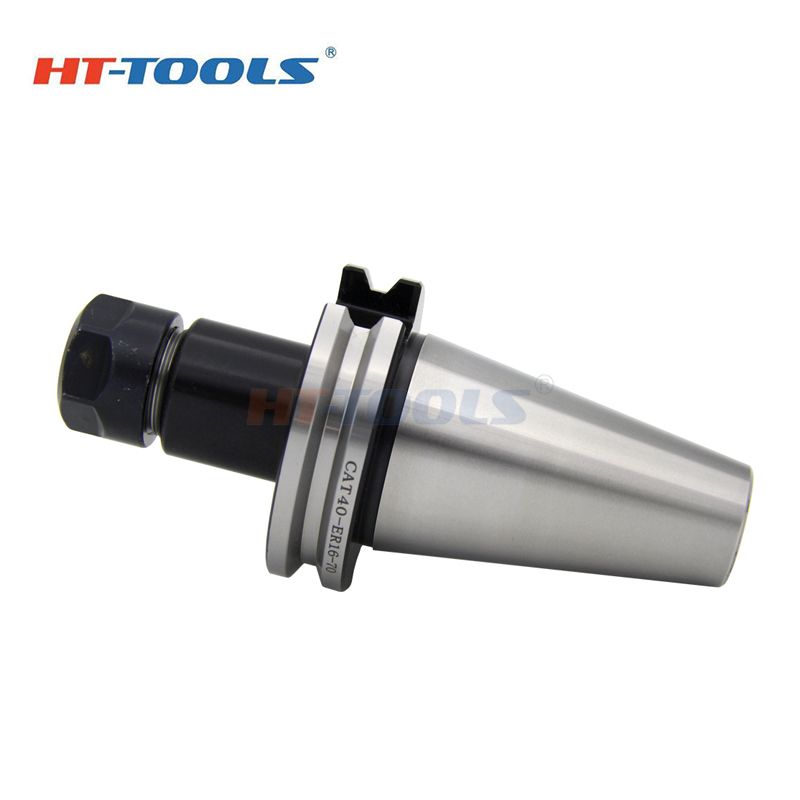

Material: 20CrMnTi
Hardness: HRC48-52
Accuracy: 0.005mm
Package: Plastic box
Type: CAT30 CAT40 CAT50
Balanced: G6.3/12000rpm G2.5/20000rpm
Standard form: AD AD/B
According to needs to be possible to provide the balanced hilt,the standard precision is G6.3/12000rpm.the precise precision is G2.5/20000rpm.
The holder is made of imported high strength material andhas high wear resistance after special treatment
The shank is connected with the spindle of the machine,and the front end is used in conjunction with various internalcone drillchucks
| Order No. | D | D1 | Order No. | D | D1 |
| CT×ER-L1 | CT×ER-L1 | ||||
| CT40×ER16-63 | 28 | 44.45 | CT40×ER50-80 | 78 | 44.45 |
| CT40×ER16-70 | 28 | 44.45 | CT40×ER50-100 | 78 | 44.45 |
| CT40×ER16-100 | 28 | 44.45 | CT50×ER16-70 | 28 | 69.85 |
| CT40×ER16-120 | 28 | 44.45 | CT50×ER16-90 | 28 | 69.85 |
| CT40×ER16-125 | 28 | 44.45 | CT50×ER16-105 | 28 | 69.85 |
| CT40×ER16-150 | 28 | 44.45 | CT50×ER16-135 | 28 | 69.85 |
| CT40×ER20-70 | 34 | 44.45 | CT50×ER20-70 | 34 | 69.85 |
| CT40×ER20-90 | 34 | 44.45 | CT50×ER20-90 | 34 | 69.85 |
| CT40×ER20-100 | 34 | 44.45 | CT50×ER20-105 | 34 | 69.85 |
| CT40×ER20-105 | 34 | 44.45 | CT50×ER20-135 | 34 | 69.85 |
| CT40×ER20-135 | 34 | 44.45 | CT50×ER20-150 | 34 | 69.85 |
| CT40×ER20-150 | 34 | 44.45 | CT50×ER20-165 | 34 | 69.85 |
| CT40×ER25-70 | 42 | 44.45 | CT50×ER25-70 | 42 | 69.85 |
| CT40×ER25-90 | 42 | 44.45 | CT50×ER25-105 | 42 | 69.85 |
| CT40×ER25-100 | 42 | 44.45 | CT50×ER25-135 | 42 | 69.85 |
| CT40×ER25-125 | 42 | 44.45 | CT50×ER25-165 | 42 | 69.85 |
| CT40×ER25-150 | 42 | 44.45 | CT50×ER32-70 | 50 | 69.85 |
| CT40×ER32-70 | 50 | 44.45 | CT50×ER32-80 | 50 | 69.85 |
| CT40×ER32-100 | 50 | 44.45 | CT50×ER32-100 | 50 | 69.85 |
| CT40×ER32-120 | 50 | 44.45 | CT50×ER32-120 | 50 | 69.85 |
| CT40×ER32-150 | 50 | 44.45 | CT50×ER40-80 | 63 | 69.85 |
| CT40×ER40-70 | 63 | 44.45 | CT50×ER40-100 | 63 | 69.85 |
| CT40×ER40-80 | 63 | 44.45 | CT50×ER40-120 | 63 | 69.85 |
| CT40×ER40-100 | 63 | 44.45 | CT50×ER40-150 | 63 | 69.85 |
| CT40×ER40-120 | 63 | 44.45 | CT50×ER50-90 | 78 | 69.85 |
| CT40×ER40-150 | 63 | 44.45 | CT50×ER50-120 | 78 | 69.85 |
Q. Are you a factory or a trading company?
A. We are an integration of manufacturing and trade, with our own production base and professional international trade team.
Q. Can you provide samples?
A. Yes, we offer sample supply service for quality verification. Please contact our sales team to confirm sample details and related costs.
Q. Which regions do you export to?
A. Our products are exported globally, covering major mechanical manufacturing markets in Europe, North America, Asia, Africa and Oceania.
Q. Can you produce non-standard products?
A. Yes, we have professional R&D and production capabilities for custom non-standard products. Please provide us with physical samples or detailed technical drawings (e.g., CAD files) for accurate quotation and production.
Q. What is the precision grade of your ER collets?
A. We provide three precision grades of ER collets to meet different application requirements: 0.005mm, 0.008mm and 0.015mm.
