VDI tool holder B4 turning milling composite power turret radial outer diameter tool holder DIN69880

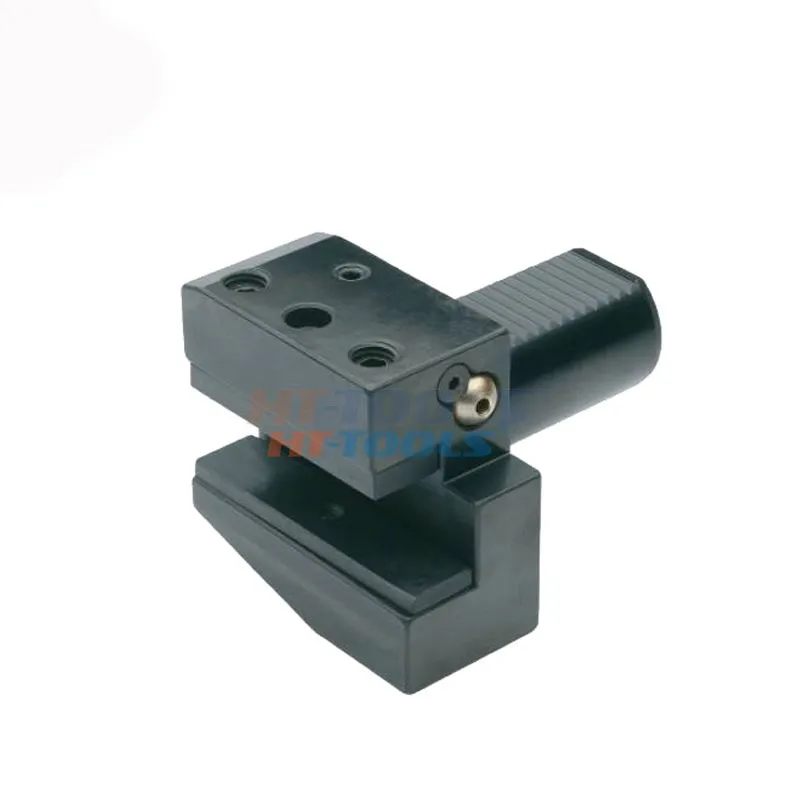

VDI B4 External Turning Tool Holder

Compliant with DIN 69880 standard, this VDI B4 tool holder matches all VDI B4 CNC lathe turrets for quick installation.

Key Features

  1. Knurled VDI B4 shank for tight, slip-free locking during high-speed cutting

  2. Built-in coolant port delivers direct cooling to cutting edges to extend insert life

  3. Double-bolt split clamping structure reduces vibration and tool runout

  4. Hardened alloy steel with black anti-rust finish, durable for heavy-duty machining

  5. Fits external turning, facing and grooving inserts

Applications

Ideal for batch machining auto parts, hydraulic fittings and shaft workpieces of steel, stainless steel and aluminum alloy.

Short List Snippet

DIN 69880 VDI B4 external tool holder with through coolant. High-rigidity split clamping design, perfect for precision turning on VDI turret CNC lathes.


VDI tool holder B4 turning milling composite power turret radial outer diameter tool holder DIN69880

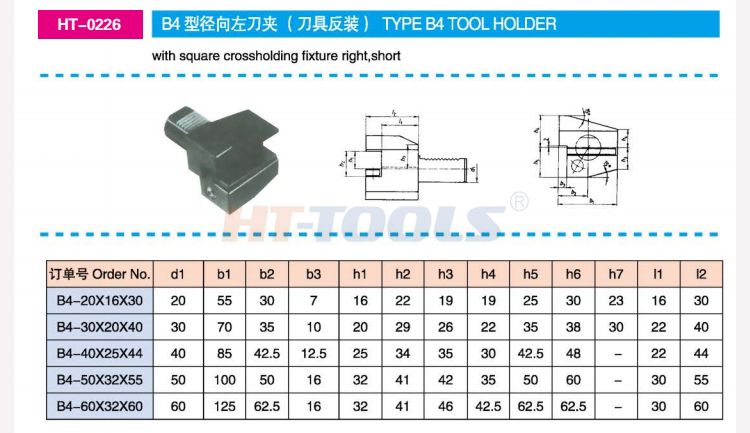

Order Nod1b1b2b3h1h2h3h4h6h7h911 12 α
B4-16X12X2416 42 23 5 12 17 15 15 22 20 19 13 24 30°
B4-16X12X3416 42 23 5 12 17 15 15 22 20 19 23 34 30°
B4-20X16X3020 55 30 7 16/1222 19 19 30 25 23 16 30 30°
B4-20X16X4020 55 30 7 16/1222 19 19 30 25 23 26 40 30°
B4-25X16X3025 55 30 7 16/1222 22.5 22.5 30 25 25 16 30 30°
B4-25X16X4025 55 30 7 16/1222 22.5 22.5 30 25 25 26 40 30°
B4-30X20X4030 70 35 10 20/1629 26 22 38 35 28 22 40 25°
B4-30X20X6030 70 35 10 20/1629 26 22 38 35 28 42 60 25°
B4-40X25X4440 85 42.5 12.5 25/2034 35 30 48 42.8 -22 44 -
B4-50X32X5550 100 50 16 32/2541 42 35 60 50 -30 55 -
B4-60X32X6060 125 62.5 16 32/2541 46 42.5 62.5 62.5 -30 60 -

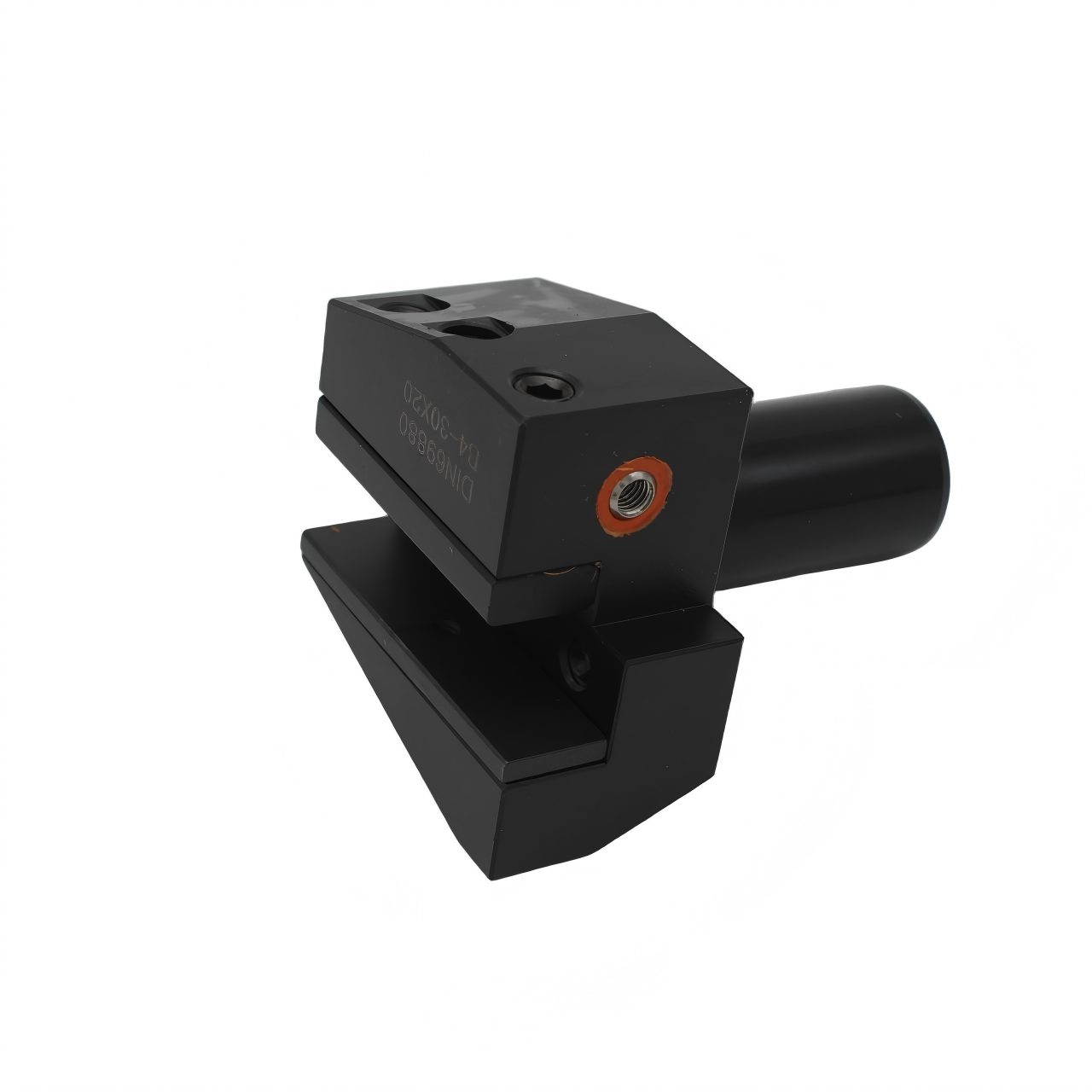

B4 (1).png

FAQ

Q: Which standard applies to VDI B type tool holders?

A: German DIN69880 standard, for CNC lathe VDI turrets.


Q: What models can you supply?

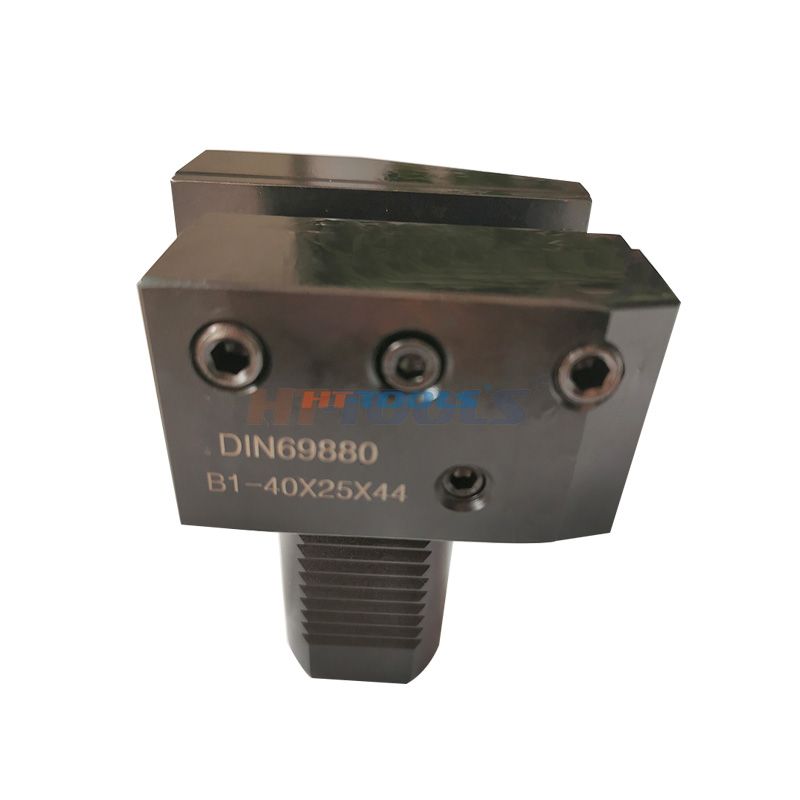

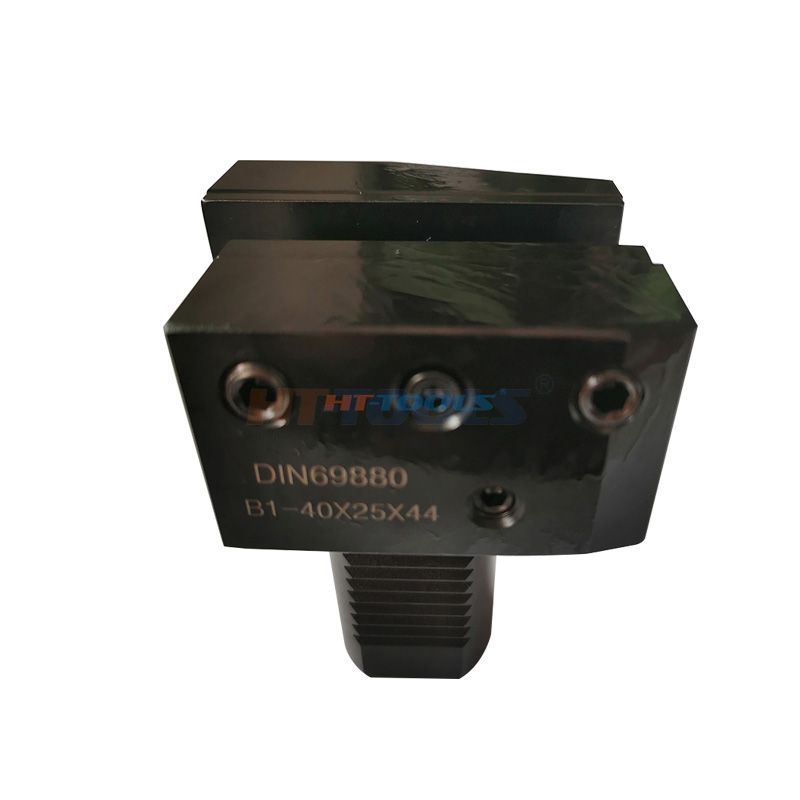

A: B1 Radial Right, B2 Radial Left, B3 Overhead Right, B4 Overhead Left. Sizes: VDI16/20/25/30/40/50/60.


Q: What key dimensions do you have?

A: Shank diameter, square tool size, height & length parameters. Dimension drawings available for each model.


Q: What is the accuracy?

A: Positioning tolerance ≤0.005mm, repeat positioning accuracy ≤0.003mm. Runout controlled per DIN69880.


Q: What is the raw material?

A: 40Cr alloy steel, quenched & tempered with local hardening.


Q: Which machines can it fit? What parts can be machined?

A: Fits CNC lathes with VDI turrets. For shaft & disc metal parts: OD turning, facing, grooving, chamfering.


Q: Can you do OEM & custom work?

A: Yes. Laser logo engraving and non-standard customized tool holders are available.


Q: What is your monthly output?

A: 3,000–5,000 pcs monthly for VDI series.


Q: What about warranty?

A: Replacement available within 6 months under normal use.


Q: How to request a quote?

A: Send us model, quantity, lathe brand and turret specs for quotation.


Q: How about quality inspection?

A: Heat treatment + precision grinding. 100% dimension & runout check before shipment. Inspection reports can be offered.
