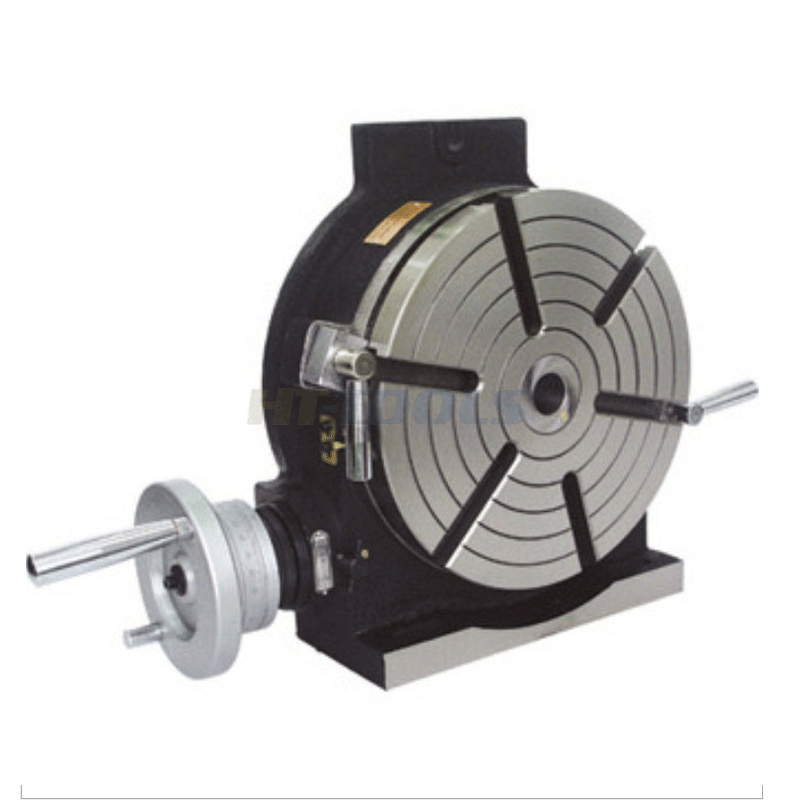

TSL vertical&horizontal rotary table

1、TSL vertical&horizontal rotary table is one of the main accessory of miling machine,it is used for

index boring,milling,

circle cutting,spot facing and boring hole etc on milling machine.Rotary table in vertical with working

together,it can used on complex work for circle index boring and milling.

2、 B section is to improve on the basis of paragraph A, and computer Control CNC indexing,and CNC

machine tools online,Section B rotary table that retained A paragraph added to the NC Functionality for

users to reduce costs.



                              Specifications
Items
HV-3HV-4HV-5TSL150TSL200TSL250TSL300TSL350TSL400

Diameter of table mm
76.2110127150200250300350400

Morse taper of the center hole
MT2MT2MT2MT3MT3MT3MT4MT4MT4

Height of center for verti mounting mm
59 81.5 90 100 135 165 195 230 250

Width of T-slot mm
8 12 12 12 12 12 14 14 14

Adjacent angle of T-slot
90120 120909060606060

Width of the locting key mm
12 12 12 16 16 16 16 16 18

Modules of worm and worm gear
1 1 1 1.5 1.5 2 2.5 2.5 3.5

Transmission ratio of the worm gear
1:721:721:721:901:901:901:901:901:90

Graduation of the table
360 360  360360360360360360360

Rotating angle of table with one revolution of the wrom
10 5   5 4°(I Per graduation)

Minimum value of vernier
1 1   1 10"10"10"10"10"10"

Indexing accuracy
1 1   1 80"80"60"60"60"60"

Max.bearing(With table Hor.)kg
100 150   200 100 150 200 250 300 350

Max.bearing(With table vert.)kg
50 75   100 50 75 100 125 150 175
