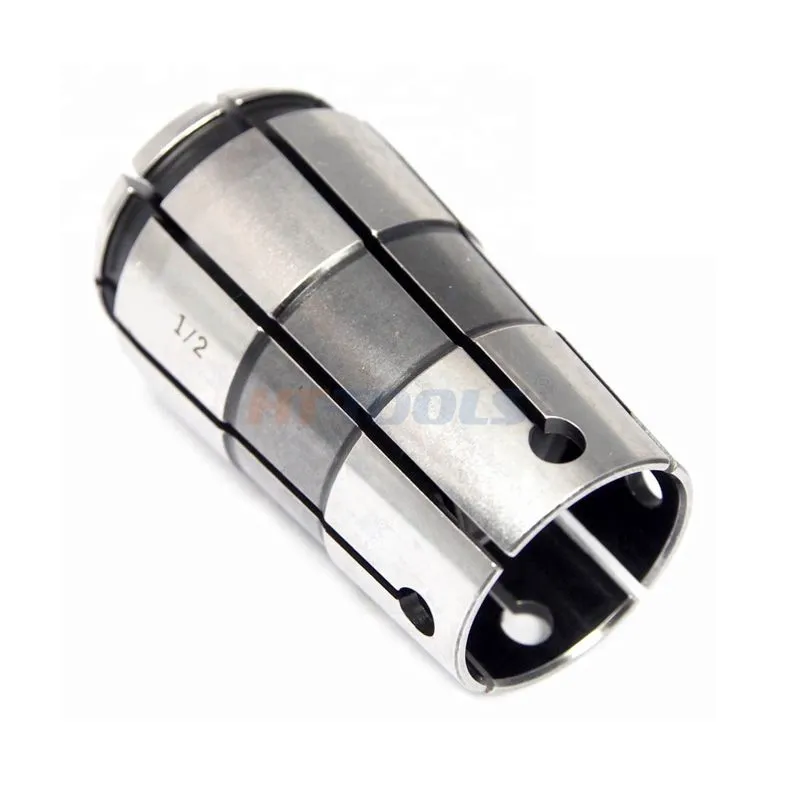

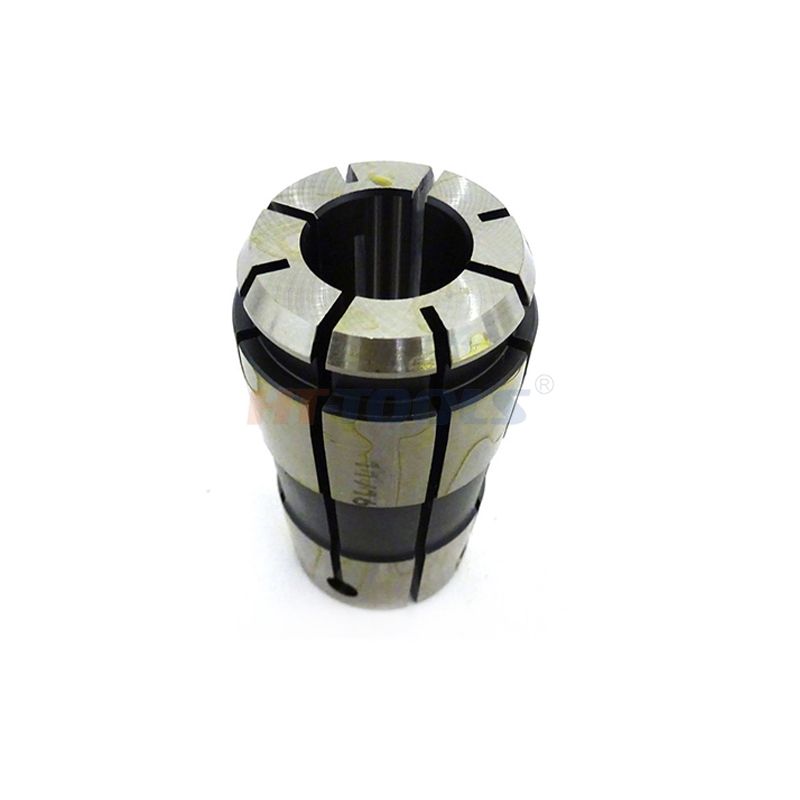

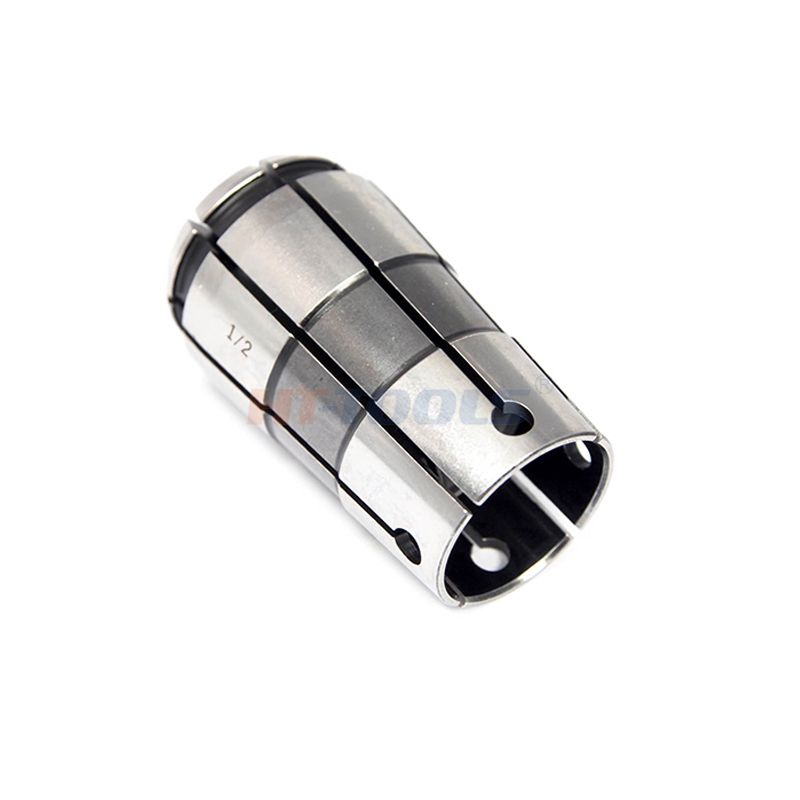

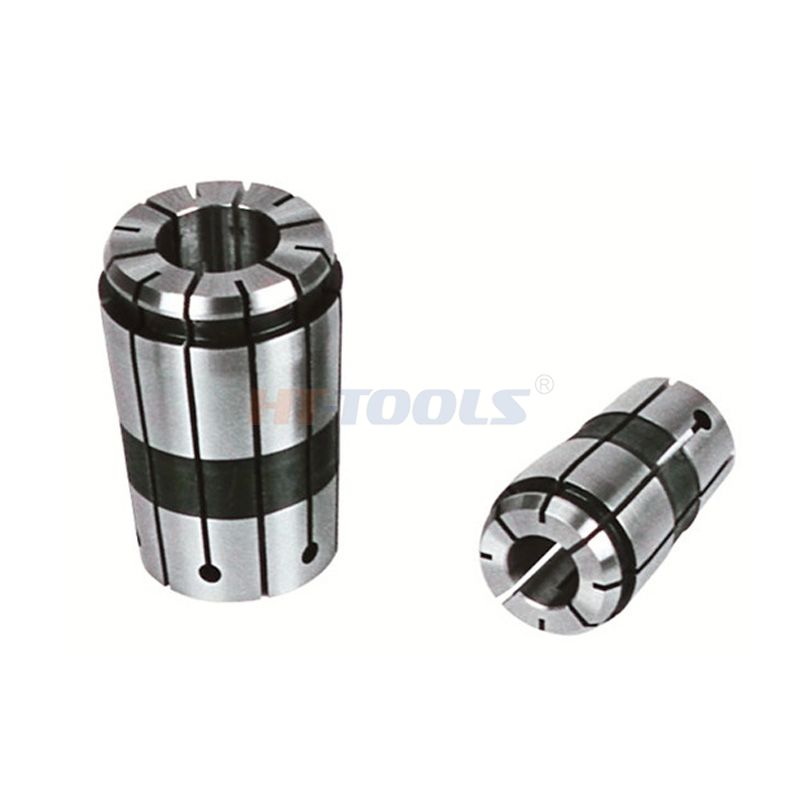

TG Type collet TG100 TG75

TG Collet


1.Made of special elastic steel:65Mn

2.Hardness:HRC44-48

3.Mode:TG75/TG100/TG150

4.Accuracy:0.01mm, 0.015mm

5.Packaging:Paper case or plastic case

6. Used for boring, milling, drilling, tapping, grinding and engraving operation etc.


1.TG100 is an Erickson standard single angle spring clamp, which belongs to the American high-precision strong clamping system. It is equipped with TG100 tool holders (CAT/BT/ERDG-TG tool holders) and is commonly used in machining centers, milling machines, drilling and tapping machines for drilling, milling, and rigid tapping. There are also TG75 and TG150 specifications in the same series.


2.Adapt tool holder and machine tool

Knife handle interface: CAT40/CAT50, BT40/BT50 RDG-TG100 knife handle

Applicable equipment: vertical machining center, gantry milling machine, drilling and tapping center, CNC milling machine

Clamping tool: Fried Dough Twists drill, end mill, reamer, tap (common for cylindrical handle/Weldon side fixed handle)


3.TG100 compared to ER clamp core advantages

Stronger clamping force: Heavy cutting, high feed rate, less likely to drop the tool

Better rigidity: less vibration during deep hole and long tool machining

Tapping special version: with square drive, rigid tapping stability far exceeds ER

Large clamping range: A single cylinder clamp has a larger contraction range and fewer stocking quantities


Order No
L(mm)
D(mm)
d
Wt(Kg)
mm
in
TG75
46.9
27
1-20
1/16-25/32
0.1
TG100
60.5
35
1.5-25
1/16-1
0.23
TG150
76.2
50.8
2-40
3/32-9/16
0.6
