High Precision Punch Former 3-Jaw Chuck

PUNCH FORMER

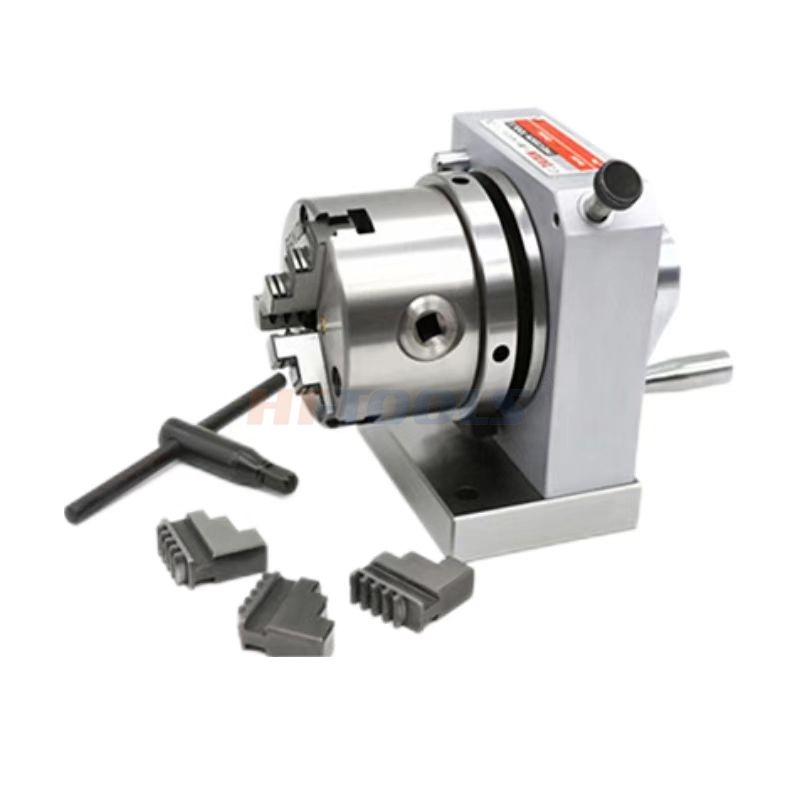

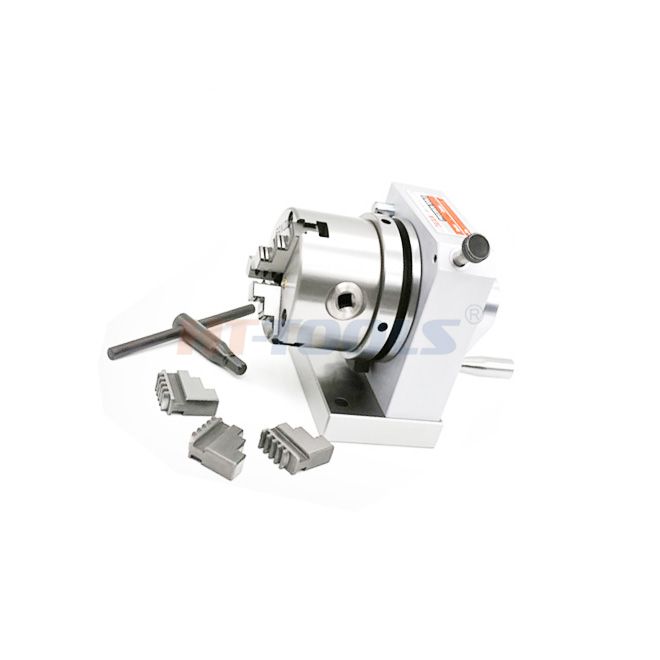

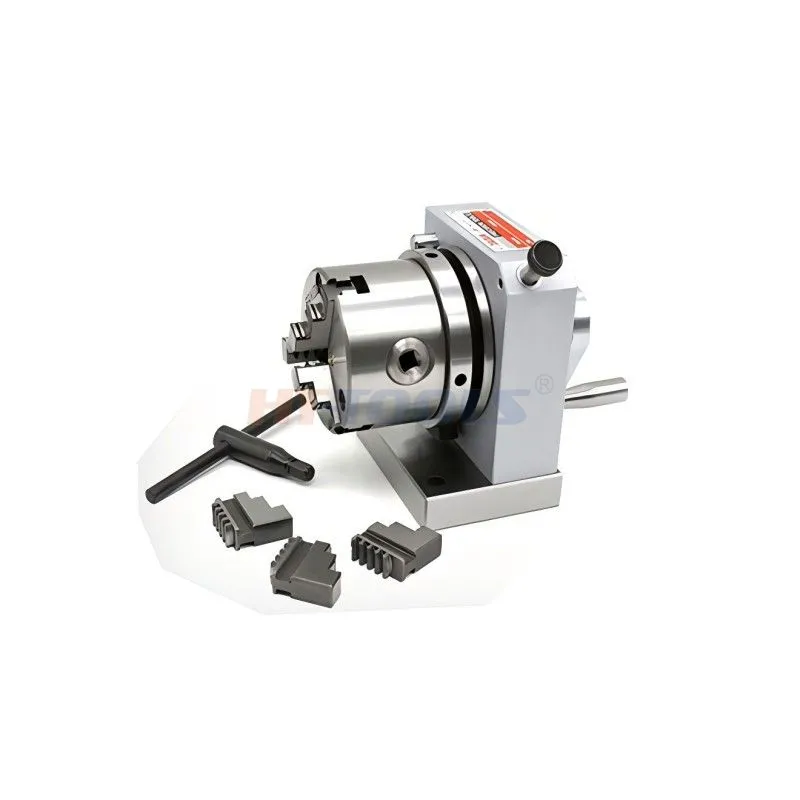

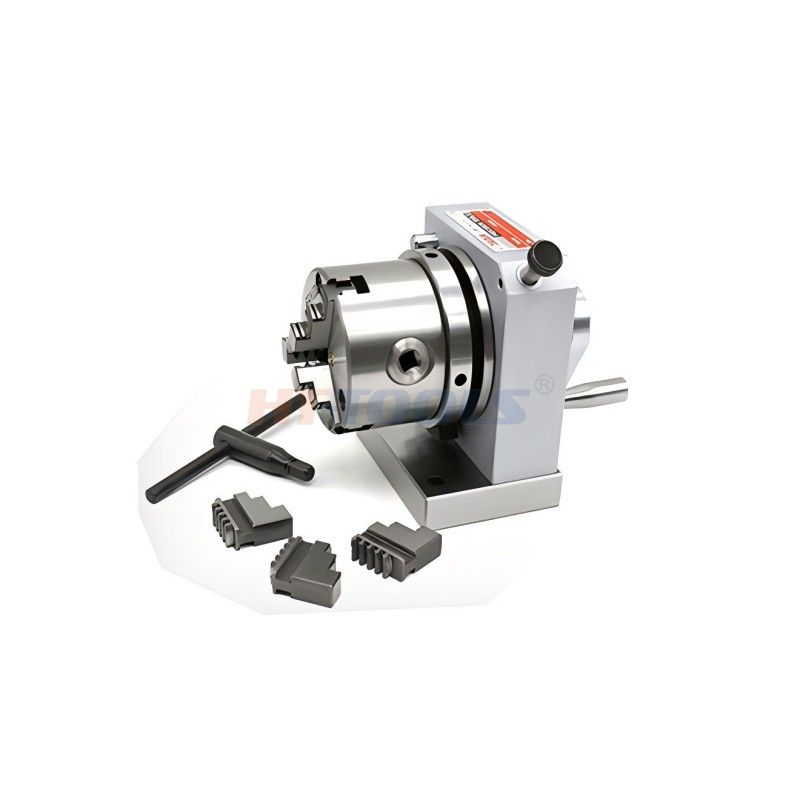

This high-precision punch former is an essential fixture for surface grinders, used for grinding punches, pins, small shafts and mold pins to achieve precise roundness and concentricity. It comes complete with a 3-jaw self-centering chuck, extra jaws and a turning wrench for full out-of-box use.

Key Performance & Material Advantages

1.  Premium Alloy Steel Body

Main frame and chuck are made of quenched alloy steel with precision grinding, featuring high hardness, anti-wear and stable long-term accuracy.

2.  3-Jaw Self-Centering Chuck

Uniform clamping force holds round workpieces firmly; compatible with various small-diameter mold pins and punch blanks.

3.  Ultra-High Rotational Precision

Tight tolerance bearing assembly ensures low runout, delivering excellent circularity after grinding for precision mold parts.

4.  360° Adjustable Rotation & Locking Knob

Easy angle adjustment and secure locking, ideal for forming eccentric punches, stepped pins and special-shaped mold tools.

5.  Complete Accessory Kit

Equipped with replaceable soft jaws and dedicated chuck wrench to meet diverse clamping demands without extra purchases.


Main technical parameters

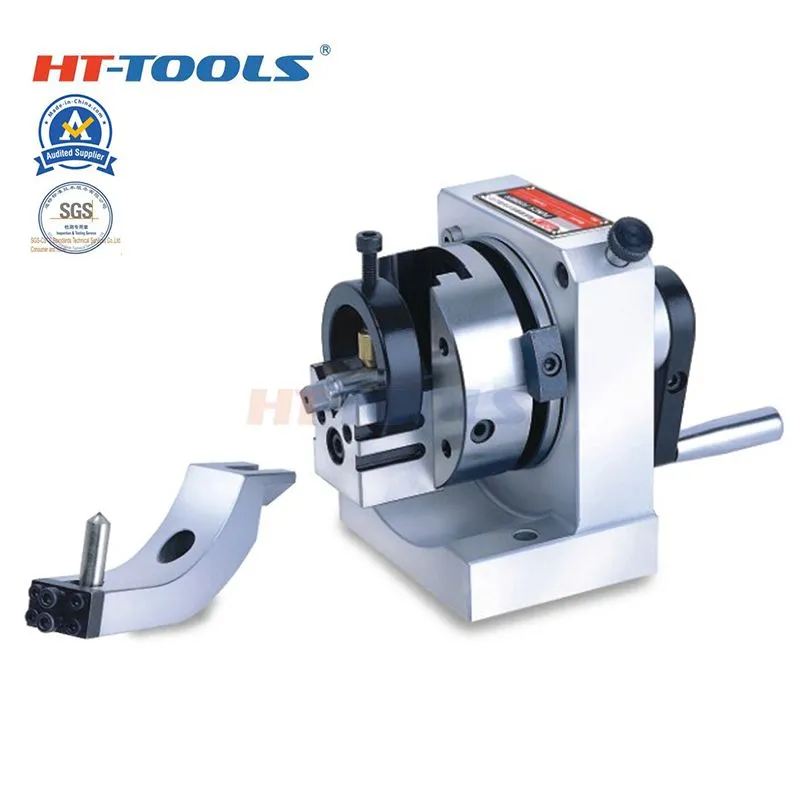

ZCYQ80B one-way punch former

Center height: 80 mm

Clamping diameter in V-groove: 4-30 mm

Stroke of V-block: 25 mm

Number of teeth: 24

Maximum wheel diameter: 200 mm

Maximum radius when dressing arc: convex: r50 mm, concave: r100 mm

ER punch former

 ZCYQ80C punch former

3-jaw chuck hole diameter: 16 mm

Minimum clamping diameter: 2 mm

Maximum clamping diameter: 70 mm

The ZCYQ80C punch former comes with 3 jaws for fast and easy fixation of the workpiece. It can also adjust the center of the 3 jaws. Suitable for batch production.


ER punch former

ZCYQ80D ER Collet Punch

Clamping diameter: 2-20

Supply ER32 collet sizes: 4, 6, 8, 10, 12, 16, 20

For workpieces with a diameter less than 4 mm, use a shank 20 mm/ER16 collet chuck.

When machining, the workpiece can be clamped quickly and stably without checking the center.
