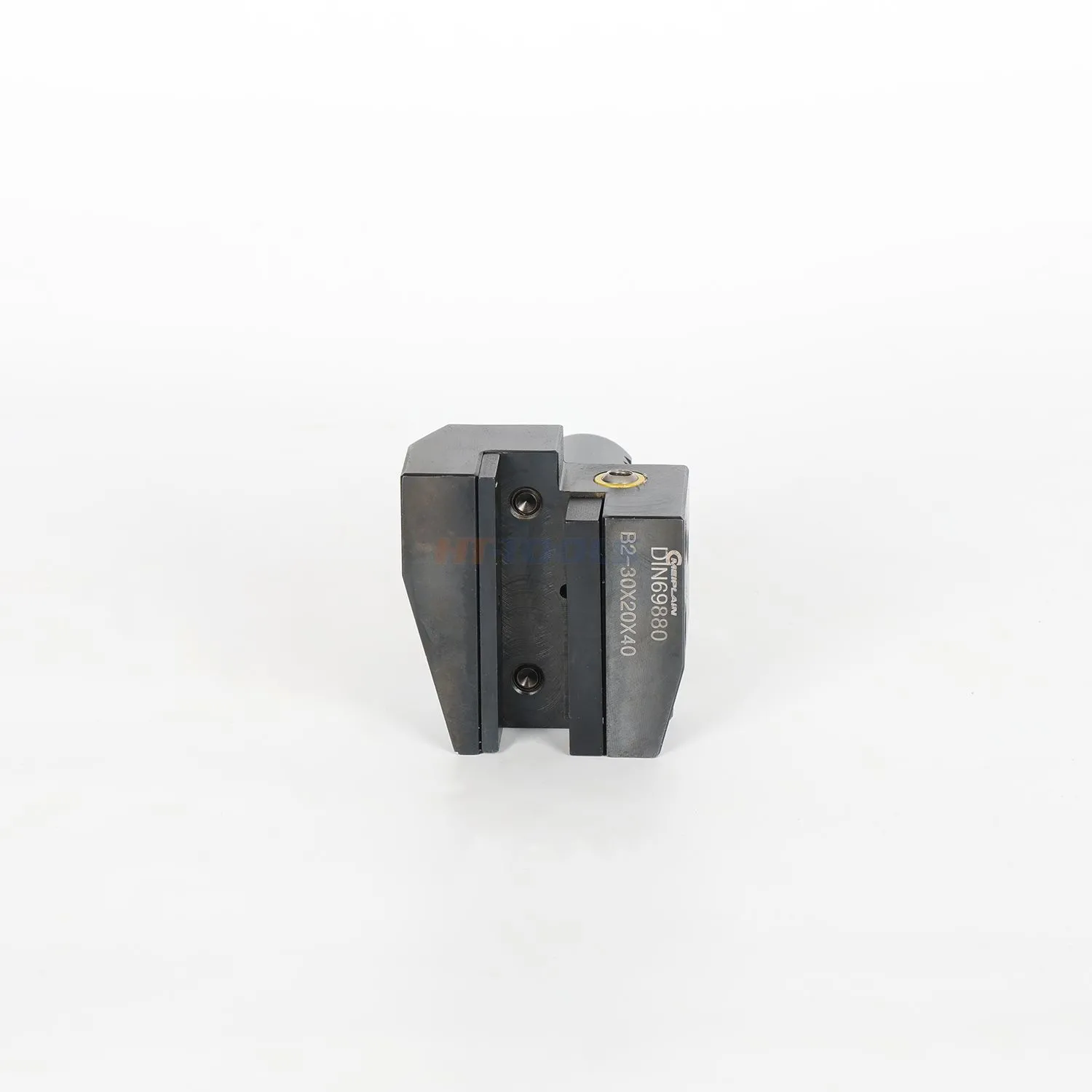

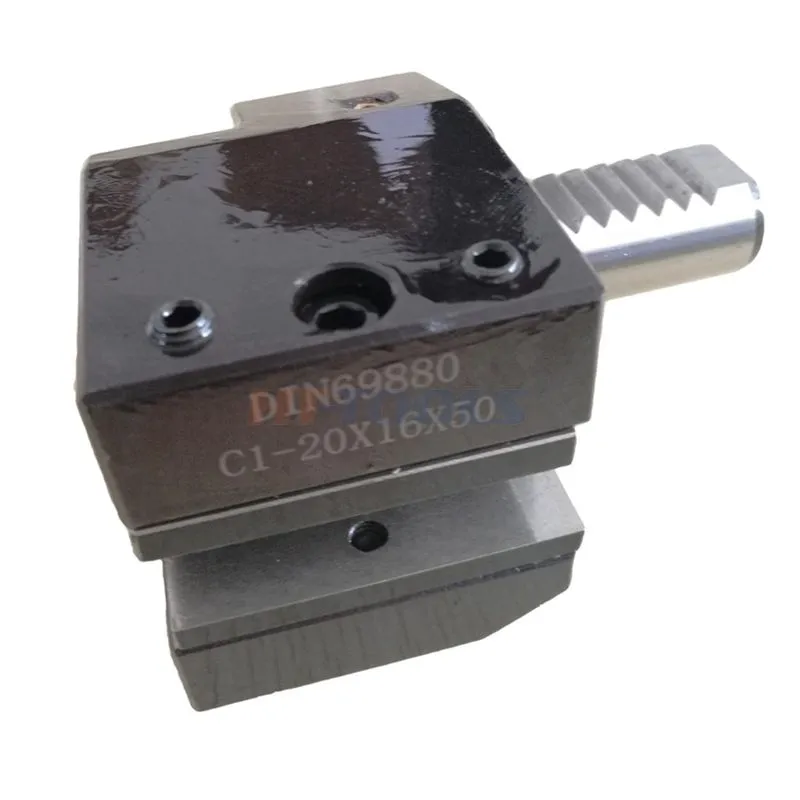

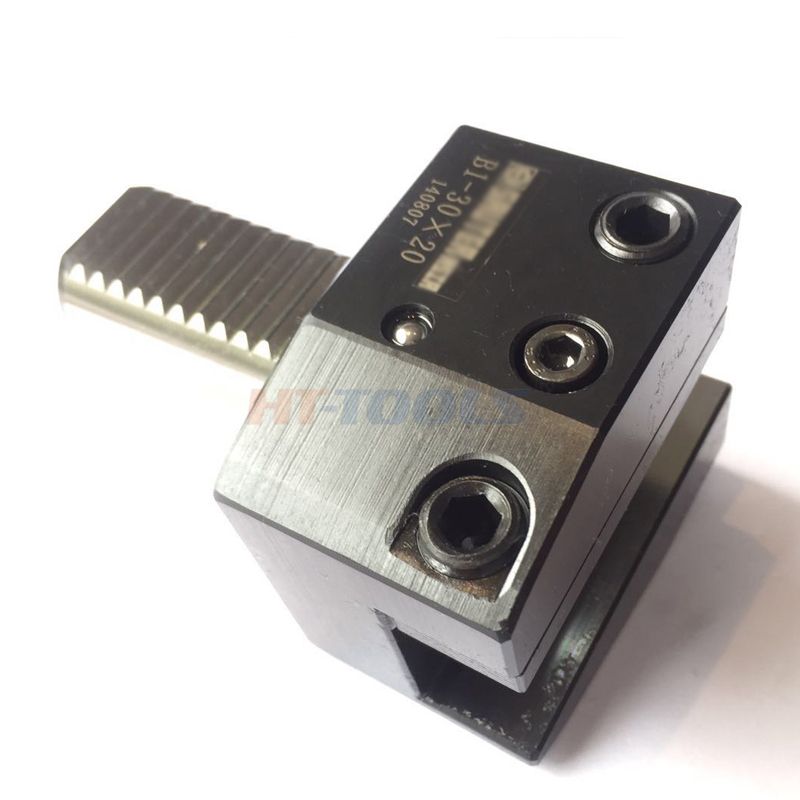

NC Tooling VDI Holder Radial toolholder B5 B6Type

"VDI 16 radial tool holder, right-hand, long, B5"

It is essential machine tool accessories for working center of CNC machine. We produce according to German DIN69880 standard, it
feature developed structure、 convenient and alternative etc. It can satisfy the needs of turning、drilling、 boring、and milling etc.
With various tool holders and allocate different types tool and accessory.

with square crossholding fixture overhead left,long



订单号Order Nod1b1b2b3h1h2h3h4h5h6h7I12
B5-20X16X3020 75 50 7 16 22 19 19 25 30 23 16 30
B5-30X20X4030 00 65 10 20 29 26 22 28 38 30 22 40
B5-40X25X4440 118 75.5 12.5 25 34 35 30 32.5 48
22 44
B5-50X32X5550 130 80 16 32 41 42 35 35 60
30 55
85-60X32X6060 145 B2.516 32 41 46 42.5 42.5 62.5
30 60


FAQ:


Q1: What is DIN 69880 VDI tool holder?
DIN 69880 is the universal German industrial standard for VDI static tool holders. It defines unified dimensional tolerance, mounting structure and clamping specifications for lathe fixed tools, widely adopted on CNC turning centers for stable and standardized tool mounting.
Q2: What are the advantages of DIN 69880 VDI tool holders?
It features high standard compatibility, rigid clamping structure, precise repeat positioning accuracy and strong vibration resistance. Standardized size design ensures fast tool change, stable machining performance and long service life for mass production.
Q3: What sizes do you provide?
We supply full standard VDI sizes including VDI16, VDI20, VDI25, VDI30, VDI40, VDI50 and VDI60. All strictly comply with DIN 69880 standards, supporting standard and custom tool holder types.
Q4: What machines are VDI tool holders compatible with?
Fully compatible with most mainstream CNC lathes and turning centers with VDI tool turret. Perfect for general metal turning, precision finishing and heavy-duty cutting scenarios.
Q5: What is the precision level of your VDI tool holders?
All products are precision ground with tight DIN 69880 tolerance. The repeat positioning accuracy reaches ≤0.005mm, ensuring consistent machining precision and low runout for long-term operation.
Q6: How to maintain DIN 69880 VDI tool holders?
Keep mounting surfaces clean and chip-free before installation. Avoid overload cutting and violent collision. Regularly lubricate clamping parts and apply anti-rust treatment to maintain rigidity and accuracy.
Q7: Do you support customization and OEM service?
Yes. We provide non-standard size customization, special-shaped tool holders and OEM/ODM bulk orders. All customized products follow DIN 69880 standard specifications.
Q8: What is your warranty and delivery policy?
We offer 12-month quality warranty and 24-hour online technical support. Products adopt anti-rust wooden box packaging, supporting global sea, air and express delivery.
