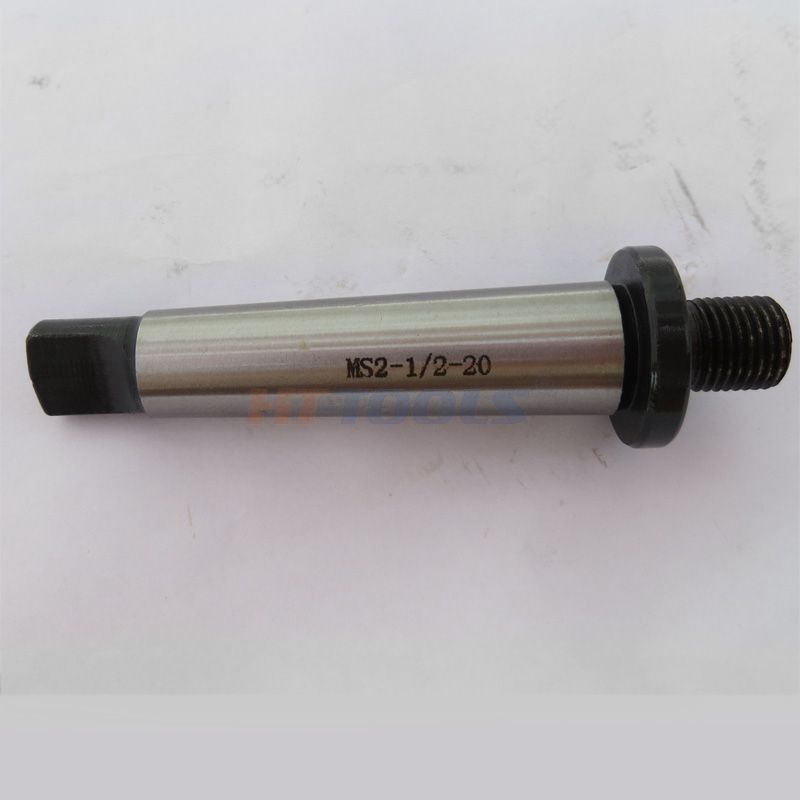

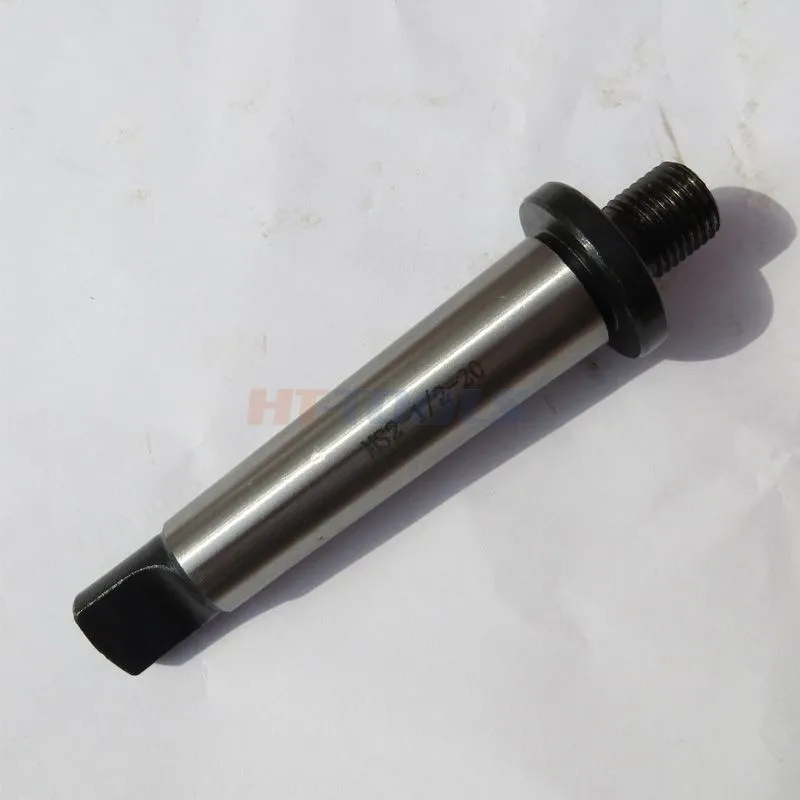

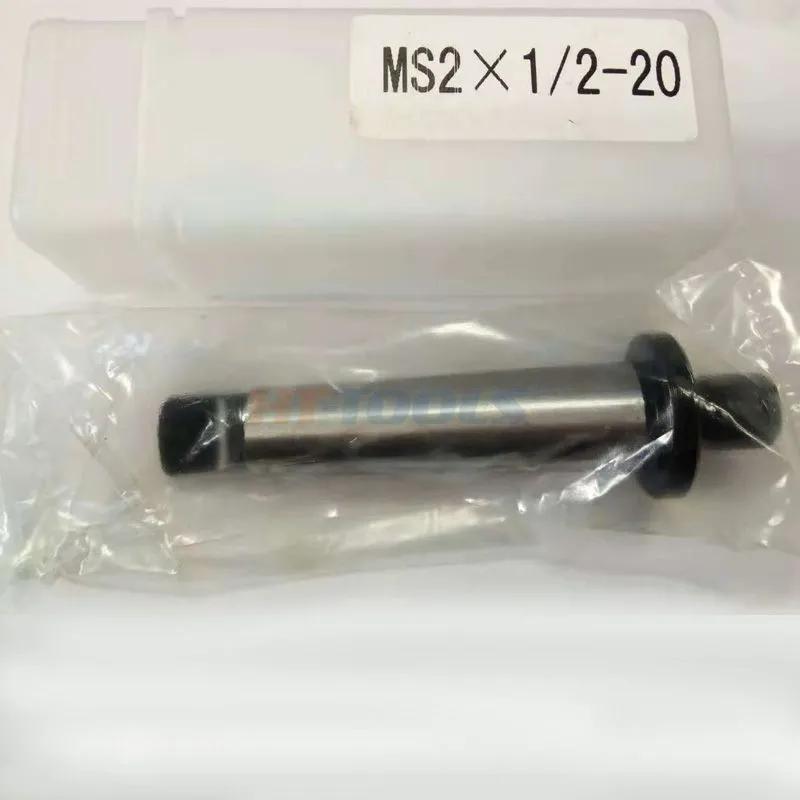

1.Product Name:morse drill chuck arbors morse taper MT1 MT2 MT3 drill chuck arbors
2.Model: Morse drill chuck arbors
3.Material:45# Steel drill chuck arbors
4.Harded:HRC58-62
| 订单号 Order No. | MS.NO.S | L(mm) | L1(mm) | L2(mm) | D(mm) | d(mm) | M |
| MS1-3/8-24UNF | MS1 | 83 | 13.5 | 62 | 24 | 12.065 | 3/8-24UNF |
| MS1-1/2"-20UNF | 85 | 15.5 | 27 | 1/2"-20UNF | |||
| MS1-M12×1.25 | M12×1.25 | ||||||
| MS1-5/8"-16UNF | 88 | 17.5 | 29 | 5/8"-16UNF | |||
| MS2-M10×1 | MS2 | 97 | 13.5 | 75 | 24 | 17.780 | M10×1 |
| MS2-3/8-24UNF | 3/8"-24UNF | ||||||
| MS2-M12×1.25 | 100 | 15.5 | 27 | M12×1.25 | |||
| MS2-1/2"-20UNF | 1/2"-20UNF | ||||||
| MS2-M16×1.5 | 103 | 17.5 | 29 | M16×1.5 | |||
| MS2-5/8"-16UNF | 5/8"-16UNF | ||||||
| MS2-5/8"-20UNF | 5/8"-20UNF | ||||||
| MS3-M10×1 | MS3 | 116 | 13.5 | 94 | 24 | 23.825 | M10×1 |
| MS3-3/8*-24 | 3/8"-24UNF | ||||||
| MS3-M12×1.25 | 119 | 15.5 | 27 | M12×1.25 | |||
| MS3-1/2"-20UNF | 1/2-20UNF | ||||||
| MS3-M16×1.5 | 122 | 17.5 | 29 | M16×1.5 | |||
| MS3-5/8"-16UNF | 5/8"-16UNF | ||||||
| MS4-M12×1.25 | MS4 | 145 | 15.5 | 117.5 | 31.6 | 31.267 | M12×1.25 |
