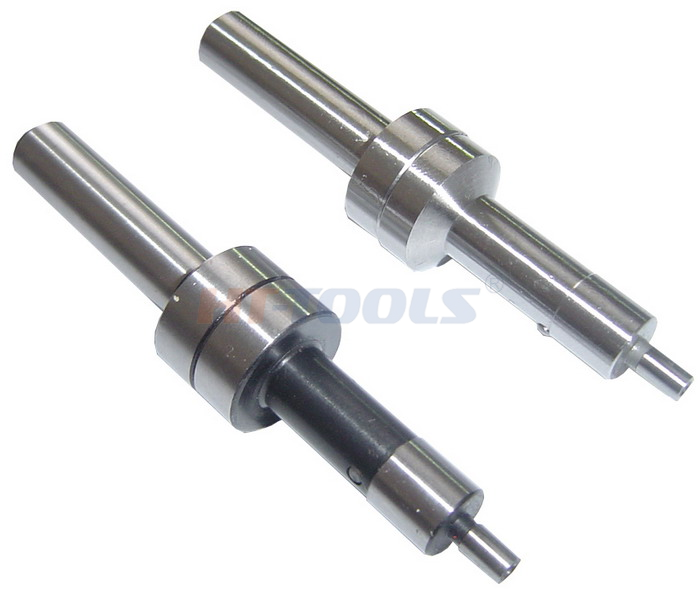

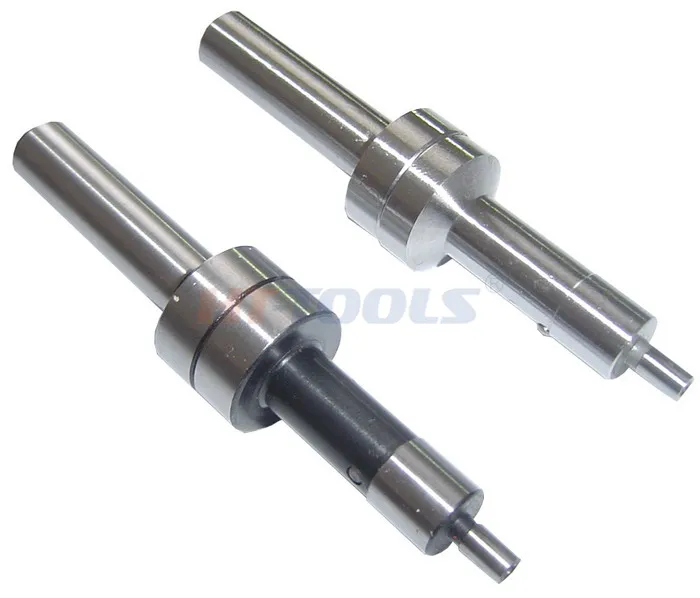

Mechanical edge finder

Mechanical Edge Finder | Application & Technical Parameters

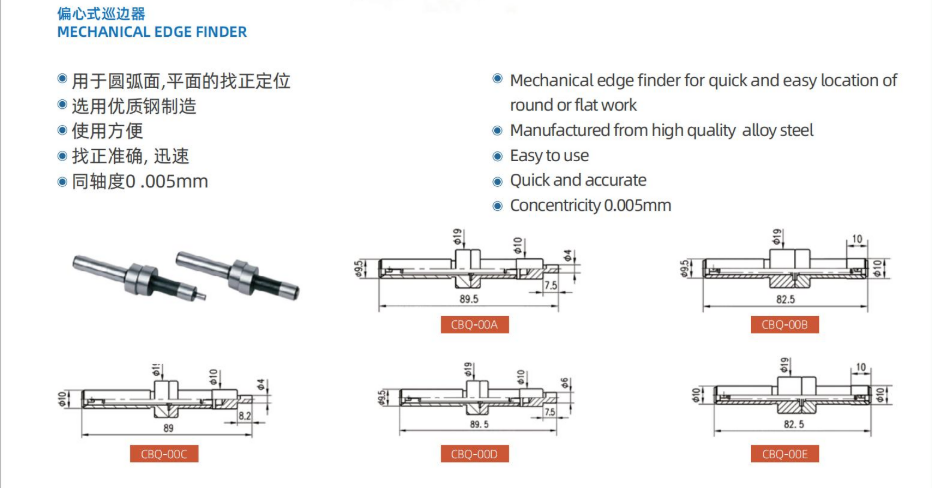

1. Technical Parameters

  • Shank diameter: 6mm / 10mm / 12mm

  • Probe diameter: 4mm / 6mm / 8mm

  • Positioning accuracy: ±0.005mm

  • Material: Hardened alloy steel, HRC 58-62

  • Structure: Spring floating dual-head design

  • No power supply required, purely mechanical operation

2. Application Scenarios

Machine Tools

CNC milling machine, vertical mill, bench lathe, machining center, tool grinder

Processing Industries

Mold manufacturing, automotive parts, hardware precision machining, aerospace small parts processing

Working Purposes

  1. Quickly find workpiece edge, hole center and side datum

  2. Calibrate X/Y zero coordinate before cutting

  3. Position square, circular and irregular metal blanks

  4. Batch precision machining coordinate alignment





FAQ:

Q1: What is an edge finder?A: Edge finder is a CNC measuring tool to locate workpiece edges and set zero offset quickly and accurately.

Q2: What types of edge finders do you have?A: Mechanical edge finders and electronic edge finders.

Q3: What accuracy can your edge finder reach?A: Mechanical type: ±0.005mm; electronic type: ±0.003mm.

Q4: Can edge finder work on milling machine and machining center?A: Yes, suitable for vertical mills, CNC machining centers.

Q5: What shank sizes are available?A: 10mm, 12mm, 20mm shanks. Custom shank available.

Q6: What is the difference between mechanical and electronic edge finder?A: Mechanical: low cost, simple operation. Electronic: with LED light, higher precision, easier for blind hole edge detection.

Q7: Tips for using edge finder?A: Use low spindle speed. Keep probe and workpiece clean to avoid error.

Q8: Lead time?A: Standard models in stock, 3–7 days. Custom orders 7–15 days.
