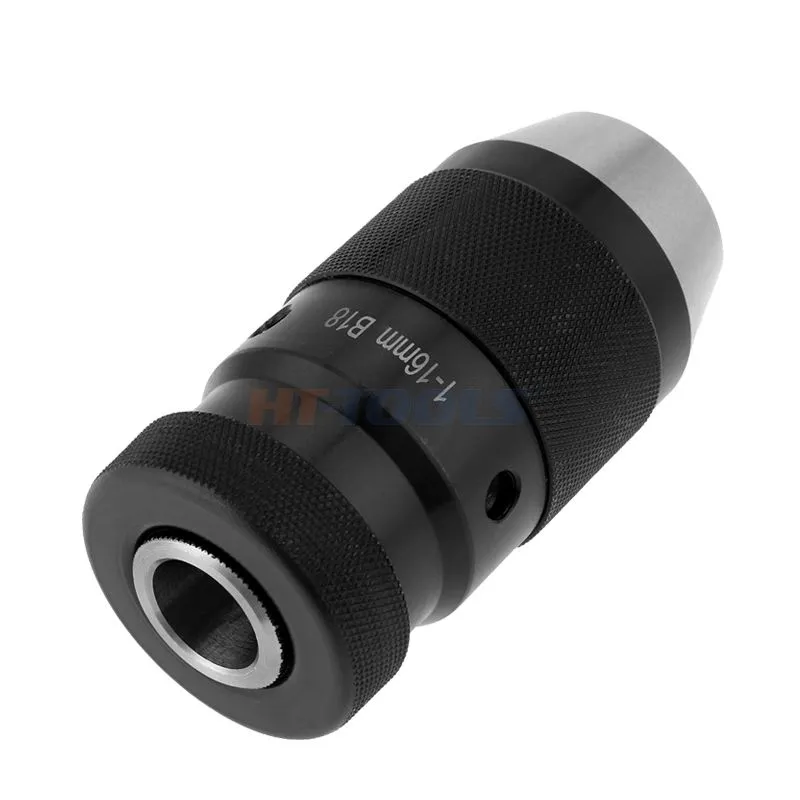

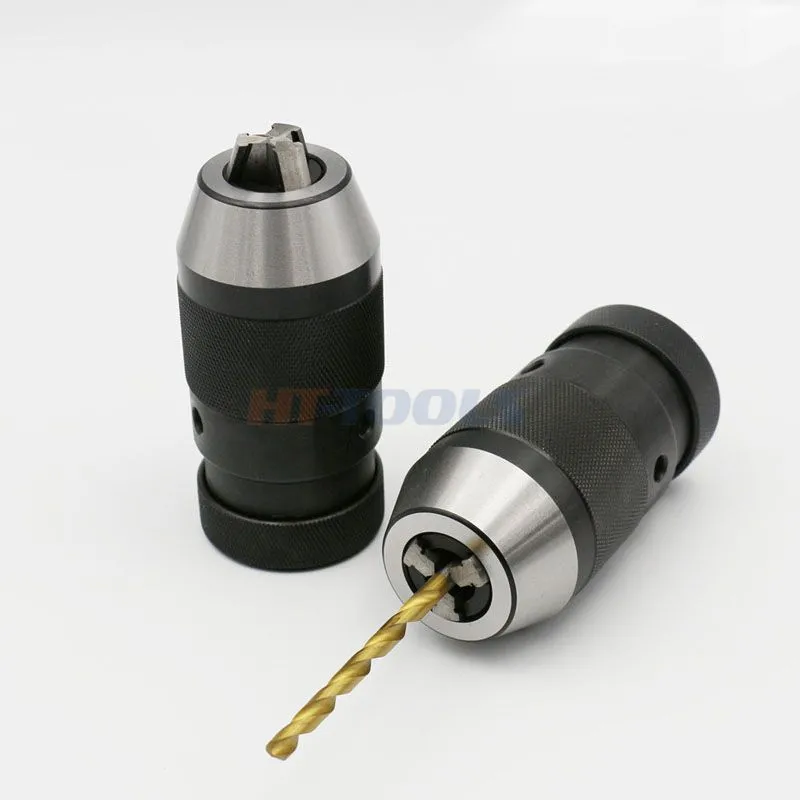

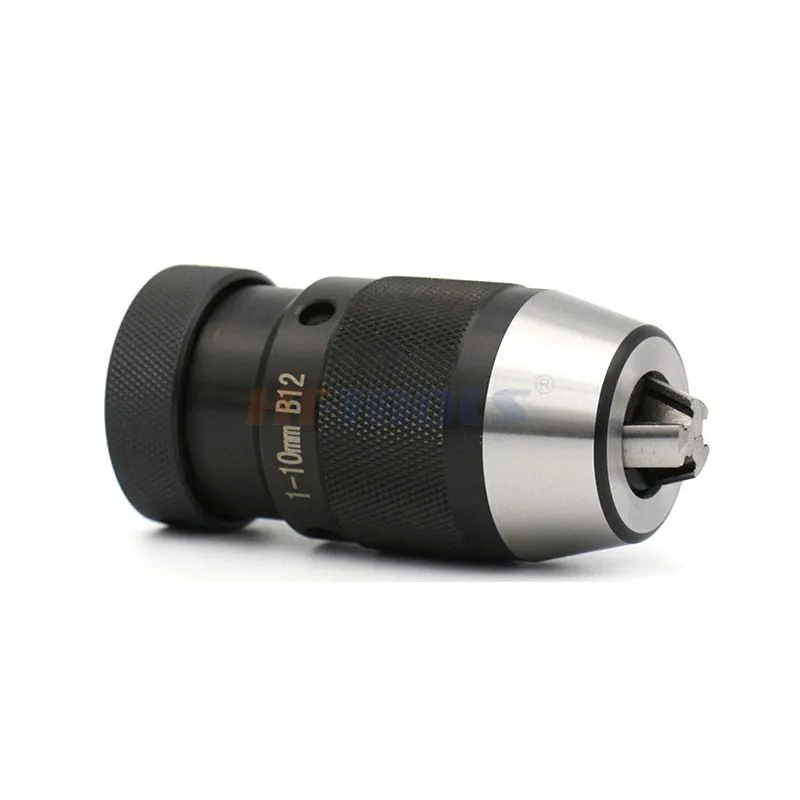

Heavy Duty Keyless Drill Chuck with Taper Shank B10/B16/B18/JT6 Morse Taper Arbor

1.Grade P&D is used in lathe、milling machine、boring machine、drilling bench ete.

2.Grade M is used in high precision machine-tool,such as machining center and digital control machine.

Next Product Inquire Now

Product Detail

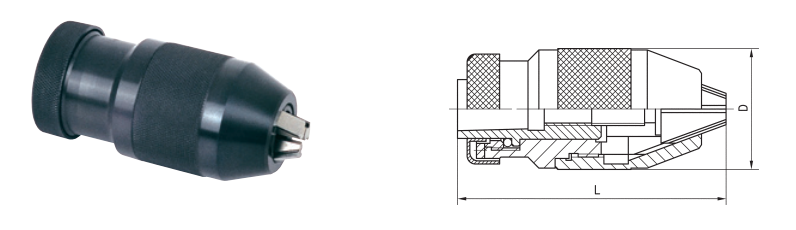

Order No.	Capacity	Mount	D mm	L mm	Runout mm
					P	D	M
J0106	0.5-6mm	B10	34	72	0.12	0.16
J0206	1/64”-1/4"	JT1
J0108	0.5-8mm	B12	42	82
J0208	1/64”-5/16”	JT2					0.06
J0110	1-10mm	B12	42	82
J0210	1/32”-3/8"	JT2	44	88
J0210A		JT33
J0113	1-13mm	B16	44	97
J0113A		B16	49	100
J0213	1-32”-1/2"	JT33
J0213A		JT6
J0116A	3-16mm	B16	54	110	0.14	0.2	0.07
J0116		B18
J0216	1/8”-5/8”	JT6
J0216A		JT3
J0120	5-20mm	B22	60	125	0.18	0.25
J0220	3/16”-3/4"	JT3

Keyless self-tightening structure, no chuck key required, fast bit change

Automatic clamping force increases with cutting torque, prevents drill bit slipping

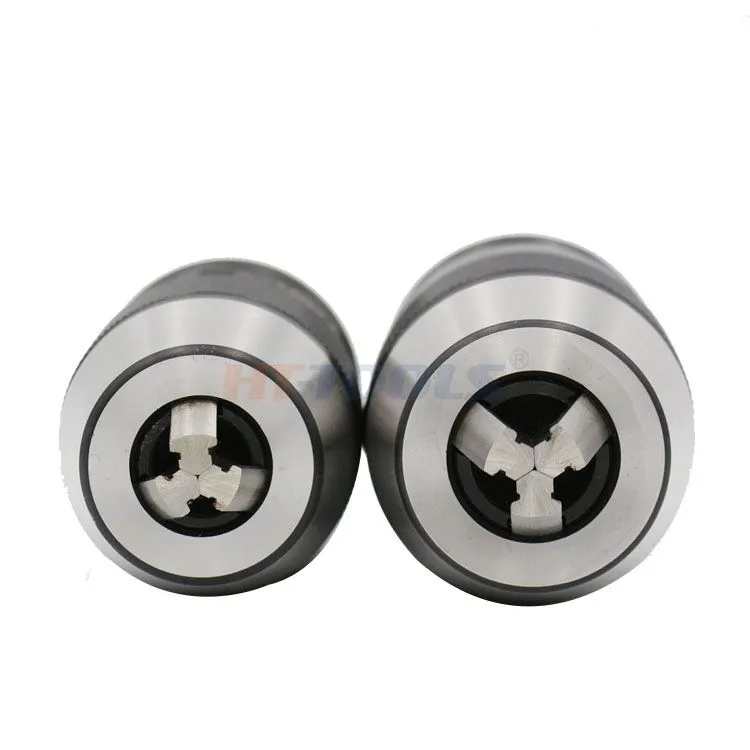

Reinforced 3 jaws hardened, high wear resistance & long service life

Low runout, stable clamping for precision drilling

Available with B10/B12/B16/B18/B22 taper mount, Morse taper compatible

Wide clamping range: 0.5–13mm,1–16mm,3–16mm,5–20mm optional

Alloy steel body, compact structure, easy installation

Q1: What is self-tightening drill chuck?

A1: Keyless drill chuck, clamping force increases automatically during drilling.

Q2: Does it need chuck key?

A2: No, hand tightening only.

Q3: What taper mount available?

A3: B10, B12, B16, B18, B22.

Q4: Clamping range?

A4: 0.5–13mm,1–16mm,3–16mm,5–20mm.

Q5: Suitable for CNC machining center?

A5: Yes, match APU drill chuck holder.

Q6: Can it prevent drill slipping?

A6: Yes, clamping force grows with cutting torque.
