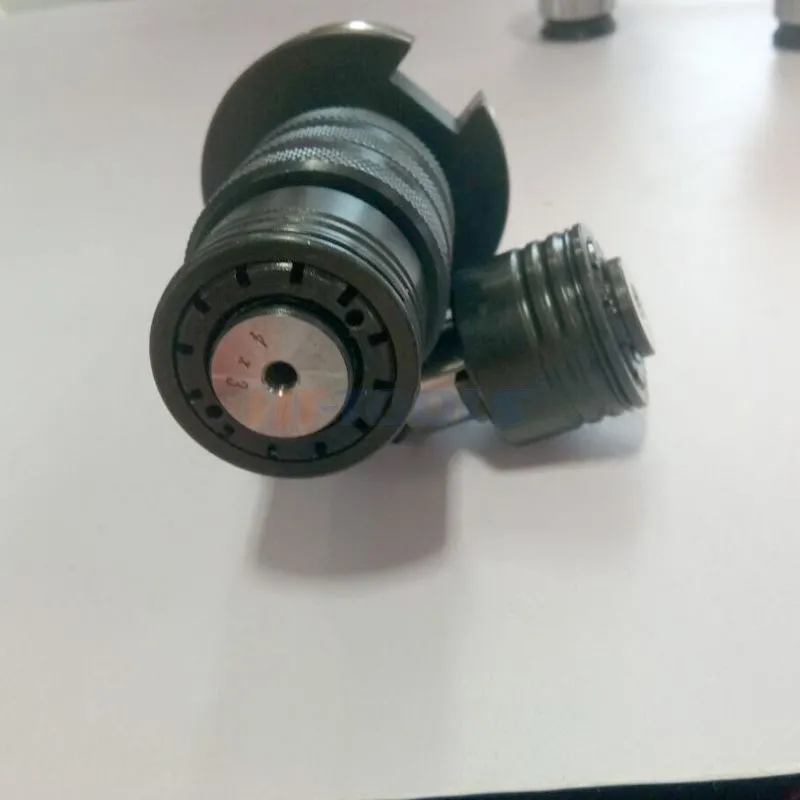

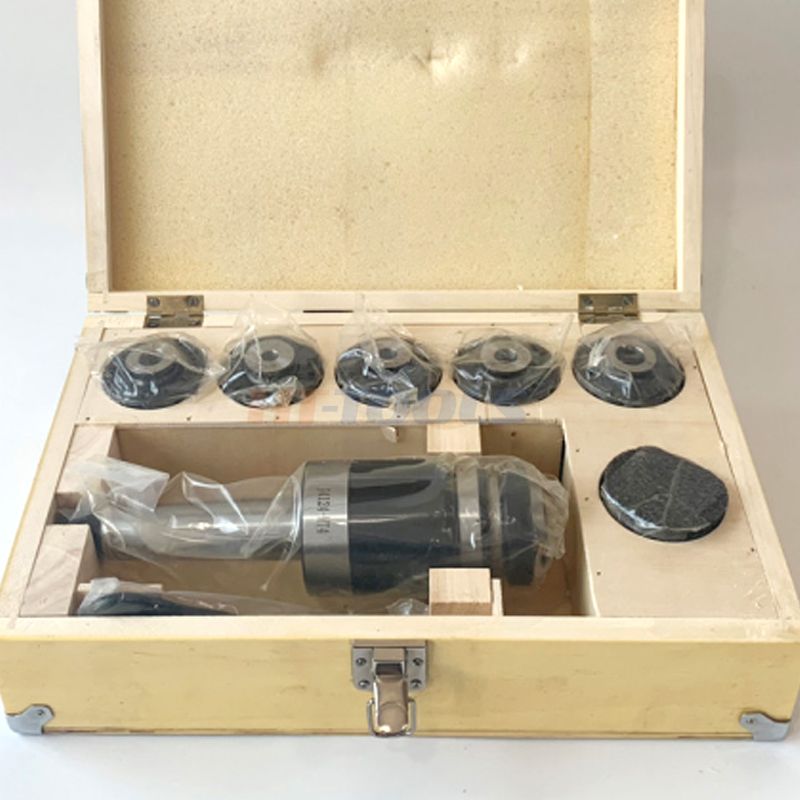

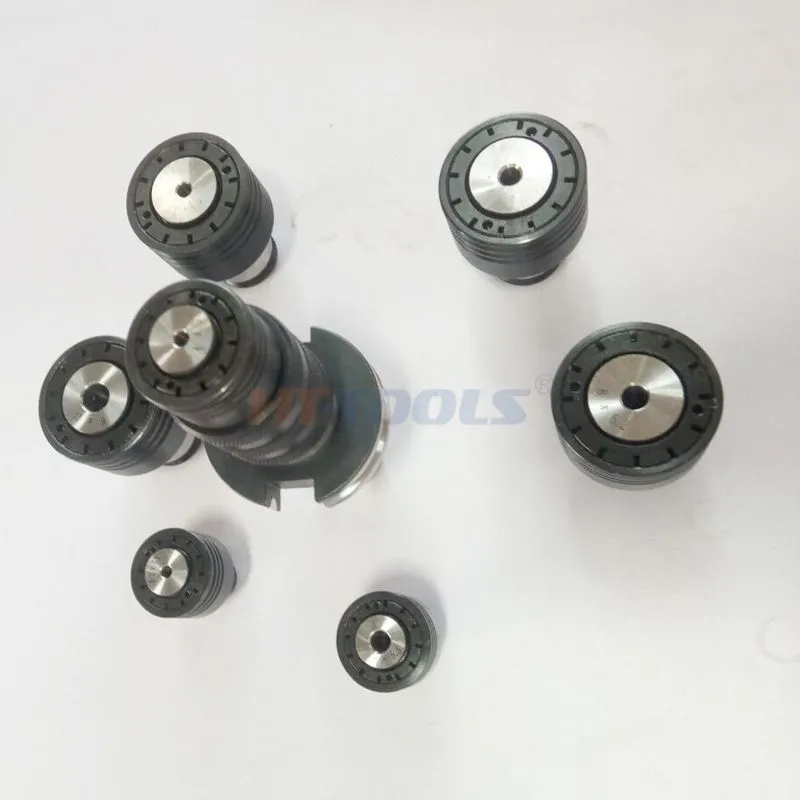

This unit is consisted of chuck and tap collet. The chuck has installed compensating device for thread
pitch.There are two different tap collts,cne with overload protection and one without. When using the tap
collet with overload protection, the protection device can automatically release to avoid tap-break Just adjust
nuts and you can get the different release torque quickly and conveniently.
Tapping chuck
| 订单号 Order No. | 柄部 Shank | 攻丝范围 Tapping range | D | D1 | d | L1 |
| D30-12 | DIN69871.30 | M3-M12 | 36 | 31.75 | 19 | 70.1 |
| D40-12 | DIN69871.40 | 44.45 | 66.7 | |||
| D50-12 | DIN69871.50 | 69.85 | 66.7 | |||
| D30-12 | BT30 | 31.75 | 69.6 | |||
| B40-12 | BT40 | 44.45 | 74.6 | |||
| B50-12 | BT50 | 69.85 | 85.6 | |||
| D30-20 | DIN69871.30 | M5-M24 | 56 | 31.75 | 31 | 89.6 |
| D40-20 | DIN69871.40 | 44.45 | 89.6 | |||
| D50-20 | DIN69871.50 | 69.85 | 89.6 | |||
| B30-20 | BT30 | 31.75 | 94.6 | |||
| B40-20 | BT40 | 44.45 | 97.5 | |||
| B50-20 | BT50 | 69.85 | 108.5 | |||
| D30-36 | DIN69871.30 | M14-36 | 80 | 31.75 | 48 | 126.1 |
| D40-36 | DIN69871.40 | 44.45 | 146 | |||
| D50-36 | DIN69871.50 | 69.85 | 144 | |||
| D30-36 | BT30 | 31.75 | 129 | |||
| D40-36 | BT40 | 44.45 | 149 | |||
| B50-36 | BT50 | 69.85 | 160 |
