Electronic edge finder

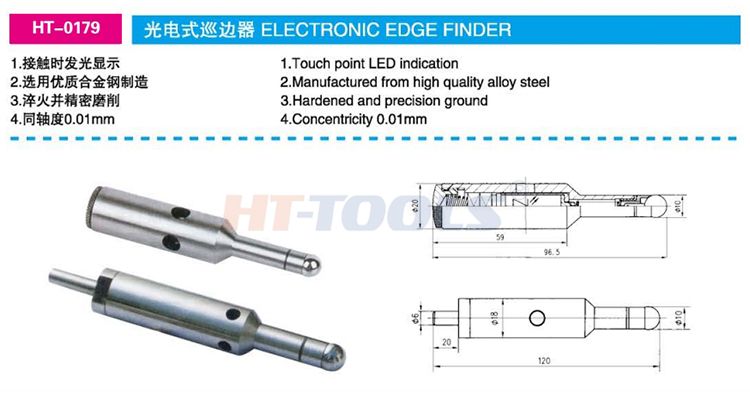

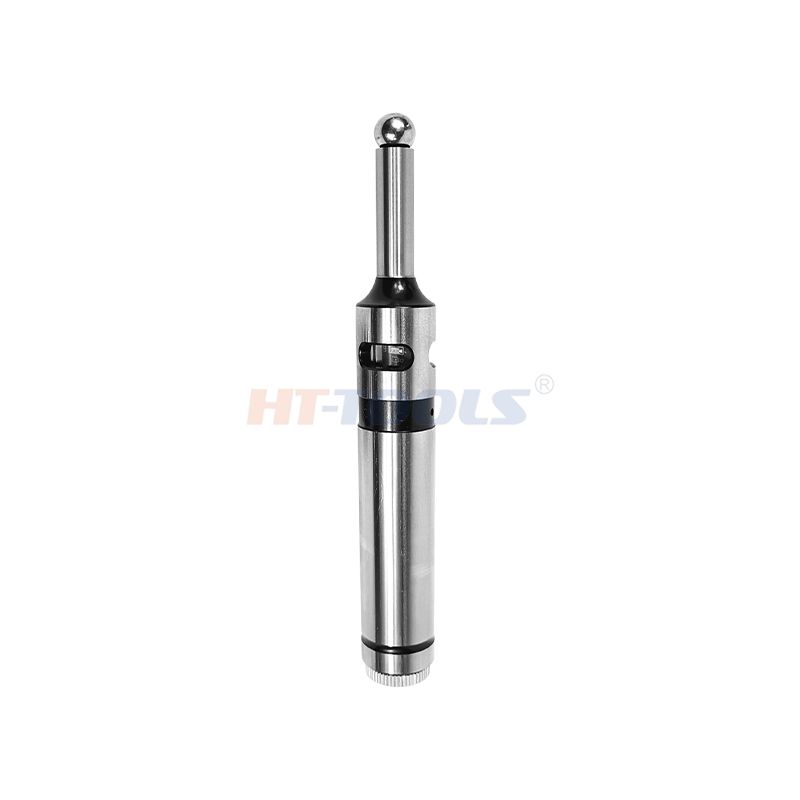

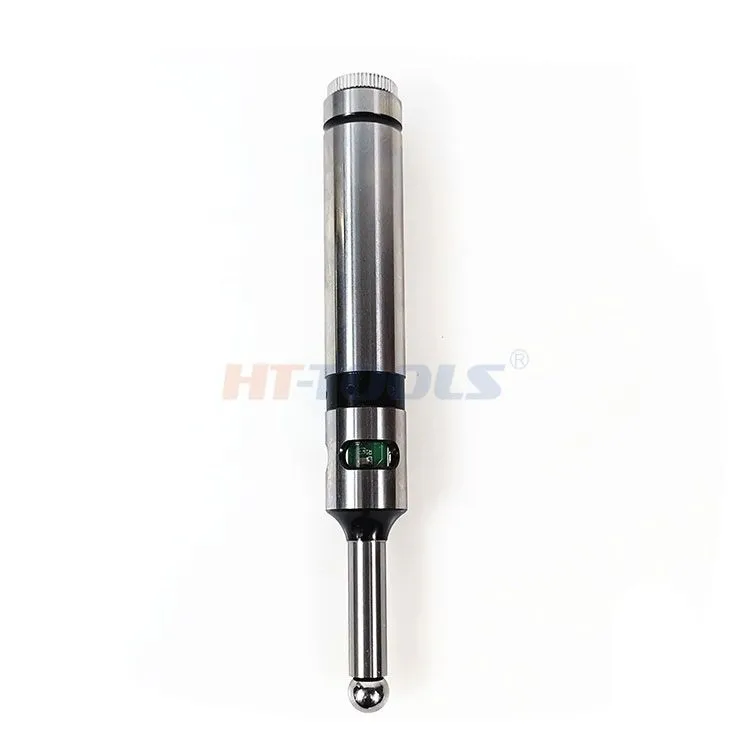

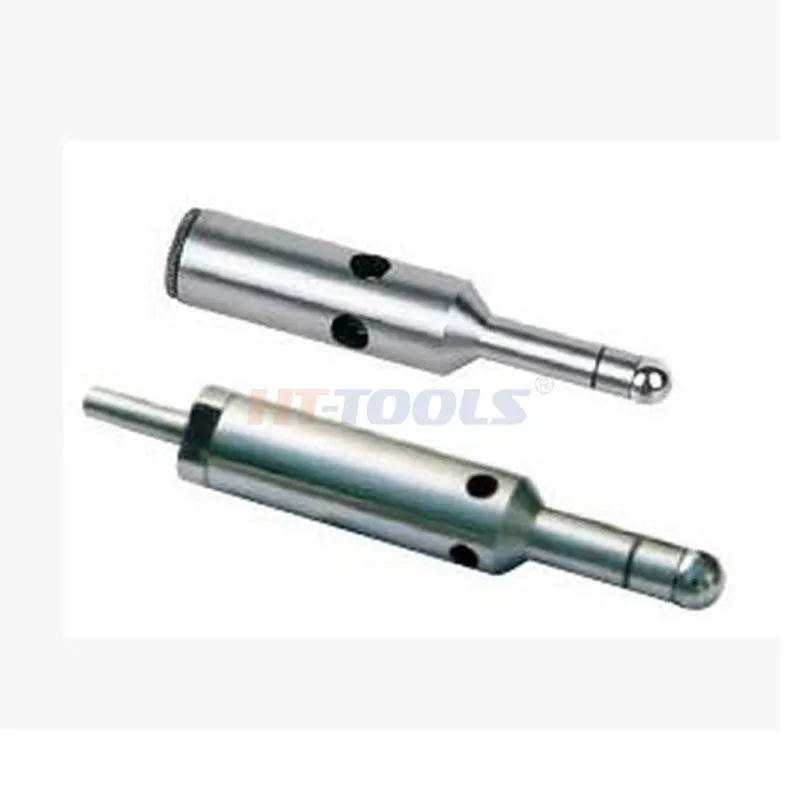

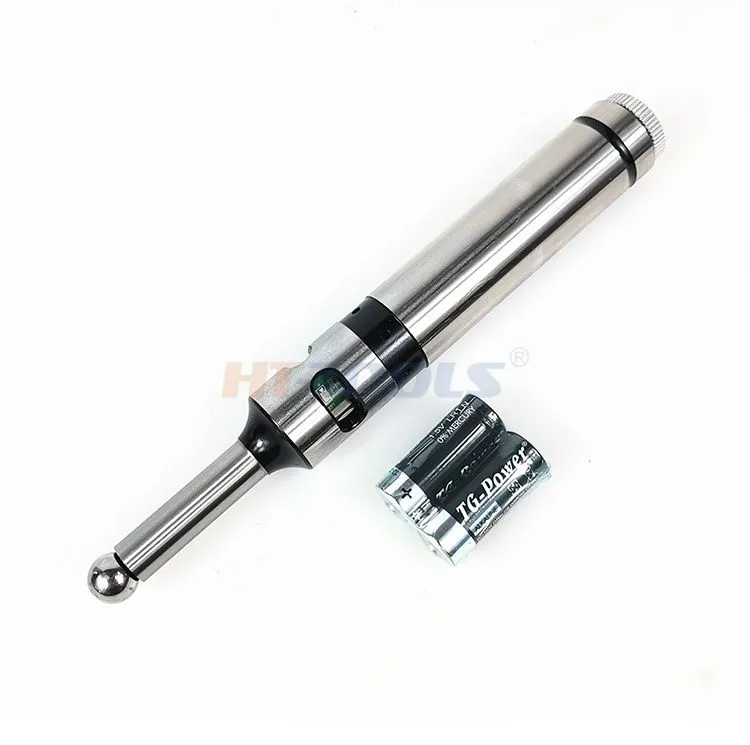

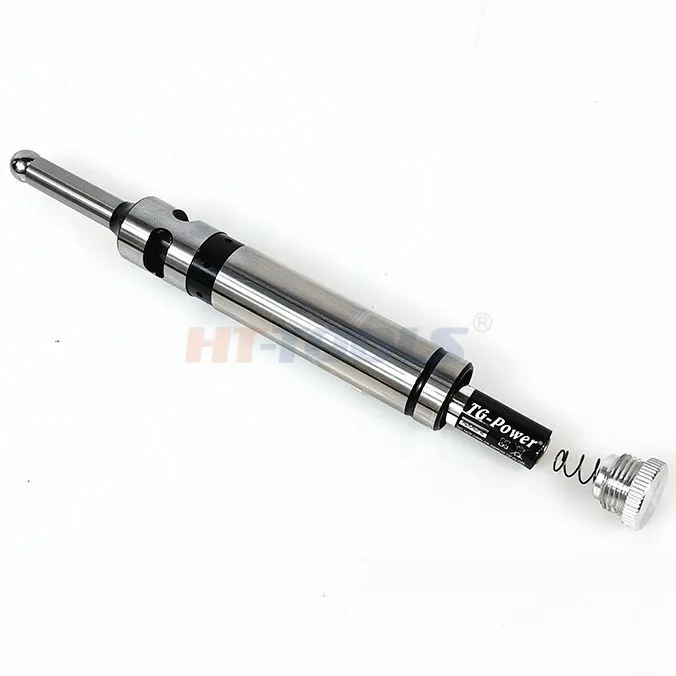

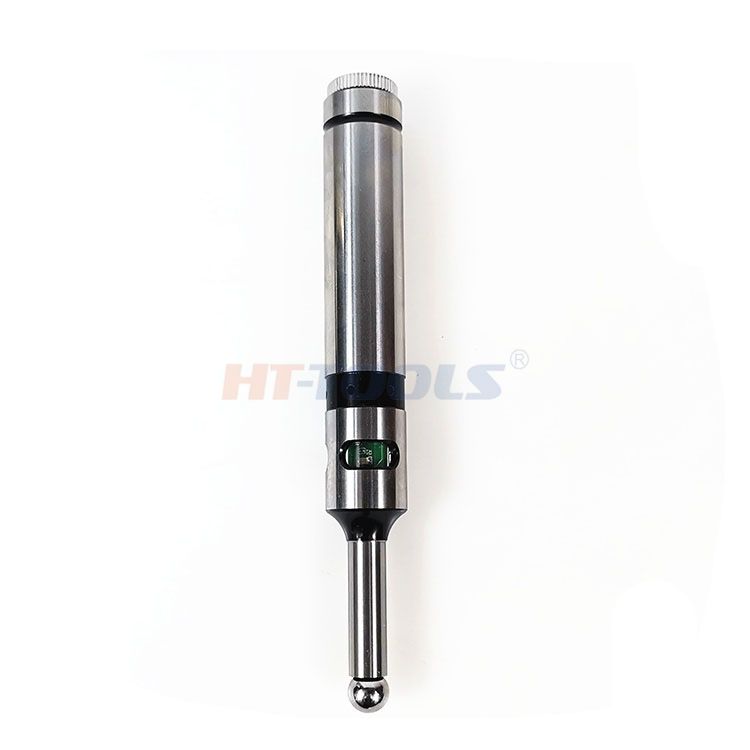

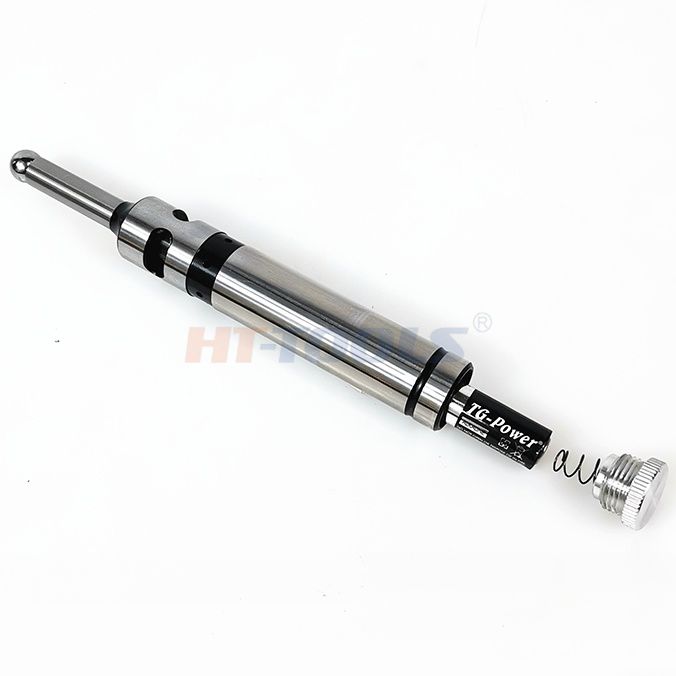

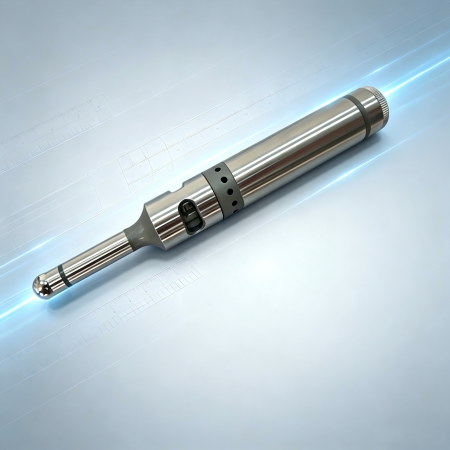

Electronic Edge Finder

High-precision optical probe engineered for CNC machining centers and milling machines. Featuring built-in LED contact indicator, rigid stainless steel body provides exceptional wear resistance and long service life.

Main Application Scenarios

Perfect for mold & die, automotive, aerospace and 3C electronics precision machining. Widely adopted for mold cavity positioning, auto alloy component alignment, aircraft jig calibration and small electronic hardware processing.

Suitable for edge detection, center locating, zero point setting and batch workpiece alignment in all precision manufacturing workshops.

Next Product Inquire Now

FAQ

Q1: What is the electronic edge finder used for ?

A1: It quickly locates workpiece position, used for end face, inner and outer diameter inspection, suitable for milling machines and machining centers.

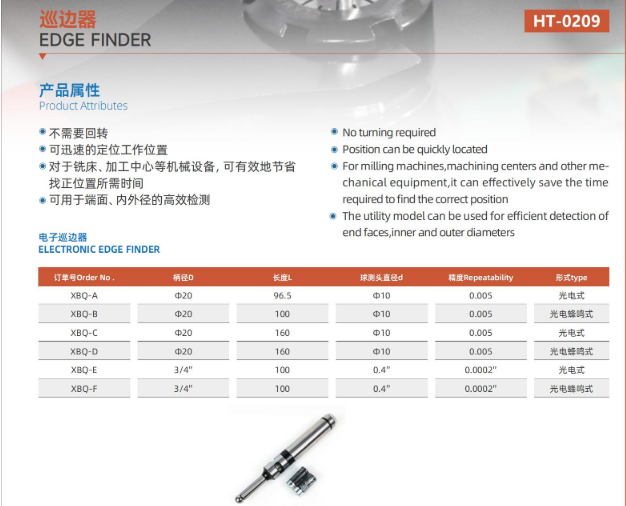

Q2: What is the repeatability accuracy?

A2: Metric models repeatability: 0.005mm; imperial models repeatability: 0.0002 inch.

Q3: Which machines is it compatible with?

A3: Suitable for milling machines and machining centers for workpiece centering and edge finding.

Q4: What are the product features?

A4: No spindle rotation required, fast workpiece positioning, save setup time; can inspect end face, inner and outer diameters.

Q5: Can you provide OEM service?

A5: OEM is available, custom laser logo and non-standard specifications.

Q6: What is your monthly production capacity?

A6: Monthly output: 5,000–10,000 pcs.
