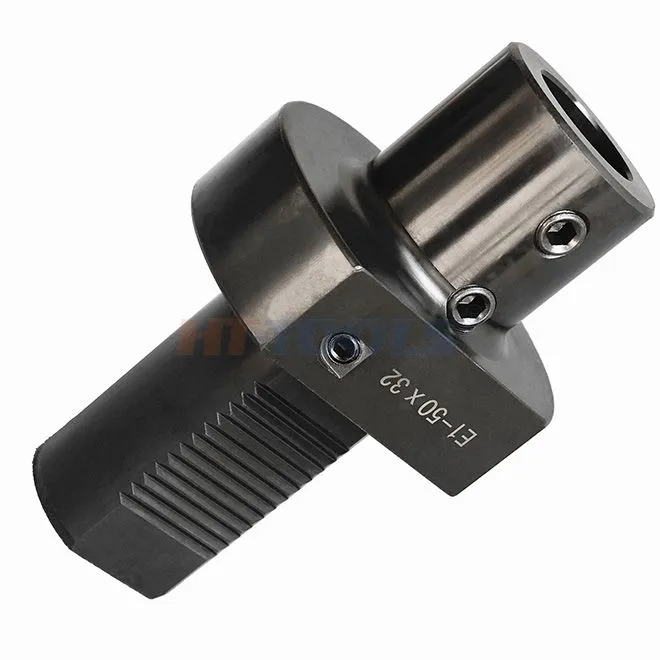

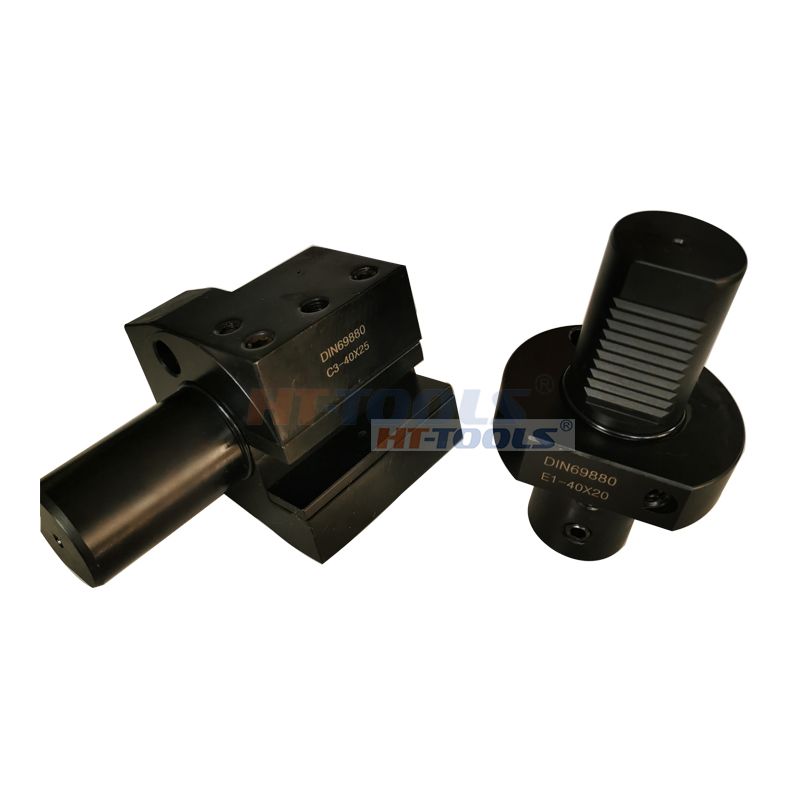

DIN69880 E1 TYPE VDI tool holder

  • Standard: DIN69880 / VDI Tool Holder System

  • Type: E1 Drill Holder

  • Application: CNC lathe, turning center, automatic turret machines

  • Suitable for U drills, indexable drills and boring tools

  • High rigidity and excellent vibration resistance

  • Precision grinding for high repeatability and accuracy

  • Hardened alloy steel construction for long service life

  • Available in various VDI sizes: VDI20, VDI25, VDI30, VDI40, VDI50, etc.

Applications:
Widely used in automotive parts, aerospace components, precision machining, mold manufacturing and general CNC turning operations where high accuracy and stable performance are required.

HT-TOOLS provides DIN69880 VDI tool holders with strict quality control, competitive pricing and customized solutions according to different CNC machine requirements.


din69880-e1-type-vdi-tool-holder

din69880-e1-type-vdi-tool-holder





Order Nod1d2d3d4d5h1h2l1l2l3l4
l5
E1-20X16201636M10X150-2367541815
35
E1-20X20202040M10X150-2367541815
35
E1-20X25202545M12X150-2371591817
40
E1-30X10301030M668283060482212
28
E1-30X12301232M8X168283060482212
28
E1-30X16301636M10X168283067542215
35
E1-30X20302040M10X168283067542215
35
E1-30X25302545M12X168283071592217
40
E1-30X32303252M12X168283075632220
44
E1-40X12401232M8X18332.5-60482212
28
E1-40X14401434M10X18332.5-67542215
30
E1-40X16401636M1OX18332.5-67542215
35
E1-40X20402040M10X18332.5-67542215
35
E1-40X25402545M12X18332.5-75592217
40
E1-40X32403252M12X18332.5-75632220
44
E1-40X40404065M16X19832.5-90732222
50
E1-50X20502040M10X19835-67543015
35
E1-50X25502545M12X19835-80593017
40
E1-50X32503252M12X19835-80633020
44
E1-50X40504065M16X19835-90733022
50
E1-50X50505075M16X19835-100833024
60
E1-60X20602040M10X112342.5-80543015
35
E1-60X25602545M12X112342.5-80593017
40
E1-60X32603252M12X112342.5-80633020
44
E1-60X40604065M16X112342.5-90733022
50
E1-60X50605075M16X112342.5-100833024
60

DIN69880 E1 TYPE VDI tool holder

1. What standard does this VDI Tool Holder follow?


The tool holder follows the DIN 69880 / VDI Tool Holder System standard and is suitable for CNC lathes and turning centers equipped with VDI turrets.


2. What VDI sizes are available?


Available sizes include VDI20, VDI25, VDI30, VDI40 and VDI50, with other sizes available upon request.


3. What tools can be used with the E1 Drill Holder?


It is suitable for U drills, indexable drills and certain boring tools, depending on the tool shank size and clamping method.


4. What machines is this tool holder suitable for?


It is mainly used on CNC lathes, turning centers and automatic turret machines.


5. What are the main advantages of this VDI E1 holder?


The holder is made of hardened alloy steel and precision-machined to provide high rigidity, good vibration resistance and reliable repeatability.


6. How do I choose the correct VDI tool holder?


You should confirm the VDI size, tool shank diameter, turret interface and tool type. If you are unsure, send us your machine model or turret information for assistance.


7. Can you provide customized VDI tool holders?


Yes. Customized solutions for dimensions, interfaces and clamping configurations can be discussed according to different machine and tooling requirements.
