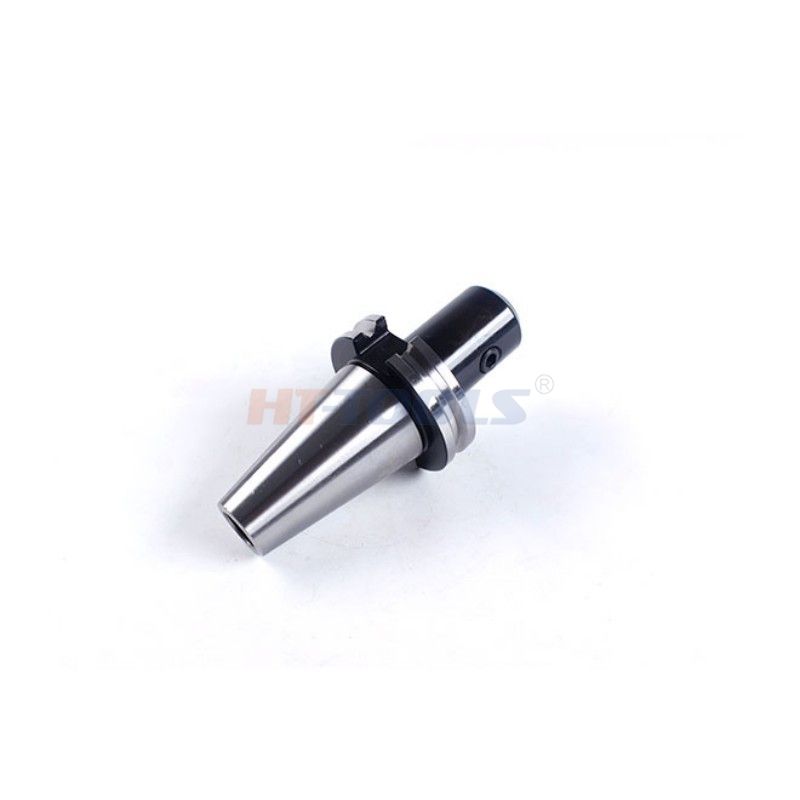

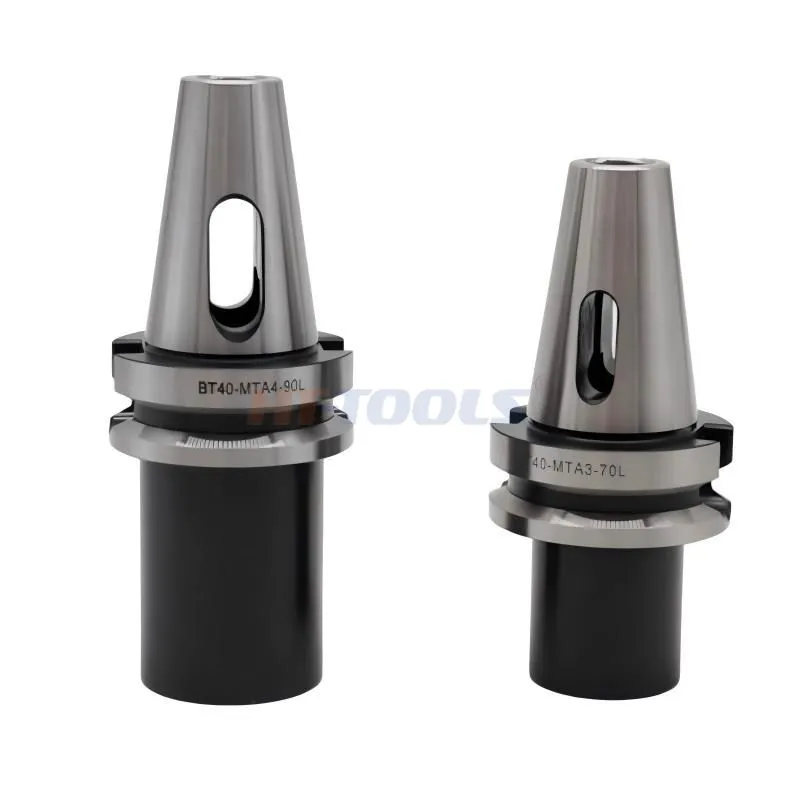

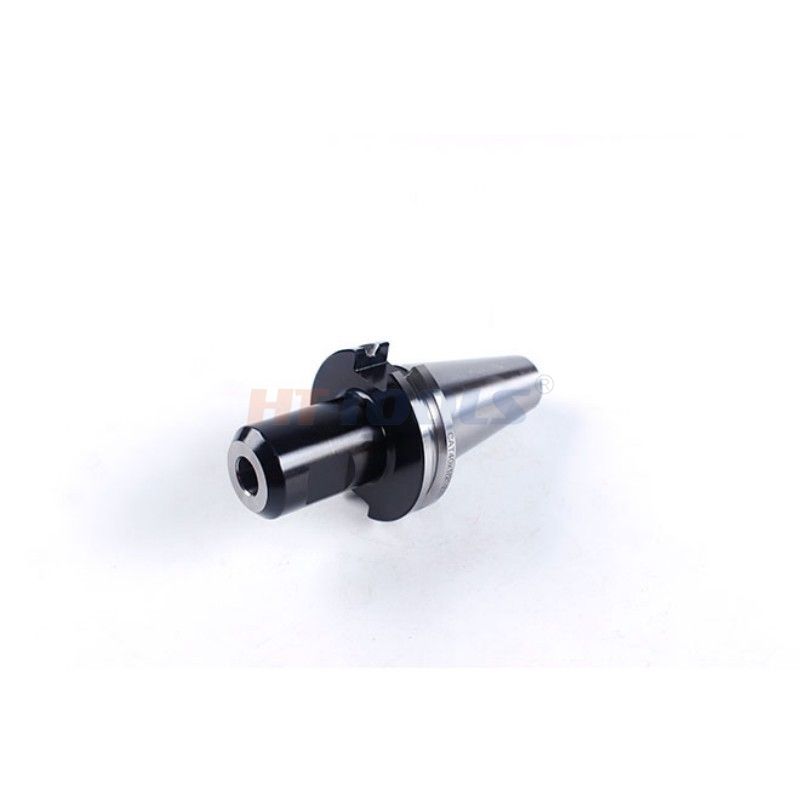

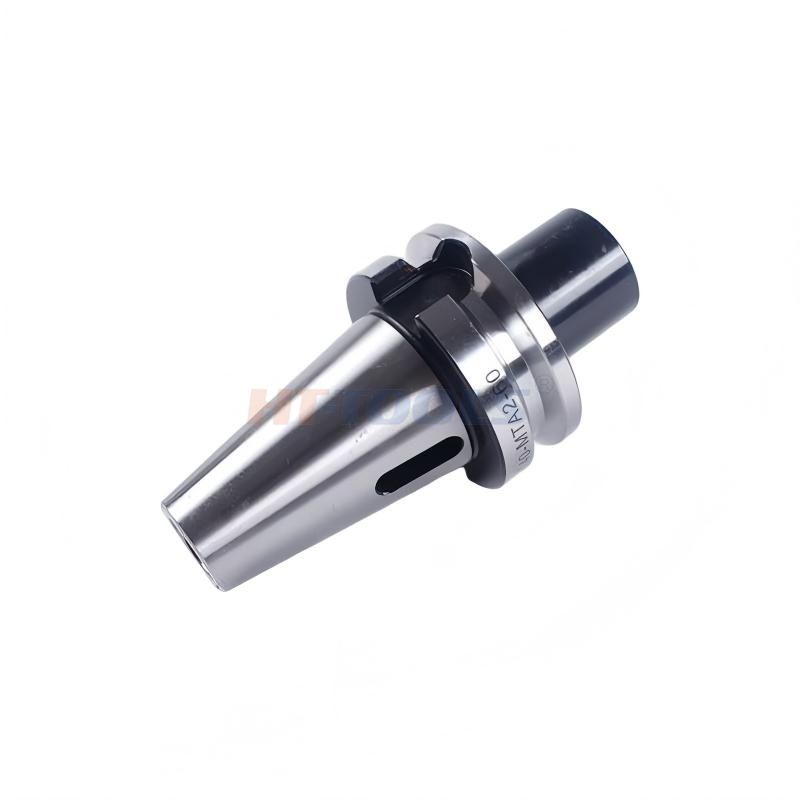

CT-MT variable diameter sleeve pull back type 1 2 3 4 5

Overview
CAT-MS high-power tool holders comply with ANSI/ASME B5.50 American standard (CAT taper). Adopting high-rigidity elastic clamping structure and precision balanced nut, this holder delivers 360° uniform clamping force, ultra-low runout and excellent vibration resistance. It is a reliable solution for heavy roughing and high-speed precision machining for American CNC machines.

Key Features

  • Strong & Stable Clamping: Full-slit elastic structure provides 360° uniform gripping force, no tool loosening under heavy cutting load.

  • High Precision: Strict manufacturing control ensures ultra-low runout, guaranteeing consistent machining accuracy and smooth surface finish.

  • High Rigidity & Durability: High-strength alloy steel with professional heat treatment ensures high hardness, wear resistance and long service life.

  • High-speed Friendly: Optimized balanced structure minimizes vibration, supporting stable long-term high-speed machining.

Technical Parameters

  • Runout Accuracy: ≤0.005mm

  • Dynamic Balance: G6.3 standard / G2.5 optional

  • Standard: ANSI/ASME B5.50 (CAT)

Applications

Widely applied in mold processing, alloy steel/stainless steel heavy milling, high-speed precision machining and long-overhang cutting, suitable for mass production and high-precision workshops.

Basic Specifications

Taper Shank: CAT30 / CAT40 / CAT50 Clamping Range: 3mm–20mm Standard Length: 70L–150L (custom extended length available) Applicable Machines: Haas, Fadal and other American standard CNC centers

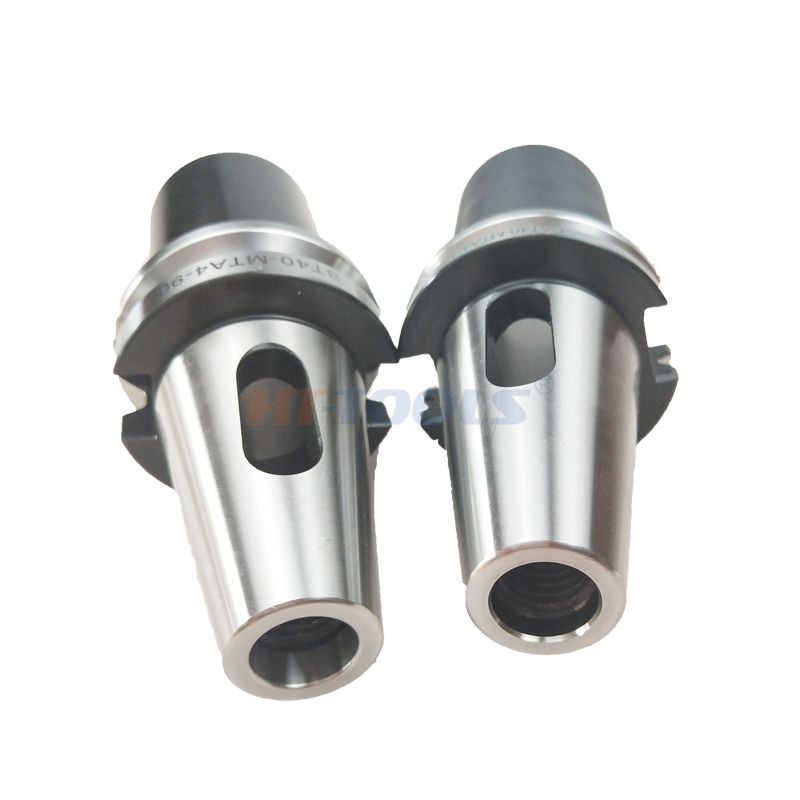

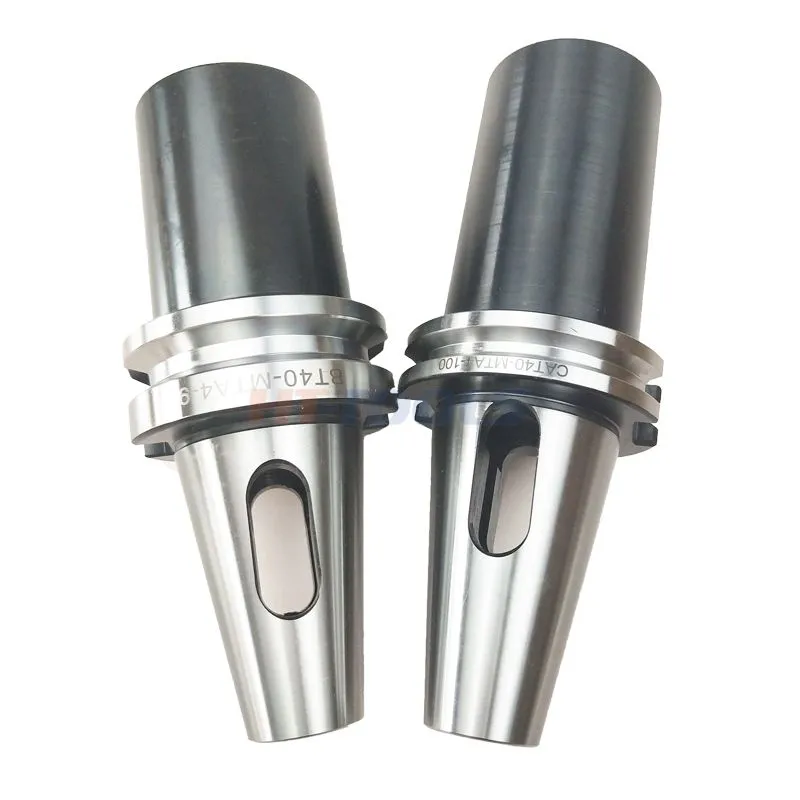

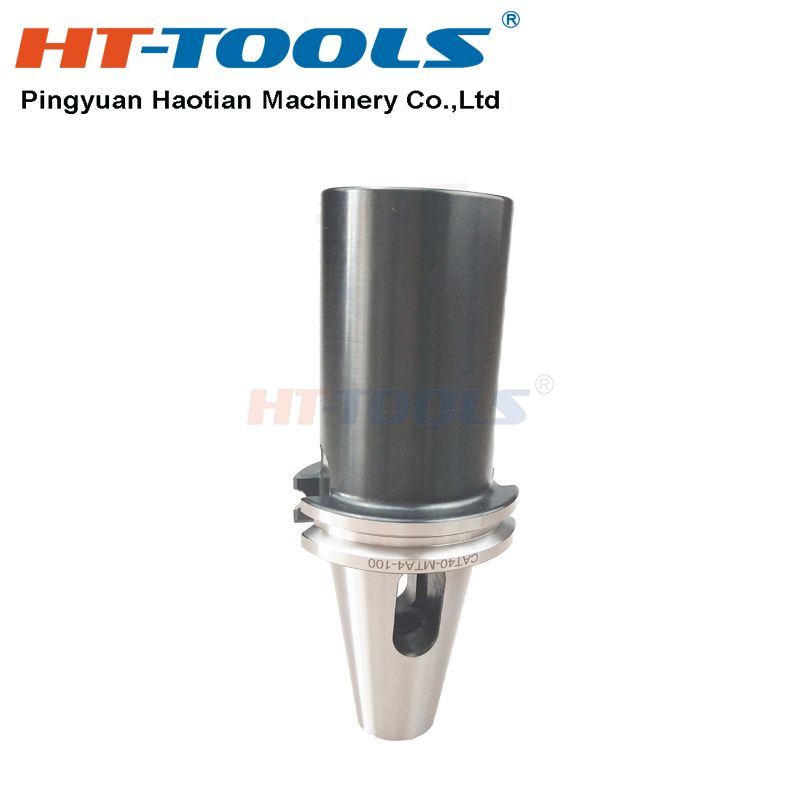

                     CT-MT variable diameter sleeve pull back type 1 2 3 4 5

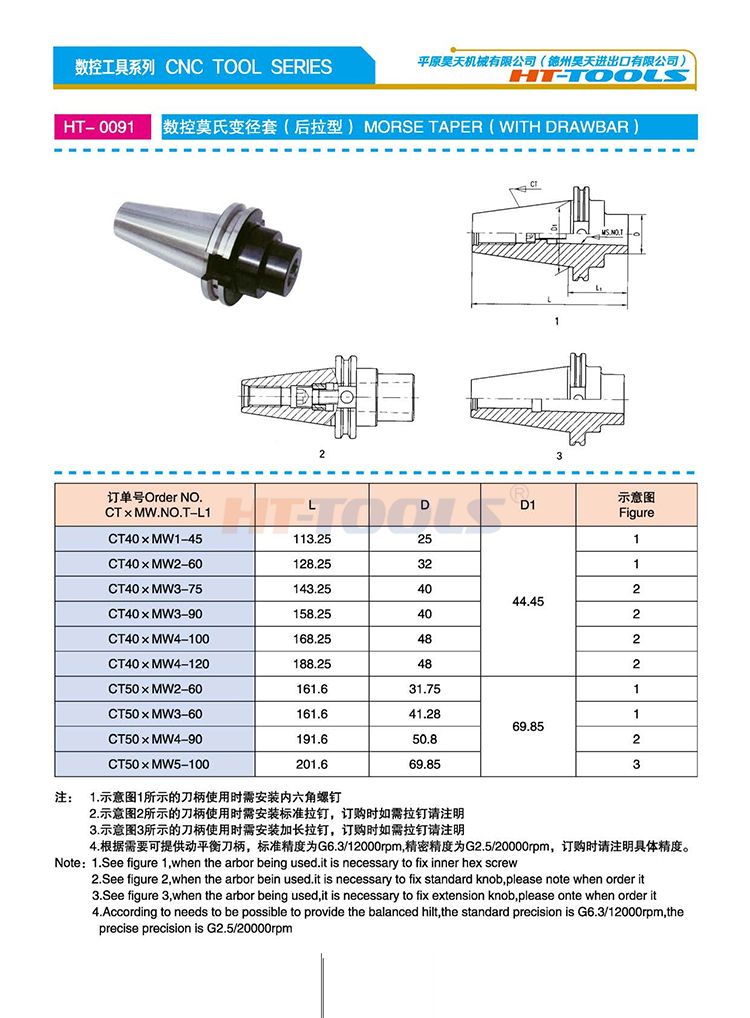

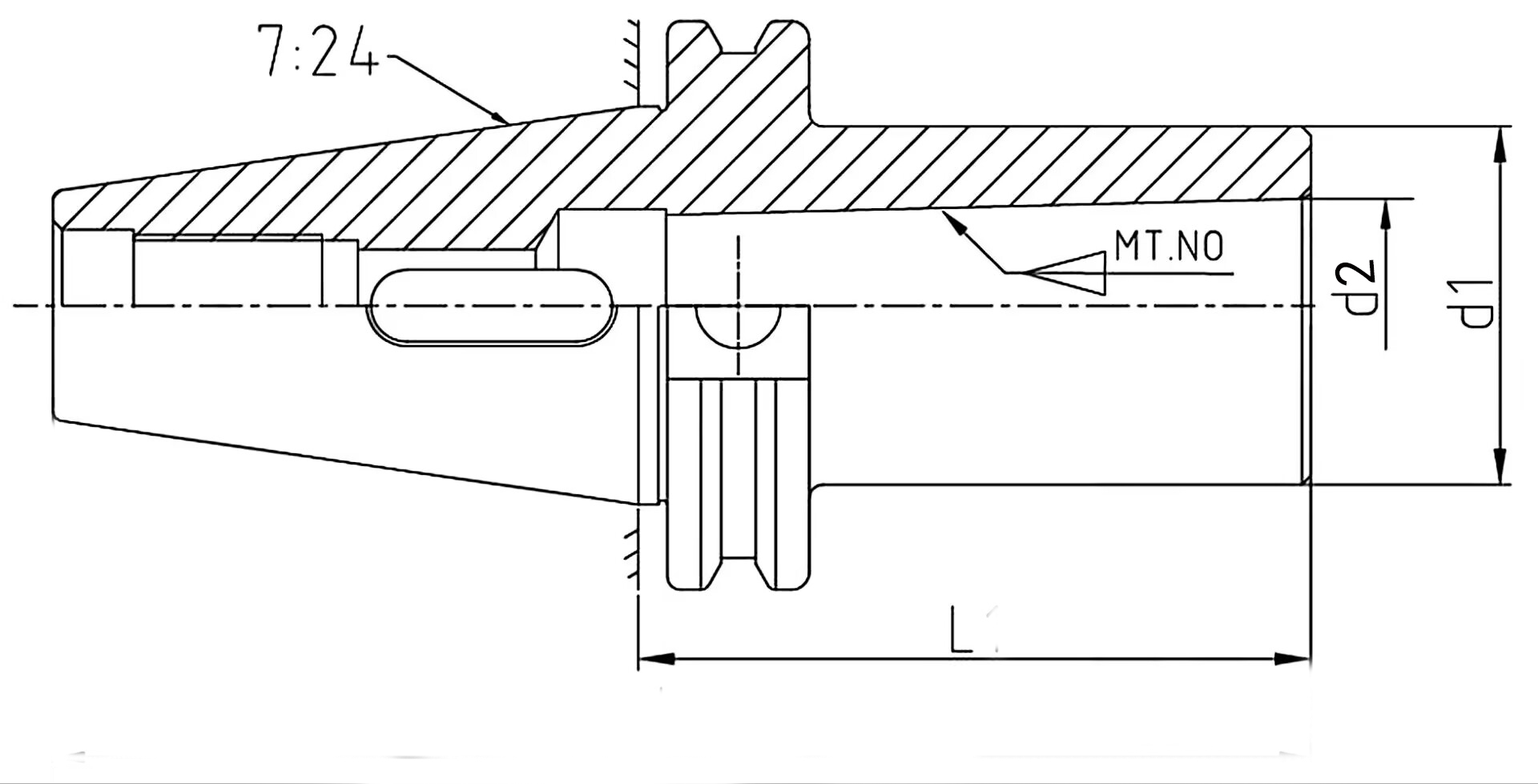

型号ModelL(mm)d1(mm)d2(mm)
CAT40-MTA1-45452512.065
CAT40-MTA2-60603217.78
CAT40-MTA3-75754023.825
CAT40-MTA4-95954831.267
CAT50-MTA1-45452512.065
CAT50-MTA2-50503217.78
CAT50-MTA2-1351353217.78
CAT50-MTA3-63634023.825
CAT50-MTA3-1501504023.825
CAT50-MTA4-90904831.267
CAT50-MTA5-1051056344.399

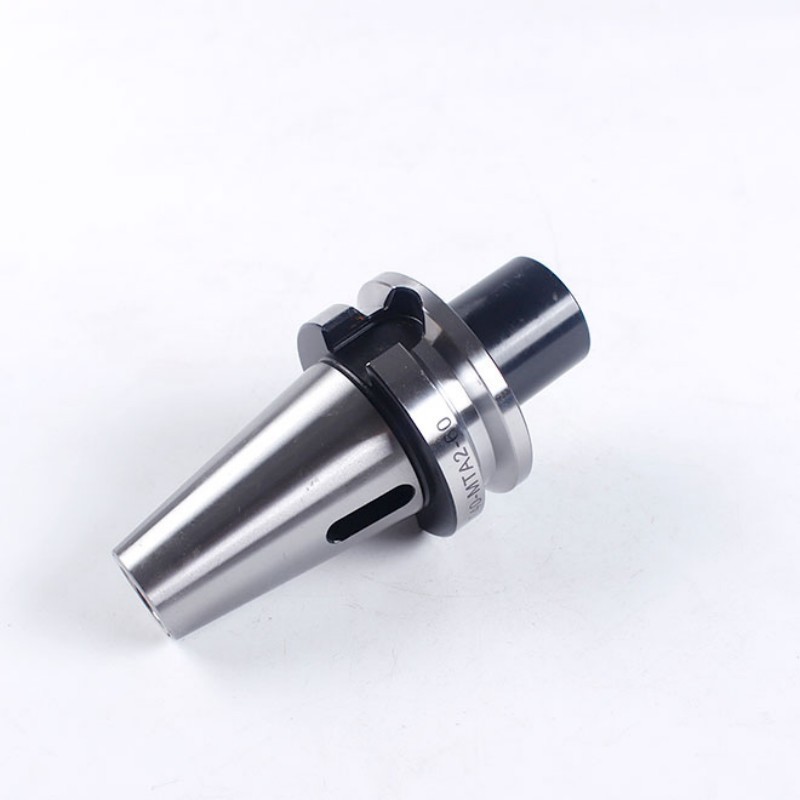

3     CAT Morse Taper.jpg3     CAT Morse Taper.jpg


FAQ

Q1: What the Material of the Tool holder?

A1: 20CrMnTi

Q2: What is the monthly production volume of the collet?

A2: 50,000 - 10,000 pieces

Q3: What hardness and accuracy?

A3: Accuracy: 0.003mm TIR for selection.

Q4: Do you support OEM & custom service?

A4: Yes. We support OEM, custom non‑standard size, laser logo, special package. Samples are available.

Q5: How can I get quotation?

A5: Send us your required model, quantity and special requirements for quotation.

Q6: What is your quality control process?

A6: Strictly controlled on heat treatment, precision grinding. Each piece inspected with testing equipment, inspection report can be provided upon request.

Q7: MOQ & lead‑time?

A7: Standard items: 10pcs , 3‑7 working days. Custom/OEM: MOQ 50pcs, 15‑25 working days.

Q8: Warranty terms?

A8: Manufacturing defects support replacement within 6 months. Damage from crash, misuse or normal wear is not covered.
