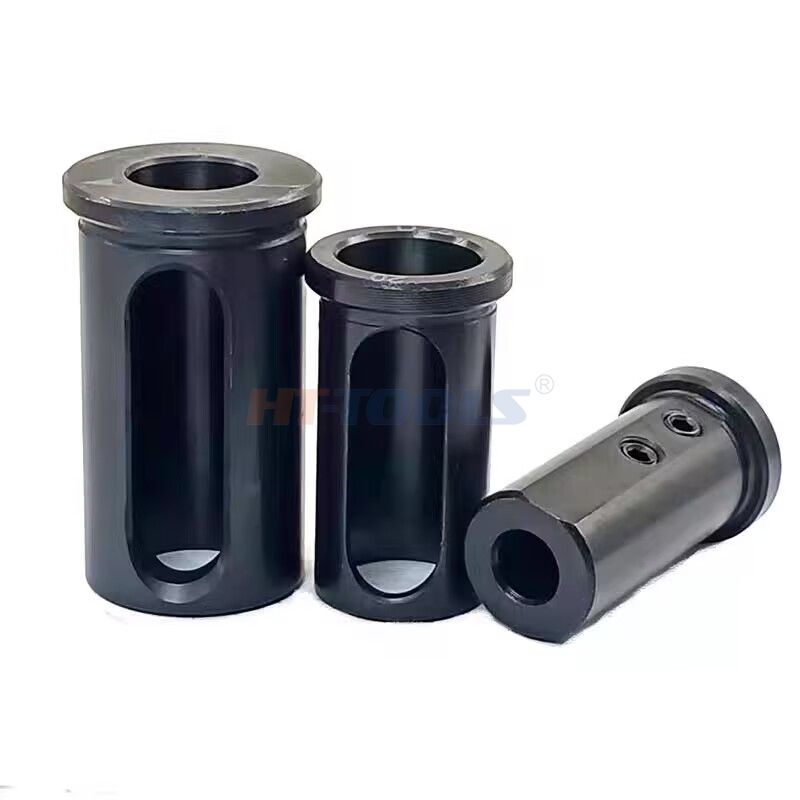

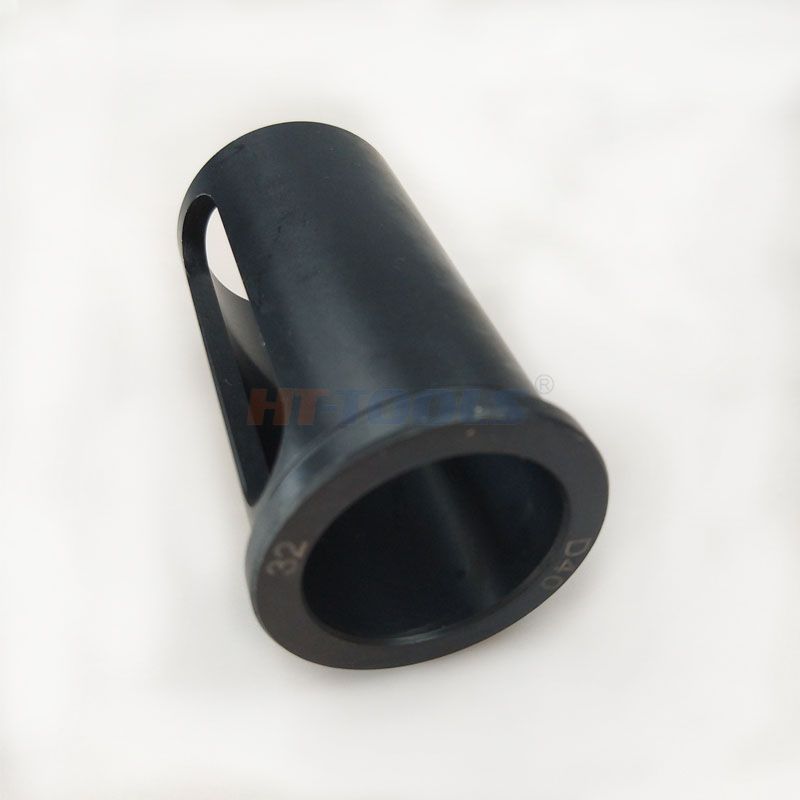

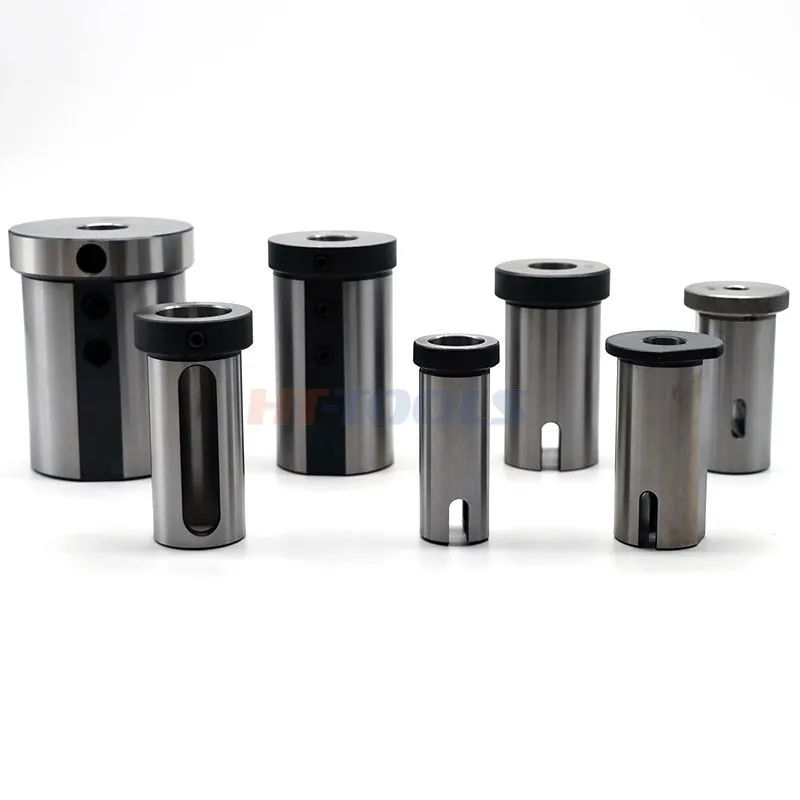

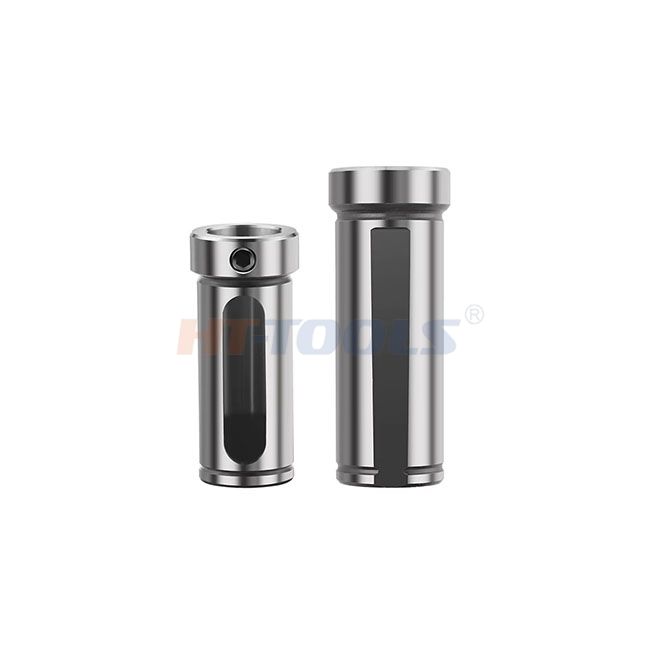

Conversion tool set reduction sleeve


Widely used

Suitable for different types of machine tools and tools

Can be loaded with straight shank tools such as inner diameter turning tool rods, twist drills, U drills, extension rods, etc.


Strong and wear-resistant

The tool center point is fixed, eliminating the trouble of traditional gasket finding

The tool holder increases stability, improves feed speed and cutting volume



Code No.  "Extemal Dia
      D1"
Clamping Length
L"
 "Intermal Dia
      d"
D1616 40 4/5/6/7/8/9/10/12
D2020 50 4/5/6/7/8/9/10/12/16
D2525 50 6/7/8/9/10/12/14/16/18/20
D3232 60 6/7/8/9/10/12/14/16/18/20/25
D4040 75 6/7/8/9/10/12/14/16/18/20/25/32
D5050 75 8/10/12/16/20/25/32/40
D6060 75 8/10/12/16/20/25/32/40/50


FAQ: NC Reduction Sleeves

Q1: What is NC reduction sleeve?A: NC reduction sleeve is a precision adapter sleeve to reduce tool bore size, used in collet chucks, lathe & milling holders for different shank diameter tools.

Q2: What material are your NC reduction sleeves made of?A: High alloy steel, hardened & precision ground for low runout and long service life.

Q3: What runout accuracy can you guarantee?A: ≤0.003mm, suitable for precision CNC machining.

Q4: Can NC reduction sleeves be used for heavy cutting?A: Not recommended. Best for light & medium cutting. Use solid tool holders for heavy roughing.

Q5: Are your NC reduction sleeves compatible with ER chuck?A: No. NC sleeves fit NC tool holders only, not ER collet chucks.

Q6: What sizes do you supply?A: Full range standard sizes. Custom sizes available upon request.

Q7: How to maintain NC reduction sleeves?A: Keep inner & outer surfaces clean, avoid scratches. Do not use damaged sleeves.

Q8: What is your lead time?A: Standard items in stock, 3–7 days. Custom parts 7–15 days.
