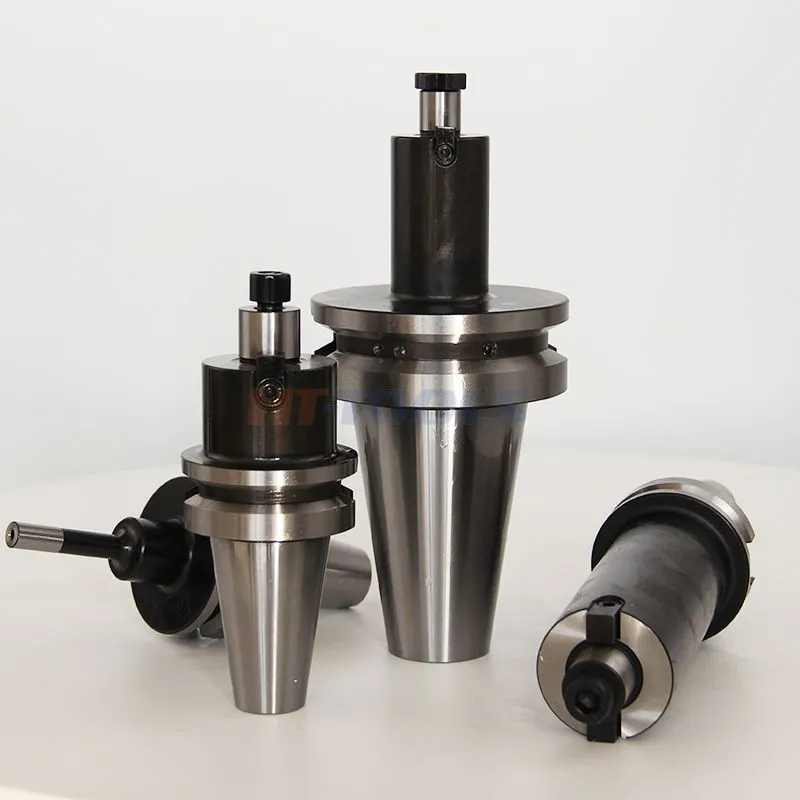

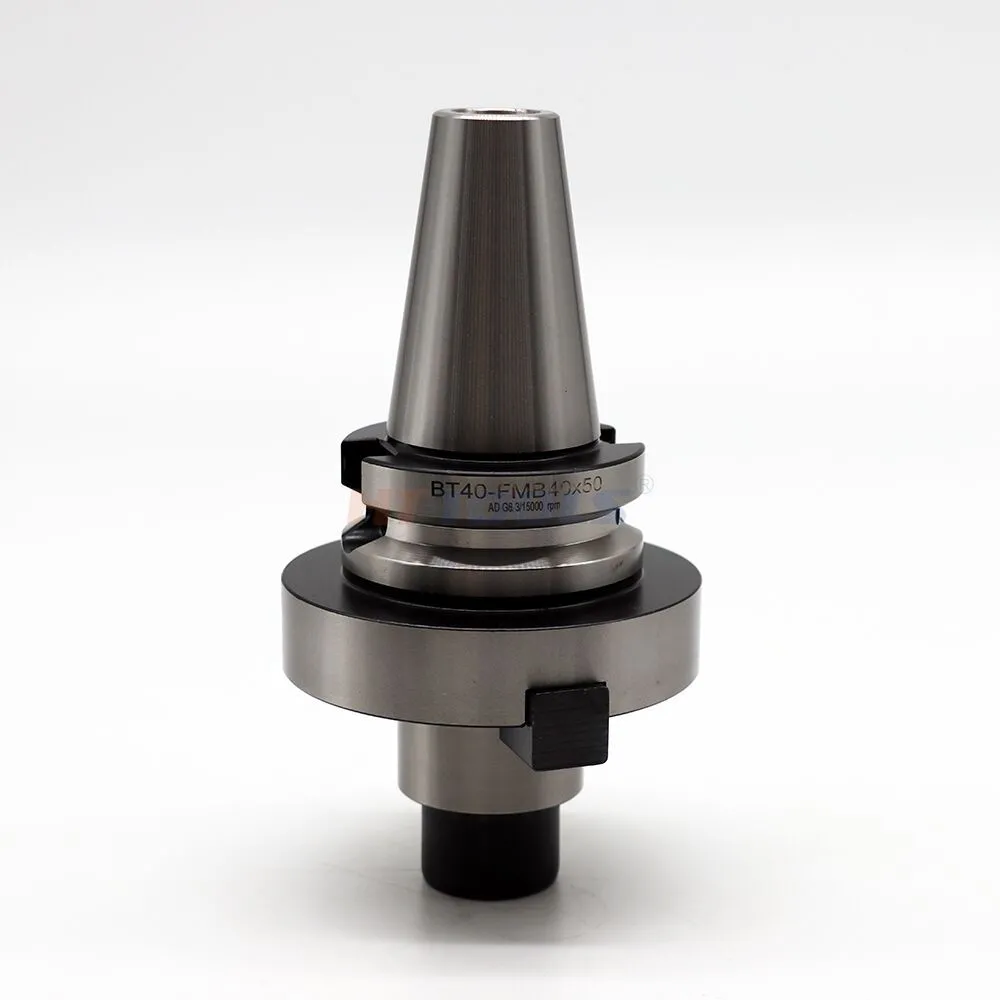

Combi shell end mill tool holder BT40

This HT brand combi shell end mill arbor is manufactured from high-grade 20CrMnTi material, ensuring durability and precision in heavy-duty operations. The core components are also made of the same material, guaranteeing consistent performance.

Precision and Accuracy: The product boasts high precision, with a precise precision of G2.5/20000rpm and a standard precision of G6.3/12000rpm, making it suitable for various manufacturing applications.

Compatibility: The end mill arbor is designed for use with BT30, BT40, and BT50 tool holders, providing versatility in your machining operations.

Warranty and Support: As a new product from 2020, this item comes with a 3-month warranty and is backed by a machinery test report and video outgoing-inspection, ensuring your peace of mind.

Suitable for Industrial Use: This product is specifically designed for use in manufacturing plants and machinery repair shops, making it an ideal addition to your industrial operations.

Next Product Inquire Now

HT-0092	COMBI SHELL END ARBORS
Order NO.	D	D1	Wt(kg)
BT×d-L1	D	D1	Wt(kg)
BT30×16-55	32	31.75	1.00
BT30×22-55	40	31.75	1.25
BT30×27-55	48	31.75	1.25
BT30×32-55	58	31.75	1.50
BT30×40-60	70	31.75	2.30
BT40×16-55	32	44.45	1.20
BT40×16-100	32	44.45	1.50
BT40×22-55	40	44.45	1.25
BT40×22-100	40	44.45	1.85
BT40×27-55	48	44.45	1.50
BT40×27-100	48	44.45	2.00
BT40×32-60	58	44.45	1.20
BT40×32-100	58	44.45	2.30
BT40×40-60	70	44.45	2.00
BT40×40-100	70	44.45	3.00
BT50×16-63	32	69.85	3.60
BT50×16-100	32	69.85	4.00
BT50×22-70	40	69.85	3.70
BT50×22-100	40	69.85	4.00
BT50×27-70	48	69.85	4.00
BT50×27-100	48	69.85	4.40
BT50×32-70	58	69.85	4.20
BT50×32-100	58	69.85	4.70
BT50×40-75	70	69.85	4.50
BT50×40-100	70	69.85	5.50
BT50×50-75	90	69.85	4.60
BT50×50-125	90	69.85	7.20
