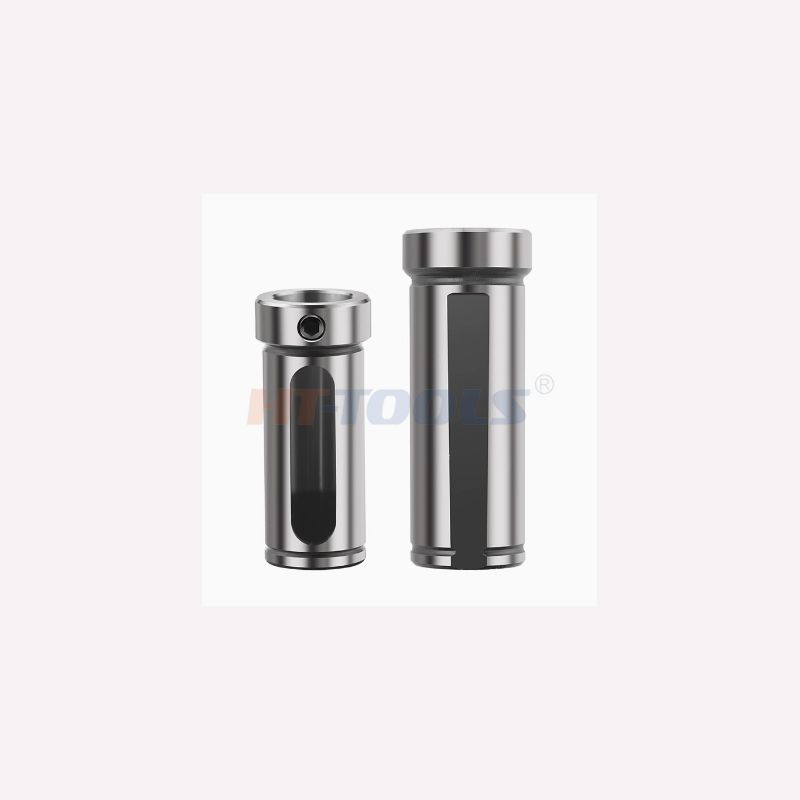

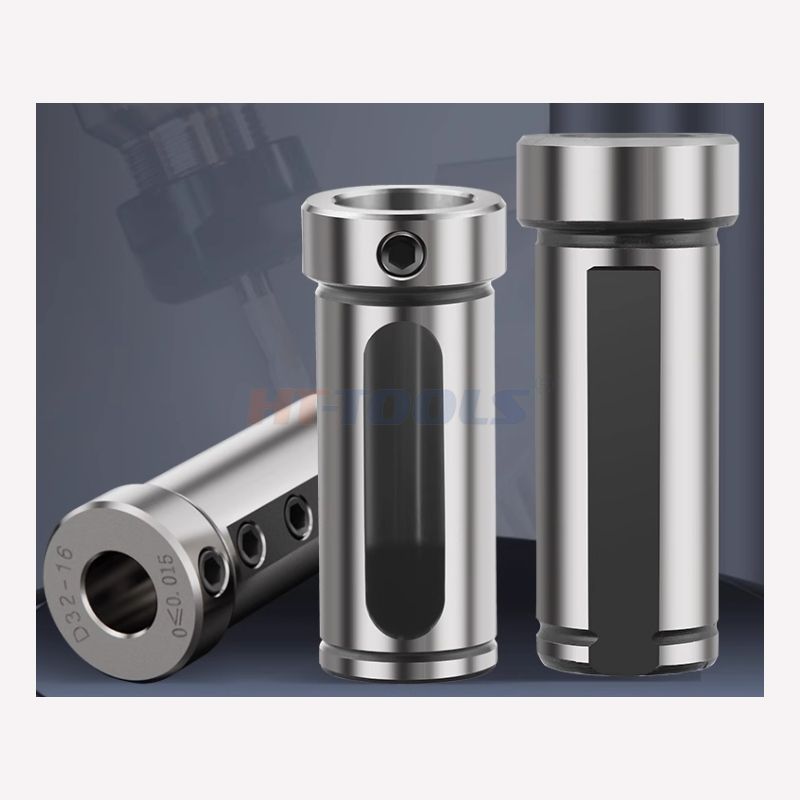

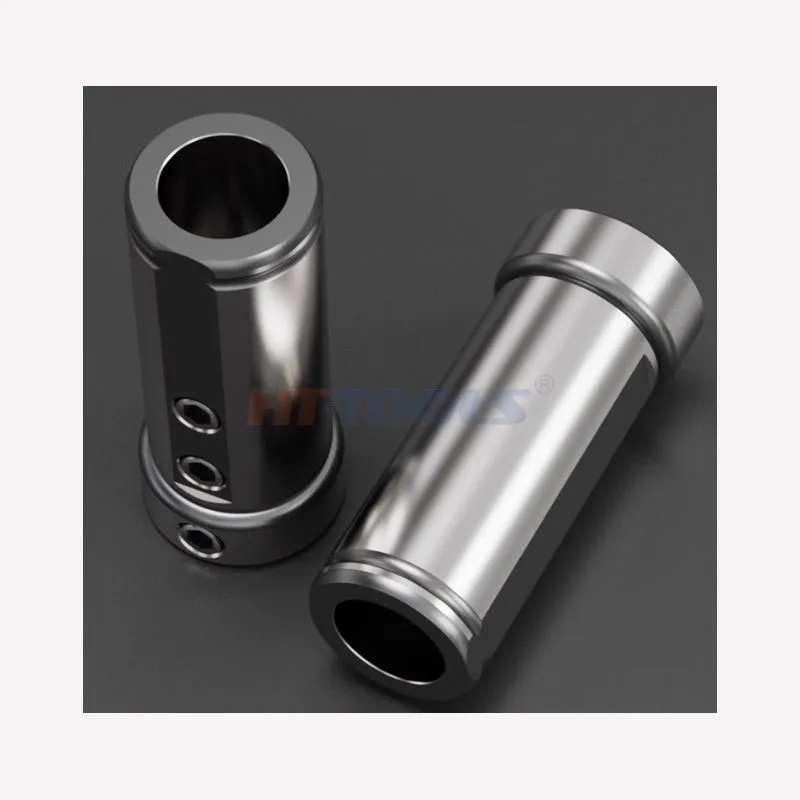

CNC Lathe Tool Sleeve D25/D32/D40

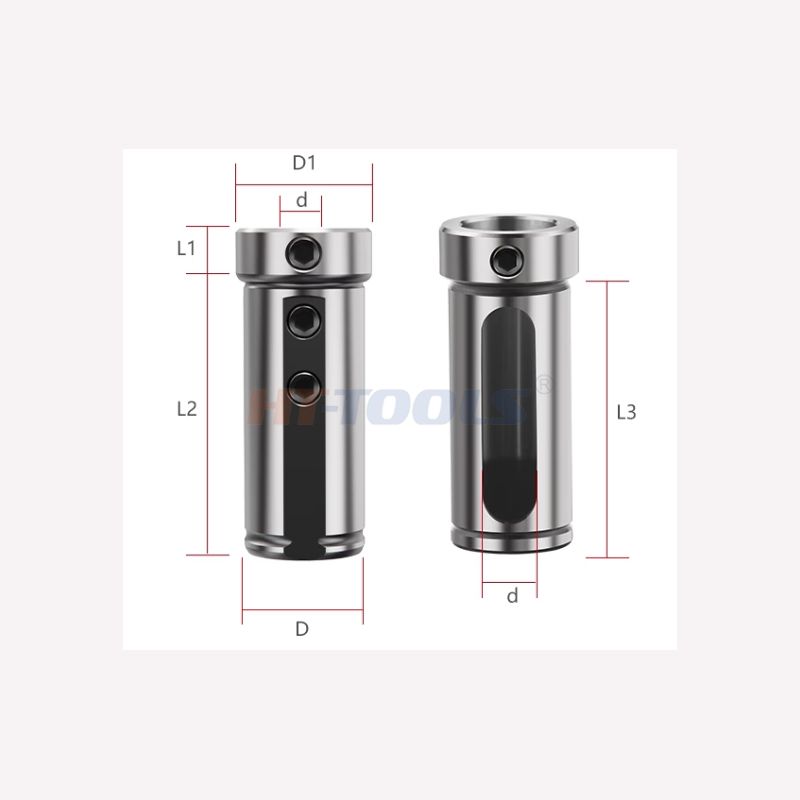

1. Technical Parameters

  • Outer diameters: D25 / D32 / D40

  • Inner hole sizes: Multiple inner bore options for different turning tool rods

  • Material: High alloy steel, quenched HRC 55-60

  • Surface: Precision grinding, wear-resistant & anti-deformation

  • Structure: Flat positioning groove + locking screw hole for stable clamping

2. Core Features

  • Variable diameter conversion: Convert tool holder inner hole to fit smaller tool rods

  • Uniform force bearing, reduce tool rod vibration during cutting

  • High concentricity, guarantee machining precision

  • Quick installation, compatible with standard CNC lathe turret

3. Application Scenarios

  1. CNC lathe, automatic lathe, compound turning center

  2. Inner hole turning, outer circle turning, boring processing

  3. Mold, auto parts, hardware batch precision machining

  4. Match different diameter tool rods without replacing whole tool holder


CNC lathe tool sleeve inner hole turning tool rod variable diameter sleeve D25D32D40

CNC lathe tool sleeve inner hole turning tool rod variable diameter sleeve D25D32D40

FAQ

Q1: What is the accuracy of lathe tool bushing / CNC conversion sleeve?  Material ?

A1: 0.01mm  0.015mm / 40Cr


Q2: What series are available?

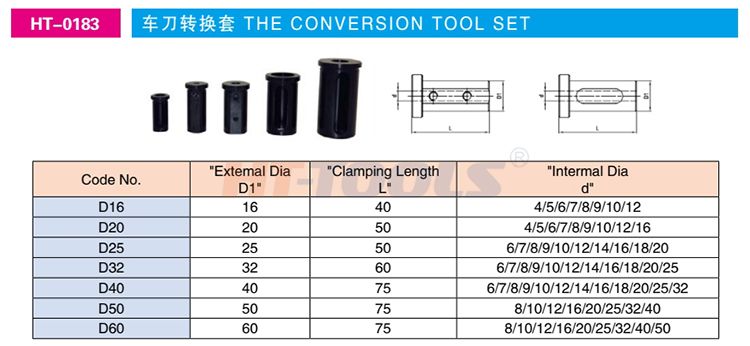

A2: HT-0200 standard type, HT-0201 elastic type, HT-0202 coolant-through type, HT-0203 lathe tool sleeve; outer diameter from D16 to D60.


Q3: Which machines are compatible?

A3: Fit for CNC lathe turrets, used for diameter reduction of turning tools, boring bars.


Q4: What is the material & accuracy?

A4: Made of alloy steel with heat treatment and precision ground inner bore, stable clamping and low tool vibration.


Q5: Can you do OEM?

A5: OEM is available, custom laser logo and non-standard inner/outer diameter.


Q6: What is your monthly production capacity?

A6: Monthly output: 10,000–15,000 pcs.


Q7: What is your warranty policy?

A7: 6-month replacement warranty under normal operation.


Q8: What is the advantage of coolant-through type?

A8: The coolant-through sleeve has internal cooling hole, delivering cutting fluid directly to cutting edge for better cooling and chip removal.
