CNC Lathe Carbide Tipped Internal Boring Bar Welded Cemented Carbide Cutting Tip Tool

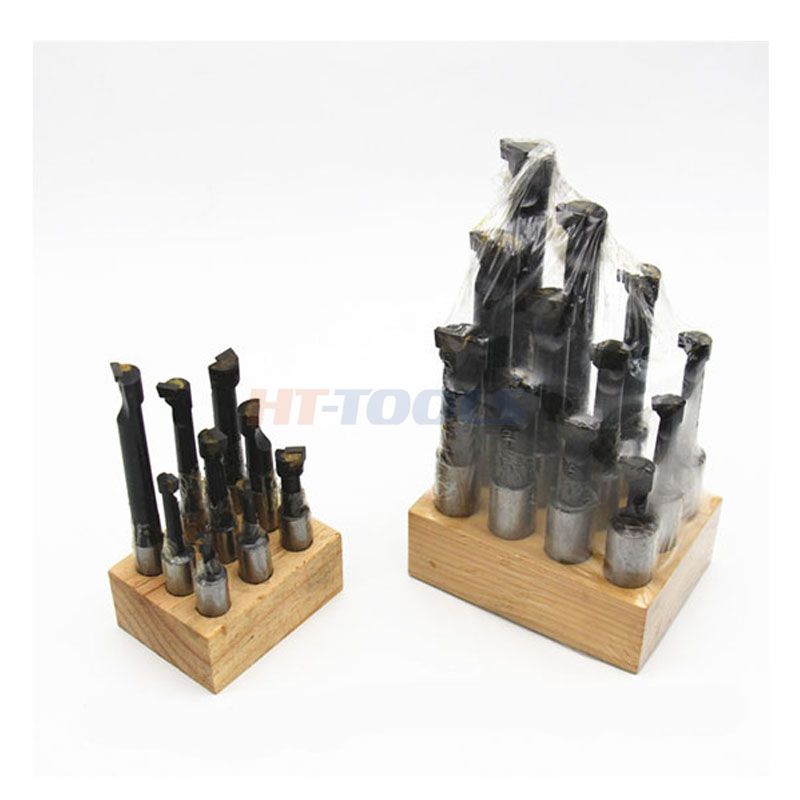

9 Piece boring bar set features C-6 carbide for use in harder materials but also works great in aluminum and other soft metals • With Woodstand • 1/2" Shank 9 Pcs Boring Bar Set Carbide Tipped Bars • All shanks are held to 0.0000-0.0005" from the nominal diameter and made of special heat treated alloy steel. Shank Diameter- 1/2"

Product Detail


订单号
Order No.

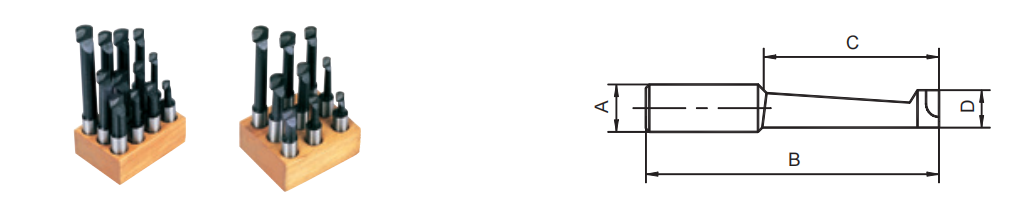

B(mm)C(mm)D(mm)
铸铁
Case Lron
钢铁
Steel
375-1812375-1816103.945.3410.5
375-1822375-1826116.7758.3914.06
375-1832375-1836129.171.3917.27
375-1842375-1846142.0385.1520.73
375-1852375-185615496.1227.72
375-1862375-1866168111.6327.88
375-1804375-1808以上6件套木托6 piece
set of above/wooden
stand


订单号
Order No.
B(mm)C(mm)D(mm)
铸铁
Case Lron
钢铁
Steel
375-3732375-3736103.945.3410.5
375-3742375-3746116.7758.3914.06
375-3752375-3756129.171.3917.27
375-3762375-3766142.0385.1520.73
375-3772375-377615496.1227.72
375-3782375-3786168111.6327.88
375-5002376-5006以上6件套木托6 piece
set of above/wooden
stand
订单号Order NoB(mm)C(mm)D(mm)
铸铁
Case Lron
钢铁
Steel
375-1812375-1816103.9145.3410.5
375-1822375-1826116.7758.3914.06
375-1832375-183612971.3917.27
375-1842375-1846142.0385.1520.73
375-1852375-185615496.1224.72
375-1862375-1866168111.6327.88
375-1804375-1808以上6件套木托6 piece
set of above/wooden
stand
订单号Order No.B(mm)C(mm)D(mm)
铸铁
Case Lron
钢铁
Steel
375-3732375-
3736
103.945.3410.5
375-3742375-
3746
116.7758.3914.06
375-3752375-
3756
129.171.3917.27
375-3762375-
3766
142.0385.1520.73
375-3772375-
3776
15496.1227.72
375-3782375-
3786
168111.6327.88
375-5002376-
5006
以上6件套木托6 piece
set of above/wooden stand


1. Specially designed for F1 rough boring head, easy installation & adjustment

2. Alloy steel shank with brazed carbide tip, firm welding, not easy to fall off

3.  High hardness carbide cutting tip, excellent wear resistance & red hardness

4. Good rigidity, less chatter, stable performance for rough boring

5. Multiple sizes available, covers different boring diameter ranges

6. Can be re-ground repeatedly, lower tool cost

7. Widely used for milling machine boring of cast iron, carbon steel

 8. Black oxide surface, anti-rust and long service life


FAQ

Q1: What is F1 boring bar?

A: F1 boring bar matches F1 adjustable boring head. Fit brazed or indexable inserts for hole enlarging and rough boring. Standard sizes: 12mm,18mm,25mm, for F1-50(2"), F1-75(3"), F1-100(4") boring head.

Q2: How to match size?

A: Bar diameter must fit boring head bore, cannot mix:

  • F1-50 (2") →12mm boring bar

  • F1-75 (3") →18mm boring bar

  • F1-100 (4") →25mm boring bar

Q3: Types of boring bars?

A: HSS brazed bar, carbide anti-vibration bar, indexable insert bar. Short bar for high rigidity; long bar for deep hole, prone to chatter.

Q4: How to fix unstable dimension?

A: Boring bar not locked, unlocked dial on boring head, chips or damage on bar, worn insert. Clean bore, tighten screws and check bar for bending.

Q5: Installation tips

A: Insert bar into F1 head, tighten side set screw, adjust boring head dial. Do not over-tighten to avoid bar deformation.

Q6: Application

A: For milling machine & machining center F1 rough boring head. Rough & semi-finish boring for cast iron and steel.

Q7: Can I buy boring bars separately?

A: Yes, you can buy separate boring bars and inserts for matching F1 boring head.
