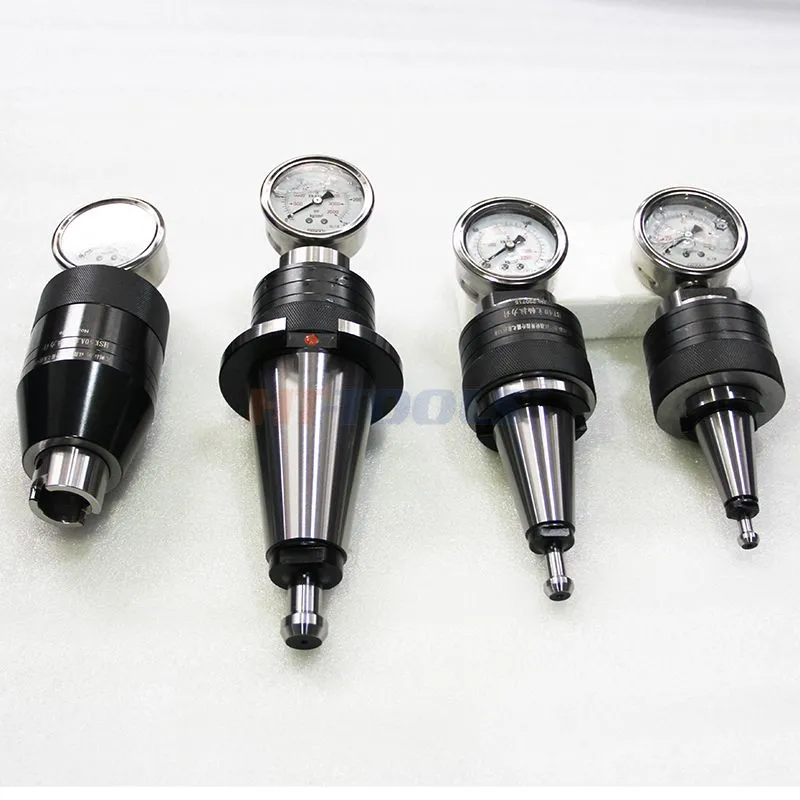

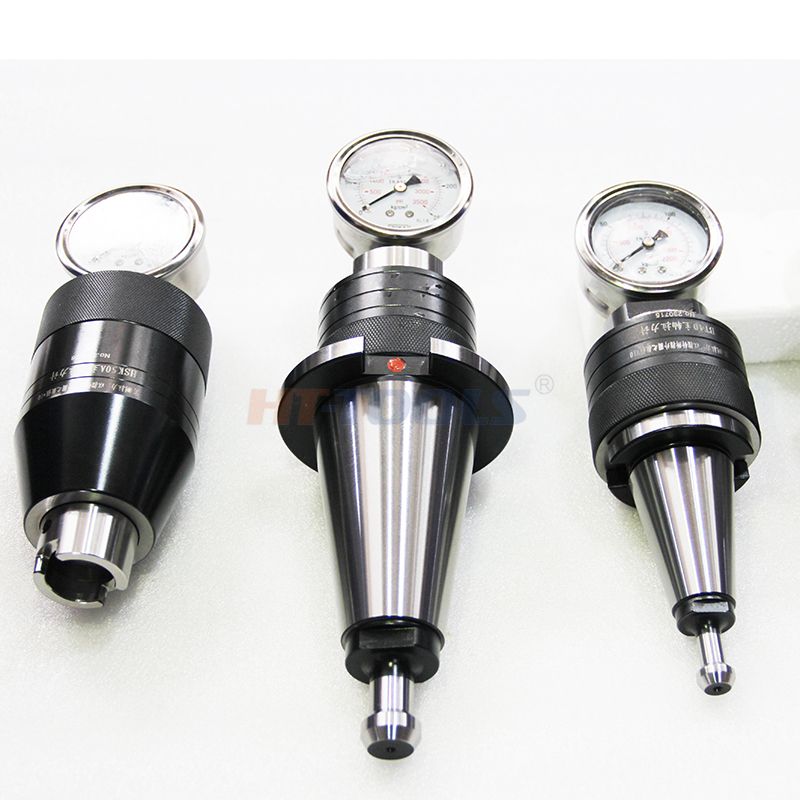

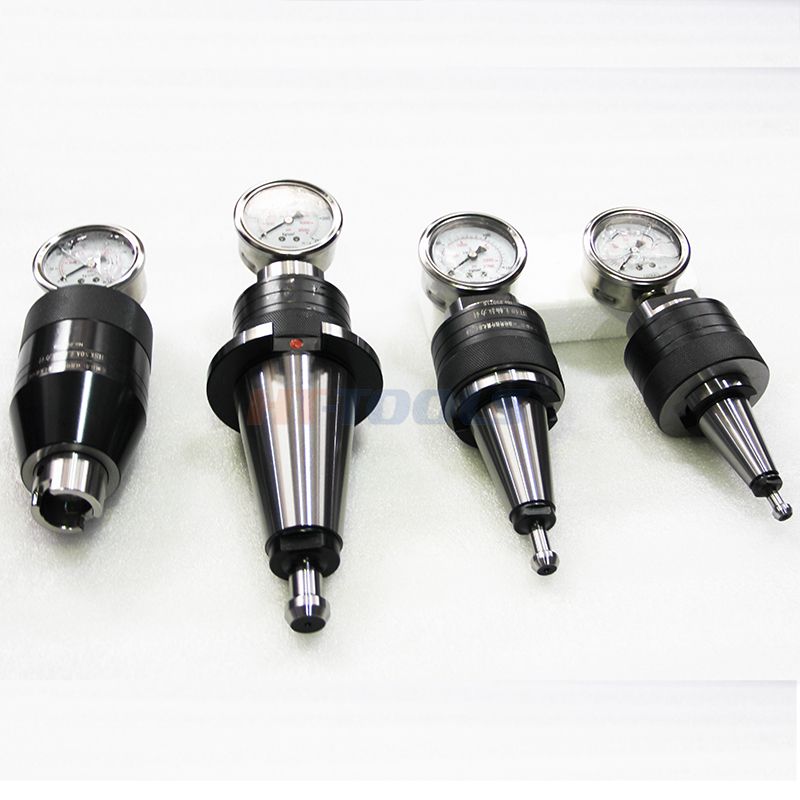

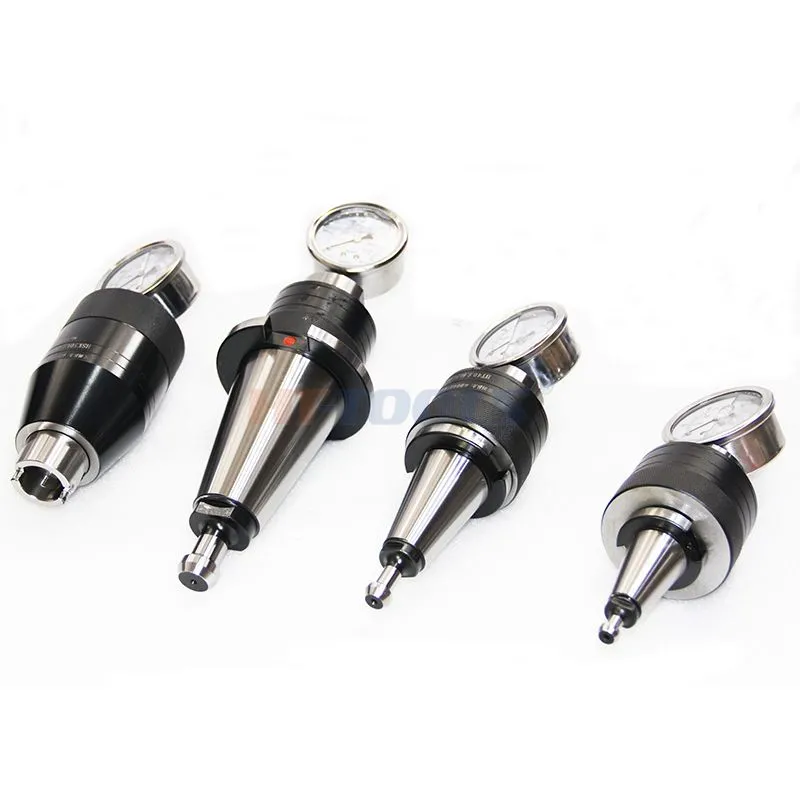

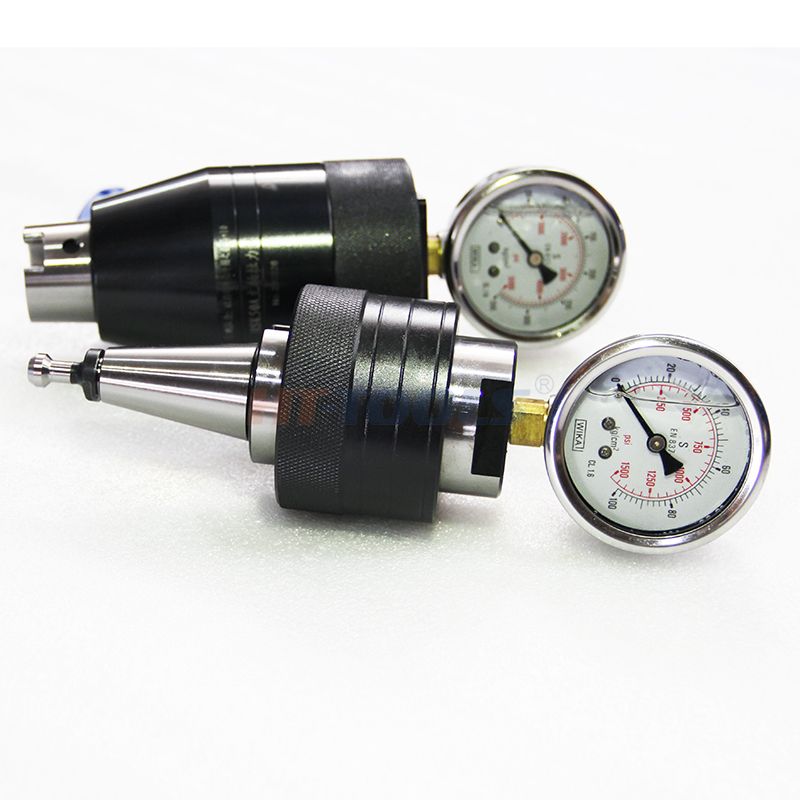

BT30 BT40 BT50 HSK63 HSK100 Spindle test bar Spindle Drawbar Force Gauge Draw bar Puller test Gauge

The impact of abnormal pull value

The BT30 Spindle Force Dynamometer is a high-precision measuring instrument designed to accurately capture and analyze cutting forces during machining processes. It plays a vital role in evaluating tool performance, spindle stability, and cutting efficiency in modern CNC machining environments. By converting mechanical forces into measurable electrical signals, this dynamometer allows engineers, researchers, and manufacturers to gain deep insights into the dynamics of milling, drilling, and other cutting operations.

What is a BT30 Spindle Force Dynamometer?

A BT30 spindle dynamometer is specifically engineered for machine tools using a BT30 tool holder interface, commonly found in compact CNC machining centers. It measures three orthogonal force components (Fx, Fy, Fz) and sometimes torque (Mz), offering a complete picture of the machining load distribution. These precise measurements help users optimize cutting parameters, improve tool life, reduce vibration, and enhance surface finish quality.

Key Features and Advantages

High Measurement Accuracy – Built with advanced strain gauge technology or piezoelectric sensors, the BT30 spindle force dynamometer ensures reliable, real-time measurement of micro to macro cutting forces.

Compact and Lightweight Design – Ideal for small and medium-sized machining centers using BT30 spindles, ensuring minimal interference with tool balance and machine dynamics.

Dynamic Force Analysis – Capable of capturing transient forces during high-speed milling or drilling, enabling detailed analysis of tool engagement and chip formation.

Easy Integration – Can be directly mounted on CNC machines, connected to signal amplifiers and data acquisition software for instant visualization and analysis.

Durability and Stability – Manufactured with high-strength alloy steel or titanium alloy, ensuring excellent stiffness, temperature resistance, and long-term measurement stability.

Applications

The BT30 Spindle Force Dynamometer is widely used in:

Cutting performance research – Evaluate tool wear, material removal rate, and chip load distribution.

CNC machine optimization – Identify vibration sources, optimize feed rate, spindle speed, and cutting depth.

Tool development and testing – Provide data for developing new tool geometries or coatings.

Material machining analysis – Compare cutting behavior of metals, composites, or advanced alloys.

Educational and R&D institutions – Used in universities and research centers for machining process studies and training.

Technical Benefits for CNC Users

Using a BT30 Spindle Force Dynamometer allows CNC operators and engineers to:

Monitor cutting forces in real-time to prevent tool breakage.

Improve machining accuracy by detecting abnormal force variations.

Optimize process parameters to enhance productivity and extend tool life.

Validate machining simulations and improve digital twin models.

Reduce production costs through better control of cutting energy and tool wear.

Why Choose BT30 Interface Dynamometer?

Compared to BT40 or BT50 models, the BT30 spindle force dynamometer is more suitable for light-duty and high-speed machining applications, such as precision component manufacturing, electronics, and medical devices. It offers excellent sensitivity and adaptability for small tool diameters and delicate operations where even small force variations can affect product quality.

Customization and Compatibility

Manufacturers offer custom BT30 spindle force dynamometer solutions tailored to specific machine tool brands and applications. Optional features include multi-channel output, advanced data logging, USB or Ethernet connectivity, and software compatibility with MATLAB, LabVIEW, or proprietary CNC analysis systems.

Conclusion

The BT30 Spindle Force Dynamometer is an indispensable tool for precision machining analysis and process optimization. Whether in academic research or industrial production, it delivers high-resolution force measurement data that empowers users to achieve higher machining accuracy, stability, and efficiency. Investing in this advanced measurement technology is a crucial step toward smarter, data-driven manufacturing.
