BAP Right Angle Shoulder Face Mill Cutter

BAP Right Angle Shoulder Face Mill

Product Overview

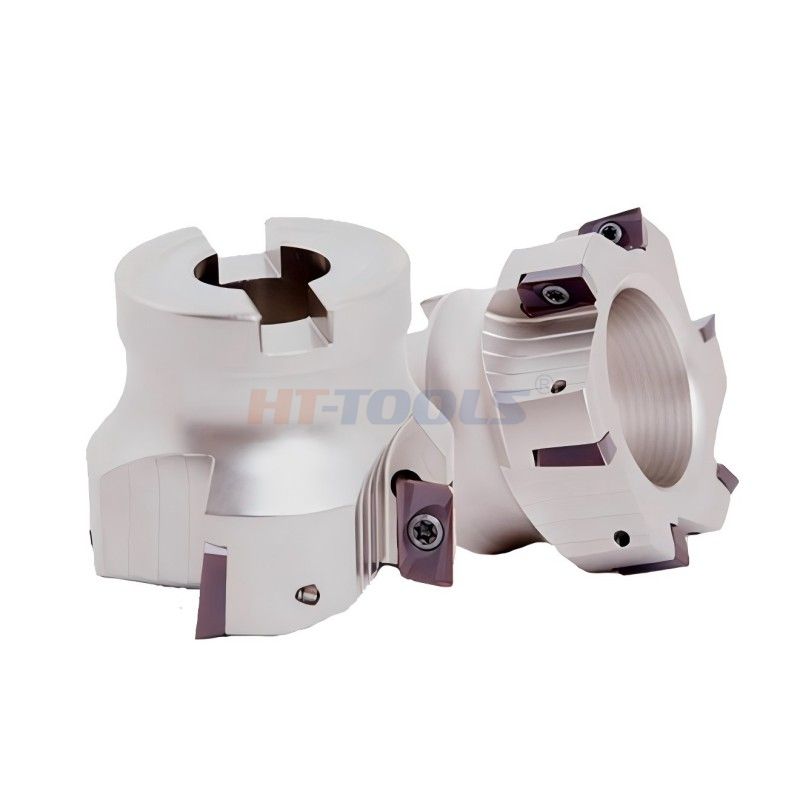

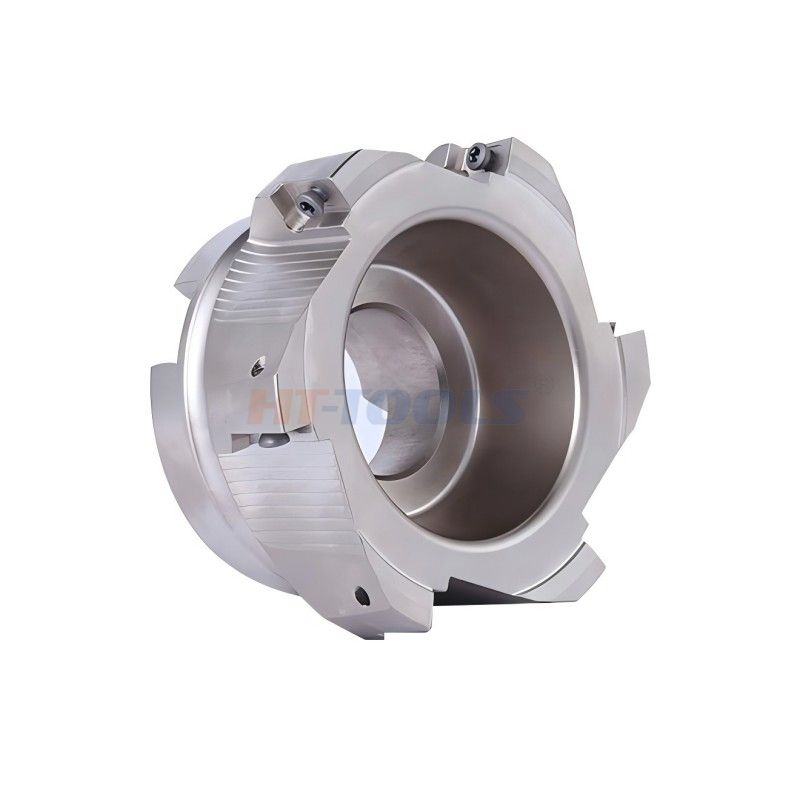

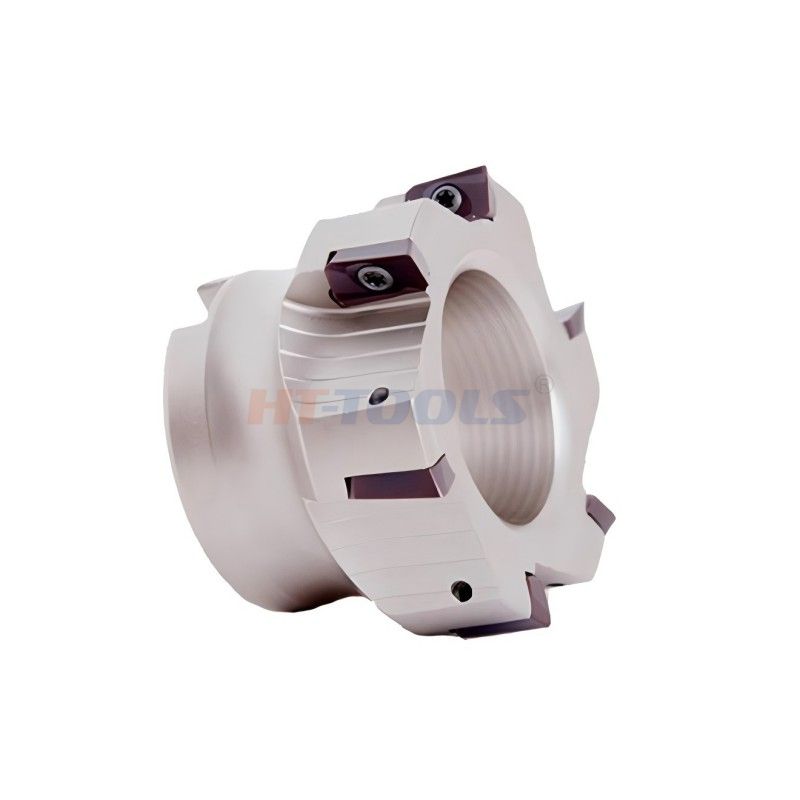

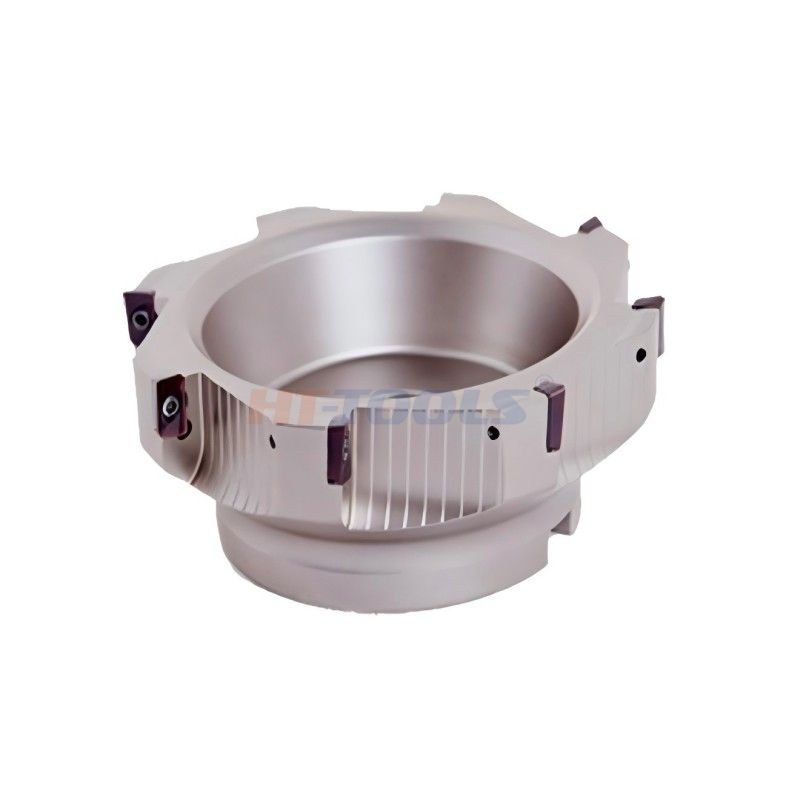

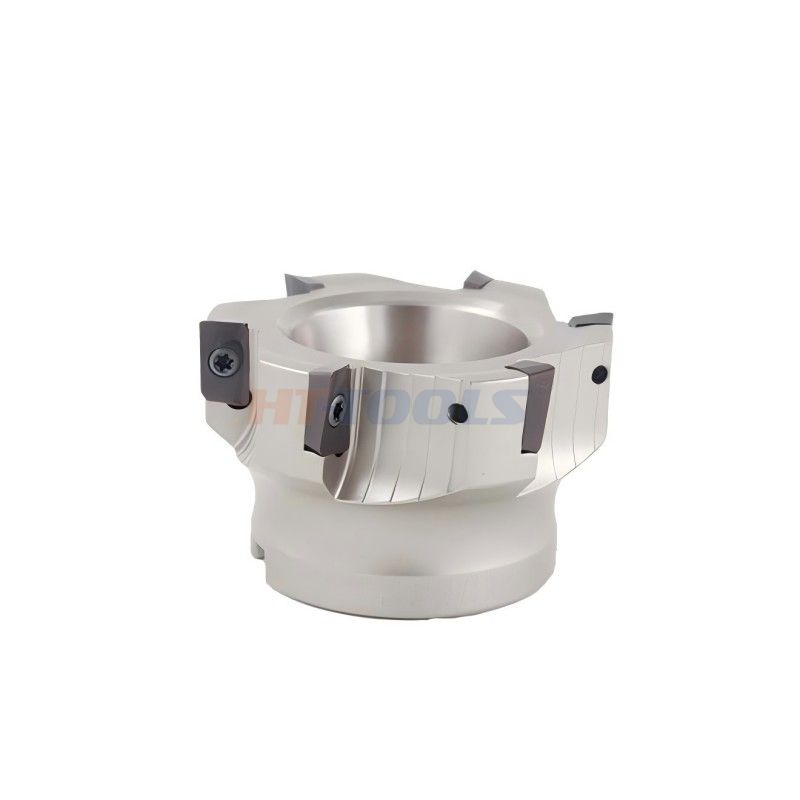

The BAP right angle shoulder face mill is a high-efficiency indexable milling cutter specially designed for CNC machining centers. It supports square shoulder milling, plane face milling and side roughing, widely applied in metal precision processing.

Core Features & Performance

1. High Rigidity Alloy Steel Body

The cutter body is made of high-strength alloy steel with precision grinding and hardening treatment, anti-deformation and wear-resistant for long-time heavy cutting.

2. Multi-edge Indexable Insert Design

Each insert has multiple usable cutting edges, lowering tool replacement cost and improving processing efficiency. The insert seat is precisely positioned to reduce cutter runout.

3. 90° Right Angle Structure

90° square shoulder design forms clean vertical edges without secondary finishing, ideal for step surface and right-angle shoulder machining.

4. Built-in Coolant Hole

Internal coolant channel directly delivers cutting fluid to cutting edges, effectively reducing cutting heat and extending insert service life.

5. Stable Low-vibration Cutting

Optimized tooth spacing and body structure suppress cutting vibration, improving workpiece surface finish during roughing and semi-finishing.

Application Materials & Scenarios

Suitable for processing steel, stainless steel, cast iron, aluminum alloy and copper parts. Commonly used in mold manufacturing, automotive hardware, general machinery and 3C electronics batch production for face milling, shoulder milling and slot roughing.

Next Product Inquire Now

MOdel	SIZE（mm)							Insert	Screw	Wrench
MOdel	D	d	H	W	T	a	KGS	Insert	Screw	Wrench
BAP300R-40-16-4T	40	16	40	8.4	6.3	9	0.35	APMT1135PDER	M2.5*6	T8
BAP300R-50-22-4T	50	22	50	10.4	6.3	9	0.4	APMT1135PDER	M2.5*6	T8
BAP300R-63-22-5T	63	22	50	10.4	6.3	9	0.65	APMT1135PDER	M2.5*6	T8
BAP400R-50-22-4T	50	22	50	10.4	6.3	14	0.4	APMT1135PDER	M4.0*9	T15
BAP400R-50-25.4-4T	50	25.4	50	10	6	14	0.4	APMT1135PDER	M4.0*9	T15
BAP400R-63-22-4T	63	22	50	10.4	6.3	14	0.65	APMT1135PDER	M4.0*9	T15
BAP400R-63-22-5T	63	22	50	10.4	6.3	14	0.65	APMT1135PDER	M4.0*9	T15
BAP400R-63-25.4-4T	63	25.4	50	10	6	14	0.65	APMT1135PDER	M4.0*9	T15
BAP400R-80-25.4-5T	80	25.4	50	10	6	14	1	APMT1135PDER	M4.0*9	T15
BAP400R-80-27-5T反齿	80	27	50	12.4	7	14	1	APMT1135PDER	M4.0*9	T15
BAP400R-80-27-5T	80	27	50	12.4	7	14	1	APMT1135PDER	M4.0*9	T15
BAP400R-80-27-6T	80	27	50	12.4	7	14	1	APMT1135PDER	M4.0*9	T15
BAP400R-80-27-6T	80	27	50	12.4	7	14	1	APMT1135PDER	M4.0*9	T15
BAP400R-100-32-6T	100	32	50	14.4	8	14	1.25	APMT1135PDER	M4.0*9	T15
BAP400R-100-31.75-6T	100	31.75	50	13	8	14	1.25	APMT1135PDER	M4.0*9	T15
BAP400R-125-40-6T	125	40	63	16.4	9	14	3.1	APMT1135PDER	M4.0*9	T15
BAP400R-125-38.1-7T	125	38.1	63	16.4	10	14	3.1	APMT1135PDER	M4.0*9	T15
BAP400R-160-40-8T	160	40	63	16.4	9	14	5.1	APMT1135PDER	M4.0*9	T15
BAP400R-200-60-10T	200	60	63	25.7	14	14	6.78	APMT1135PDER	M4.0*9	T15
BAP400R-250-60-12T	250	60	63	25.7	14	14	10.5	APMT1135PDER	M4.0*9	T15
