Vertical Horizontal Tool Holder Locking Device BT30 BT40 BT50 DIN CAT CNC Tool Holder Unloading Fixture Machine Tool Accessories

Product Overview

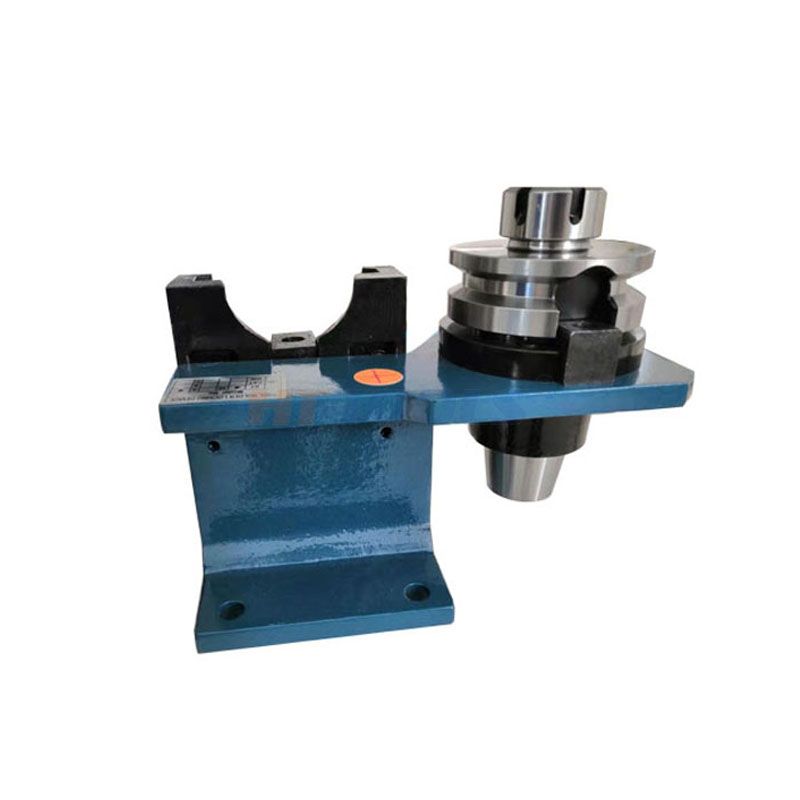

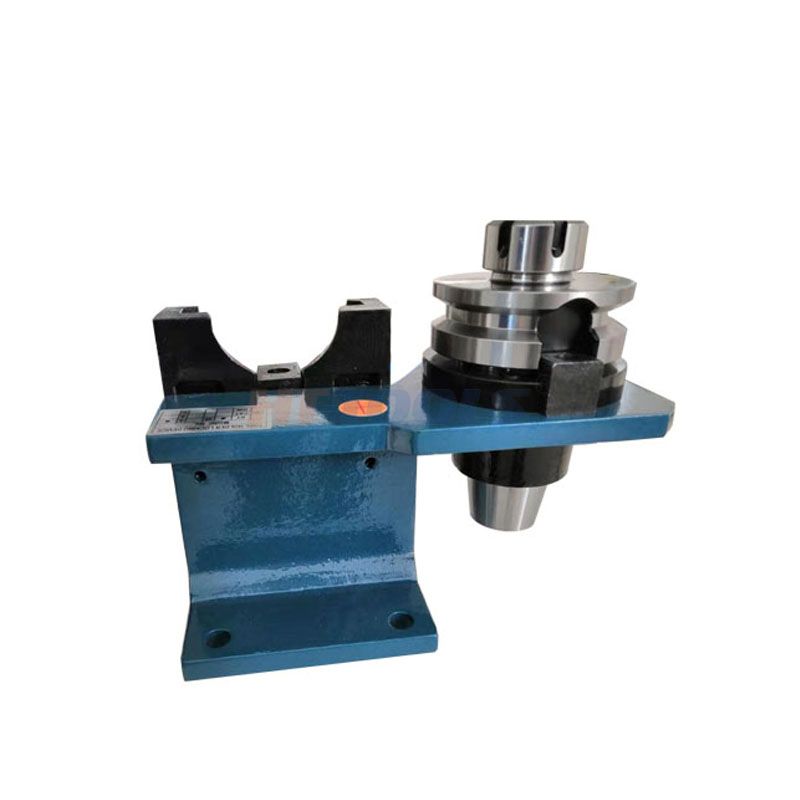

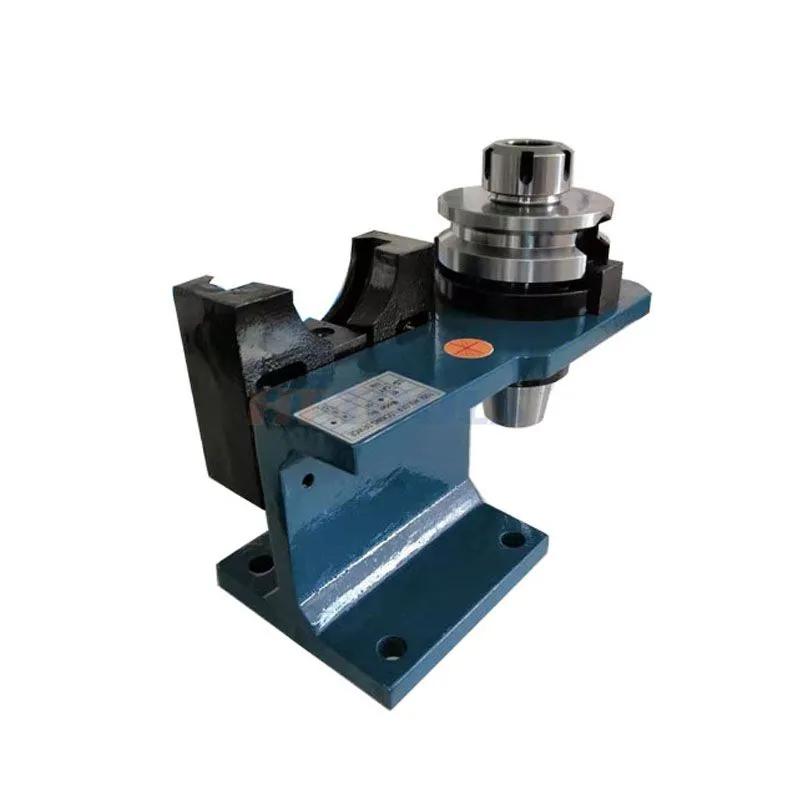

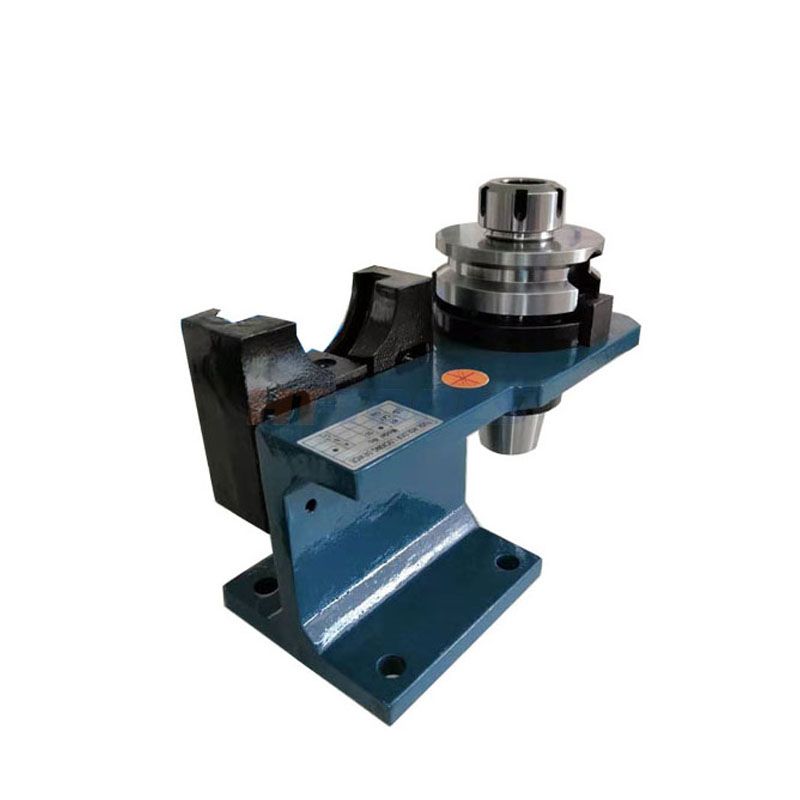

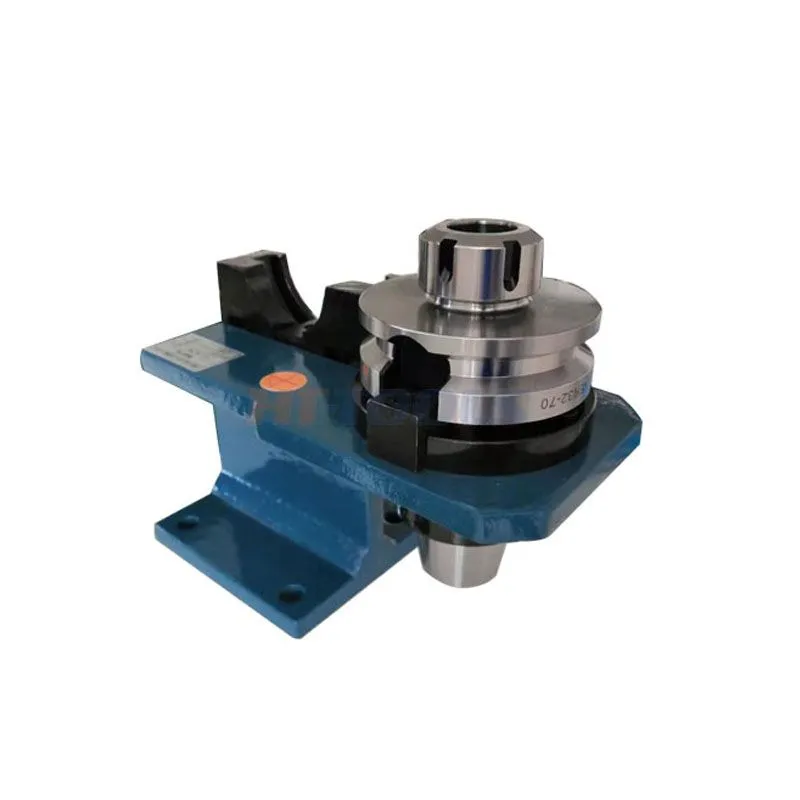

This vertical & horizontal dual-purpose tool holder device is a professional auxiliary fixture specially designed for disassembly and assembly of CNC tool holders. It supports both vertical placement and horizontal locking operation, effectively preventing tool holder slipping and scratching during collet replacement and tool holder dismounting, greatly improving machining workshop operation efficiency and protecting the precision taper surface of tool holders.

Core Advantages

  1. Dual Working Mode

    Support vertical clamping and horizontal locking two installation methods, meet different operation habits and workshop space requirements, one device for multiple scenarios.

  2. High Rigidity & Durable Material

    Adopt thickened cast iron main body with overall quenching treatment, high hardness, anti-deformation and wear-resistant, long service life under long-term heavy use.

  3. Strong Compatibility

    Universal fit for BT30, BT40, BT50, DIN, CAT standard taper tool holders, compatible with ER collet chucks, face mill holders, side lock tool holders and most mainstream CNC tool holder types.

  4. Anti-slip Protection Design

    Built-in positioning limit structure, stable clamping without shaking during tool disassembly; avoid bruising the tool holder taper to ensure the original precision of the spindle interface.

  5. Easy Installation & Operation

    Equipped with fixed mounting holes, can be placed on workbench or fixed on machine side; simple operation, no extra complicated tools needed.

Application Scope

Widely used in CNC machining centers, milling machines, lathes, mold processing workshops, mechanical processing factories, equipment maintenance workshops, as essential machine tool auxiliary accessories for daily tool holder management.

Basic Technical Parameters

  • Material: Cast Iron + Quenched Steel

  • Applicable Specifications: BT30 / BT40 / BT50 / DIN / CAT

  • Working Mode: Vertical & Horizontal Dual Use

  • Surface Treatment: Anti-rust paint finish

  • Customization: Support non-standard size and logo customization

Package & After-sales

Standard export carton packaging with shockproof inner padding; We provide stable supply, short lead time and professional after-sales technical support for bulk wholesale and OEM orders.



Media Contact:Alisa-Export Manager

Name:  Alisa

Title: Export Manager

Phone/Whatapp/Wechat: +86‑15288891522

Email: ht06@ht-tools.net

            alisa@httools.com


VERTICAL HORIZONTAL TOOL HOLDER DEVICE


OrderTaper of Tool holderOutize(mm)Weigh(kg)
LD-BT30BT30205×98.5×1283.70
LD-BT40BT40205×98.5×1283.80
LD-BT50BT50275×150×19811.40
LD-BT30DIN69871.30205×98.5×1283.70
LD-BT40DIN69871.40205×98.5×1253.80
LD-BT50DIN69871.50275×150×19811.40
LD-BT30CAT30205×98.5×1253.70
LD-BT40CAT40205×98.5×1283.80
LD-BT50CAT50275×150×19811.40

Q. Are you a factory or a trading company?

A. We are an integration of manufacturing and trade, with our own production base and professional international trade team.




Q. Can you provide samples?


A. Yes, we offer sample supply service for quality verification. Please contact our sales team to confirm sample details and related costs.




Q. Which regions do you export to?


A. Our products are exported globally, covering major mechanical manufacturing markets in Europe, North America, Asia, Africa and Oceania.




Q. Can you produce non-standard products?


A. Yes, we have professional R&D and production capabilities for custom non-standard products. Please provide us with physical samples or detailed technical drawings (e.g., CAD files) for accurate quotation and production.




Q. What is the precision grade of your ER collets?


A. We provide three precision grades of ER collets to meet different application requirements: 0.005mm, 0.008mm and 0.015mm.
