●不锈钢制造
Made of stainless steel.
●可进行外尺寸、内尺寸、深度尺寸及台阶尺寸测量
Can measure OD,ID,depth and step.
● 200mm以上产品带微动滚轮
With thumb roller for range 200mm or more
●可根据客户需求带深度尺或不带深度尺
Depth measuring baris optional

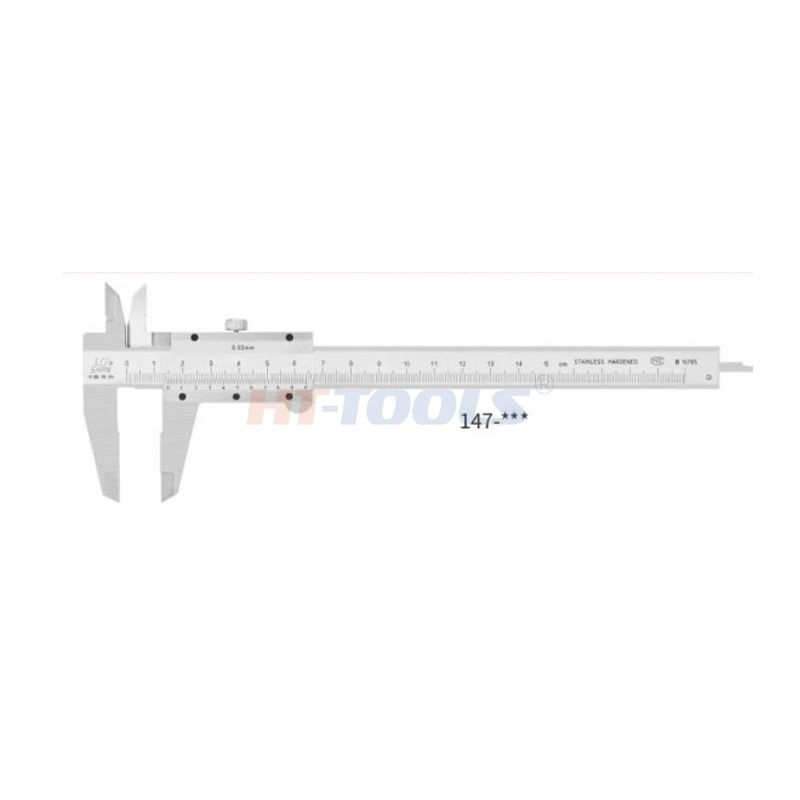

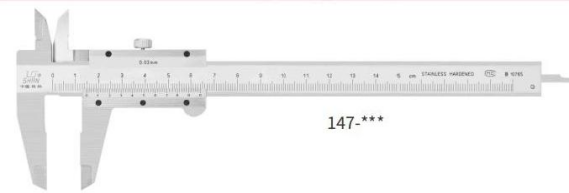

Vernier Caliper(Typell)
II型游标卡尺Vernier Caliper(Typell)

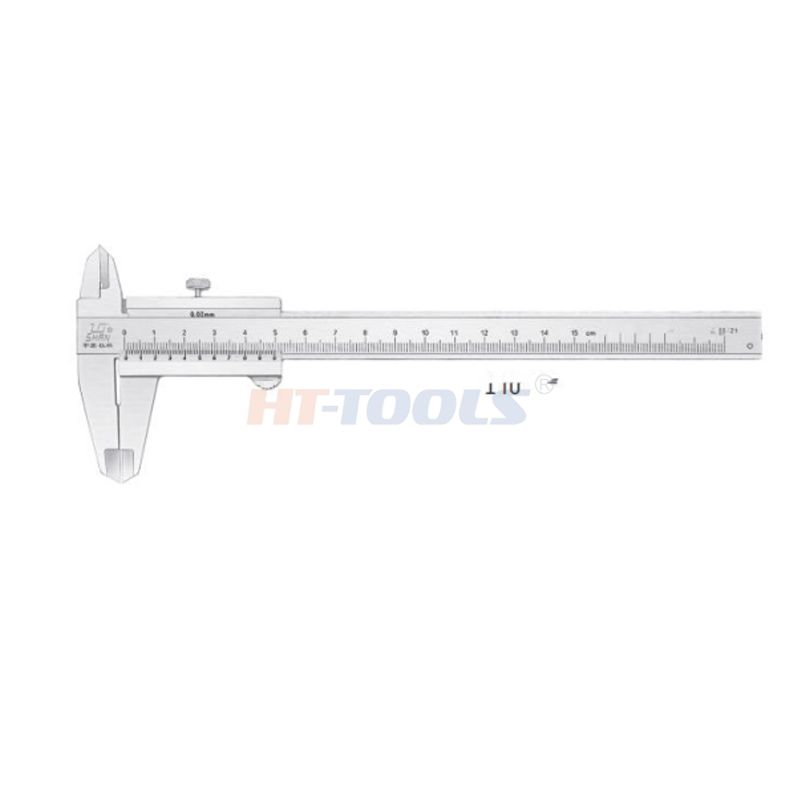

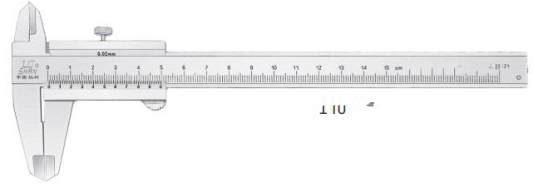

II型整体游标卡尺Mono-block Vernier Caliper(Typell)
| 技 术 参 数 S p e c i f i c a t i o n | ||||||||||||
| 货号 Item No. | 货号 Item No. | 测量范围 Range(mm) | 分度值 Grad. (mm) | B (mm) | A (mm) | C (mm) | 精度(mm) Accuracy | 可按以下标准 订货生产 | ||||
| 147-510S | 146-510S | 0-100 | 0.05 | 12.5 | 30 | 13 | ±0.05 | 德标 俄标 | ||||
| 147-520S | 146-520S | 0-150 | 17.5 | 40 | 15.5 | |||||||
| 147-525S | 146-525S | 0-200 | 19 | 50 | 17 | |||||||
| 147-530S | 146-530S | 0-250 | 23 | 65 | 17 | ±0.06 | ||||||
| 147-535S | 146-535S | 0-300 | 23 | 65 | 17 | |||||||
| 147-110S | 146-110S | 0-100 | 0.02 | 12.5 | 30 | 13 | ±0.02 | |||||
| 147-120S | 146-120S | 0-150 | 17.5 | 40 | 15.5 | ±0.03 | ||||||
| 147-125S | 146-125S | 0-200 | 19 | 50 | 17 | |||||||
| 147-130S | 146-130S | 0-250 | 23 | 65 | 17 | ±0.04 | ||||||
| 147-135S | 146-135S | 0-300 | 23 | 65 | 17 | |||||||
| 147-610S | 146-610S | 0-100 | 0.05/1/128" | 12.5 | 30 | 13 | ±0.05 | |||||
| 147-620S | 146-620S | 0-150 | 17.5 | 40 | 15.5 | |||||||
| 147-625S | 146-625S | 0-200 | 19 | 50 | 17 | |||||||
| 147-630S | 146-630S | 0-250 | 23 | 65 | 17 | ±0.06 | ||||||
| 147-635S | 146-635S | 0-300 | 23 | 65 | 17 | |||||||
| 147-210S | 146-210S | 0-100 | 0.02/0.001" | 12.5 | 30 | 13 | ±0.02 | |||||
| 147-220S | 146-220S | 0-150 | 17.5 | 40 | 15.5 | ±0.03 | ||||||
| 147-225S | 146-225S | 0-200 | 19 | 50 | 17 | |||||||
| 147-230S | 146-230S | 0-250 | 23 | 65 | 17 | ±0.04 | ||||||
| 147-235S | 146-235S | 0-300 | 23 | 65 | 17 | |||||||
