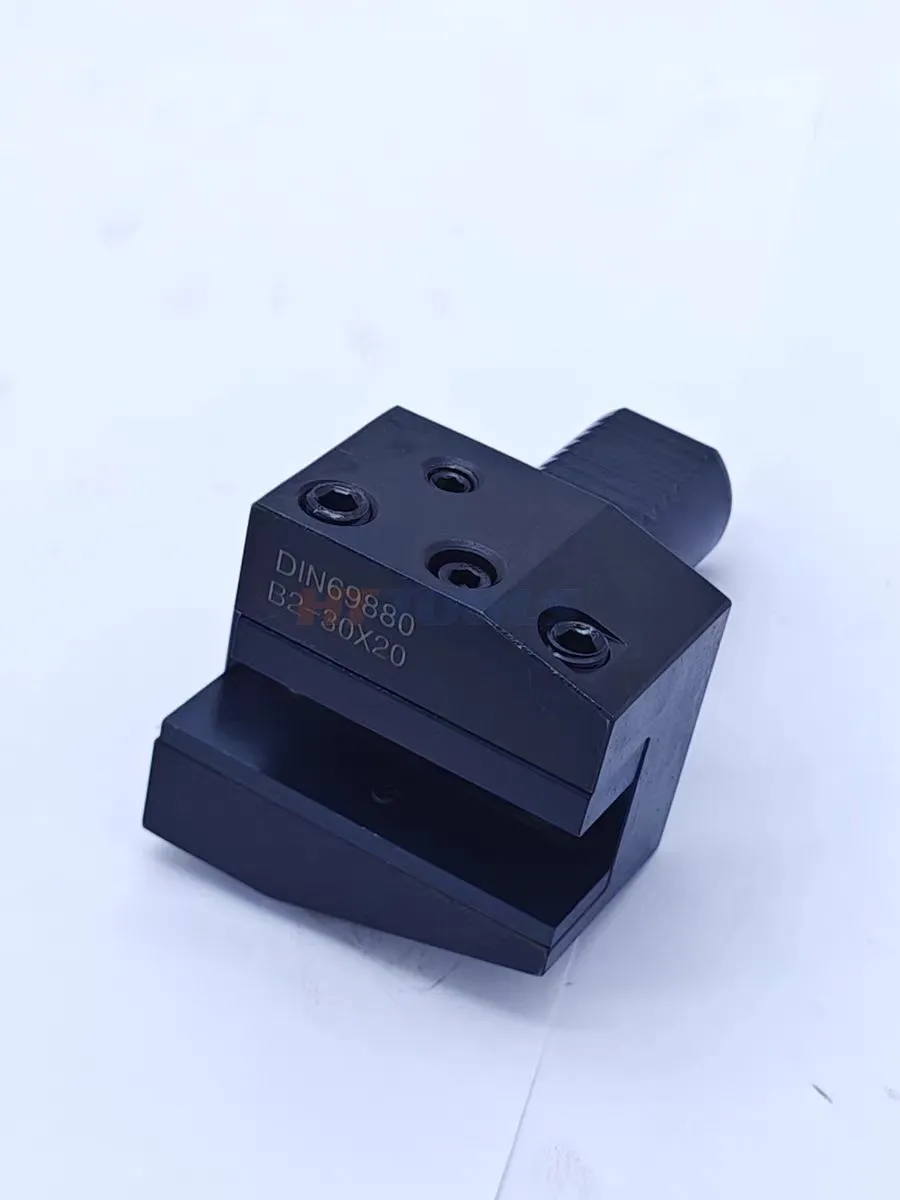

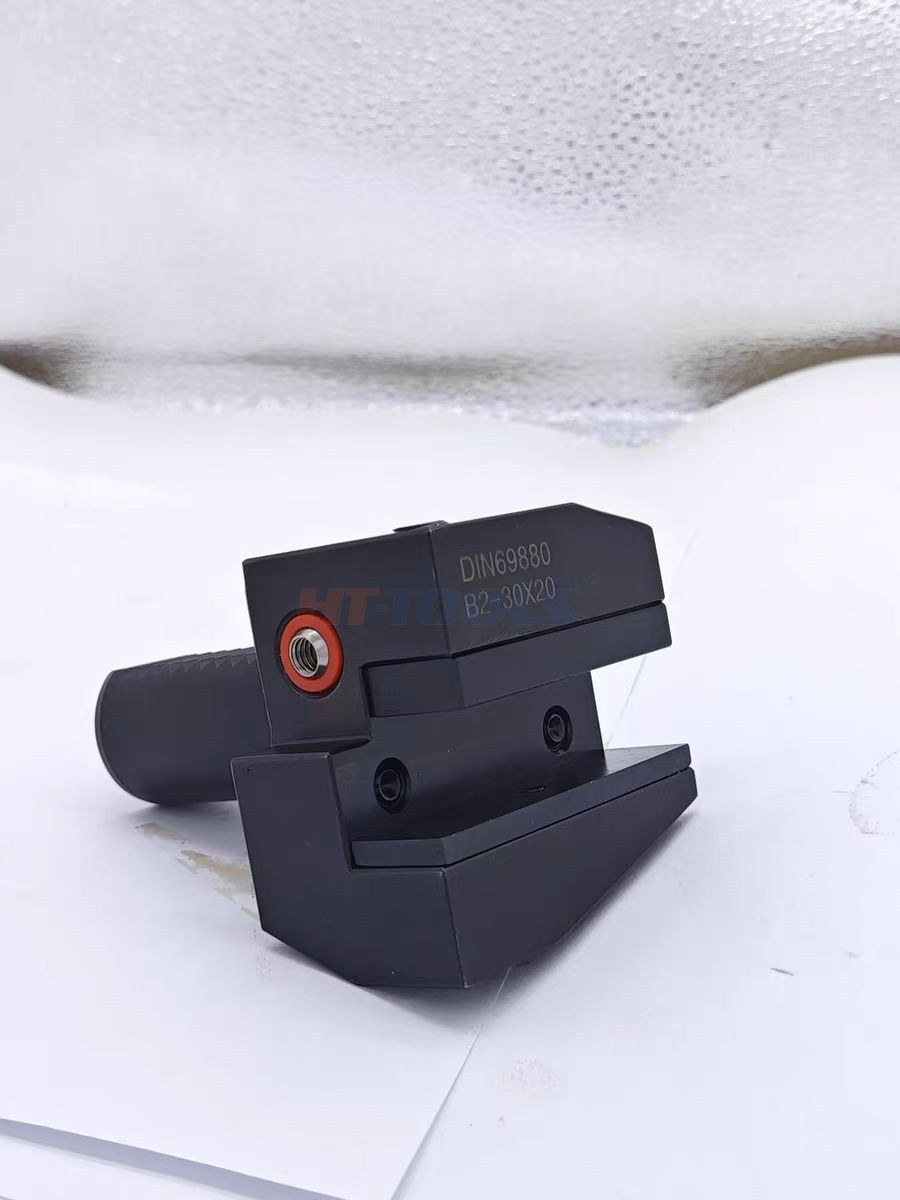

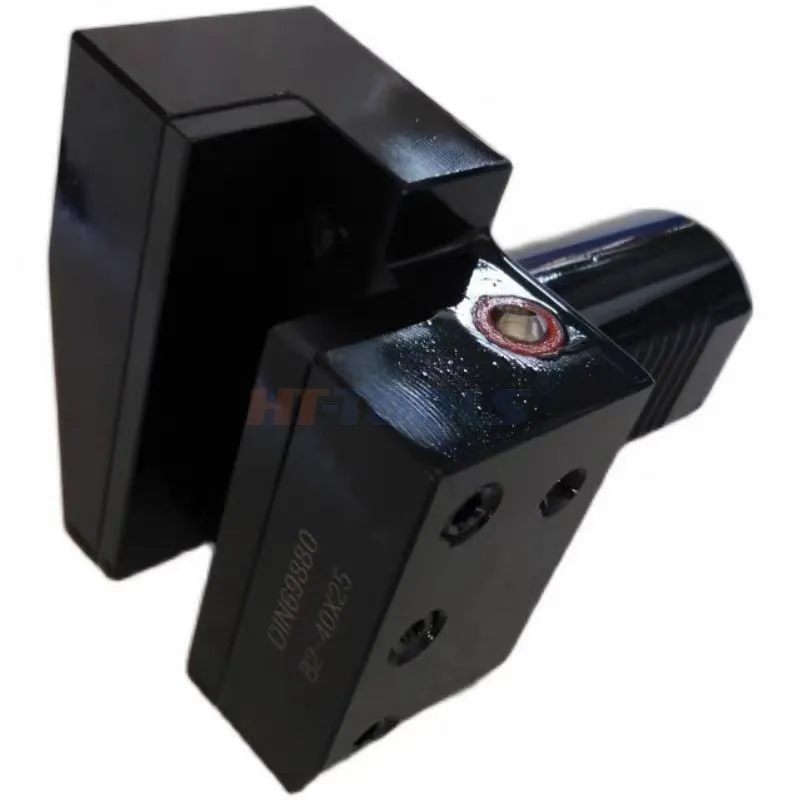

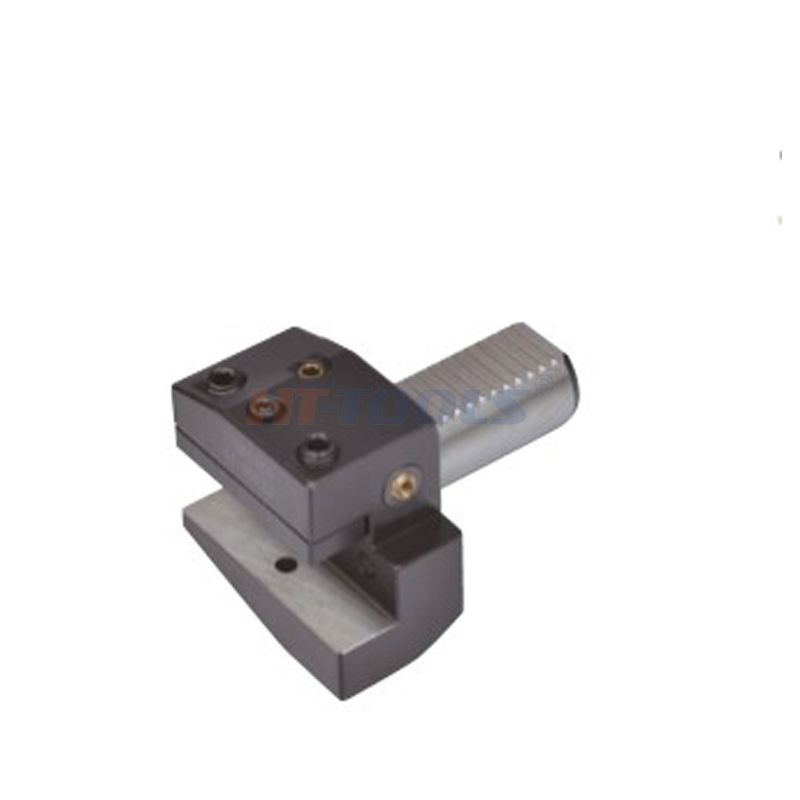

Type B2 VDI Tool Holder is a high-precision CNC lathe tool holder designed according to DIN69880 VDI standards. It is widely used for automatic tool changing systems and CNC turning machines, providing excellent rigidity, stability, and repeat positioning accuracy.
Manufactured from high-quality alloy steel with precision machining and heat treatment, the VDI B2 tool holder offers outstanding wear resistance, long service life, and reliable performance during high-speed machining operations. It is suitable for various turning tools and CNC lathe applications, helping improve machining efficiency and accuracy.
Features:
Standard DIN69880 VDI Type B2 design for wide compatibility
High precision machining with stable clamping performance
Hardened alloy steel construction for durability
Excellent rigidity for heavy-duty and high-speed cutting
Suitable for CNC turning centers and automatic tool changers
Available in different sizes and configurations according to customer requirements
Keywords: Type B2 VDI Tool Holder, DIN69880 VDI Holder, CNC Lathe Tool Holder, VDI B2 Turning Tool Holder, High Precision Tool Holder, CNC Machine Accessories.
Type B2 VDI Tool Holder CNC Lathe Tool Holder DIN69880 VDI B2 Series

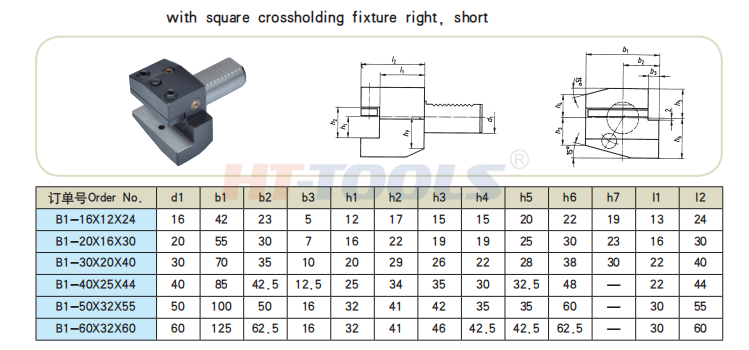

| Order No. | d1 | b1 | b2 | b3 | h1 | h2 | h3 | h4 | h5 | h6 | h7 | l1 | l2 |
| B2-20×16×30 | 20 | 55 | 30 | 7 | 16 | 22 | 19 | 19 | 25 | 30 | 23 | 16 | 30 |
| B2-30×20×40 | 30 | 70 | 35 | 10 | 20 | 29 | 26 | 22 | 28 | 38 | 30 | 22 | 40 |
| B2-40×25×44 | 40 | 85 | 42.5 | 12.5 | 25 | 34 | 35 | 30 | 32.5 | 48 | － | 22 | 44 |
| B2-50×32×55 | 50 | 100 | 50 | 16 | 32 | 41 | 42 | 35 | 35 | 60 | － | 30 | 55 |
| B2-60×32×60 | 60 | 125 | 62.5 | 16 | 32 | 41 | 46 | 42.5 | 42.5 | 62.5 | － | 30 | 60 |
FAQ
Q: Which standard applies to VDI B type tool holders?
A: German DIN69880 standard, for CNC lathe VDI turrets.
Q: What models can you supply?
A: B1 Radial Right, B2 Radial Left, B3 Overhead Right, B4 Overhead Left. Sizes: VDI16/20/25/30/40/50/60.
Q: What key dimensions do you have?
A: Shank diameter, square tool size, height & length parameters. Dimension drawings available for each model.
Q: What is the accuracy?
A: Positioning tolerance ≤0.005mm, repeat positioning accuracy ≤0.003mm. Runout controlled per DIN69880.
Q: What is the raw material?
A: 40Cr alloy steel, quenched & tempered with local hardening.
Q: Which machines can it fit? What parts can be machined?
A: Fits CNC lathes with VDI turrets. For shaft & disc metal parts: OD turning, facing, grooving, chamfering.
Q: Can you do OEM & custom work?
A: Yes. Laser logo engraving and non-standard customized tool holders are available.
Q: What is your monthly output?
A: 3,000–5,000 pcs monthly for VDI series.
Q: What about warranty?
A: Replacement available within 6 months under normal use.
Q: How to request a quote?
A: Send us model, quantity, lathe brand and turret specs for quotation.
Q: How about quality inspection?
A: Heat treatment + precision grinding. 100% dimension & runout check before shipment. Inspection reports can be offered.
