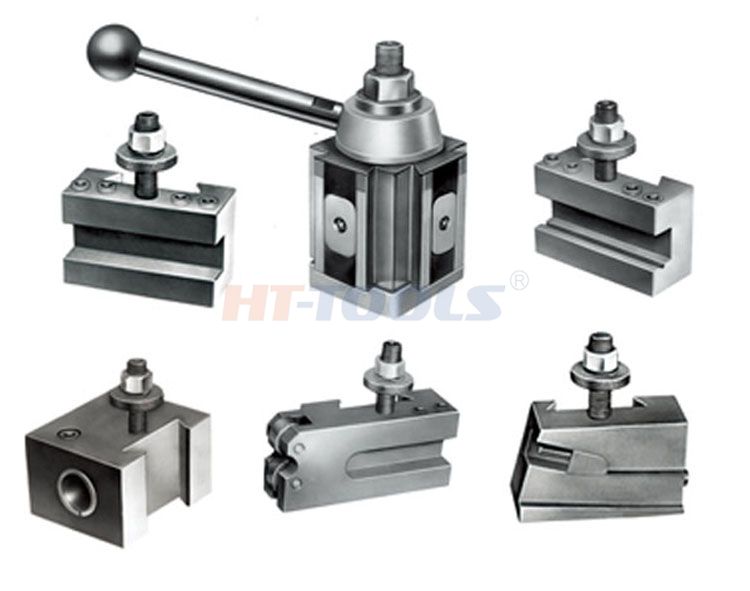

Quick change tool post (USA style)

The quick-changing tool post is a major spare part of the ordinary lathes,It is composed of the cutter-cartridge body and tool-holder for various cutting tools which can replace the square tools table for processing works like cylindrical facing,end facing,cutting,knurling ,drilling,enlarg,boring and reaming ,etc.

The height of tools can be regulated and positioned relative to the cente line of machine spindle,It features external tool-mounting,tool-matching,quick tool-changing (with 3 to 5seconds),great precision in positoning and great hardness etc.


Quick change tool posts (USA style)

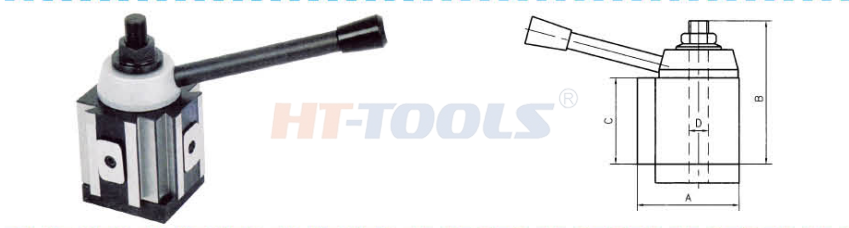

Order No.A(in)B1(in)C(in)D(in)Swing dia(in)Wt(kg)

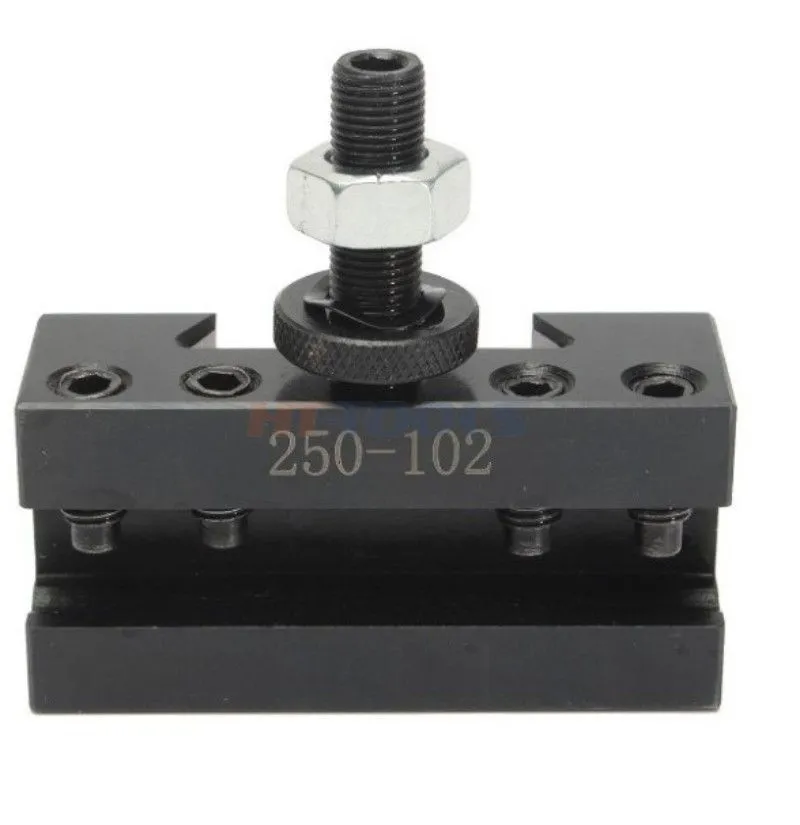

250-1002-1/23-7/82-1/49-16122.23
250-20034-5/82-3/45/810-154.00
250-3003-3/85-1/833/413-185.72
250-40046-1/83-5/87/814-2010.00

Quick change tool post (USA style)


1. What is a USA Type Quick Change Tool Post?
A quick-change tool holding system for engine lathes, designed for fast and repeatable tool changes.

2. How do I choose the correct size?
The size depends on your lathe center height, tool shank size and existing tool post dimensions. If unsure, send us your lathe model or photos and dimensions.

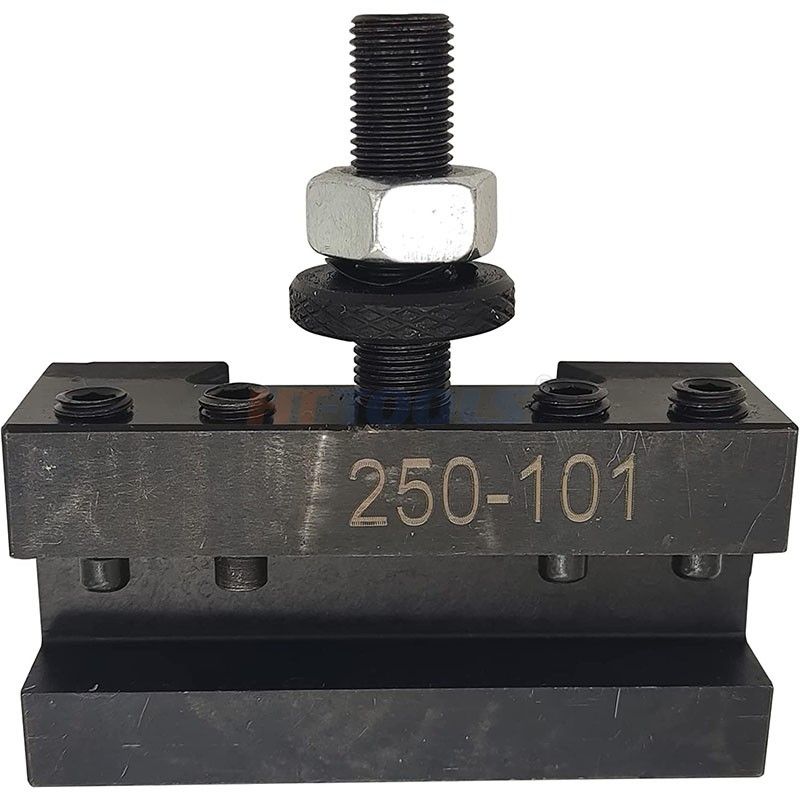

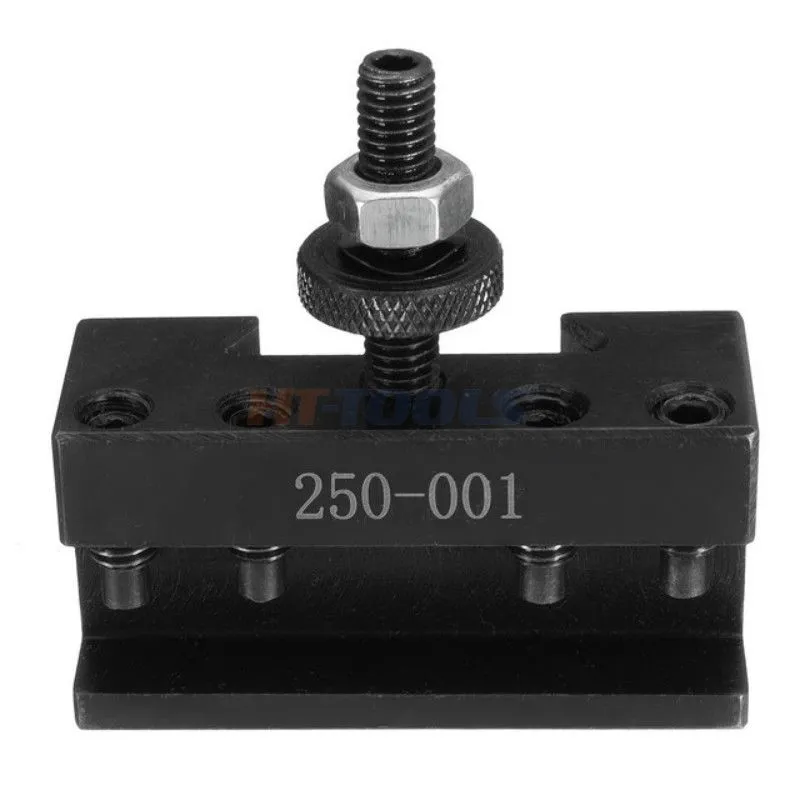

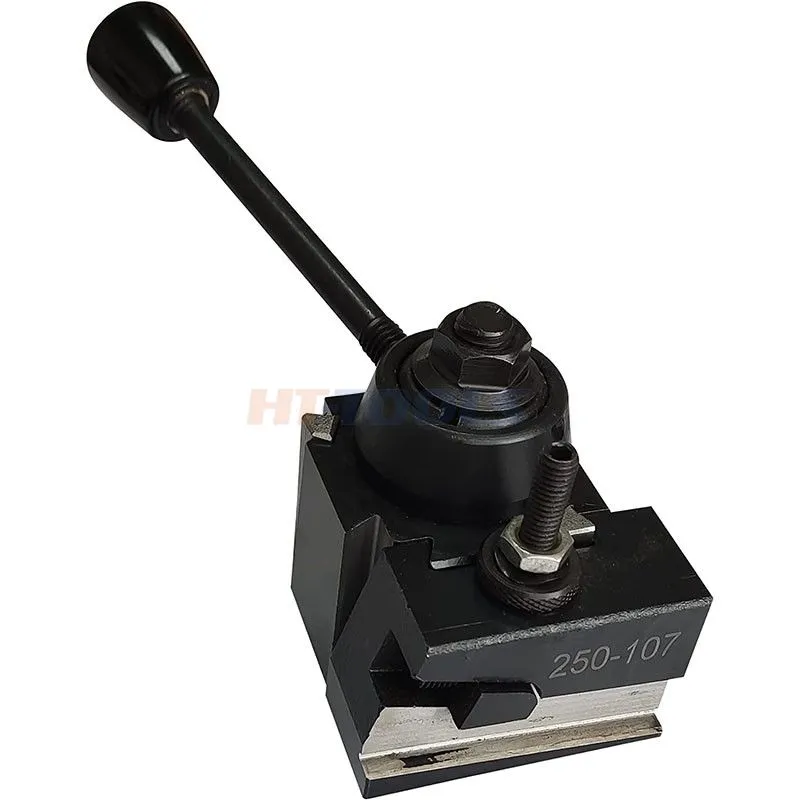

3. What tool holders are available?
We offer holders for turning, facing, boring, threading, parting and other common lathe operations.

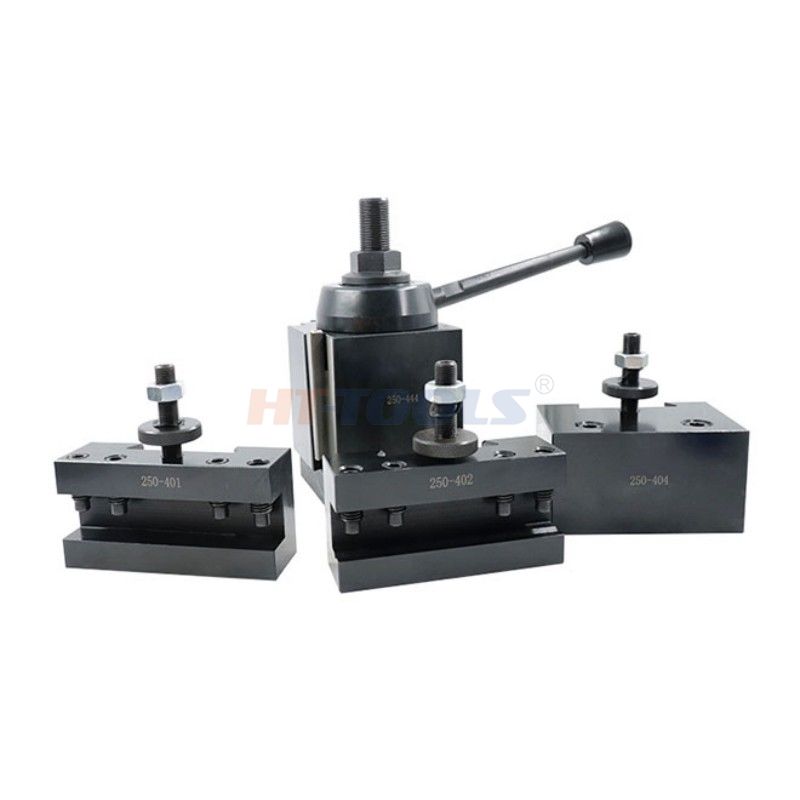

4. Can I buy a complete set or individual holders?
Yes. We can supply complete tool post sets or individual replacement/additional holders.

5. Can you provide OEM or customized products?
Yes. Custom dimensions, configurations and private-label packaging are available depending on requirements and quantity.

6. What is the MOQ and lead time?
MOQ and lead time depend on the model, quantity and customization requirements. Standard products may be available in small quantities.


Other Products

Key type drill chuck

Key type drill chuck

1、Suitable for medium、heavy duty dilling use. 2、For milling machine、lathe、drilling machine、wood working machine 3、High speed drilling can be performed for possessing high griping power

40-POSITION  QUICK  CHANGE  TOOL  POSTS(EUROPE  STYLE)

40-POSITION QUICK CHANGE TOOL POSTS(EUROPE STYLE)

Application: Quick-change tool holders are characterized by their unlimited diversity in the use of lathe tools, drills,reamers and boring bars.
