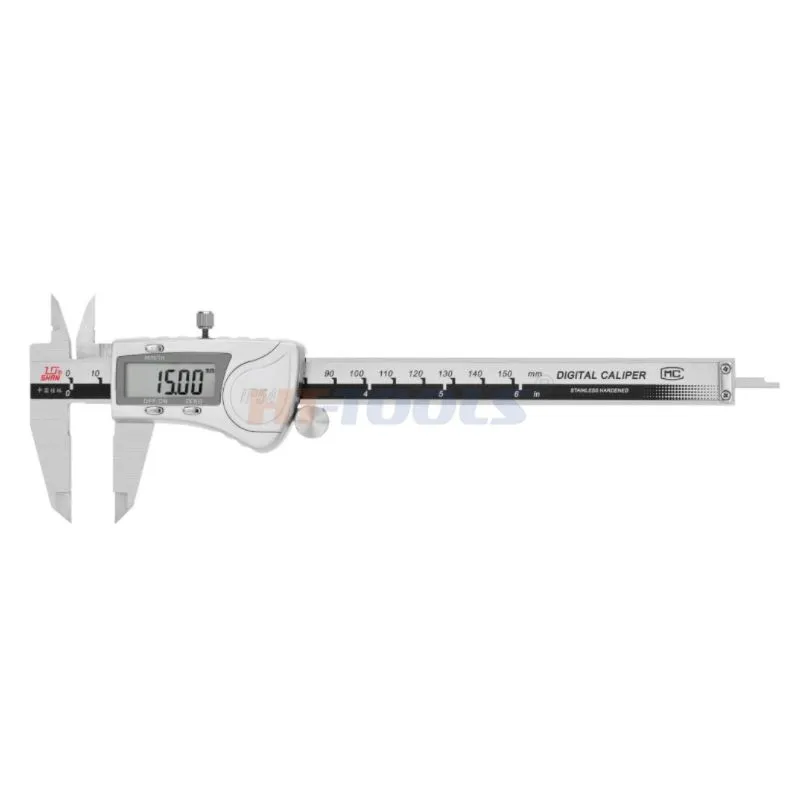

IP54 Splash-proof Stainless Steel Digital Vernier Calipers High Precision Measuring Tool

Product Overview

This IP54 splash-proof digital caliper is an industrial-grade precision measuring instrument with strict IP54 protection rating, effectively blocking dust intrusion and splashing water from all directions, perfectly adapting to wet, oily and dusty workshop processing environments. Adopting hardened stainless steel ruler body, stable measurement data without deformation, equipped with large LCD digital display for intuitive reading, supporting metric/inch one-key switching, realizing four-way measurement of outer diameter, inner diameter, depth and step size, widely used in machinery processing, mold inspection, auto repair, hardware processing, jewelry identification and other scenarios.

Core Advantages

✅ IP54 Grade Splash & Dust Protection

Certified IP54 protection, anti-splash water, dust-proof and oil-resistant, no failure when exposed to cutting fluid and splashing liquid on the production line, greatly extend service life compared with ordinary plastic digital calipers.

✅ Hardened Stainless Steel Body

Whole ruler body made of hardened stainless steel, wear-resistant, anti-rust and anti-collision, clear laser engraving scale, long-term use will not wear and blur.

✅ 0.01mm High Precision Measurement

Basic resolution 0.01mm, measurement accuracy ±0.02mm, zero reset function at any position, effectively avoid cumulative measurement error.

✅ Multi-function Measurement Mode

Upper jaw for inner hole measurement, lower jaw for outer size measurement, tail depth blade for depth & step difference measurement, one caliper meets all conventional precision measurement demands.

✅ Humanized Operation Design

Built-in thumb roller for fine sliding adjustment; auto power off after idle 5 minutes to save battery; equipped with CR2032 button battery, easy to replace and long endurance.

●可进行外尺寸、内尺寸、台阶尺寸及深度尺寸测量

Canmeasure OD,ID,steps,and depth.

●防水等级达IP54,在溅水环境下擦干后能正常使用

The degree of protection is IP54.It can work aftercleaning the splashed water on it.

Next Product Inquire Now

IP54 Splash-proof Digital Caliper

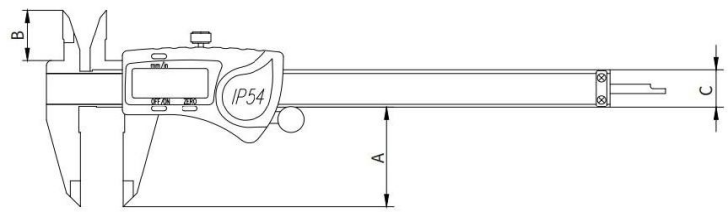

技术参数Specification
货号 Item No.	测量范围 Range(mm/in)	分辨力 Resolution(mm/in)	B (mm)	A (mm)	C (mm)	精度(mm) Accuracy
131-320J	0-150/6"	0.01/0.0005"	16.5	40	16	±0.03
131-325J	0-200/8"		20	50	16
131-335J	0-300/12"		20.5	60	17	±0.04
