High Accuracy Mechanical & Digital Inside Micrometers for Bore Hole Internal Measurement

 Roduct Introduction

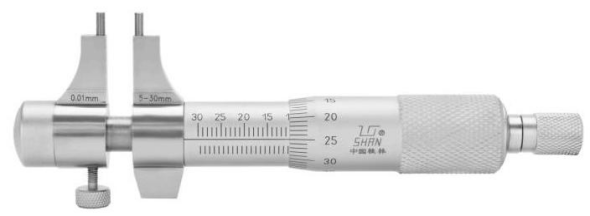

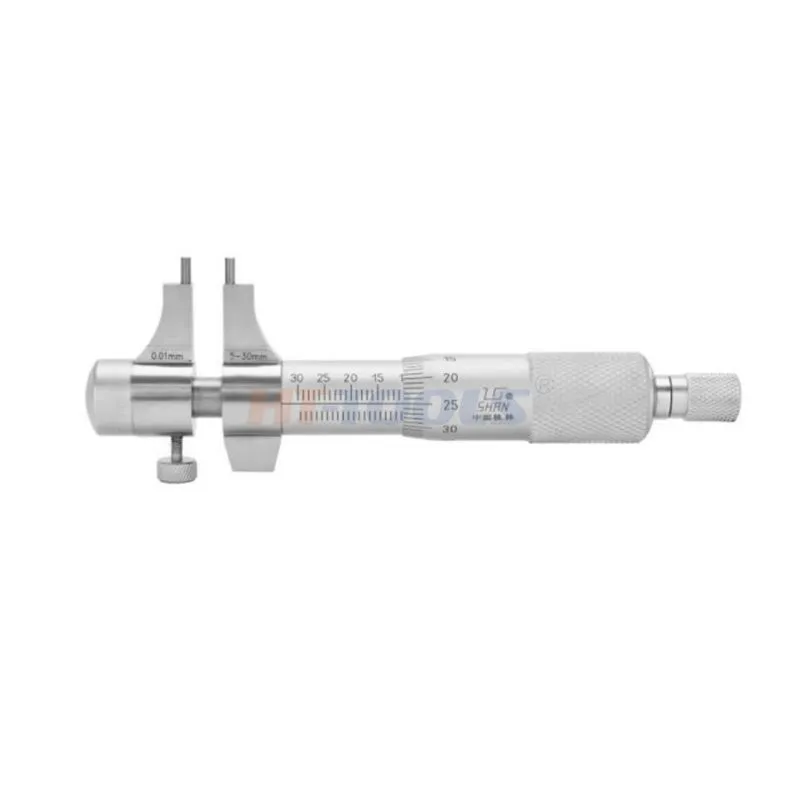

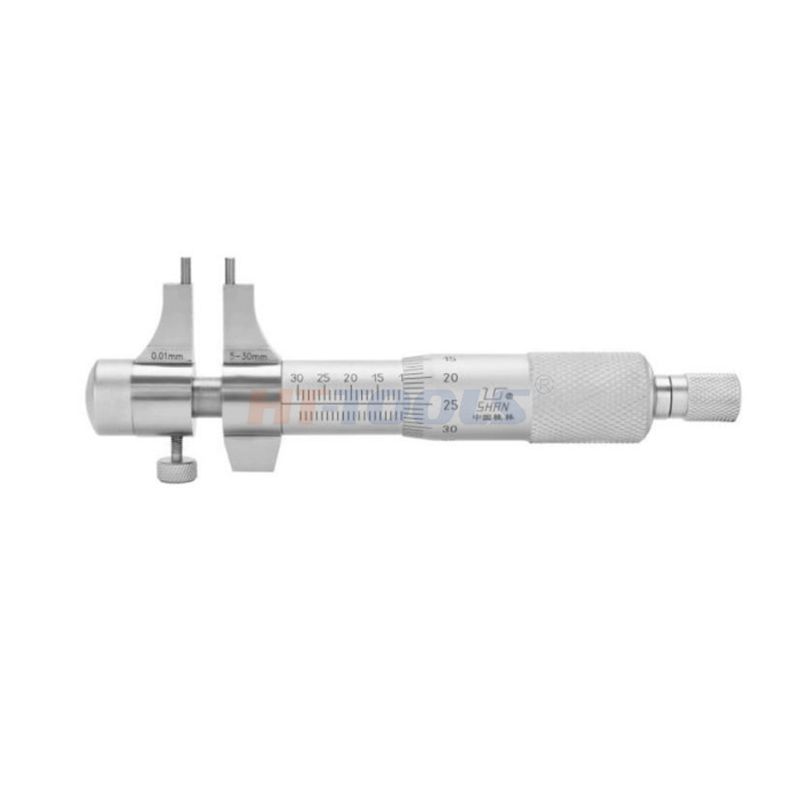

Two-point inside micrometer is a classic precision measuring instrument specially used to measure inner hole diameter, internal groove width, stepped hole and internal thread minor diameter. Adopting high-precision thread transmission structure, the scale graduation is 0.01mm, complying with ISO international metrology standard and national GB/T 6314 standard.
Made of hardened stainless steel with carbide measuring tips, the measuring face is wear-resistant and anti-corrosion. Knurled anti-slip thimble brings smooth adjustment during operation; built-in locking device can fix the reading value to avoid data deviation after measurement. Multiple measuring ranges are optional from 5–30mm, 25–50mm up to 100–125mm, widely applied in mechanical processing, mold manufacturing and equipment maintenance.

Core Advantages

  • Clear laser engraved scale, long service life without fading

  • Ratchet stop mechanism ensures constant measuring pressure to reduce manual error

  • Compact body, easy to carry and operate without extra power supply


Media Contact:Alisa-Export Manager

Name:  Alisa

Title: Export Manager

Phone/Whatapp/Wechat: +86‑15288891522

Email: ht06@ht-tools.net

            alisa@httools.com


Inside Micrometers

image.png    image.png


技术参数Specification
货号
Item No.
测量范围
Range
分度值
Grad.
精度
Accuracy
452-1055-30mm0.01mm7μm

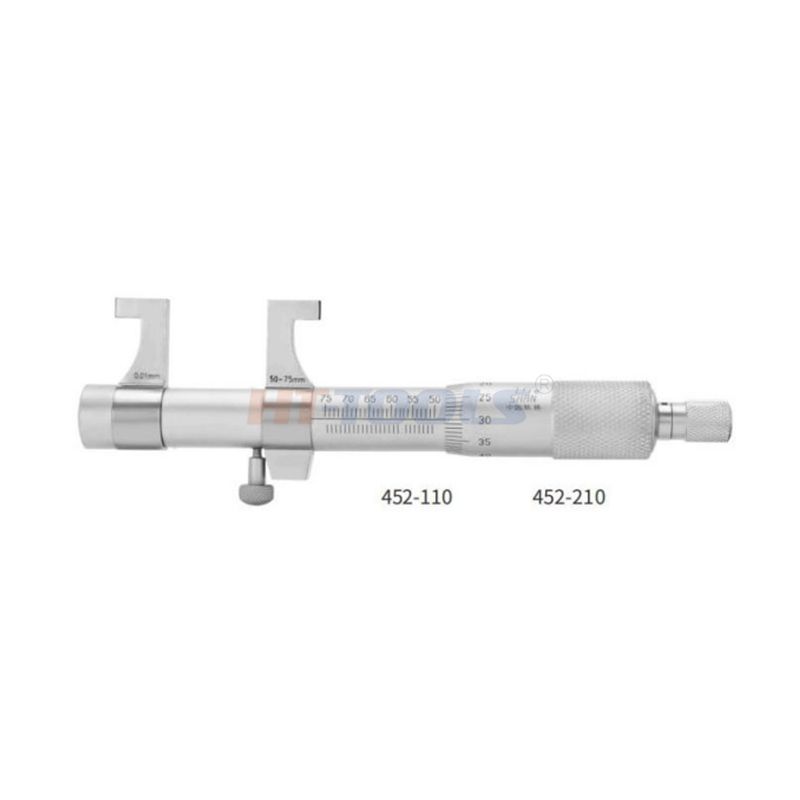

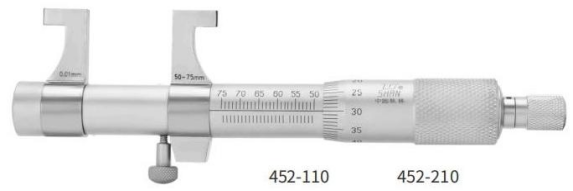

452-11025-50mm8μm
452-11550-75mm9μm
452-12075-100mm10μm
452-2050.2"-1.2"0.001"0.00028"
452-2101"-2"0.00032"
452-2152"-3"0.00036"
452-2203"-4"0.0004"

Q. Are you a factory or a trading company?

A. We are an integration of manufacturing and trade, with our own production base and professional international trade team.




Q. Can you provide samples?


A. Yes, we offer sample supply service for quality verification. Please contact our sales team to confirm sample details and related costs.




Q. Which regions do you export to?


A. Our products are exported globally, covering major mechanical manufacturing markets in Europe, North America, Asia, Africa and Oceania.




Q. Can you produce non-standard products?


A. Yes, we have professional R&D and production capabilities for custom non-standard products. Please provide us with physical samples or detailed technical drawings (e.g., CAD files) for accurate quotation and production.




Q. What is the precision grade of your ER collets?


A. We provide three precision grades of ER collets to meet different application requirements: 0.005mm, 0.008mm and 0.015mm.
