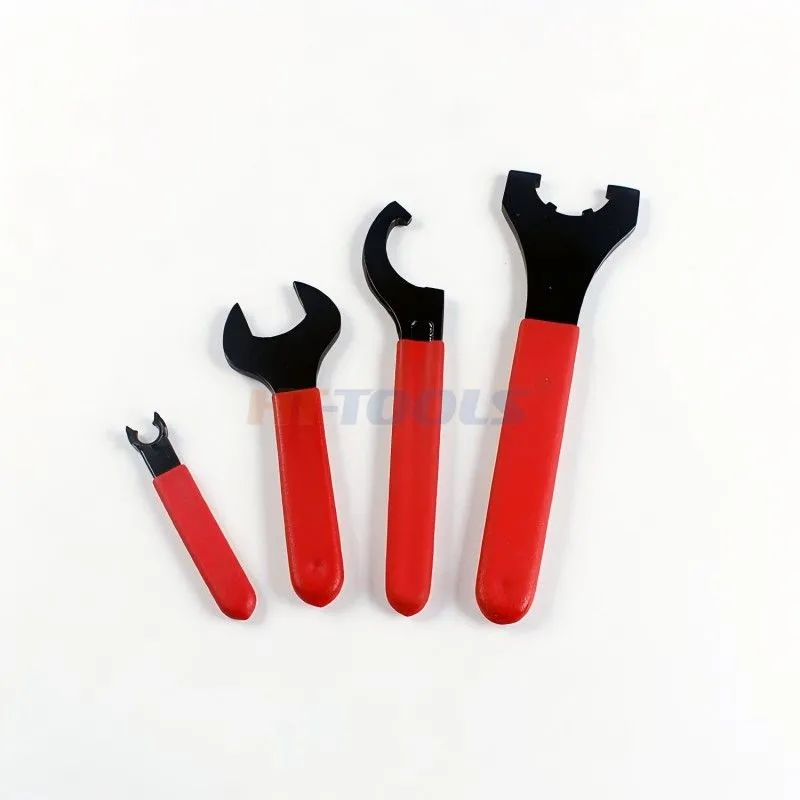

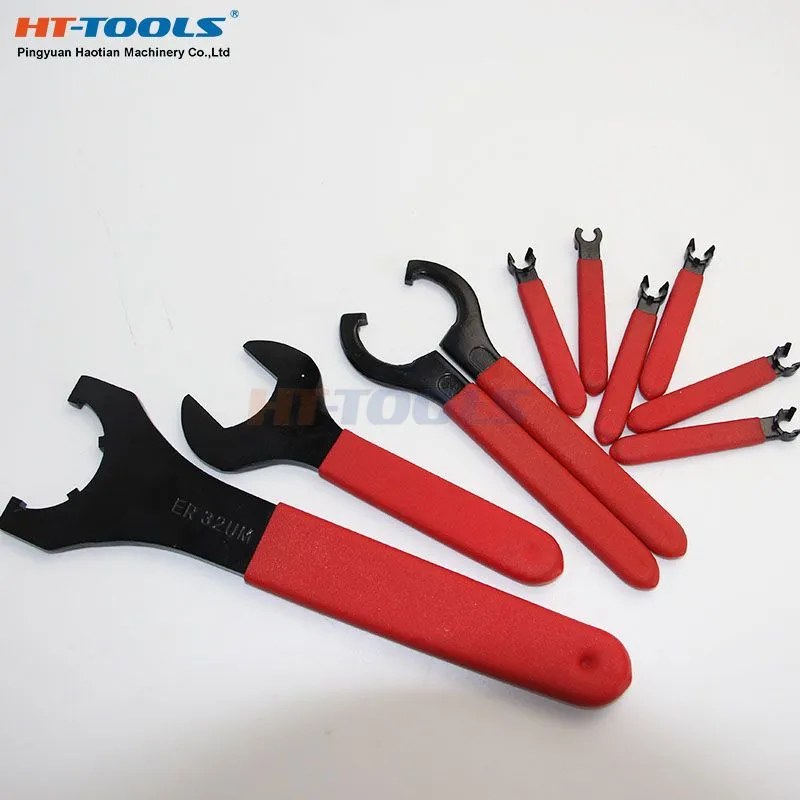

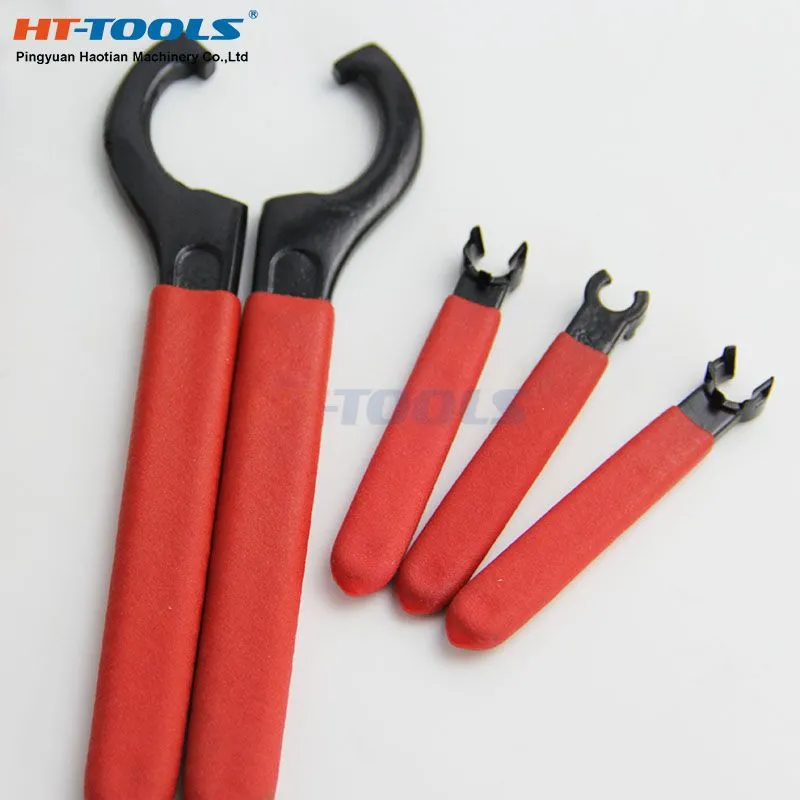

ER Spanner

  • Product Features

  • Ultra‑high clamping concentricity

  • Uniform hydraulic clamping force, no workpiece deformation

  • Fast tool change, simple operation

  • Compact structure, good rigidity

  • Low vibration during high‑speed machining

  • Compatible with standard machine tool spindles

  • Selling Points

  • Excellent run‑out accuracy ensures consistent machining quality

  • Even hydraulic pressure protects delicate workpieces/tools

  • Reduces tool‑change downtime, improves production efficiency

  • Long service life, less wear compared with spring collets

  • Stable performance for mass‑production processing

  • Easy maintenance

  • Customer Concerns

  • Clamping run‑out accuracy

  • Maximum & minimum clamping range

  • Spindle interface compatibility

  • Suitability for high‑speed cutting

  • Oil leakage risk

  • Wear life & replacement cost

  • Cooling‑fluid compatibility


FAQ

Q1: Can it run at high spindle speed?A: Yes, suitable for high‑speed machining within rated speed range.
Q2: Will it deform thin‑shank cutters?A: Uniform hydraulic clamping force greatly reduces deformation risk.
Q3: Is special maintenance required?A: Keep inner bore clean; avoid heavy impact; check for oil leakage periodically.
Q4: Can I adjust the clamping diameter?A: Each collet fits a specific clamping size; use correct size for your tool shank.
Q5: What if oil leakage occurs?A: Stop using immediately, contact technical support for inspection or replacement.
Q6: Does it fit my existing machine spindle?


Media Contact:Alisa-Export Manager

Name:  Alisa

Title: Export Manager

Phone/Whatapp/Wechat: +86‑15288891522

Email: ht06@ht-tools.net

            alisa@httools.com


ER Spanner




Product Details

  • Product Name: High Precision Hydraulic Collet

  • Clamping principle: Hydraulic expansion clamping

  • Material: High‑grade alloy steel, hardened & precision ground

  • Hardness: HRC 56‑60

  • Clamping range: Please refer to corresponding model spec

  • Applicable spindle: BT / HSK / CAT optional

  • Application: Milling, drilling, reaming, fine finishing

  • Installation: Direct spindle mounting

  • Package: Shock‑proof foam + hard carton

ER Spanner

ER Spanner

ER Spanner

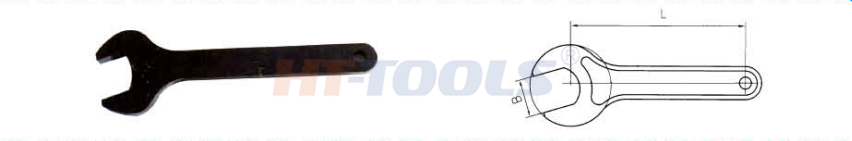

Order No.BLClamping Nut
S/ER1117110ER11-A   ER11-T1
S/ER1625120ER16-A   ER16-T1
S/ER2030130ER20-A   ER20-T1

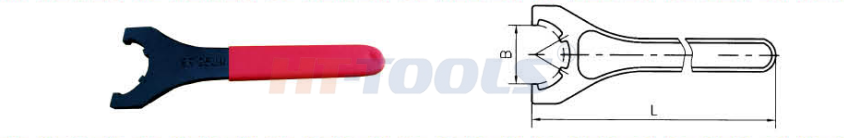

Order No.BLClamping Nut
S/ER25-S37210ER25-B   ER25-T2
S/ER32-S45250ER32-B   ER32-T2
S/ER40-S58290ER40-B   ER40-T2
S/ER50-S72350ER50-B   ER50-T2

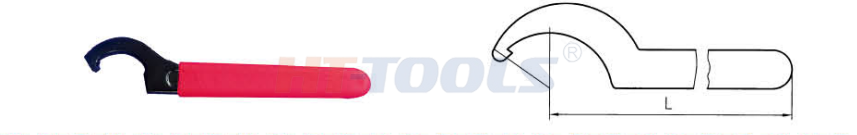

Order No.LSizeClamping Nut
S/ER2516838-42ER25-B   ER25-T2
S/ER3219045-52ER32-B   ER32-T2
S/ER4021055-63ER40-B  ER40-T2
S/ER5024078-85ER50-B   ER50-T2

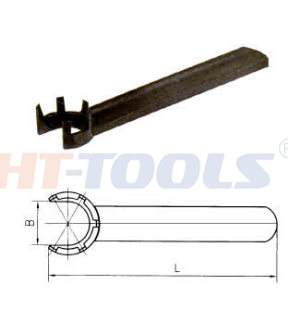

Order No.BLClamping Nut
S/ER8M7.570ER8-M
S/ER11M1190ER11-M
S/ER16M15110ER16-M
S/ER20M19.5120ER20-M
S/ER25M25130ER25-M

Core Selling Points

  1. Labor-saving design: Leverage structure for easy tightening & loosening of ER nuts, easy one-hand operation.

  2. Wide compatibility: Fits all standard ER tool holders for universal workshop use.

  3. High durability: Forged alloy steel, crack-proof and anti-slip after long-term repeated use.

  4. Perfect bite with nuts: No slipping during operation, avoid scratches on lock nuts.

  5. Torque wrench optional: Precisely control clamping force to prevent collet damage and accuracy loss caused by over-tightening.
