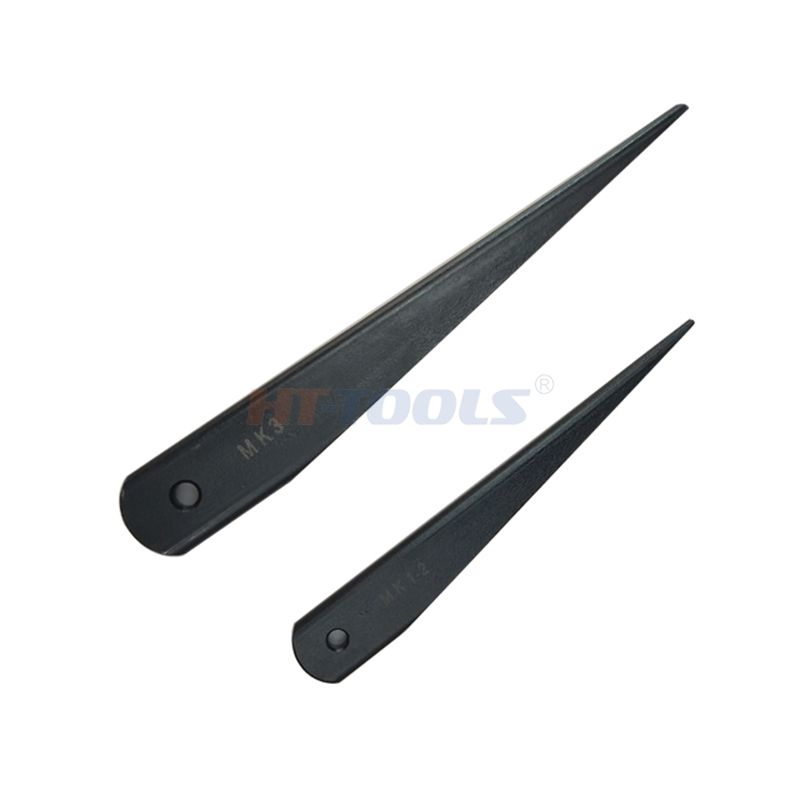

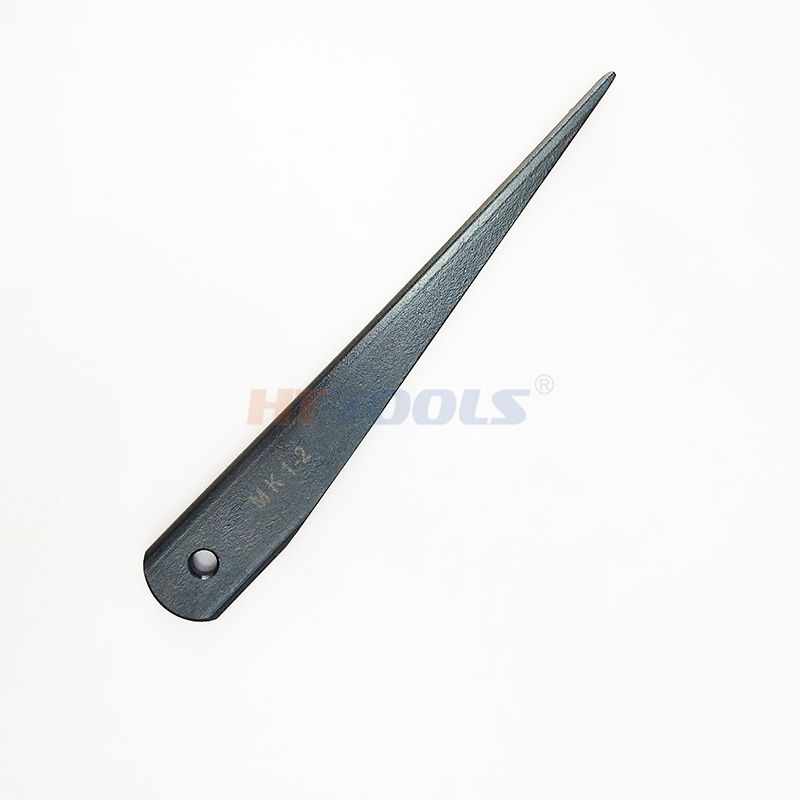

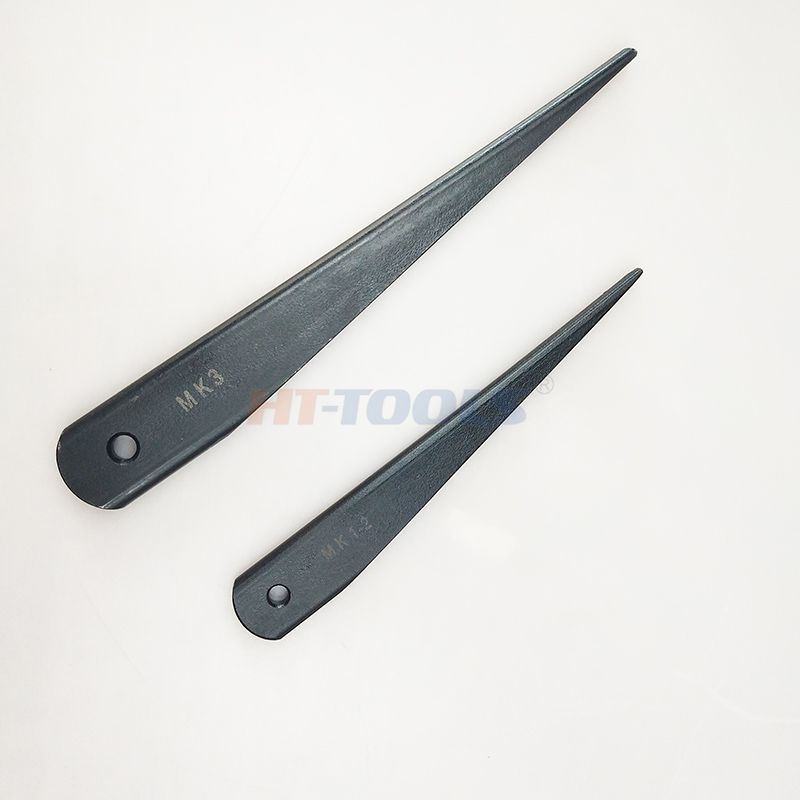

DIN317 MORSE SHANK PULLER

din317 morse shank puller

The DIN 317 Morse Shank Puller is a high-quality tool designed for safely and efficiently removing Morse taper tool holders, drill chucks, and accessories from machine spindles. Manufactured according to DIN 317 standards, it provides excellent compatibility, reliable performance, and long service life in machining applications.


Made from high-strength alloy steel and precisely machined, the Morse Shank Puller features a durable structure with accurate dimensions, ensuring secure engagement and smooth operation during tool removal. Its robust design helps prevent damage to machine spindles and tool holders, making it an essential accessory for CNC machines, milling machines, drilling machines, and conventional machine tools.


din317 morse shank puller


OrderMS. NoL (mm)H(mm)
DIN317/0MS090112
DIN317/1-2MS1 MS214020
DIN317/3MS319025
DIN317/4MS422530
DIN317/5-6MS5 MS626535

Made of 45# steel, quenched & tempered for high hardness

Standard DIN317 specification, match MS0~MS6 Morse taper

 Black oxide finish, anti-rust and wear-resistant

 Tapered wedge design for easy removal of Morse taper sleeves & drill bits

 Hole on the end for convenient hanging storage

 Complete sizes: DIN317/0, DIN317/1-2, DIN317/3, DIN317/4, DIN317/5-6


DIN317 MORSE SHANK PULLER

DIN317 MORSE SHANK PULLER

DIN317 MORSE SHANK PULLER

Q1: What is DIN317 drift used for?

A1: To remove Morse taper shank drills and reducing sleeves.

Q2: Material & hardness?

A2: 45# steel, quenched, HRC 42-48.

Q3: Sizes available?

A3: DIN317/0, 1-2, 3,4,5-6 for MS0~MS6.

Q4: Surface treatment?

A4: Black oxide, anti-rust.

Q5: Fits all Morse tapers?

A5: Yes, each size corresponds to matching MS taper.


Other Products

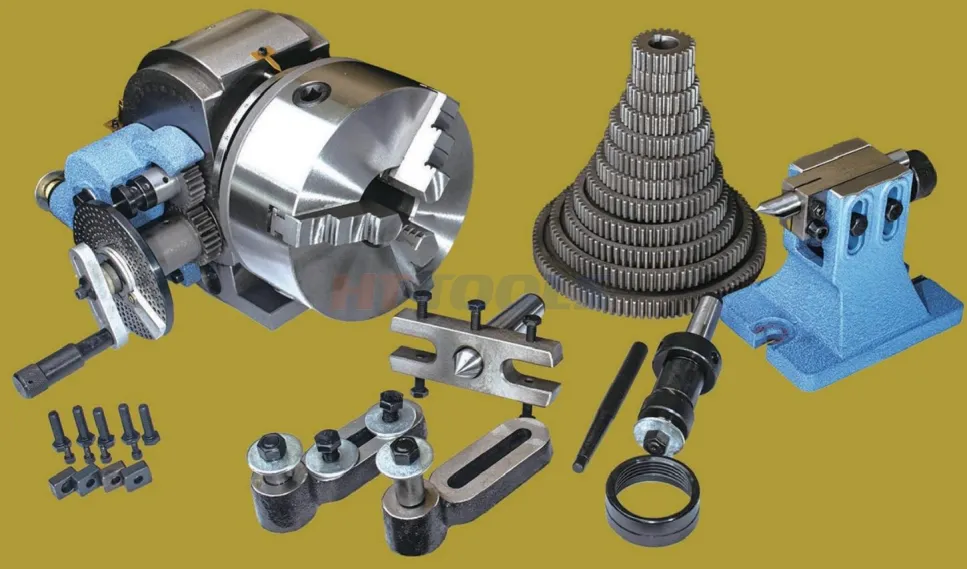

BS series semi-universal dividing head
