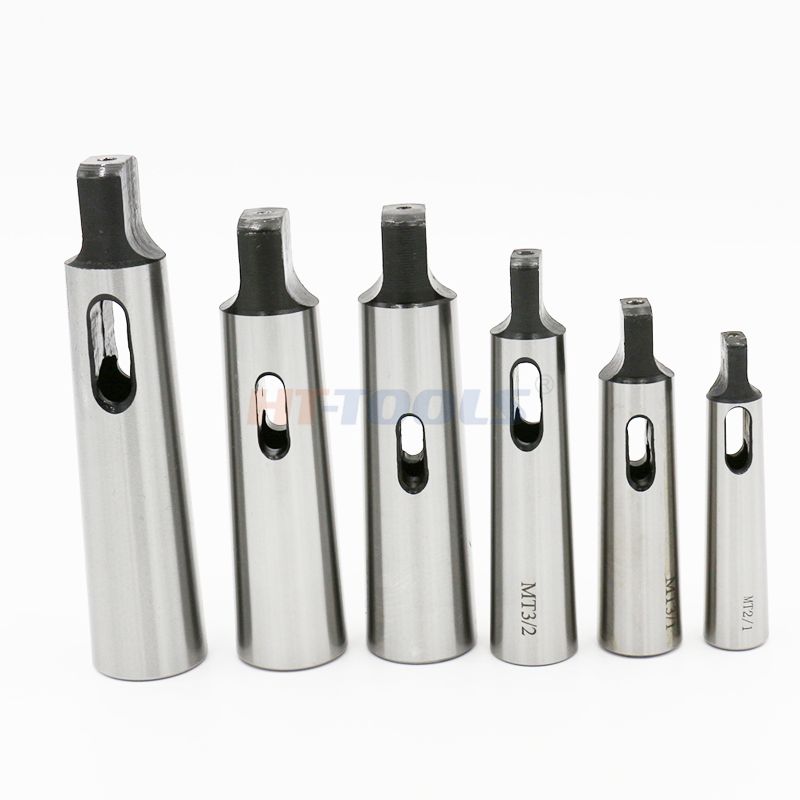

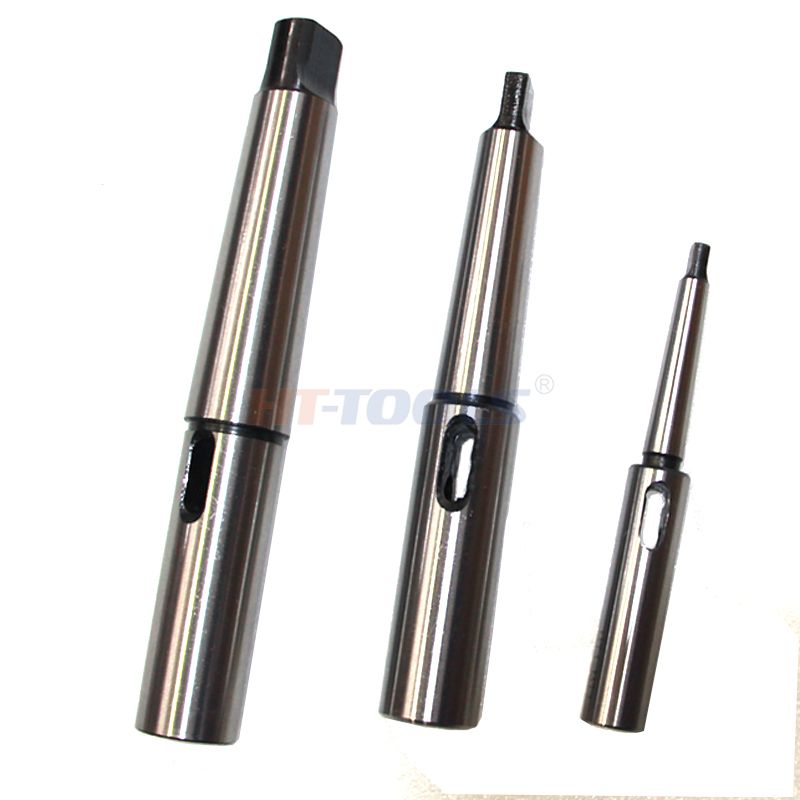

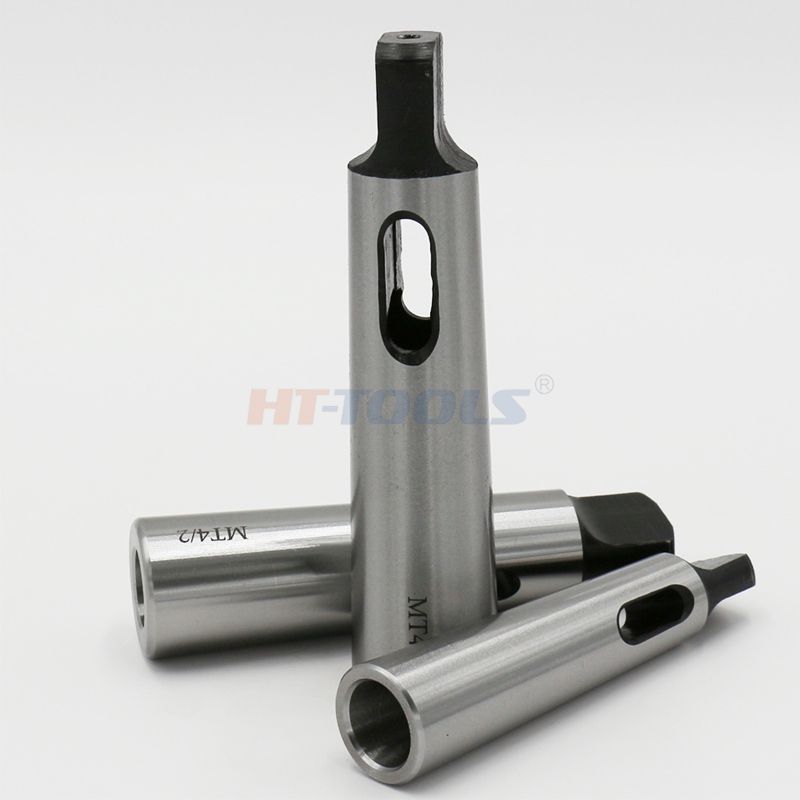

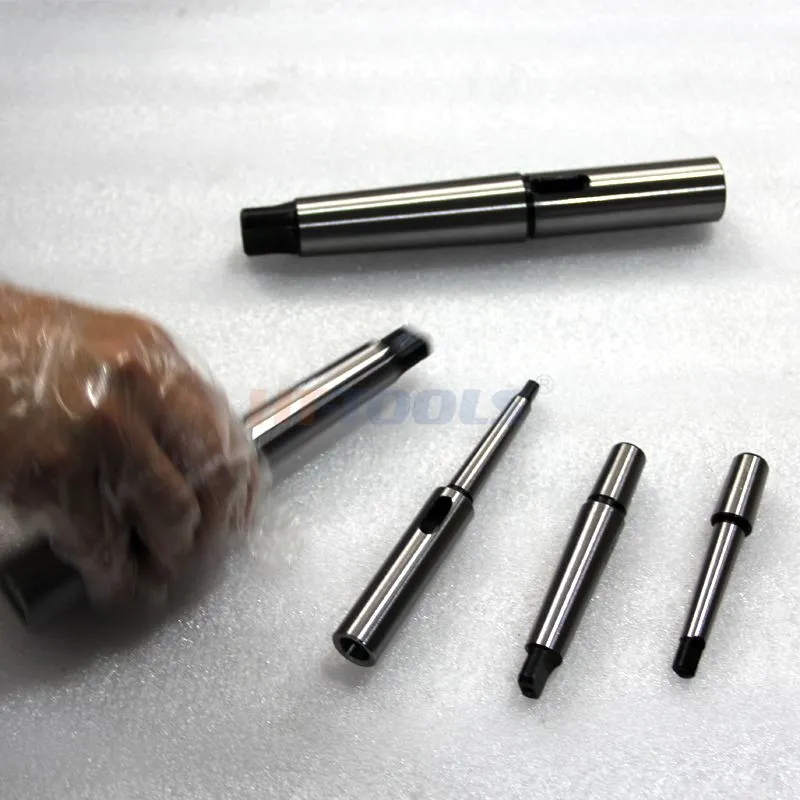

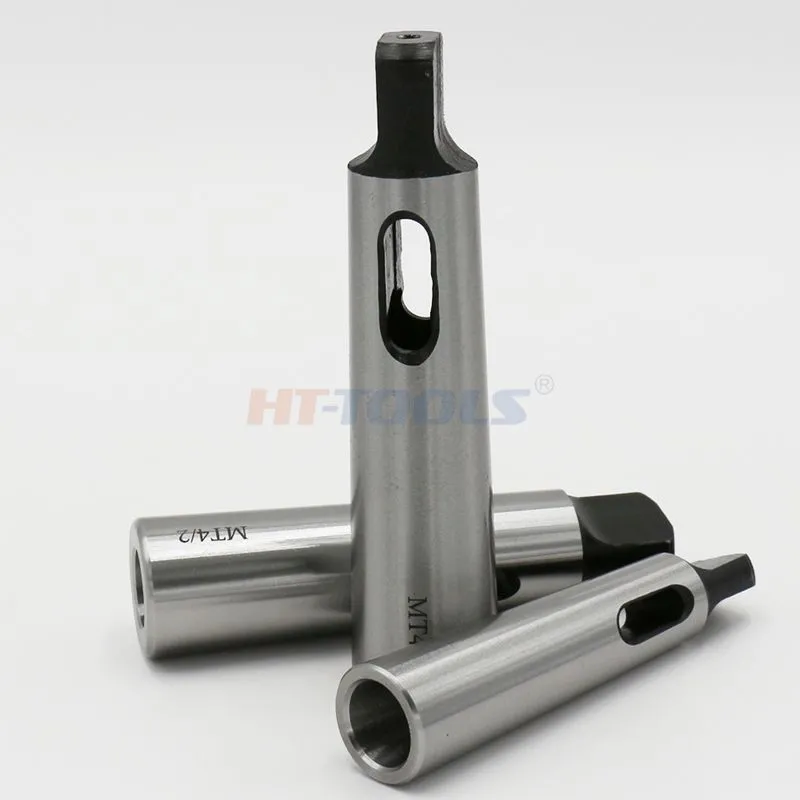

DIN 2187 is a German machine tool accessory standard that specifies the Mohs taper extension sleeve (extension variable diameter sleeve), used for extending/converting Mohs taper (MT1~MT5) of lathes, drilling machines, and milling machine spindles
| 订单号 Order No. | MS.NO.S | MS.NO.T | D(mm) | d(mm) | L(mm) | 重量Wt (kg) | 精度Accuracy(mm) |
| BL1-1 | 1 | 20 | 12.065 | 145 | 0.19 | 0.03 | |
| BL1-2 | 2 | 30 | 17.78 | 160 | 0.4 | ||
| BL1-3 | 3 | 36 | 23.825 | 181 | 0.4 | ||
| BL2-1 | 2 | 1 | 20 | 12.065 | 160 | 0.29 | |
| BL2-2 | 2 | 30 | 17.78 | 175 | 0.5 | ||
| BL2-3 | 3 | 36 | 23.825 | 196 | 0.6 | ||
| BL2-4 | 4 | 48 | 31.267 | 221 | 1.43 | ||
| BL3-1 | 3 | 1 | 20 | 12.065 | 175 | 0.41 | |
| BL3-2 | 2 | 30 | 17.78 | 194 | 0.62 | ||
| BL3-3 | 3 | 36 | 23.825 | 215 | 0.89 | ||
| BL3-3A | 4 | 40 | 23.825 | 215 | 1.1 | ||
| BL3-4 | 5 | 48 | 31.267 | 240 | 1.55 | ||
| BL3-5 | 6 | 63 | 44.399 | 275 | 2.8 | ||
| BL4-1 | 4 | 1 | 20 | 12.065 | 200 | 0.81 | |
| BL4-2 | 2 | 30 | 17.78 | 215 | 1 | ||
| BL4-3 | 3 | 36 | 23.825 | 240 | 1.27 | ||
| BL4-4 | 4 | 48 | 31.267 | 265 | 1.93 | ||
| BL4-5 | 5 | 63 | 44.399 | 300 | 3.18 | ||
| BL4-6 | 6 | 85 | 63.348 | 368 | 6.5 | 0.05 | |
| BL5-1 | 5 | 1 | 20 | 12.065 | 232 | 1.79 | 0.04 |
| BL5-2 | 2 | 30 | 17.78 | 247 | 2 | ||
| BL5-3 | 3 | 36 | 23.825 | 268 | 2.27 | ||
| BL5-4 | 4 | 248 | 31.267 | 300 | 2.93 | ||
| BL5-5 | 5 | 63 | 44.399 | 335 | 4.18 | ||
| BL5-6 | 6 | 85 | 63.348 | 403 | 6.7 | 0.05 | |
| BL6-1 | 6 | 1 | 20 | 12.065 | 294 | 4.4 | 0.04 |
| BL6-2 | 2 | 30 | 17.78 | 309 | 4.25 | ||
| BL6-3 | 3 | 36 | 23.825 | 330 | 4.52 | ||
| BL6-4 | 4 | 48 | 31.267 | 355 | 5.18 | ||
| BL6-5 | 5 | 63 | 44.399 | 390 | 6.43 |
Structural Description
Outer cone: installed in the spindle hole of the machine tool (MT #)
Inner cone: accommodates drill bit/tap/intermediate sleeve (MT #)
Side flat groove: retract the tool groove and use a wedge to remove the tool
Whole quenching+internal and external precision grinding, high-precision H-grade circular runout ≤ 0.02mm
Purpose:
1. Extend the clamping distance when the depth of the spindle taper hole is insufficient
2. The Mohs cones of different sizes rotate with each other, without the need to replace the spindle
3. Universal high-precision clamping for drilling machines, lathe tailstock, and milling cutter shank
Q1: What is DIN 2187?
A: DIN 2187 is a German machine tool accessory standard that specifies Morse taper extension sleeves, used for extending and converting Morse tapers.
Q2: What is the main purpose?
A: To extend and convert Morse tapers (MT1~MT5), allowing machine tool spindles to adapt to different Morse taper shank tools.
Q3: What equipment is it suitable for?
A: Lathes, drilling machines, milling machines.
Q4: What taper specifications are supported?
A: MT1~MT5.
Q5: What is the MOQ?
A: MOQ 1.
