Features:
The Universal dividing head(lndex Center)has been designed to carry out all typesof gear cutting.Precision dividing and spiral word with greater precision and efficiency than before:The center face canadjust from elevation 90 to depression 10,t suits for high standard inspection and test,In order to satisfied customers,theworm gear redio is designed for 1:40.
The body comes with a differential hanging wheel axle and matching exchange gears, supporting differential indexing and spiral groove milling, which is the standard BS universal indexing head with a heavy-duty 8-inch specification.

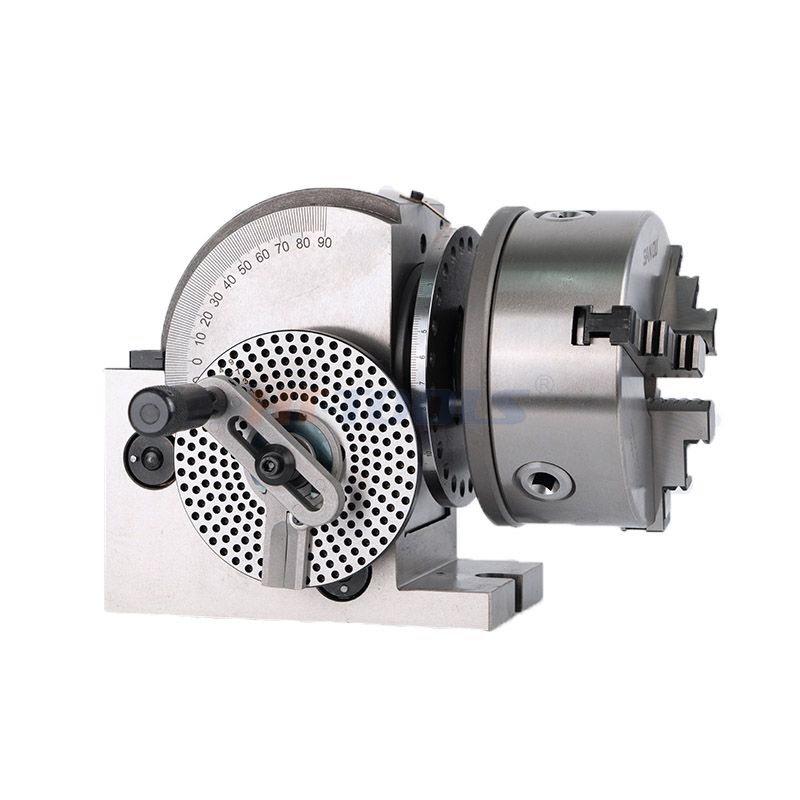

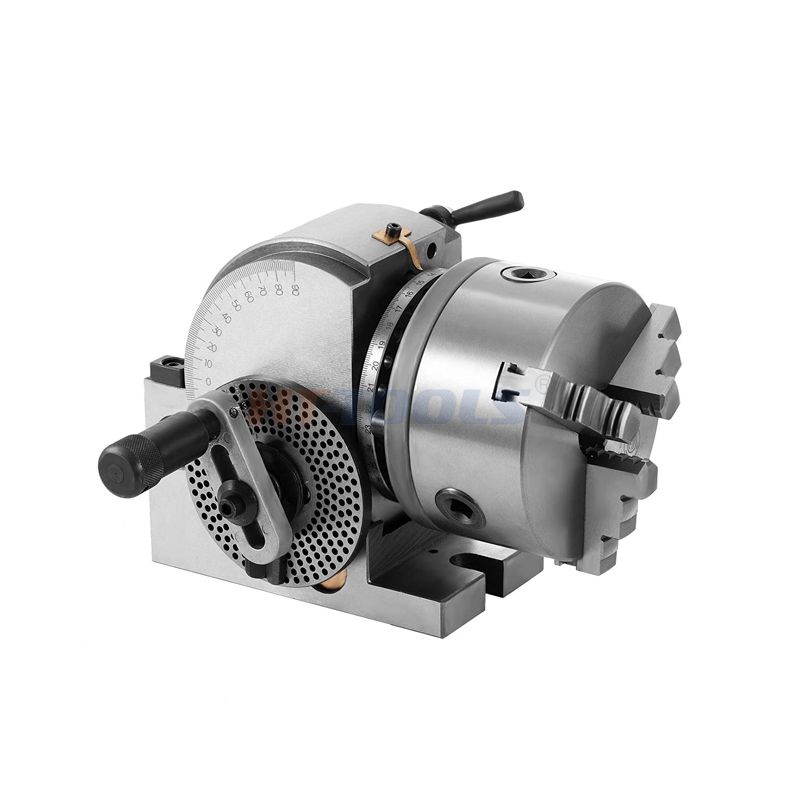

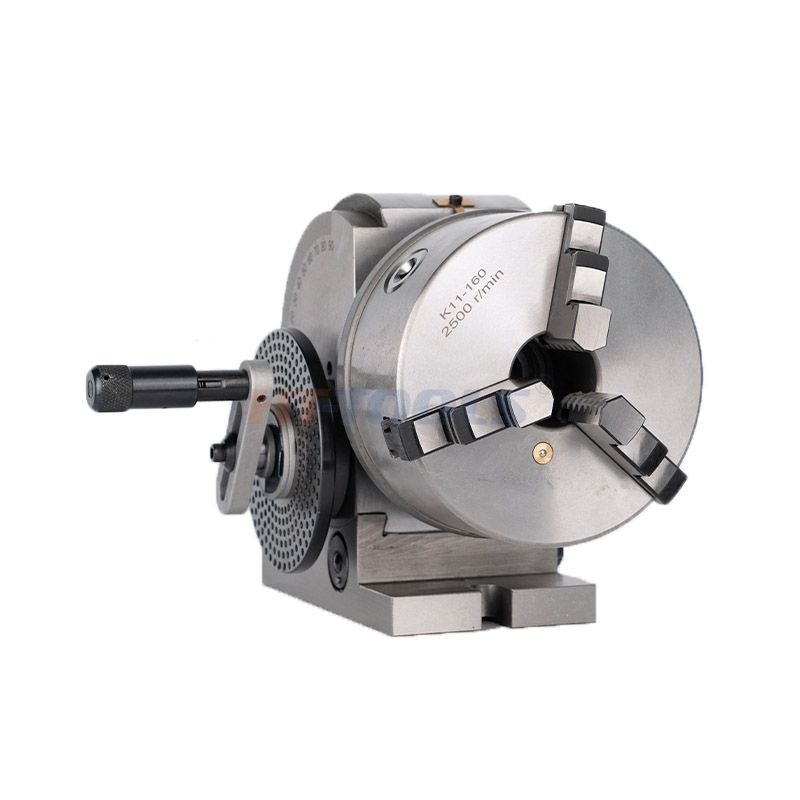

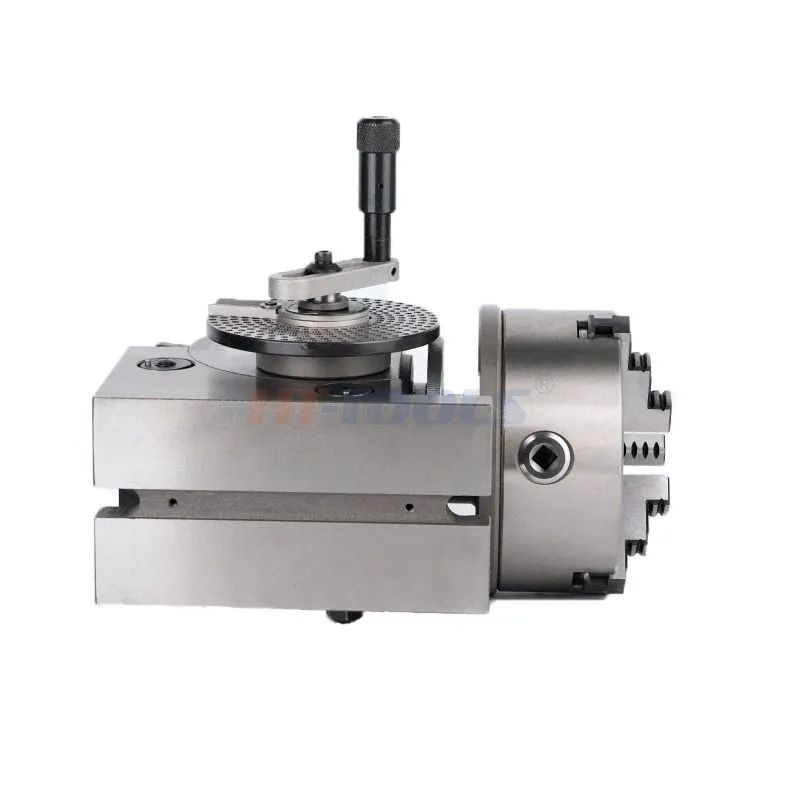

BS UNIVERSAL DIVIDING HEAD
UNIVERSAL INDEX CENTER B&S NO.2 (HEAD-STOCK)

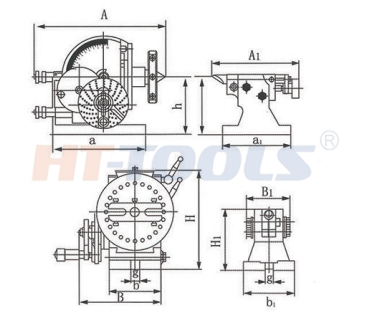

| Model | A | B | H | h | a | b | g | Work hole taper | N.W.(kg |
| BS-2 | 370 | 280 | 236 | 133 | 212 | 134 | 16 | Mt4 | 73 |
| 14.57 | 11.02 | 9.29 | 5.24 | 8.35 | 5.28 | 0.63 | B&S NO,10 |

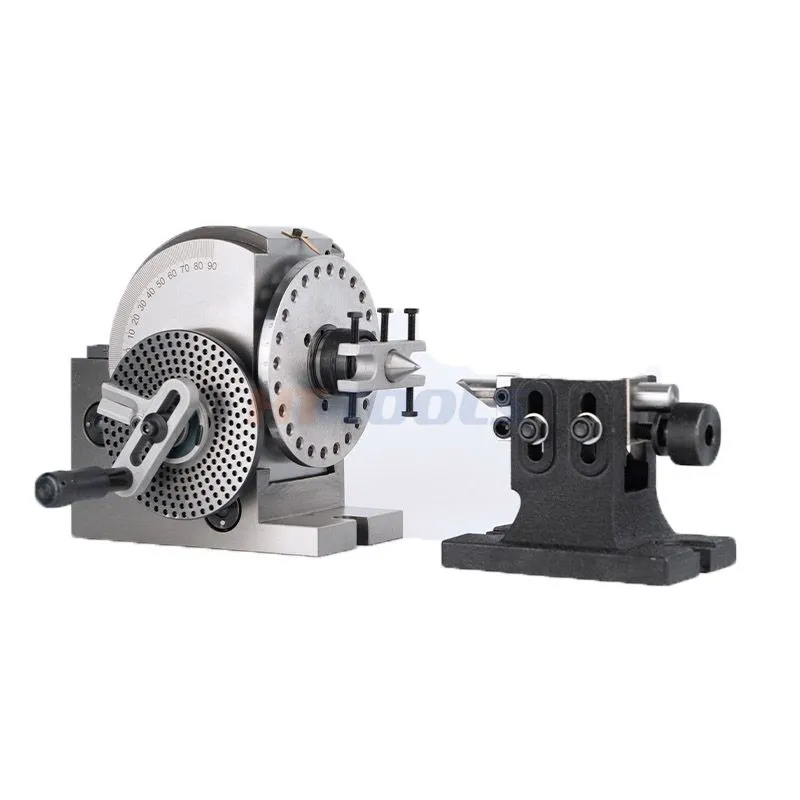

UNIVERSAL INDEX CENTER B&S NO.2,(TAIL-STOCK) Unit:mm/in Model A1 B1 H1 h1 a1 b1
| Model | A1 | B1 | H1 | h1 | a1 | b1 | g1 | N.W.(kg) | Mueasrement m³ |
| BS/2 | 183 | 87 | 156 | 133 | 175 | 122 | 16 | Packed with the Dviding Head | |
| 7.2 | 3.42 | 6.14 | 5.24 | 6.89 | 4.8 | 0.63 | |||
| Model | A1 | B1 | H1 | h1 | a1 | b1 | g1 | N.W.(kg) | Mueasrement m³ |
| BS/2 | 183 | 87 | 156 | 133 | 175 | 122 | 16 | Packed with the Dviding Head | |
| 7.2 | 3.42 | 6.14 | 5.24 | 6.89 | 4.8 | 0.63 | |||
| Model | A1 | B1 | H1 | h1 | a1 | b1 | g1 | N.W.(kg) | Mueasrement m³ |
| BS/2 | 183 | 87 | 156 | 133 | 175 | 122 | 16 | Packed with the Dviding Head | |
| 7.2 | 3.42 | 6.14 | 5.24 | 6.89 | 4.8 | 0.63 | |||
STANDARD ACCESSORIES
Dividing plate A.B.C.
Numbers of holes of dividing plate
(worm gear reduction ratio 1:40)
| Numbers of hole | PlateA | 15 | 16 | 17 | 18 | 19 | 20 |
| PlateB | 21 | 23 | 27 | 29 | 31 | 33 | |
| PlateC | 23 | 39 | 41 | 43 | 47 | 49 |
BS-2 (8-inch, heavy-duty, nearly universal)
Center height: 235mm
Spindle taper: MT4
Spindle through-hole: 25mm in diameter
Standard chuck: 200mm (8 inches)
Net weight: 65kg+
Features: Optional hanging wheel, few can be easily spiral machined, special for heavy-duty workpieces

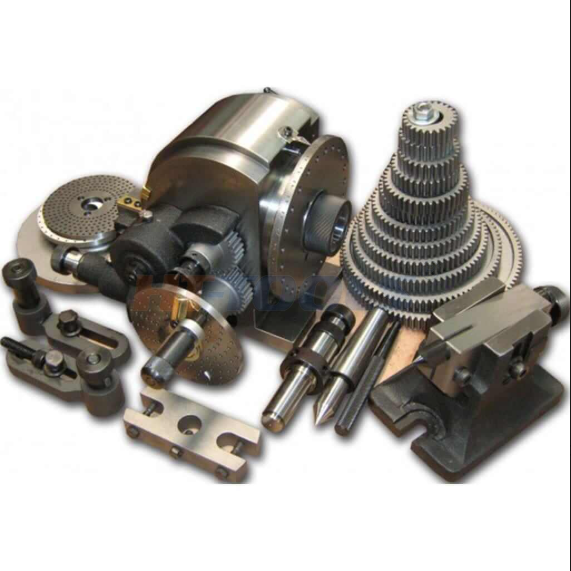

BS-2 indexing head host (with differential hanging axle)
8-inch three jaw self centering chuck
Adjustable activity tailstock, top MT4
3 indexing plates (A/B/C three sets of hole rings)
Complete differential exchange gear set
Dividing handle, positioning pin, T-bolt pressure plate, wrench, plug
