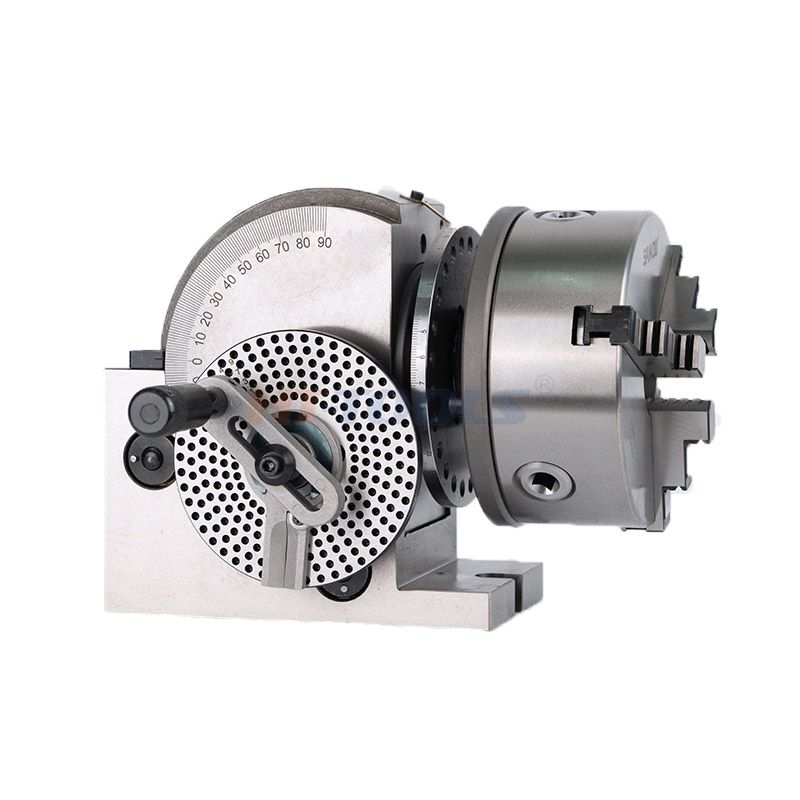

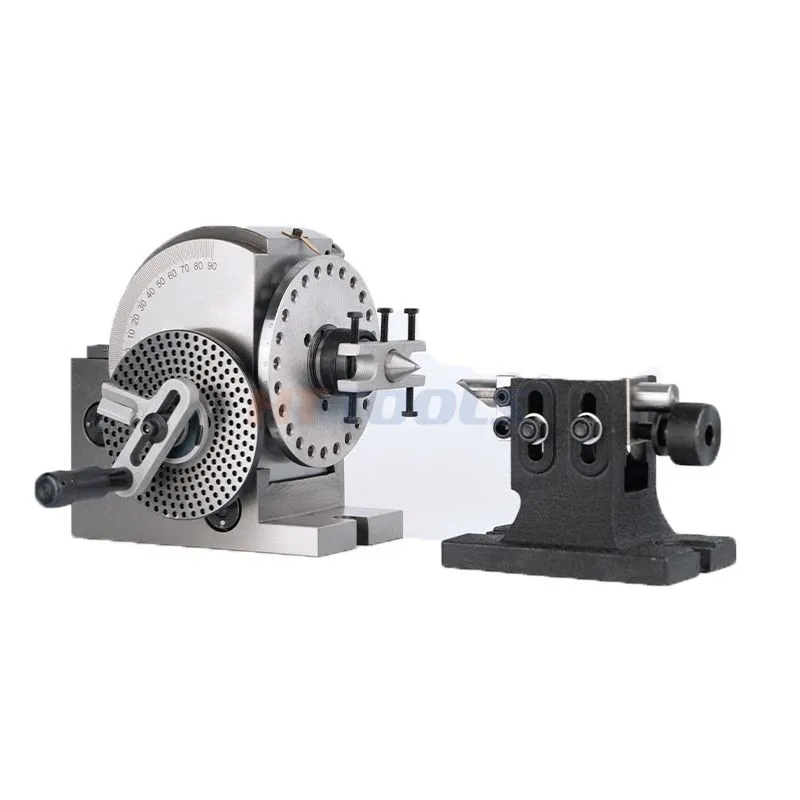

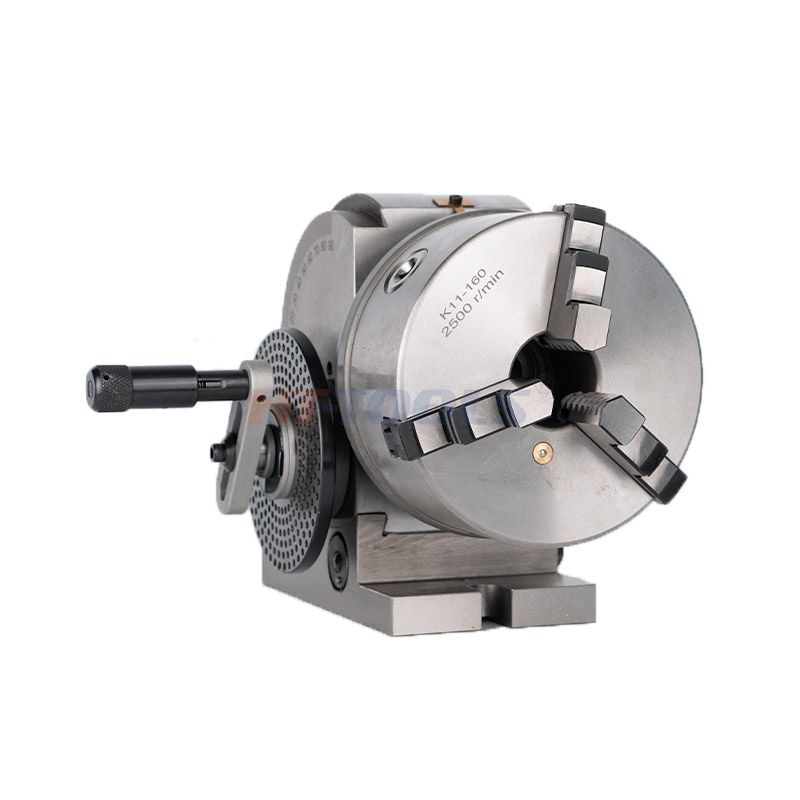

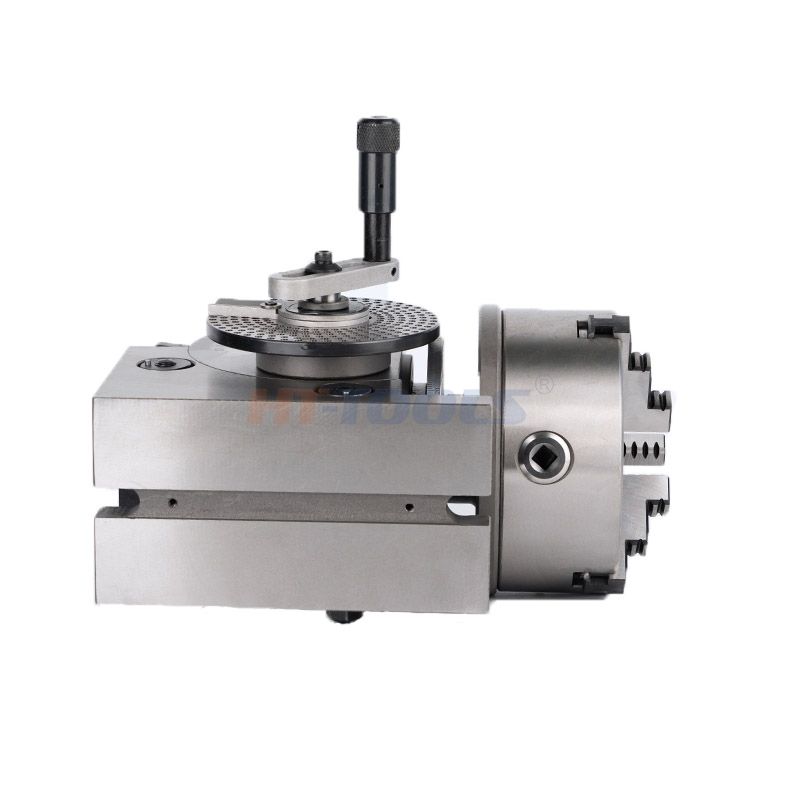

BS series semi-universal dividing head

Features:

Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect

dividing.Complete the gear,face,flute processing and no need accessories,but the whole canstruction is thesame as universal type The 24 quick-dividing holes can complete 2.3.46,8,12,24 division indexding.Attaches3dividing plate along with the dividing head indirect dividing in any division indexding 2-50.51-380.

Next Product Inquire Now

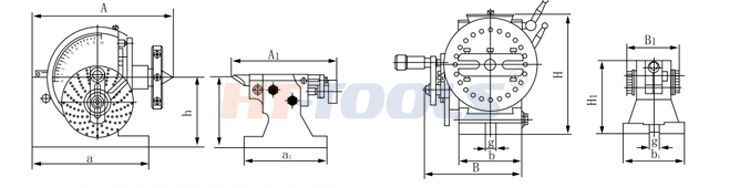

Model	A	B	H	h	a	b	g	Taper of center	Diameter of Spindle hole	N.W.(kg
BS-0	193	140	173	100	166	90	16	Mt2	18	22
BS-0	7.59	5.51	6.81	3.93	6.53	3.54	0.63	B&S NO.7	18	22
BS-1	242	180	220	128	206	113	16	Mt3	20	35.8
BS-1	9.52	6.61	8.66	5.04	8.11	4.45	0.63	B&S NO.9	20	35.8

STANDARD ACCESSORIES

Dividing plate A.B.C.

Numbers of holes of dividing plate

(worm gear reduction ratio 1:40)

OPTIONAL ACCESSORY

3-jaw Chuck

4"or5"3-jaw Chuck for BS-0

5"or6"or8*3-jaw Chuck for BS-1

6"or8"3-jaw Chuck for BS-2

SEMI-UNVERSAL INDEX CENTER B&S TYPE NO.0,NO.1(HEAD-STOCK)

Numbers of hole	PlateA	15	16	17	18	19	20
	PlateB	21	23	27	29	31	33
	PlateC	37	39	41	43	47	49

Model	A1	B1	H1	h	a1	b1	91	N.W.(kg)	Mueasurement m3
BS-0	180	78	107	100	130	92	16	Packed with the Dividing Head
BS-0	6.89	3.42	4.21	3.93	3.93	3.62	0.63	Packed with the Dividing Head
BS-1	183	87	128	128	175	124	16	Packed with the Dividing Head
BS-1	7.20	3.42	5.39	5.04	5.04	4.33	0.63	Packed with the Dividing Head
