Home - Products-Other Machine Tool Series-Boring Head Set NBH2084 BT40 BT50 Universal Boring Head With BT40 BT50Tool Holder

Boring Head Set NBH2084 BT40 BT50 Universal Boring Head With BT40 BT50Tool Holder

Products Name:	NBH2084 Micro Boring Heads set
Model Numbers:	BT40-NBH2084-8pcs
Brand	OLICNC (support OEM, ODM)
Precision	0.005mm
Boring range:	8-280 mm

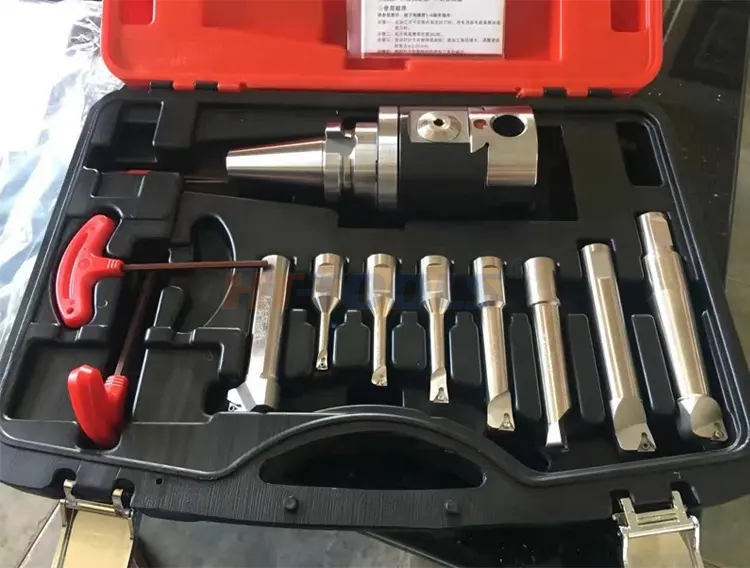

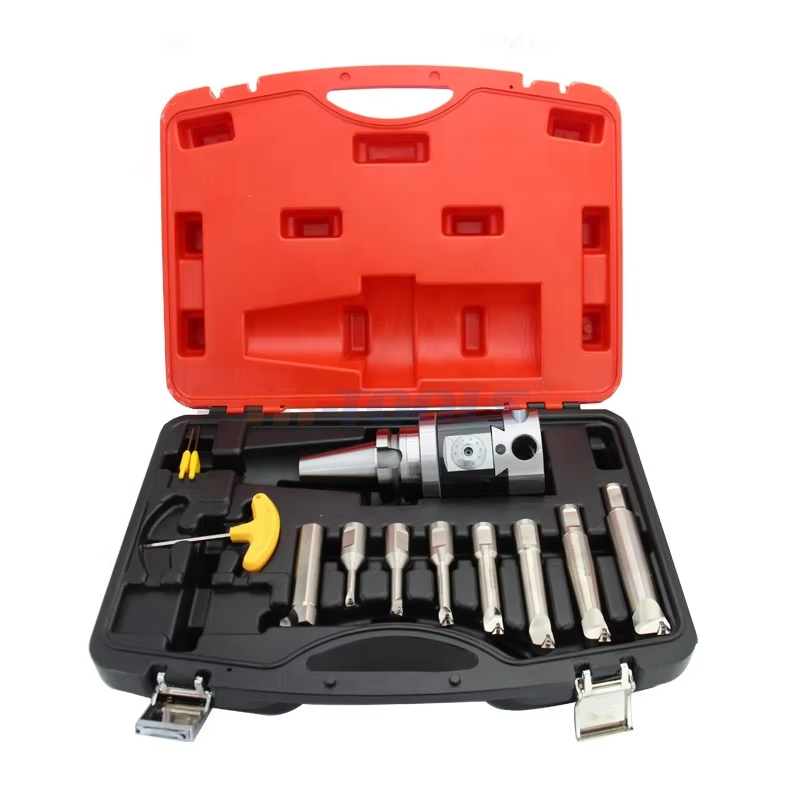

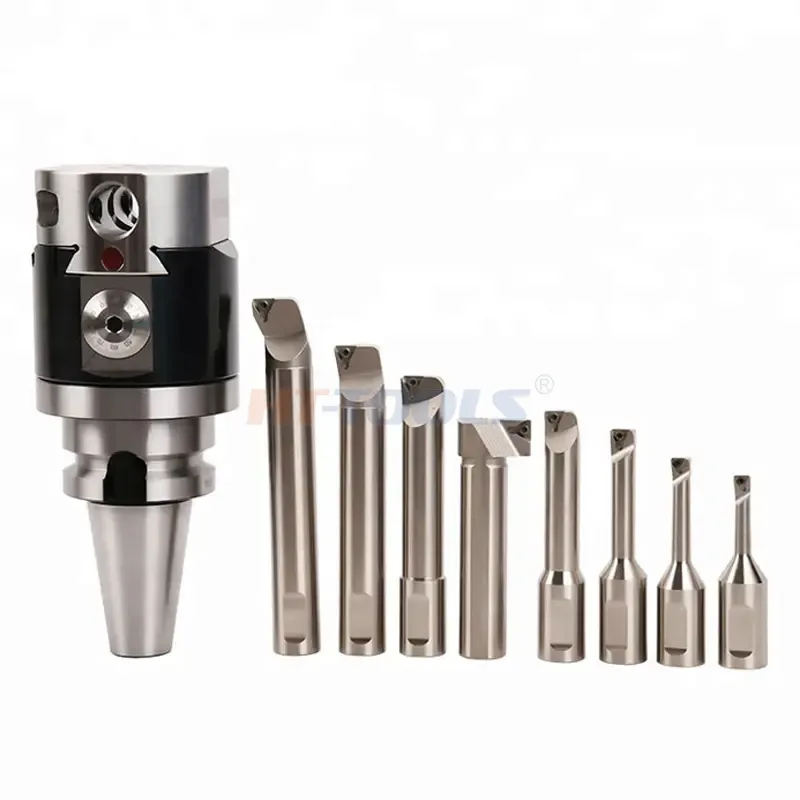

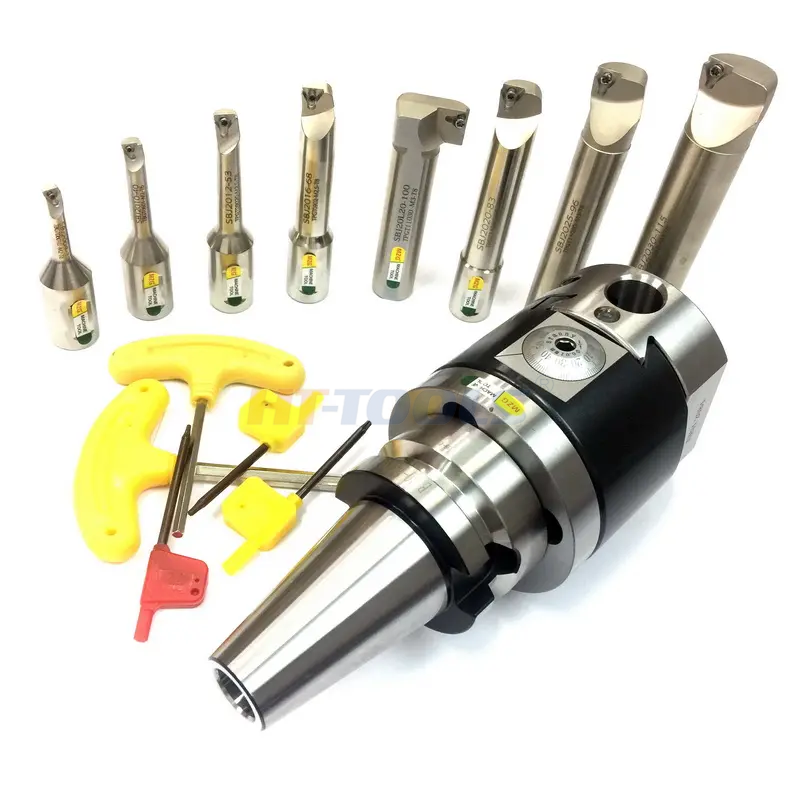

Set including:	one Boring head: NBH2084 one holder: BT40-NBH2084 one set cutter: NBJ20-8pcs 4 pcs spanners

Inquire Now

Model	Boring range (mm)	Spinde models	Items	Weight (kg)
BT40-NBH2084-8pcs	8-280	MAS403-BT40-NBH2084	1. One boring adapter NBH2084. 2.One micro boring head NBH2084 3.Eight micro boring bars 4.Six wren ches	9.5
BT50-NBH2084-8pcs	8-280	MAS403-BT50-NBH2084		12
NT30-NBH2084-8pcs	8-280	DIN2080 IS030-NBH2084		8
BT40-NBH2084-8pcs	8-280	MAS403-BT40-NBH2084		9.5
BT50-NBH2084-8pcs	8-280	MAS403-BT50-NBH2084		10.8
R8-NBH2084-8pcs	8-280	R8-7/16-20UNF-NBH2084		10
SK40-NBH2084-8pcs	8-280	DIN69871A-IS040-NBH2084		9.5
SK50-NBH2084-8pcs	8-280	DIN69871A-IS050-NBH2084		12
MT4-NBH2084-8pcs	8-280	DIN228A-MT4-NBH2084		8.5
MT5-NBH2084-8pcs	8-280	DIN228A-MT5-NBH2084		9

FAQ:

Q1: What is NBH2084 micro boring head set?

NBH2084 is a high-precision adjustable micro fine boring head set for CNC machines. It supports precise manual micro-adjustment, widely used for accurate hole finishing, dimension correction and ultra-precision inner hole machining in metalworking.

Q2: What is the boring range and adjustment precision?

This boring set covers a wide machining range from 8mm to 280mm. The fine-tuning graduation reaches 0.01mm per grid, with final machining accuracy up to 0.005mm, ensuring ultra-low tolerance for precision hole finishing.

Q3: What are the key advantages of NBH2084 boring head set?

It features ultra-high positioning precision, stable rigid structure and smooth micro-adjustment. Made of high-hardness alloy steel with HRC 56-60 hardness, it resists wear and deformation, delivering consistent accuracy for long-term mass precision machining.

Q4: What machine holders is it compatible with?

Universally compatible with mainstream tool holders including BT30, BT40, BT50, NT and HSK series. Fits most CNC milling machines, machining centers and boring machines for versatile industrial processing scenarios.

Q5: What is included in the standard set?

Standard packages include 8pcs/9pcs complete boring tool kits with matched boring bars and inserts. The full set covers different aperture requirements, ready for direct installation and use without extra accessories.

Q6: What applications is NBH2084 suitable for?

Ideal for precision mold holes, automotive parts, aerospace components and hydraulic part finishing. Perfect for small-batch high-precision boring and mass production with strict dimensional tolerance requirements.

Q7: How to maintain the boring head set?

Keep adjustment threads and tool mounting surfaces clean and chip-free. Avoid overload cutting and violent impact. Lubricate movable parts regularly and store dry to maintain long-term adjustment accuracy and smooth operation.

Q8: What is your warranty and delivery service?

We offer 12-month quality warranty and 24-hour online technical support. Products adopt shockproof and anti-rust box packaging, supporting global sea, air and express delivery for bulk orders.
