Design:Basic body and tool holder are made of high-quality steel which is hardened and ground
The tool holder is clamped against the basic body by an eccentric bolt.The system allows a repeat
accuracy of 0.01mm with 40 possible angular positions of the tool holder.This accuracy is even guaranteed after numerous tool changes.

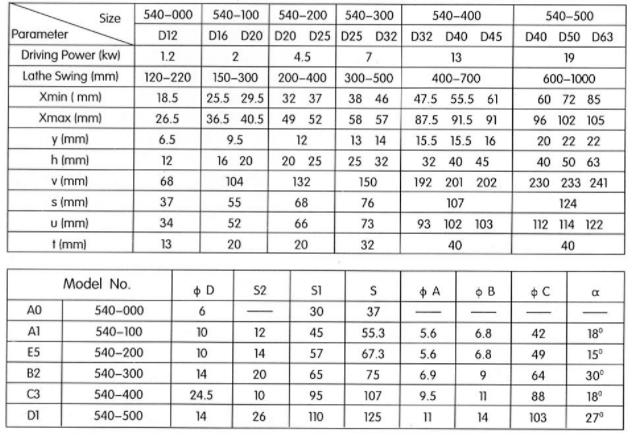

The basic sizes,type A to D suit the various ranges of Lathe
Application: Quick-change tool holders are characterized
by their unlimited diversity in the use of lathe tools,
drills,reamers and boring bars.
Product Detail
Suitable for manual bench lathes & engine lathes (Multifix AA/A/E/B/C series)
Lathe swing range: 120~750mm, fit European type lathes and many domestic ordinary lathes
Machining operations: turning, facing, threading, grooving, parting-off, boring, knurling
Process materials: carbon steel, stainless steel, aluminum, brass, copper, plastic
Applicable workshop: tool room, small batch production, prototype machining, maintenance workshop, teaching & hobby use

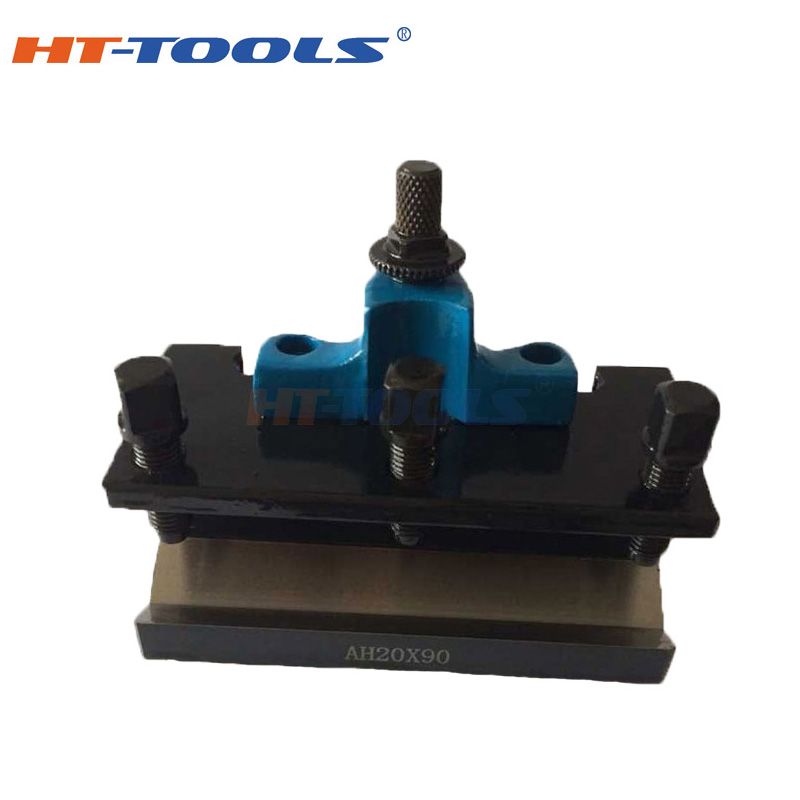

Compatible holders: turning holder, boring holder, parting holder, knurling holder, drill holder
FAQ

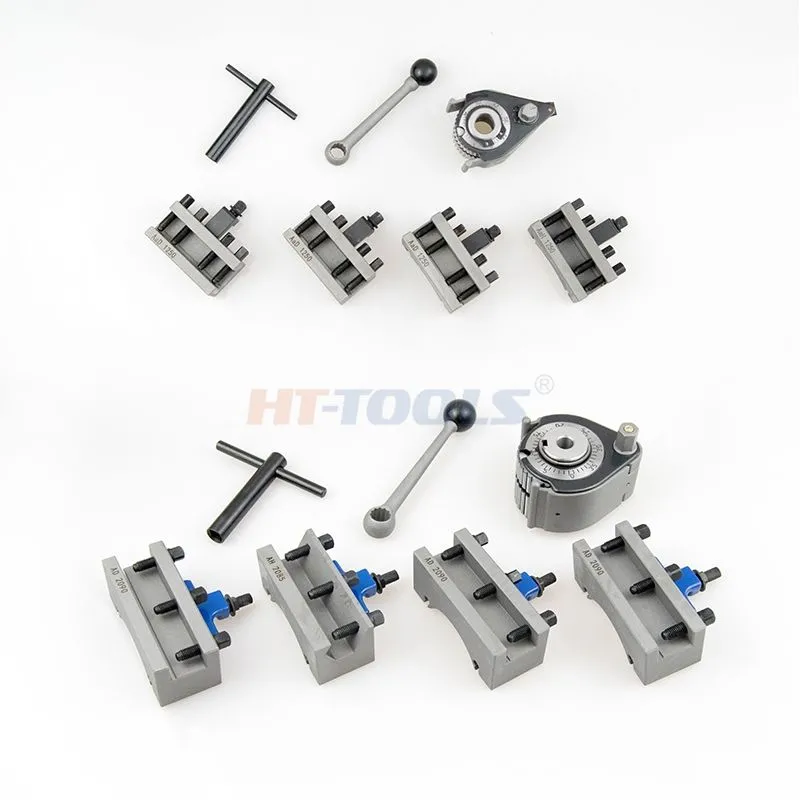

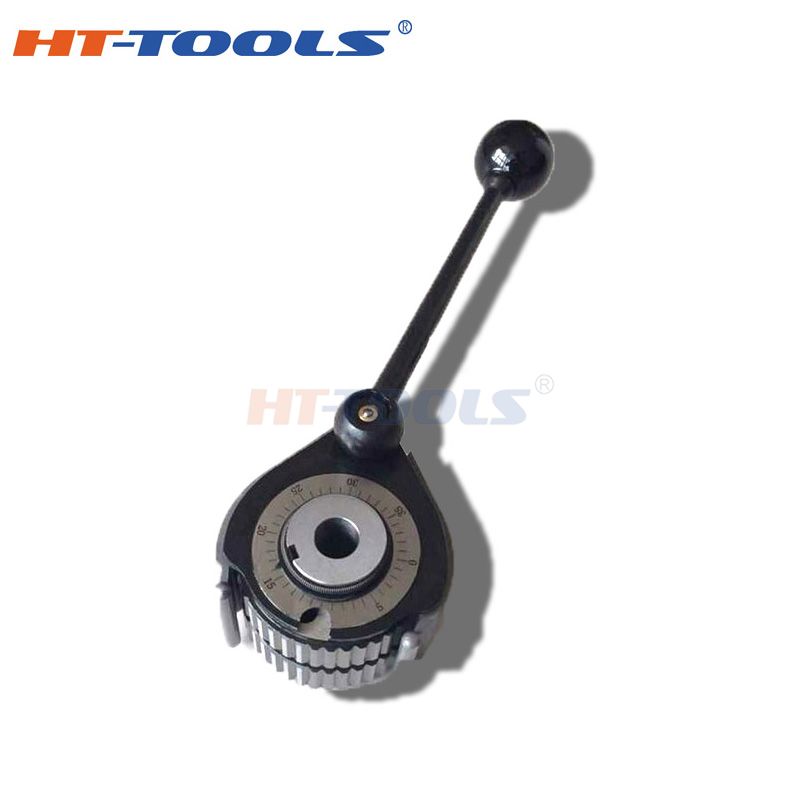

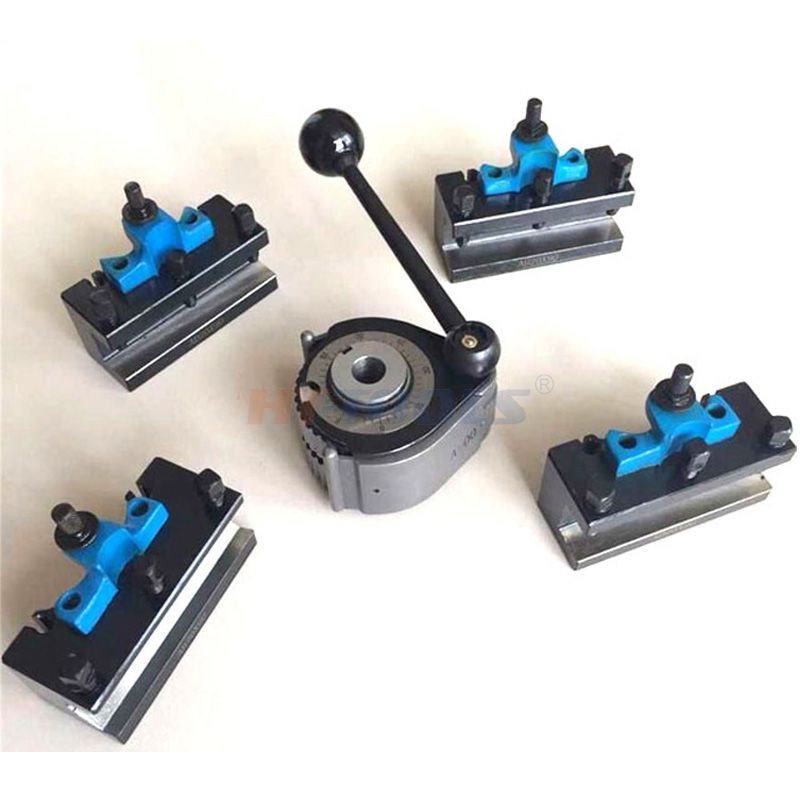

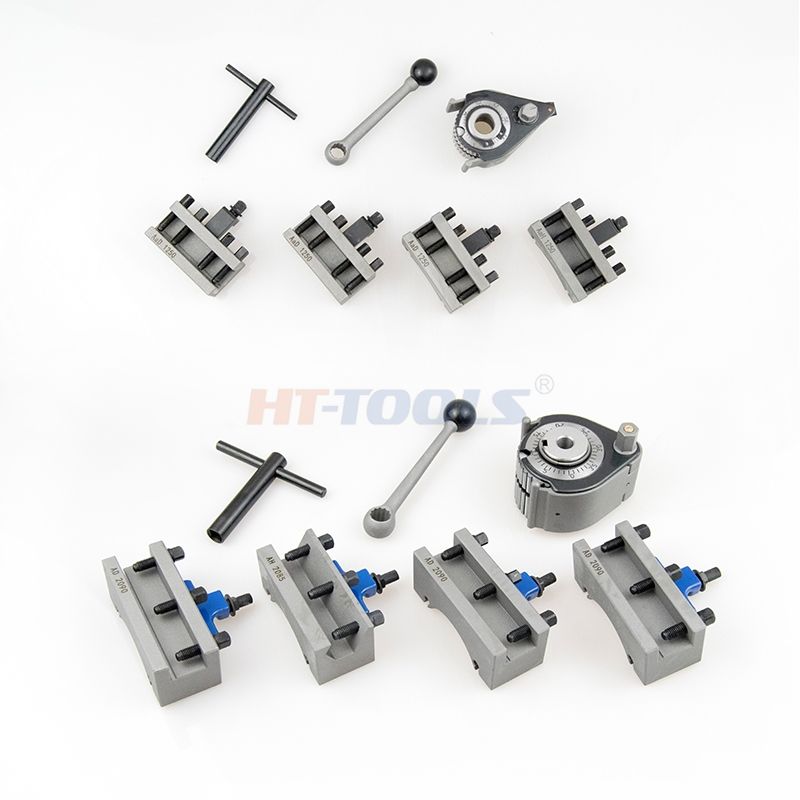

A: Multifix serrated QCTP with 40-tooth index plate. The main body can be locked every 9° in 360°. Consists of body + interchangeable holders. Tools can be preset offline, only swap holders for tool change. For conventional lathe retrofit. Models: A0, A1, B2, C3, D1, E5.
A: Built-in 40 serrated teeth, lock every 9°, freely adjust tool angle for taper or angular groove without shimming.
A: Precision grade ≤0.002~0.003mm. Keep serrated surface free of chips.
A: Interchangeable for same model: turning holder, boring holder, parting holder, threading holder.
A: Chips on serrations, chipped teeth, incomplete locking, incorrect tip height. Clean teeth, inspect damage and recalibrate tip.
A: Retrofit for conventional lathes, small batch multi-product turning, frequent tool changes, taper & angular thread machining. 4-way turret recommended for mass single-part production.
