1.Using ultra-fine grain alloy bars for processing carbon steel, tool steel, die steel, alloy steel, cast iron
2. Suitable for processing materials within HRC65
3. Suitable for high speed machining in dry or wet cutting conditions

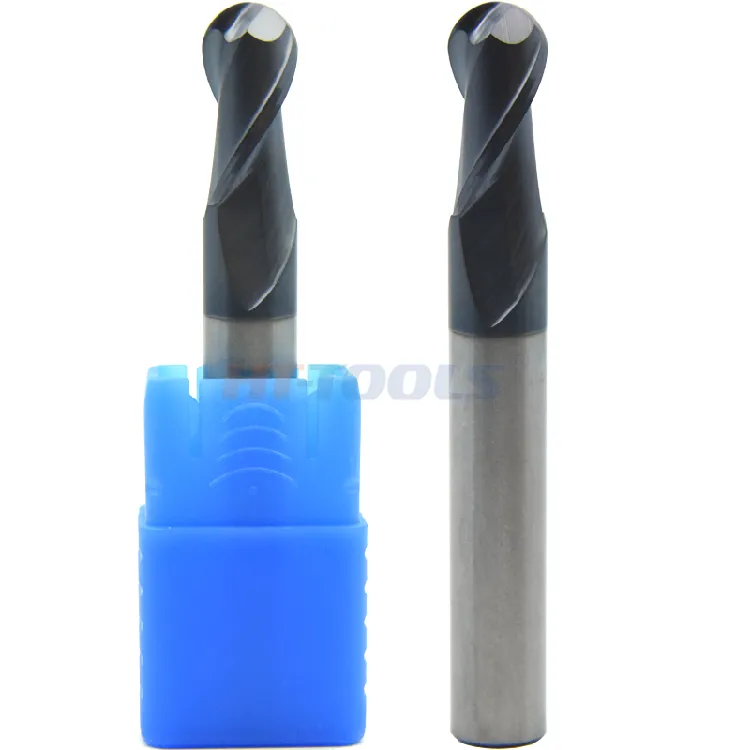

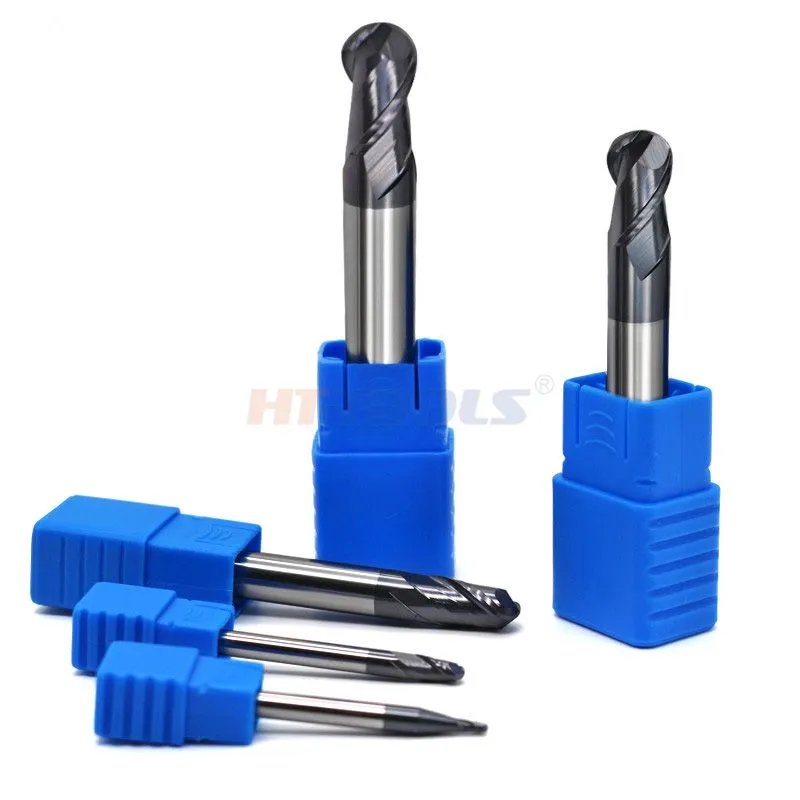

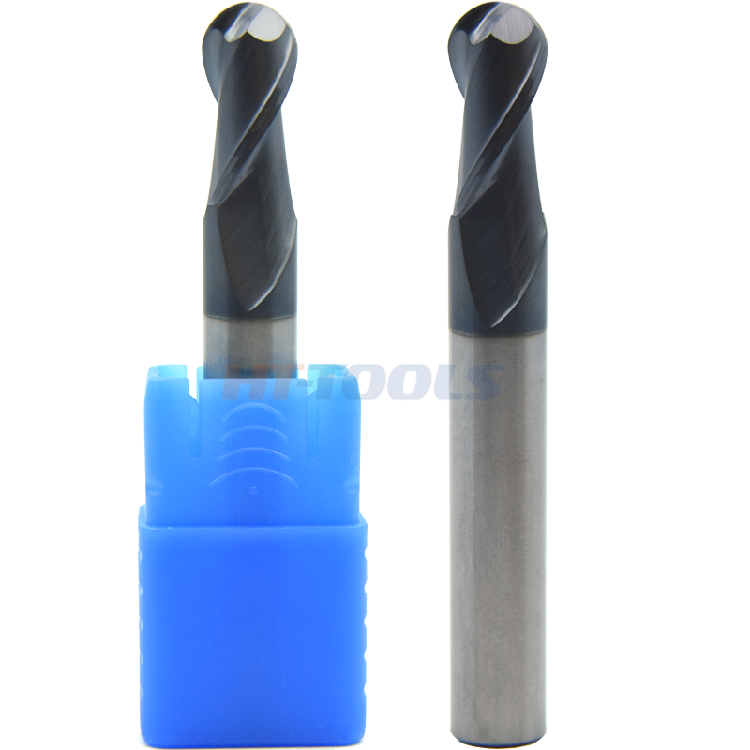

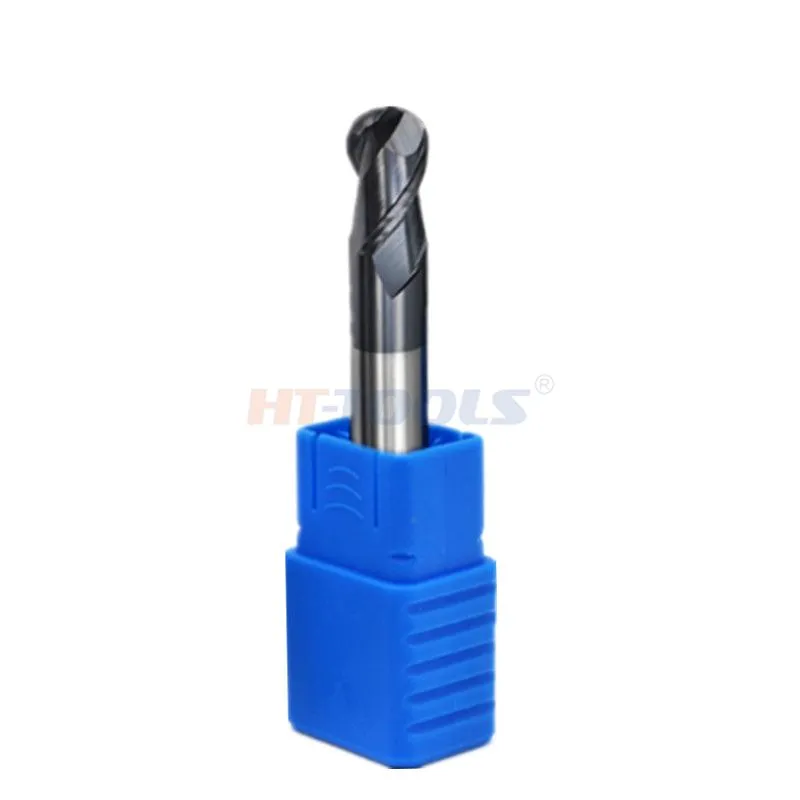

2 flute ball end mill

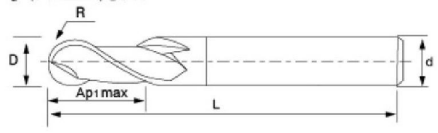

产品编号 ltem Code | 刃 径 (D) | 柄 径 (d) | 刃 长 (Ap1 max) | 全 长 (L) | |||
| 65R-04D0010 | R0.5 | 4 | 2 | 50 | |||
| 65R-04D0015 | R0.75 | 4 | 3 | 50 | |||
| 65R-04D0020 | R1 | 4 | 4 | 50 | |||
| 65R-04D0025 | R1.25 | 4 | 5 | 50 | |||
| 65R-03D0030 | R1.5 | 3 | 6 | 50 | |||
| 65R-04D0030 | R1.5 | 4 | 6 | 50 | |||
| 65R-04D0040 | R2 | 4 | 8 | 50 | |||
| 65R-06D0010 | R0.5 | 6 | 2 | 50 | |||
| 65R-06D0015 | R0.75 | 6 | 3 | 50 | |||
| 65R-06D0020 | R1 | 6 | 4 | 50 | |||
| 65R-06D0025 | R1.25 | 6 | 5 | 50 | |||
| 65R-06D0030 | R1.5 | 6 | 6 | 50 | |||
| 65R-06D0040 | R2 | 6 | 8 | 50 | |||
| 65R-05D0050 | R2.5 | 5 | 10 | 50 | |||
| 65R-06D0050 | R2.5 | 6 | 10 | 50 | |||
| 65R-06D0060 | R3 | 6 | 12 | 50 | |||
| 65R-08D0080 | R4 | 8 | 16 | 60 | |||
| 65R-10D0100 | R5 | 10 | 20 | 75 | |||
| 65R-12D0120 | R6 | 12 | 25 | 75 | |||
| 65R-16D0160 | R8 | 16 | 30 | 100 | |||
| 65R-20D0200 | R10 | 20 | 30 | 100 | |||
Made of solid tungsten carbide, superior wear resistance, longer tool life than HSS cutters
Excellent hot hardness, maintains hardness under high cutting temperature, supports high-speed machining
High rigidity, minimal deflection, stable precision & good surface finish
Optional TiAlN / TiN / DLC coating, reduces friction and prevents built-up edge
Wide material compatibility: carbon steel, stainless steel, mold steel, titanium alloy, aluminum
Precision ground cutting edges, optimized flute design for smooth chip removal & less chatter

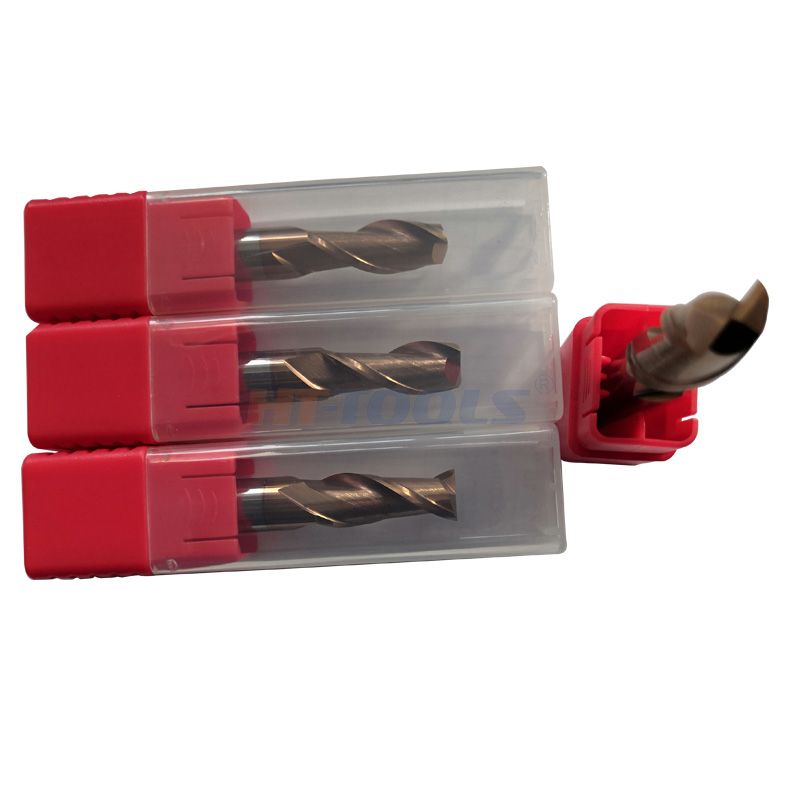

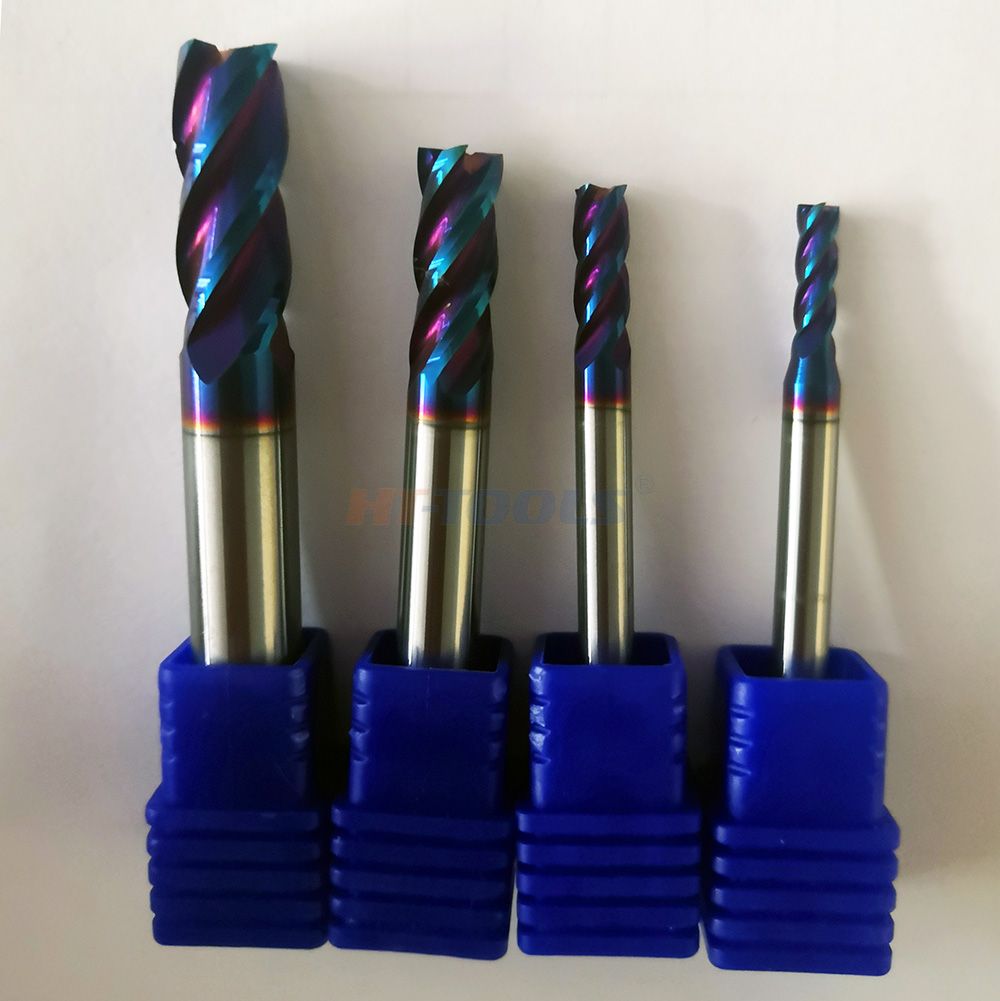

Multiple styles available: 2-flute, 4-flute, long shank, bull nose, ball nose end mills
Reduced tool changes for mass production, improves machining efficiency
Q1: What material is the carbide end mill? A1: Tungsten carbide (WC-Co).
Q2: What coating options are available? A2: TiAlN, TiN and DLC coating for different materials.
Q3: What metals can it machine? A3: Carbon steel, stainless steel, mold steel, aluminum, titanium alloy.
Q4: Can it run high-speed machining? A4: Yes, excellent hot hardness for high-speed cutting.
Q5: Flute options? A5: 2-flute, 4-flute, ball nose, bull nose & extended shank types.
